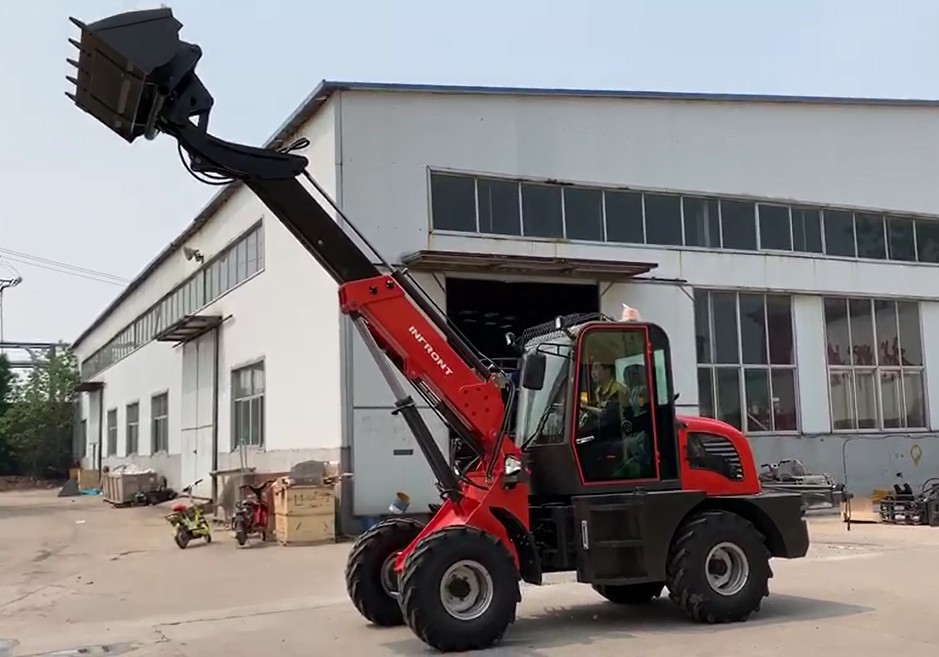

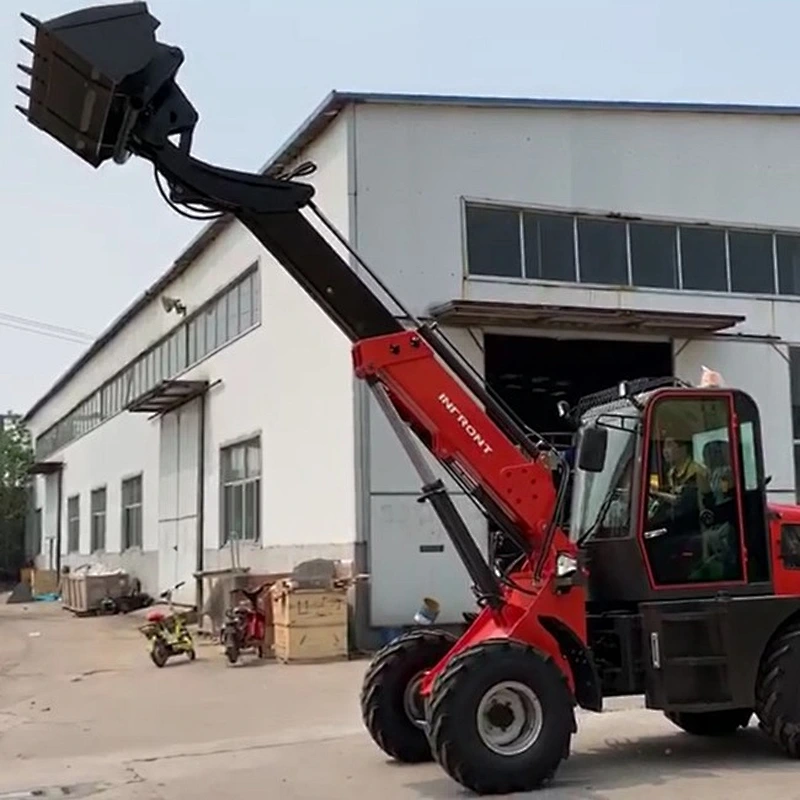

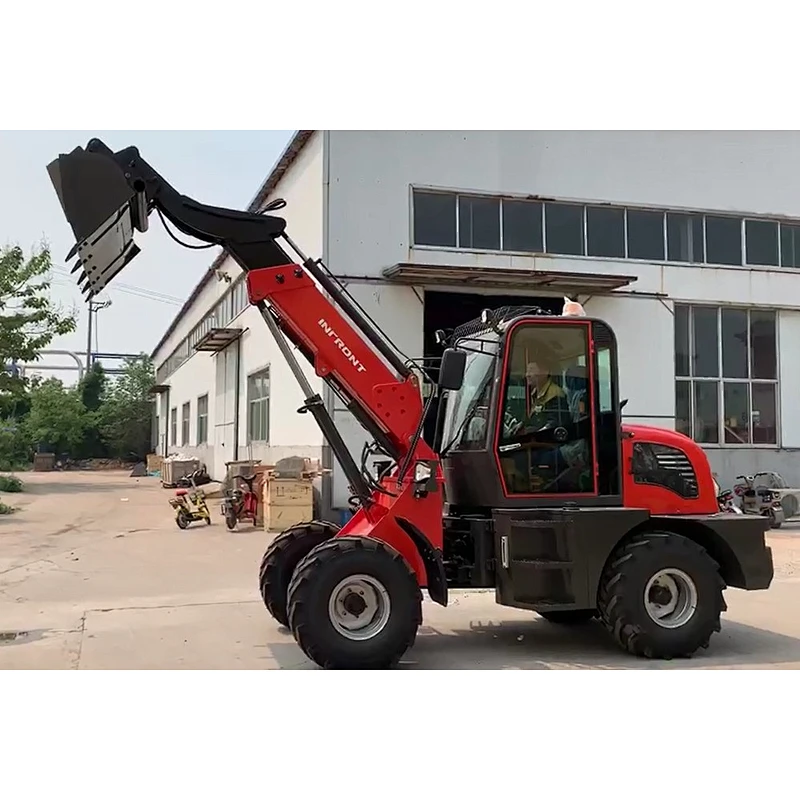

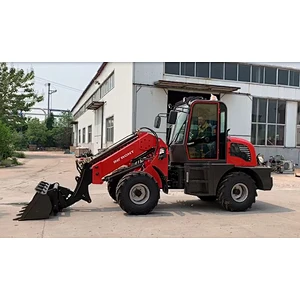

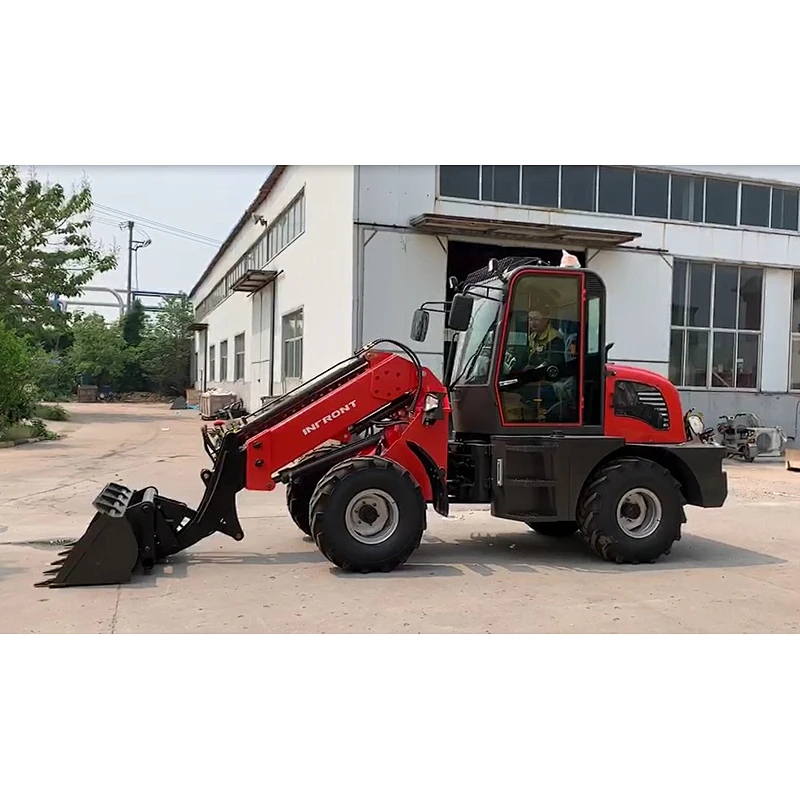

1.2 ton mini telescopic boom shovel loader price YFL1200

MAIN PERFORMANCE PARAMETRES

1.0 Engine Details

(1) Model: Chinese YUNNEIengine

(2) Engine type:In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power:37KW

(4)OptionalBrand:XINCHAI Euro3/EPA engine or EPA3/EPA4 YANMAR engine or EPA4 KOHLER engine or EPA4 CUMMINS engine

2.0 Transmission System

Hydraulic converter + drive shaft + 50axles

3.0 Bucket

(1) Bucket Capacity:0.5 m³

(2)Max. Load:1200kg

(3) Bucket type:Heavy-duty bolt on teeth

4.0 Overall Dimensions

(1) Overall Length: 4900mm

(2) Overall Height: 2700mm

(3) Overall Width: 1600mm

(4) Max. lifting Height: 4500mm

(5)Max.Bucket hinge pin Height: 4000mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Driving System: Hydraulic converter, four wheel drive

(3)OptionalVOLVO style quickrelease

(4) Mechanical pilot joystick

(5) Steady rise.

6.0 Brake System

(1) Service Brake:Four wheelexpanding shoe drum brake

(2) Parking Brake:Hand operated

7.0 Tyre

1. Model: 20.5-16
2. Optional Model: 12-16.5 tire or 31*15.5-15 wider tubeless tire

8.0 Wheelbase: 2355mm

9.0 Track: 1415mm

10.0System pressure:16Mpa;

11.0Hydraulic output:70L/min

12.0 Machine weight：3800KG

Related Products

                                        YFL1200                                                                              YFL1500



                                     YFL2000                                                                                  YFL2500



Product Details

1.The telescopic boom which can reach 3m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system,mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.

Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.

Delivery:Within7 days upon receipt of down payment. Special models about 30days.
