Product Description

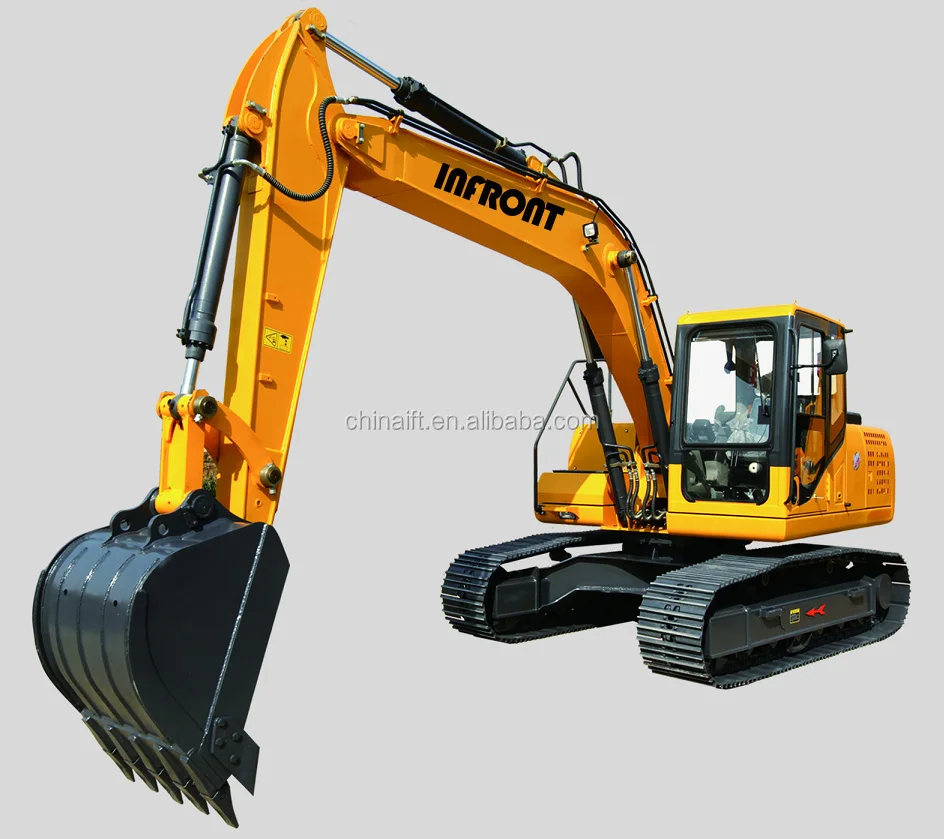

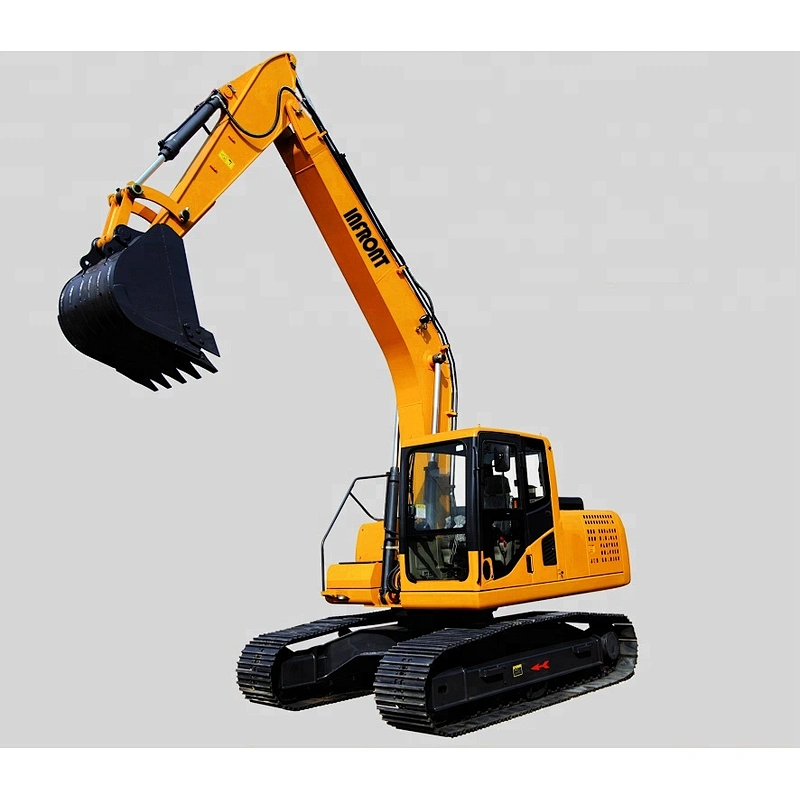

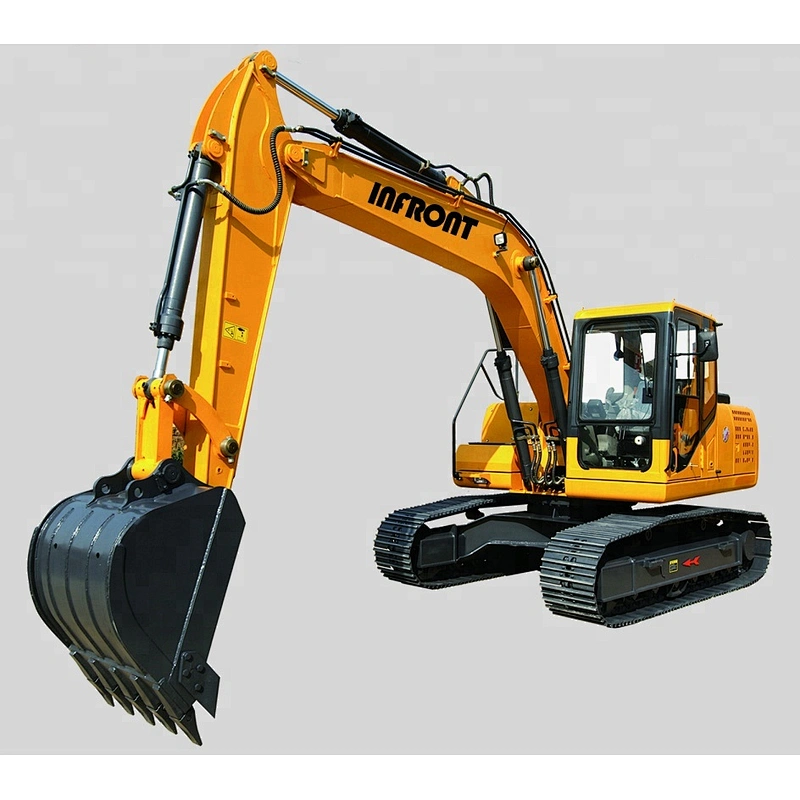

18 Ton hydraulic pump excavator machine

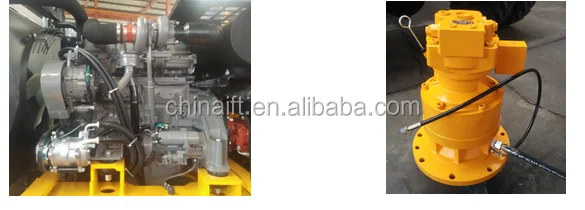

it is a new kind of product characterized by high efficiency , safety, convenience, beauty. steel track, with dozer blade. hydraulic pilot servo handle controlling system ,easy to operation .Adopted the ISUZU brand engine with strong power. imported international brand hydraulic system , ensure the machine has high working efficiency. the professional structure parts and working mechanism , ensure the machine has reliability and durability. the breaking pipeline improve the working performance.
PARAMETERS
| MODEL | YFE180 |
| Rated Power:140(Hp) Bucket Capacity:0.8(M3) Operation Weight:18000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.8 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 30 |
| Bucket Max.Digging Force(KN) | 98 |
| Arm Max.Digging Force(KN) | 68 |
| Engine Model | YC4A140 |
| Power/Rotation Speed(KW/Rmp) | 103/2200 |
| Tyre Model | - |
| System Pressure(MPa) | 32 |

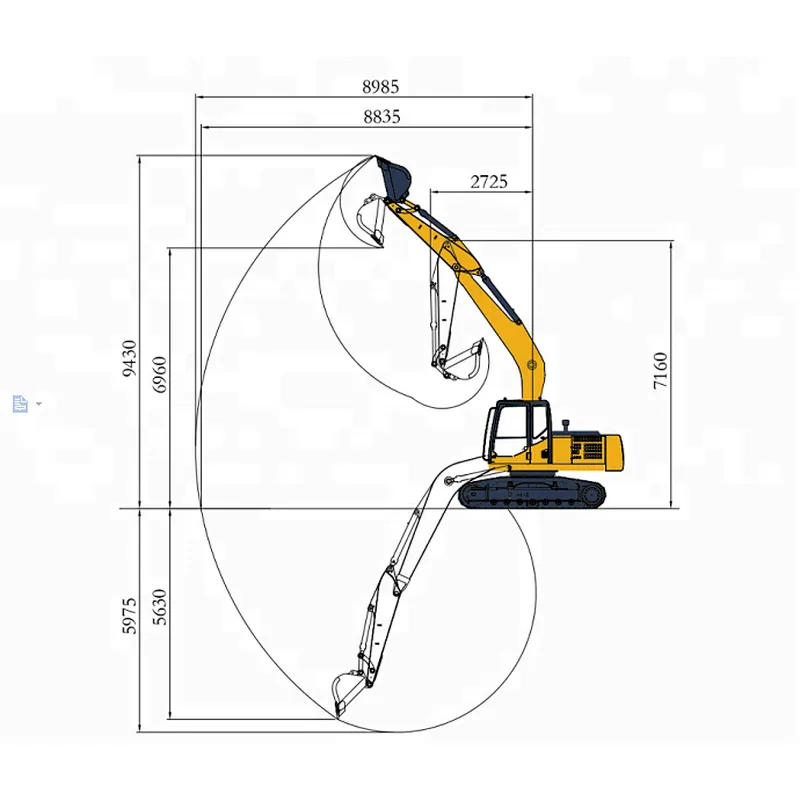

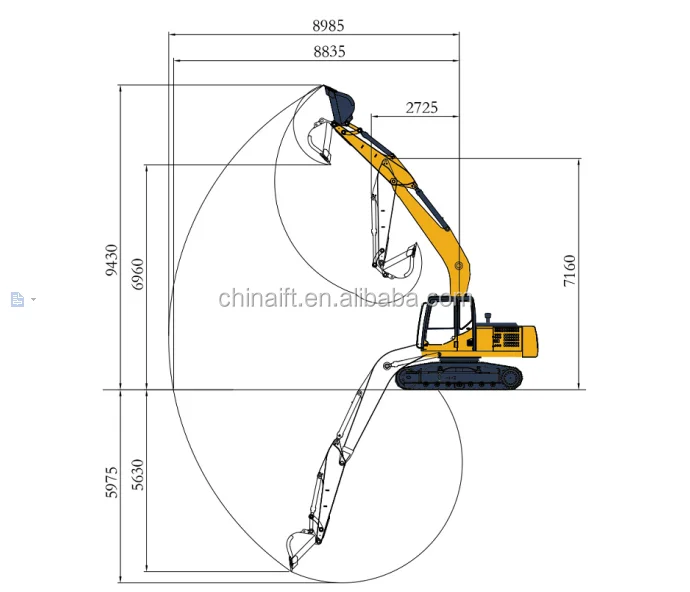

| Working Range | |
| Max.Digging Height(Mm) | 9430 |
| Max. Dumping Height(Mm) | 6960 |
| Max.Digging Depth(Mm) | 5975 |
| Max.Vertical Digging Depth(Mm) | 5630 |
| Max.Digging Radius(Mm) | 8985 |
| Min.Swing Radius(Mm) | 2725 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |

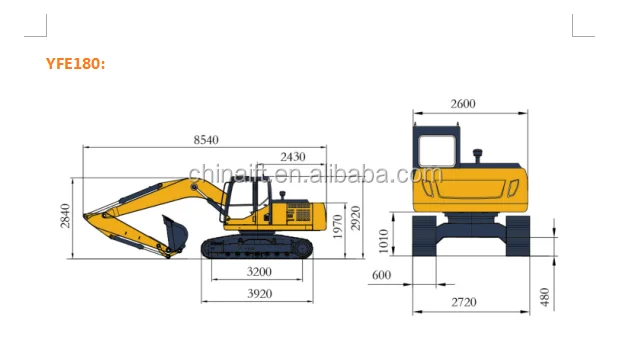

| Dimensions | |
| Length*Width*Height(Mm) | 8540*2720*2920 |
| Cabin Height(Mm) | 2920 |
| Sproket To Idler(Mm) | 3200 |
| Axle Distancer(Mm) | 2120 |
| Min.Ground Clearance(Mm) | 480 |
| Tail Swing Radius(Mm) | 2430 |
