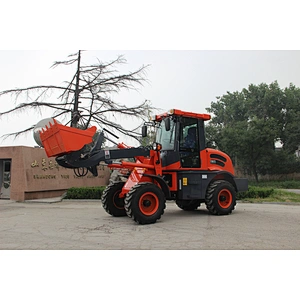

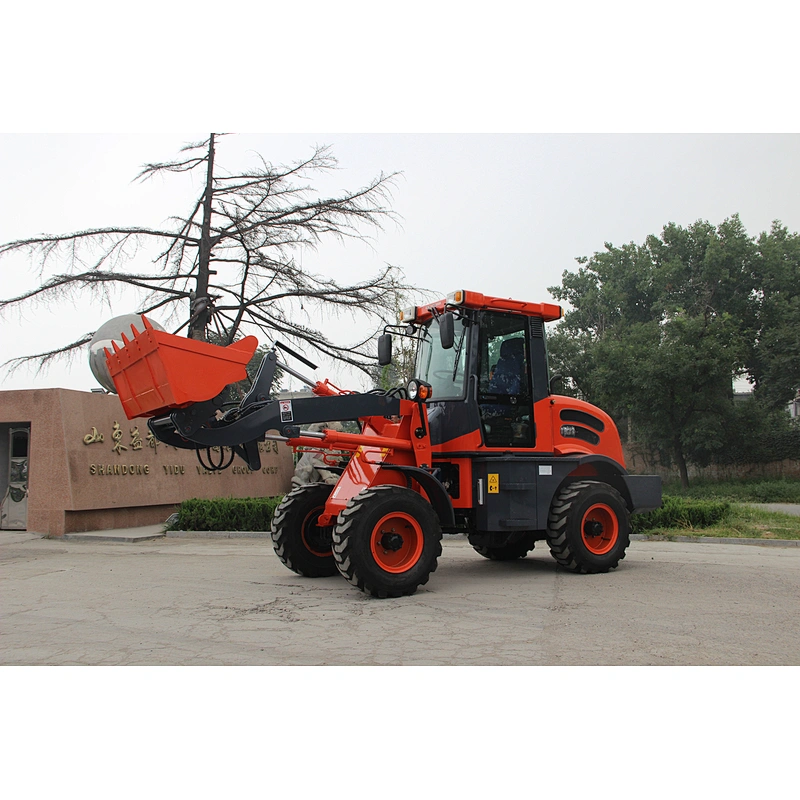

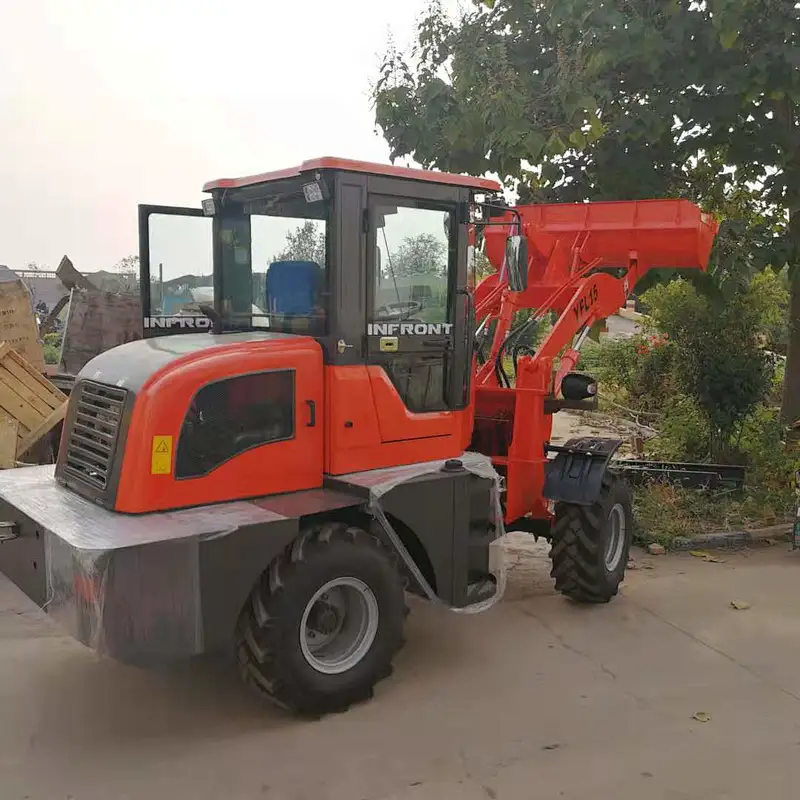

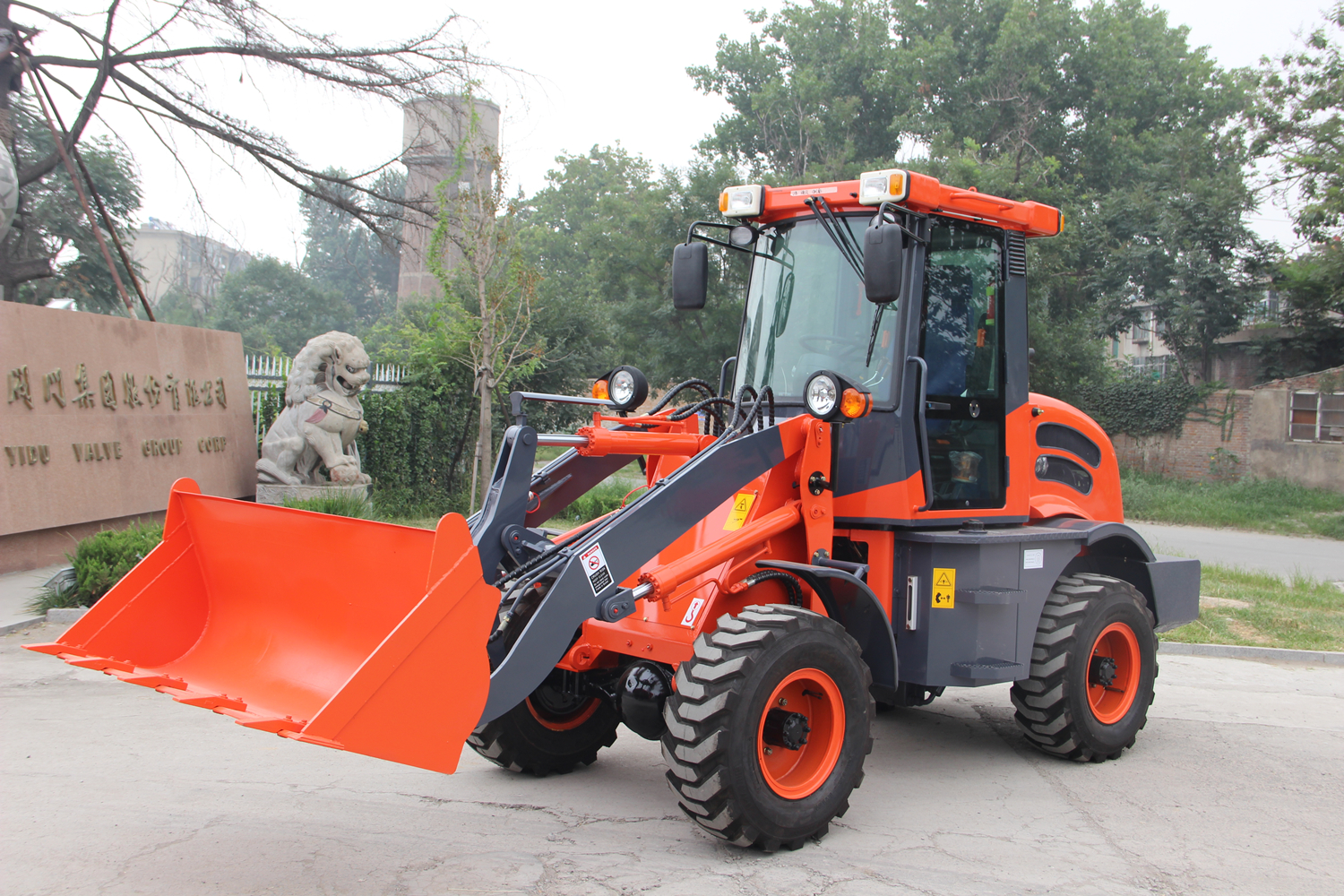

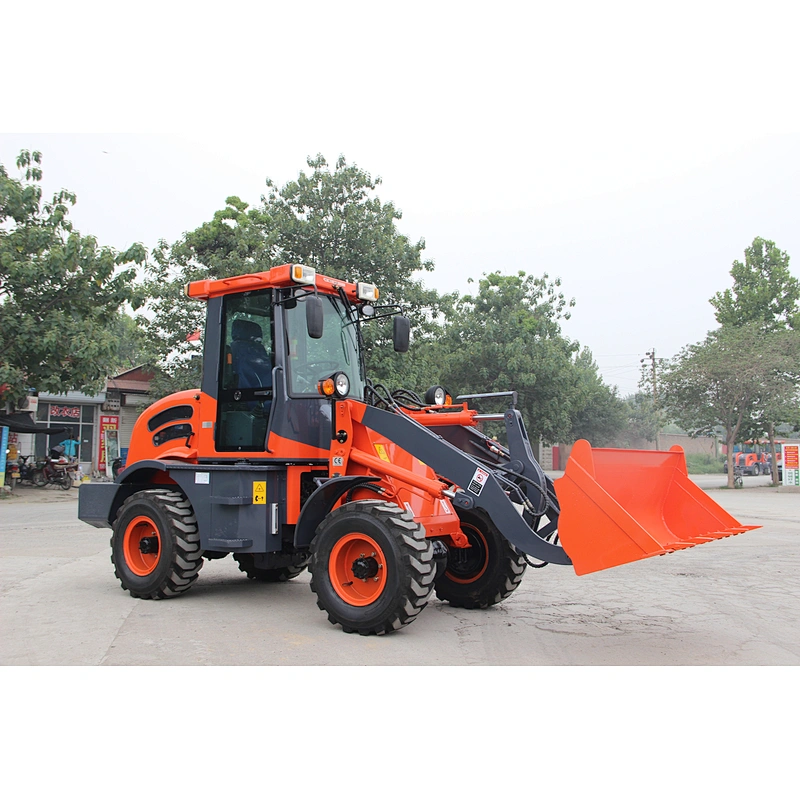

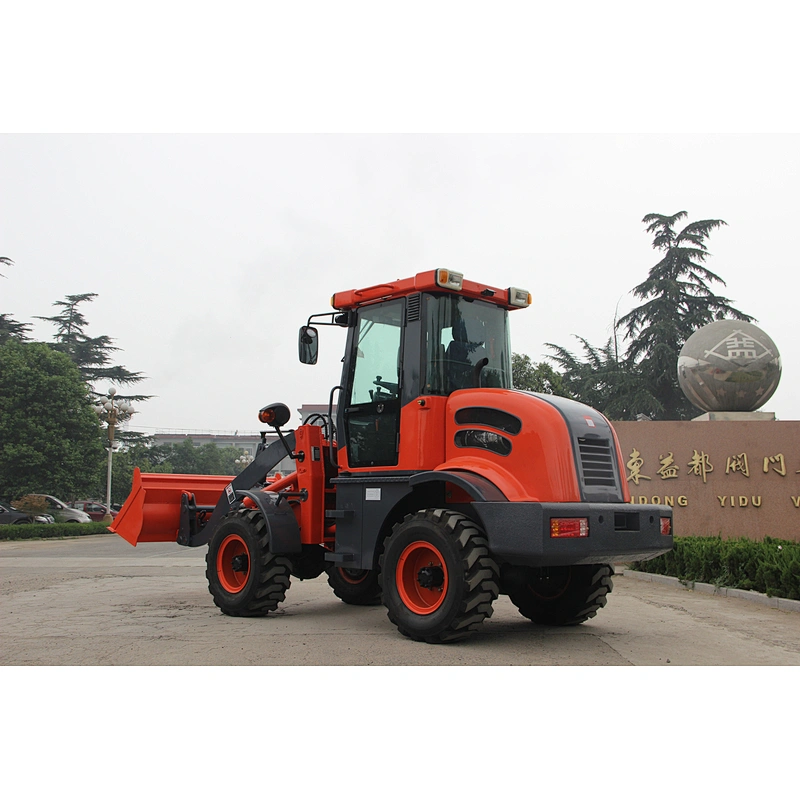

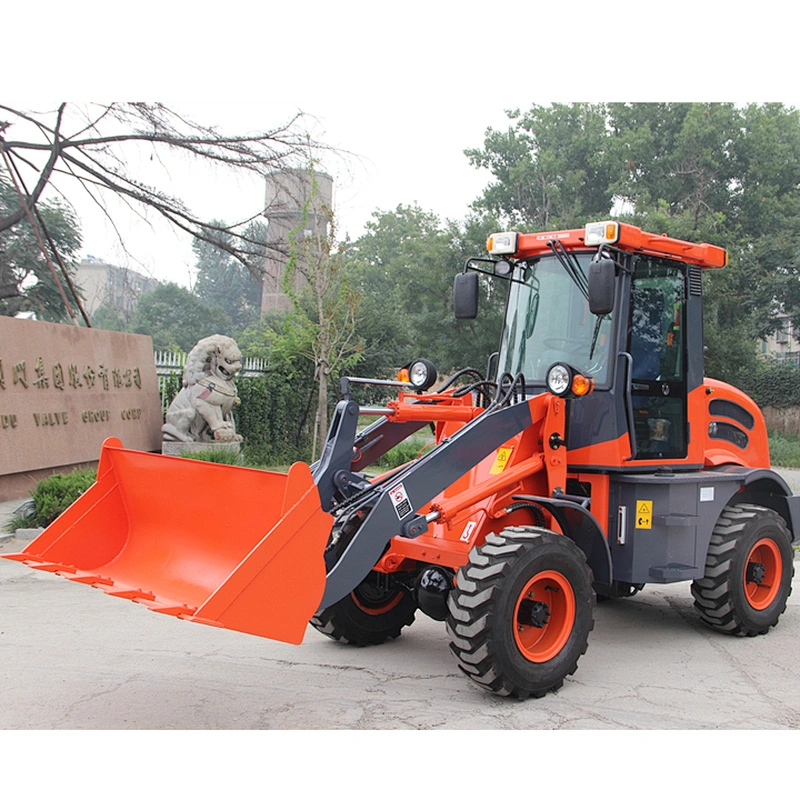

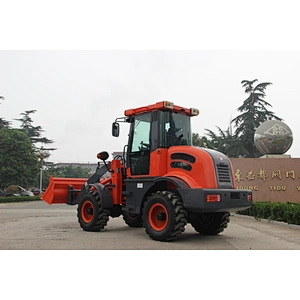

Brand new Chinese YFL15H Wheel Loader Front End Loader
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
Bucket Capacity(m³) | 0.7 | |
Operating Weight(kg) | 3500 | |
Bucket Width(mm) | 1750 | |
Rated Load(kg) | 1500 | |
Driving Mode | Four-wheel drive | |
Overall Dimensions (mm)(L*W*H) | 4900x1750x2700 | |
Max. Breakout Force(KN) | 32 | |
Forward Speed 1st(km/h) | 0-12 | |
Forward Speed 2nd(km/h) | 0-25 | |
Reverse Speed (km/h) | 0-25 | |
Max. Dumping Height(mm) | 2650 | |
Optional Max. Dumping Height(mm) | 2900 | |
Max. Dumping Reach (mm) | 850 | |
Min. Turning Radius(mm) | 3890 | |
Full Bucket Lifting Time (s) | 4.5 | |
Total Hydraulic Cycle Time (s) | 9 | |
Tread Width (mm) | 220 | |
Wheel Base (mm) | 1580 | |
Min. Clearance Over Ground (mm) | 230 | |
Diesel Engine | Brand | YUNNEI YN27 Engine |
Optional brand | Euro3 and EPA XINCHAI 36.8kw A498BT1Engine or YANMAR/PERKINS/KUBOTA/CUMMINS/KOHLER Tier 3/4 engine | |
Type | In-line arrangement,four-stroke,water cooled, 4-cylinderdiesel engine | |
Rated Output(KW) | 42 | |
Engine starting mode | Electric | |
Transmission | Type | Fixed-spindle power shift with converter |
Drive axle | Rear Axle Oscillation | Center oscillation |
Oscillating Angle Of Rear Axle | 13° | |
Tire | Model | 20.5-16 or 20.5/70-16 |
Optional model | 12-16.5 or 14-17.5 wider tire 31*15.5-15 Agriculture Tubeless tire 295/80R22.5 or 315/80R22.5 Truck tire | |
Steering System | Working Pressure (MPa) | 10 |
Max. Steering Angle (°) | 35 | |
Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 |
Working Pump Type | Gear pump | |
Working Pressure (MPa) | 16 | |
Brake System | Service Brake | Four Wheel Hydraulic drum brake |
Parking Brake | Hand operated with disc brake | |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.
6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
Millen Su
Skype:jkmachinery808 QQ:3313793974
Mobile/Whats up: +0086 138 6371 3908
WeChat:86 138 6371 3908
Email:sales19@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
