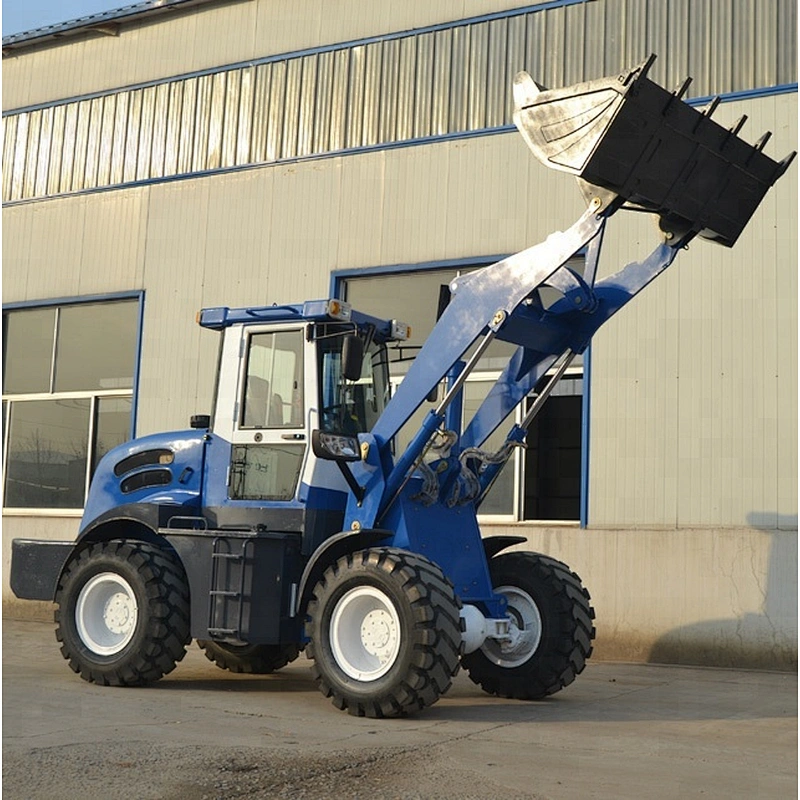

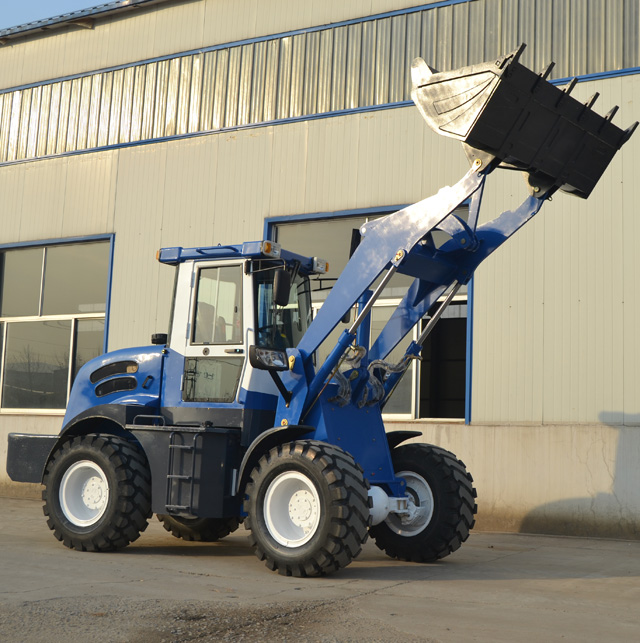

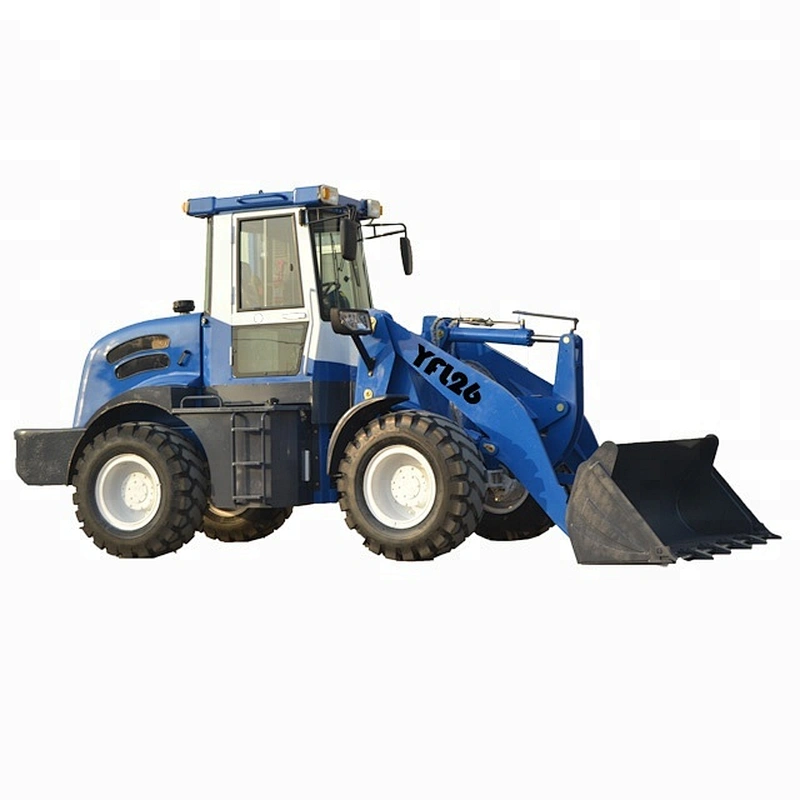

China 2.6 ton articulated mini wheel loader YFL26 small wheel loader
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
Performance | Rated loading | 2600kg |
Overall weight | 5500kg | |
Rated bucket capacity | 1.3m³ | |
Maximum tractive force | ≥54KN | |
Maximum breakout force | ≥45.4KN | |
Maximum grade ability | 30° | |
Maximum dump height | 3300mm | |
Optional maximum dump height | 3500mm | |
Overall dimension (L×W×H) | 5890×2000×2850mm | |
Minimum turning radius | 5330mm | |
Engine | Model | YUNNEI turbocharged engine |
Optional model | YTO/YUCHAI/CUMMINS/YANMAR/KOHLER engine | |
Type | Vertical, in-line, water cooled, 4-stroke diesel engine | |
Rated power | 65KW | |
Rated speed | 2200rpm-2400rpm | |
Engine starting mode | Electric | |
Transmission system | Gearbox mode | Counter shaft power-shift |
Gear shift | 2 forward shift 2 reverse shift | |
Maximum speed | 25km/h | |

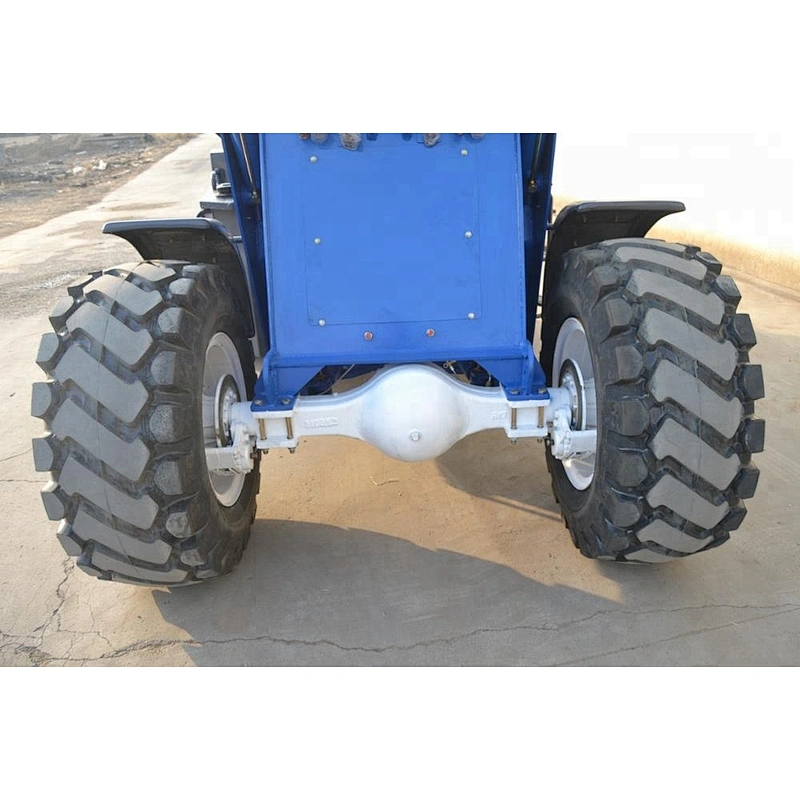

Drive axles | Main reducing spiral | Circular Arc Bevel gear, single stage |
Decelerating mode | Single stage planetary type | |
Wheel base (mm) | 2400mm | |
Wheel tread | 1640mm | |
Ground clearance | 310mm | |
Driving mode | Four-wheel full hydraulic drive | |
Tire | Tire type | 16/70-20 |
Optional tire | 16/70-24 | |
Brake | Brake mode | Air assist disc brake on 4 wheels |
Packaging | Packaging details | 1 unit packed into 20GP,2 units packed into 40HQ. |
Port | Qingdao | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.

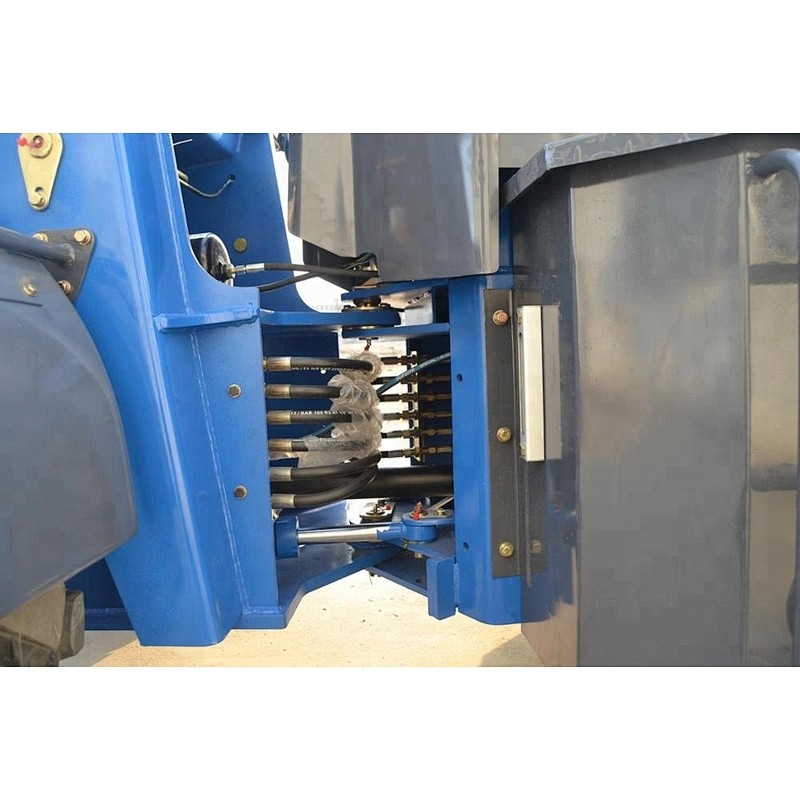

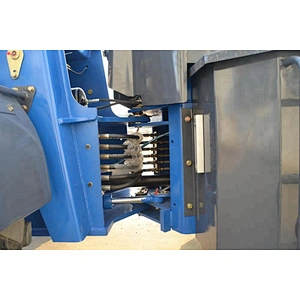

6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
Millen Su
Skype:jkmachinery808 QQ:3313793974
Mobile/Whats up: +0086 138 6371 3908
WeChat:86 138 6371 3908
Email:sales19@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
