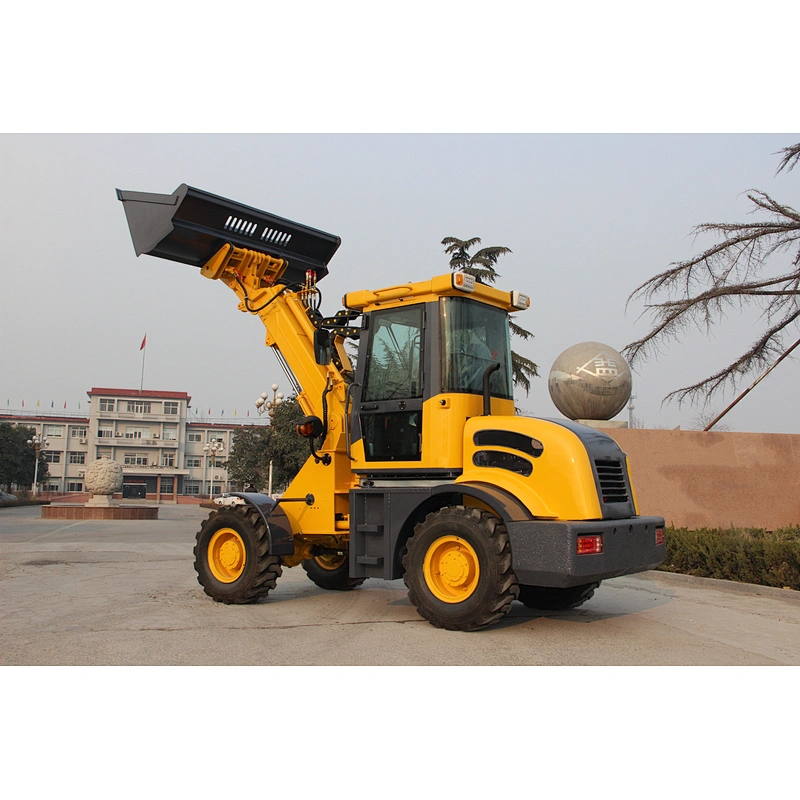

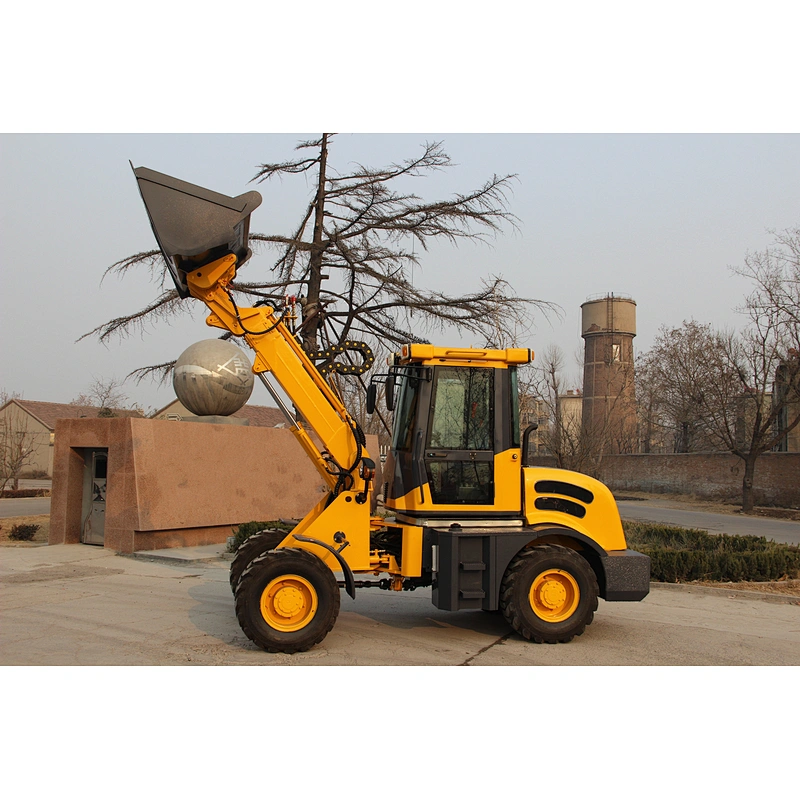

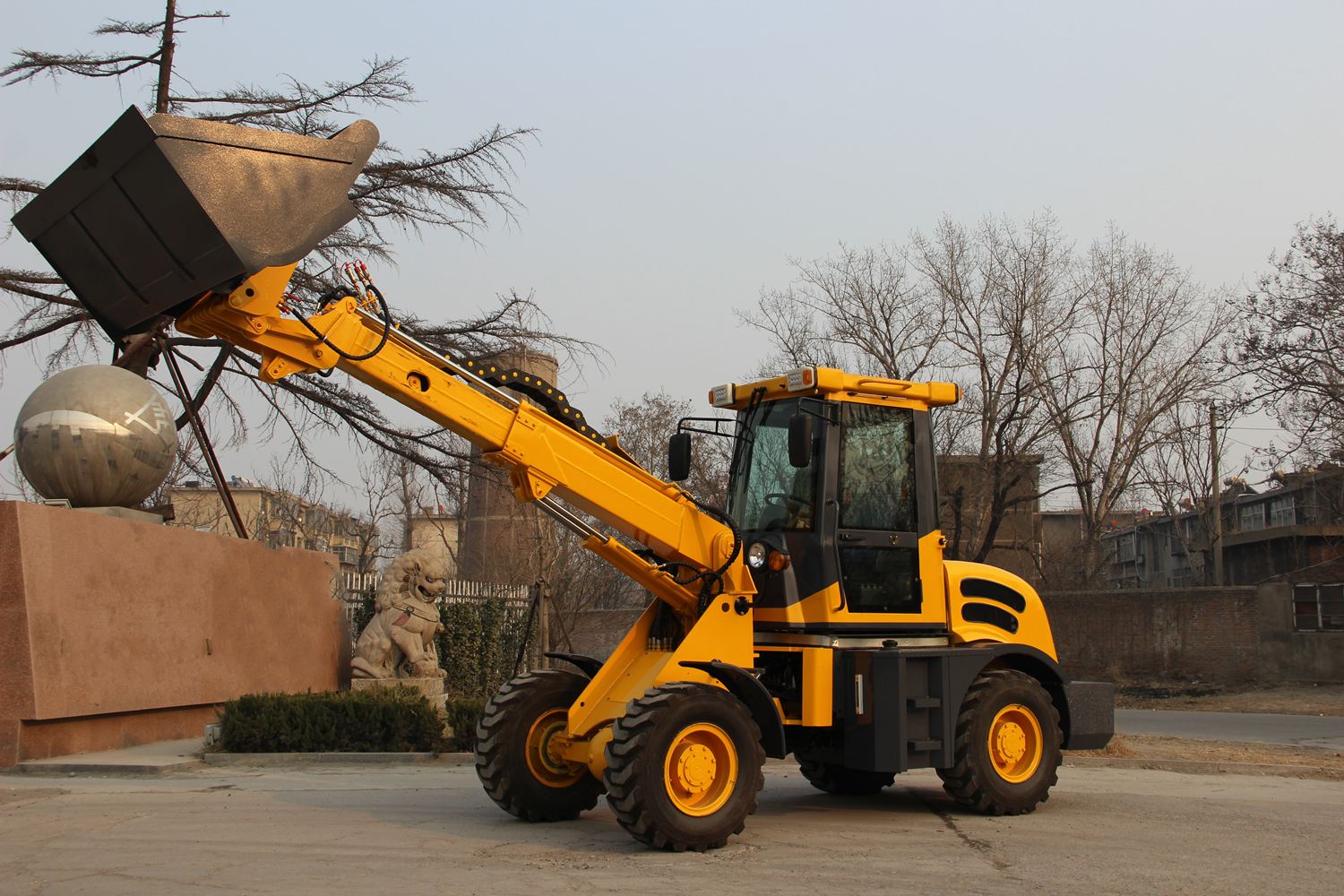

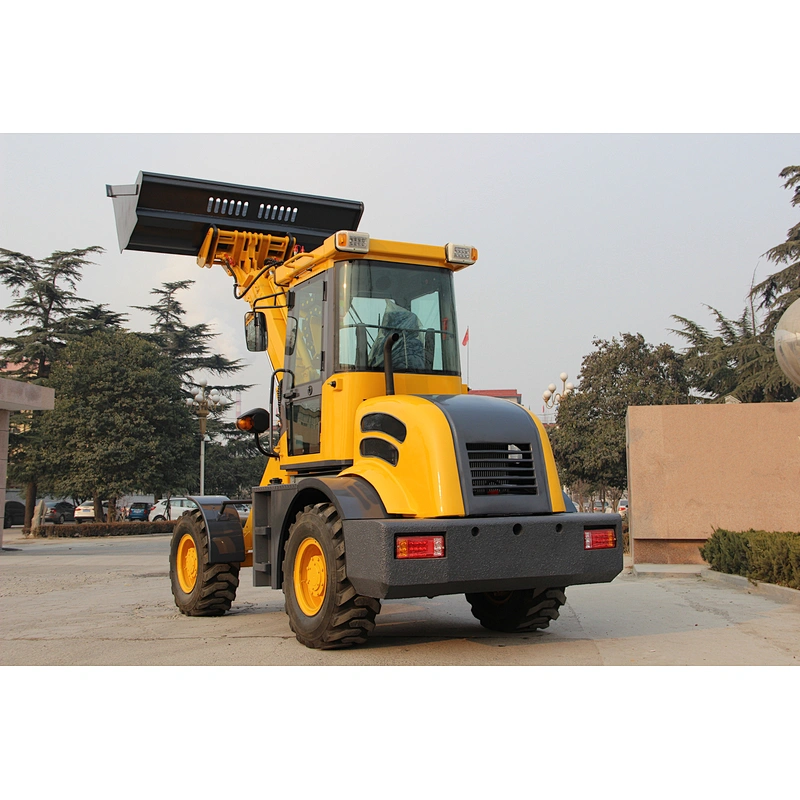

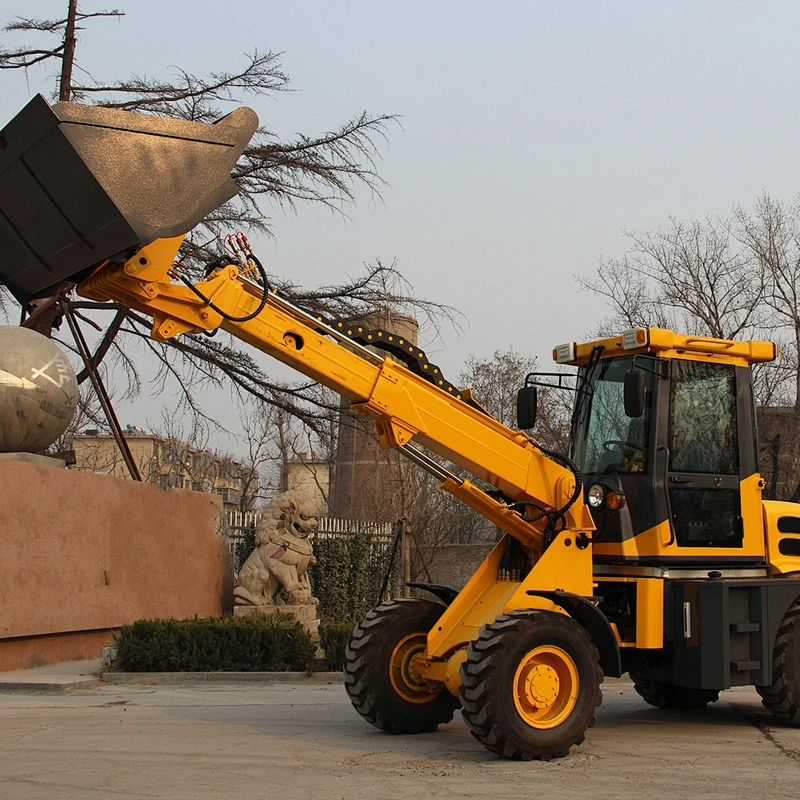

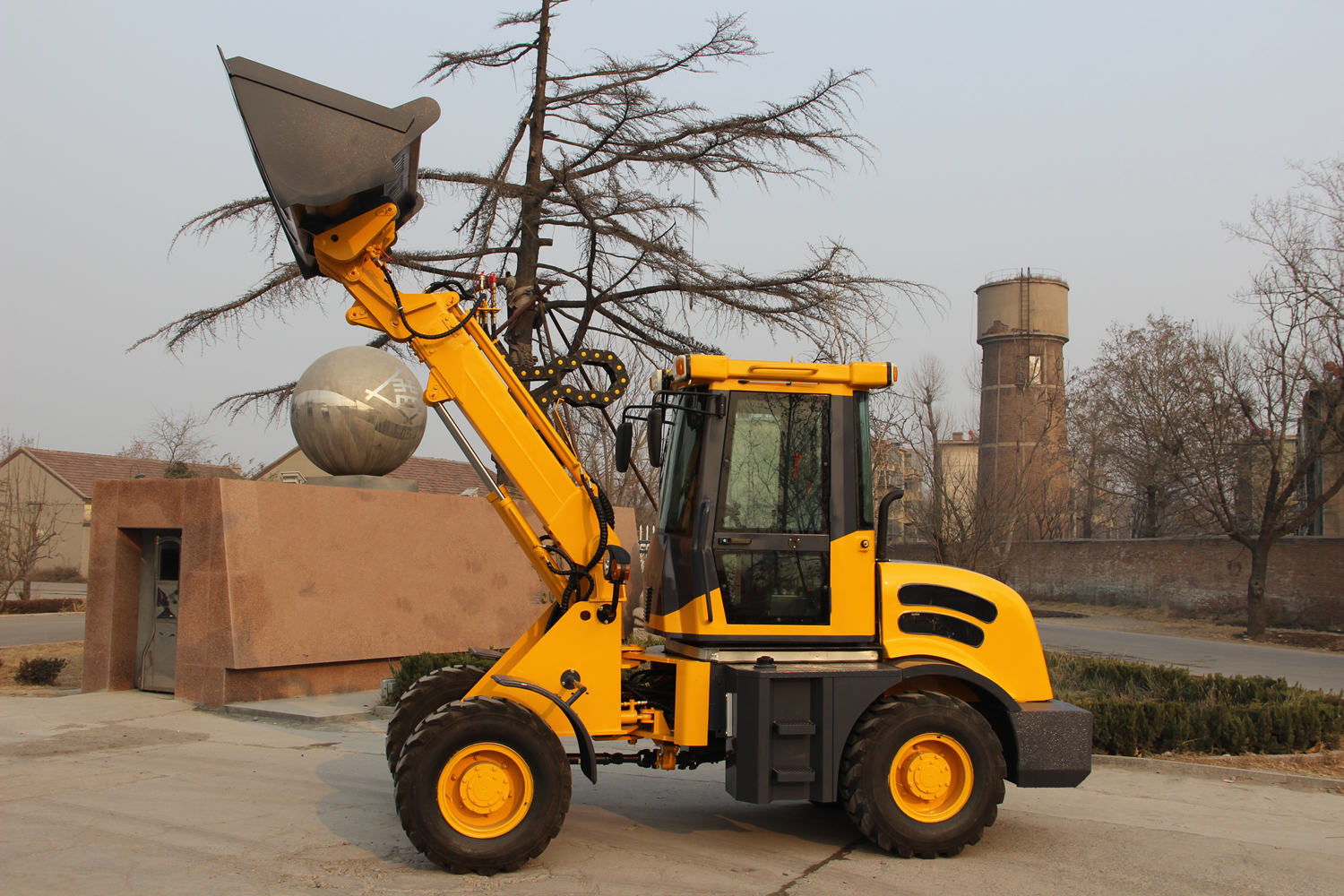

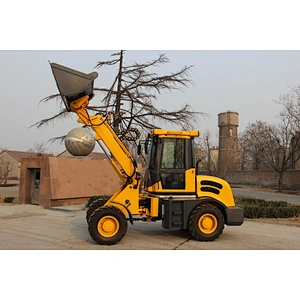

China high quality telescoping wheel loader YFL1500 for sale

MAIN PERFORMANCE PARAMETRES

1.0 Engine Details

(1) Model: Xinchai 498BT（EURO III）

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

(3) Rated Power: 36.8KW

(4) Rated Speed: 2200 r/min (rpm)

(5) Fuel Consumption ratio in standard working condition: 230g/kw.h

(6)Engine cooling way:Water cooling

2.0 Transmission System

(1) Type: Fixed-spindle Power shift

(2) Shift gear control oil pressure: 1.2~1.5MPa

(3) Rated input speed: 2500 (rpm)

3.0 Bucket

(1) Bucket Capacity: 0.7m3

(2) Bucket width: 1600mm

(3) Bucket type: Heavy-duty bolt on teeth

(4) Max. Breakout Force: 36.8KN

(5) Rated Load: 1500kg

(6) Operating Weight: 4500kg

4.0 Overall Dimensions

(1) Overall Length (Bucket on ground position): 4350mm

(2) Overall Height

(a) Ground to Cab Top: 2720mm

(b)Max.lifting Height: 4200mm

(c) Min. Base to the Ground: 260mm

(3) Overall Width: 1790mm

5.0 Operating Specifications

(1) Steering System: Articulated Frame with hydraulic power steering

(2) Min Turning Radius: 4500mm

(3) Driving System: Hydraulic converter

6.0 Brake System

(1) Service Brake: Four Wheel disk brake

(2) Parking Brake: Hand operated

7.0 Tyre

(1) Model:20.5/70-16

8.0 Wheelbase: 2400mm

9.0 Track: 1500mm

10.0 Alxe:With hub reducer

Related Products

                                        YFL1200                                                                              YFL1500



                                     YFL2000                                                                                  YFL2500



Product Details

1.The telescopic boom which can reach 3m greatly increase it’s working scope.

2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.

3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.

4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.

5.Wide view cabin and two entrance makes the operating convenient and safe.

6.Quick coupling system,mechanic joystick and buttons makes the operating easy and convenient.

7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.

A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.

Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the

buyer's request.

Delivery:Within7 days upon receipt of down payment. Special models about 30days.
