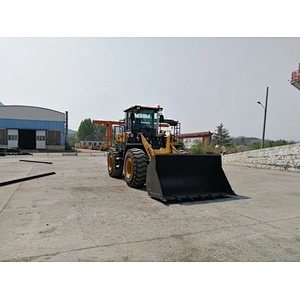

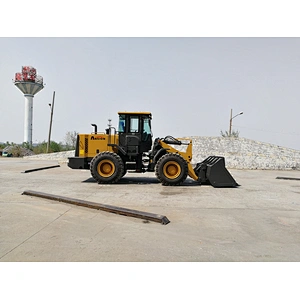

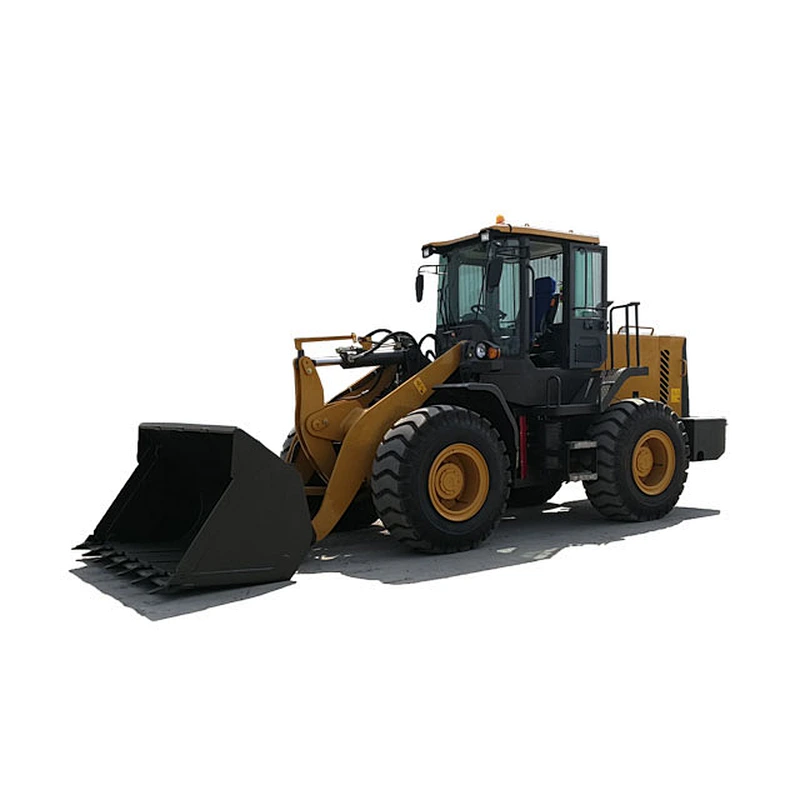

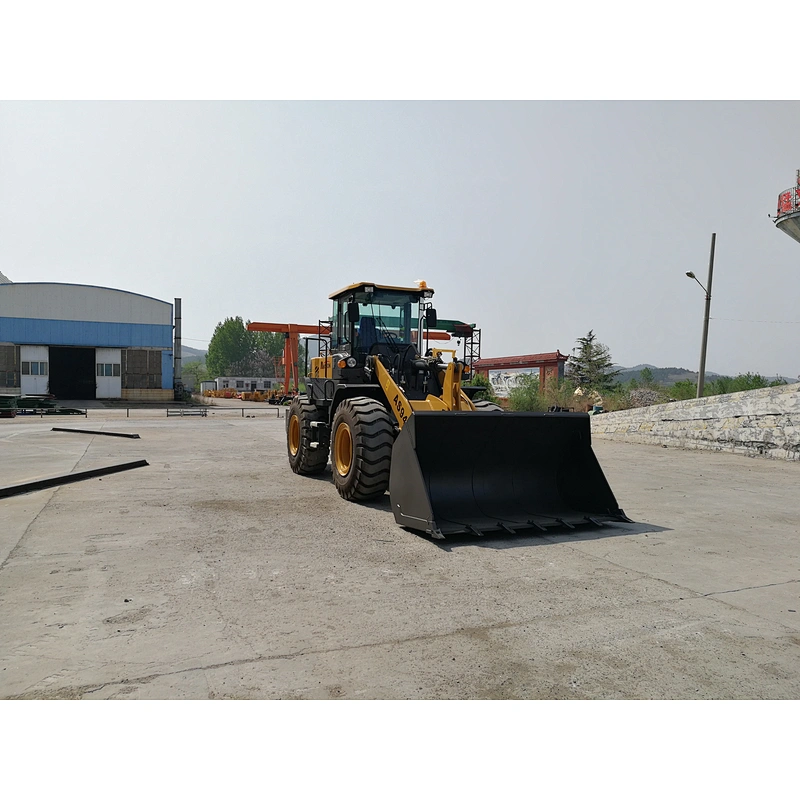

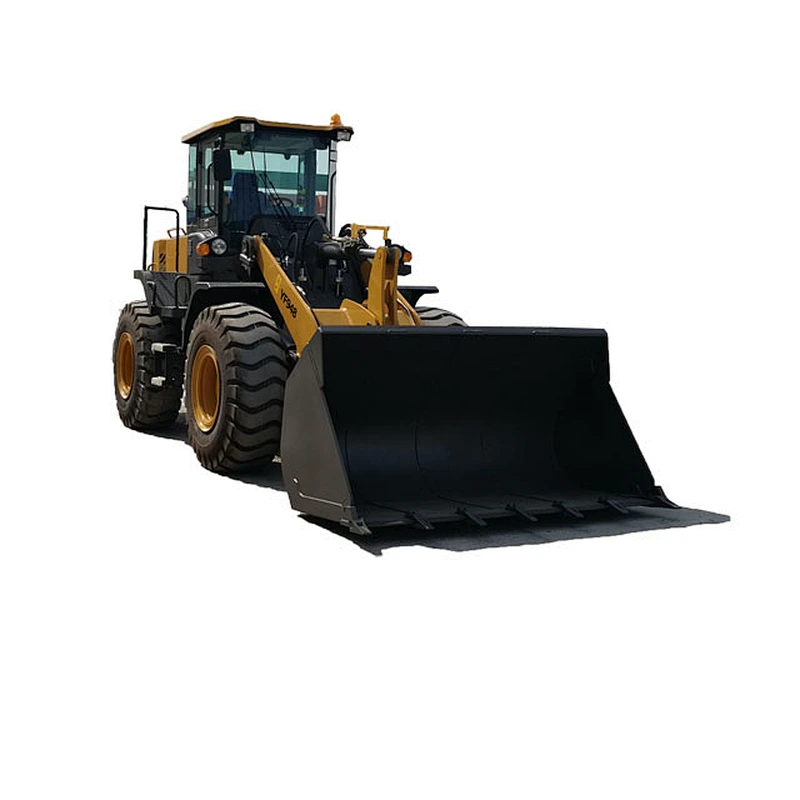

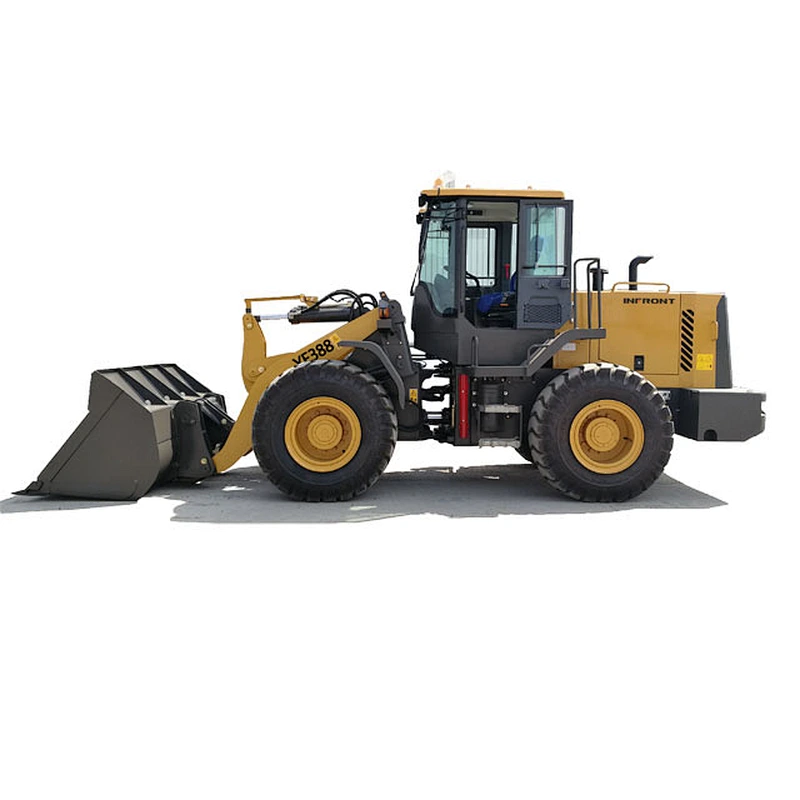

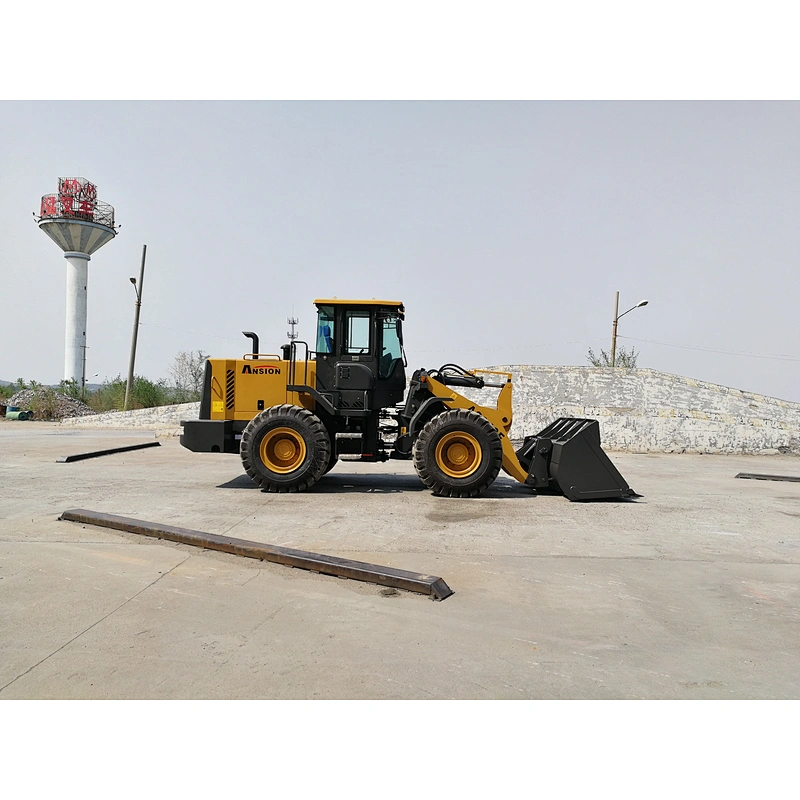

Jockstick wheel loader mini wheel loader YF948S
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
性能Performance | 1 | 额定载重量 rated loading | 4000kg |
2 | 整机重量 overall weight | 10700kg | |
3 | 额定斗容量 rated bucket capacity | 2m3 | |
4 | 最大牵引力 maximum tractive force | 97KN | |
5 | 最大崛起力 maximum breakout force | 127KN | |
6 | 最大爬坡能力 maximum grade ability | 30 degree | |
7 | 最大卸载高度 maximum dump height | 3100 mm | |
8 | 最大卸载距离 maximum dump reach | 1006mm | |
9 | 整机外形尺寸 overall dimension (L×W×H) | 7230×2520×3250mm | |
10 | 最小转弯半径 minimum turning radius | 5097mm | |
发动机Engine | 11 | 型号model | 康明斯 CUMMINS 6BTA5.9-C180 |
12 | 型式type | 立式直列、水冷、四冲程 lnline water cooled, fourstroke | |
13 | 气缸数-缸径×行程No. of cylinder-bore/stroke | 6 | |
14 | 额定功率 rated power | 131kw | |
15 | 最大扭矩 maximum torque | 500N.m | |
16 | 最低燃油消耗率 min fuel-consume ratio | ≤210g/kw.h | |
传动系统 Transmission system | 17 | 变矩器型式 torque converter | YJ315 |
18 | 变速箱型式 gearbox mode | 定轴常啮合式 Power shift normally engaged straight gear | |
19 | 档位数 gear shift | 前进档四个，倒退档二个 4forward shift 2 reverse shift | |
20 | 最高车速 maximum speed | 40km/h | |
驱动桥Drive axles | 21 | 主传动型式： main reducing mode | 螺旋伞齿轮一级减速式 Bevel gear grade lreduction |
22 | 轮边减速型式 decelerating mode | 一级行星减速 Bevel gear grade lreduction | |
23 | 轴距 wheel base (mm) | 2660mm | |
24 | 轮距 wheel tread | 1800mm | |
25 | 最小离地间隙 ground clearance | 400mm | |
液压系统 Hydraulic system | 26 | 系统工作压力 system working pressure | 16.5MPa |
27 | 动臂提升时间 boom lifting time | 4.83s | |
28 | 三项和 total time | 9.15s±0.5s | |
29 | 油箱容量 fuel tank capacity | 156L | |
30 | 铲斗自动放平功能 function of leveling automatically | 有yes | |
制动系统 Brake system | 31 | 行车制动 service brake | 气顶油钳盘式四轮制动 airassist disc brake on 4 wheels |
32 | 驻车制动 parking brake | 手动钳盘式制动 Manual disk brake | |
轮胎 Tyre | 33 | 规格 type specification | 17.5-25 |
34 | 前轮气压 front tyre pressure | 0.4Mpa | |
35 | 后轮气压 rear tyre pressure | 0.35Mpa |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.
6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
Millen Su
Skype:jkmachinery808 QQ:3313793974
Mobile/Whats up: +0086 138 6371 3908
WeChat:86 138 6371 3908
Email:sales19@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
