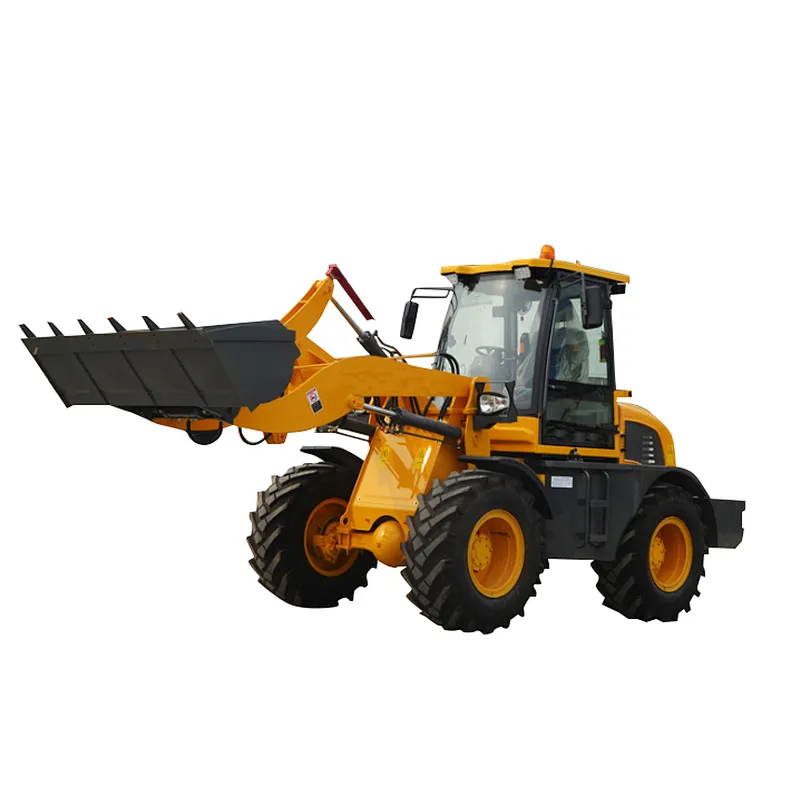

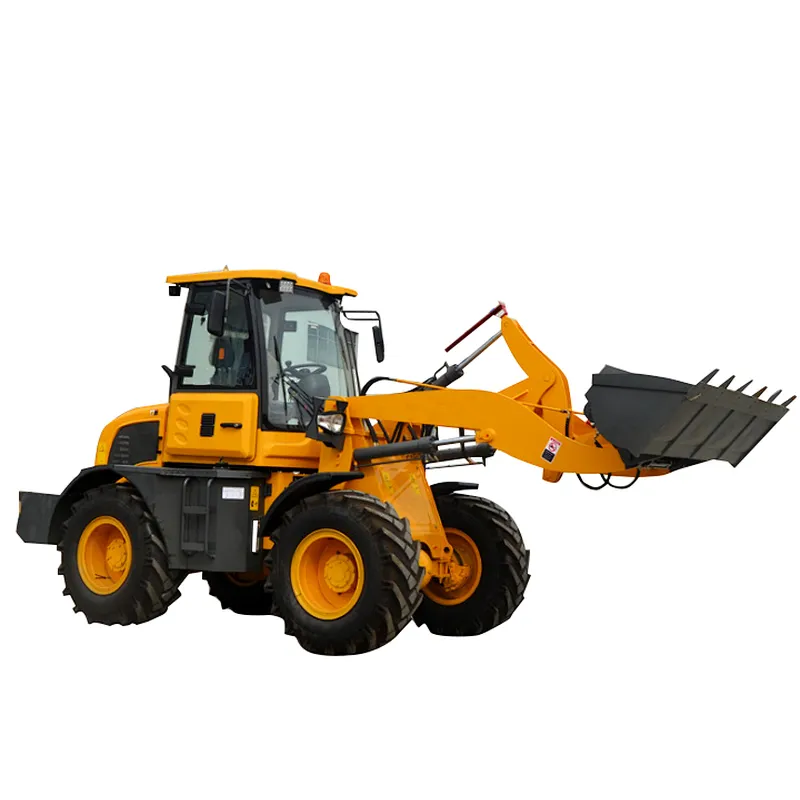

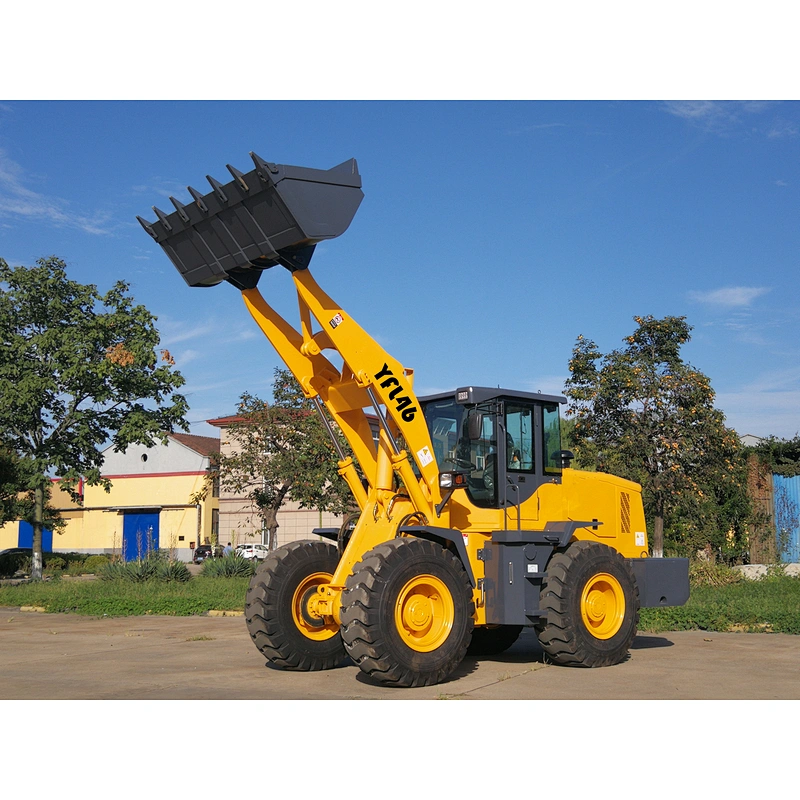

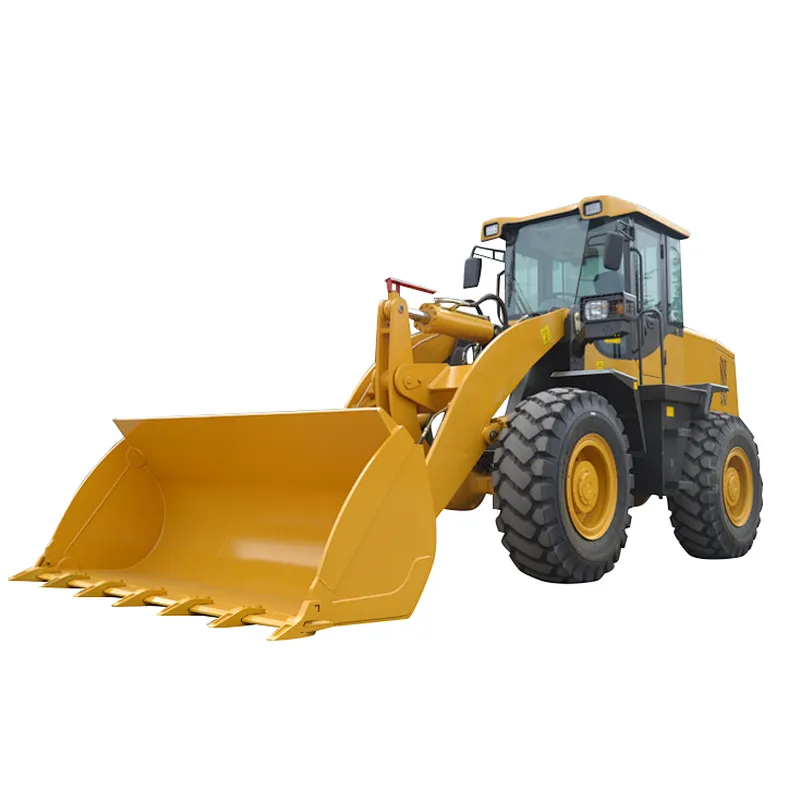

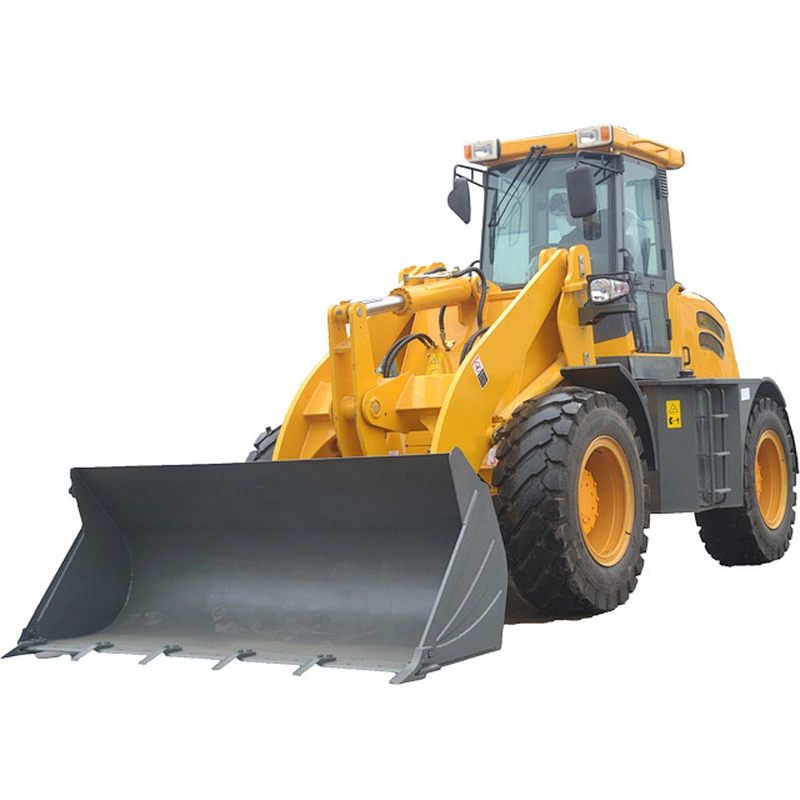

Mini Loader CE Wheel Loader 4600kg YFL46 Mini Loader for Sale
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
YFL46 wheel loader main performance | |
Item | Specifications |
Overall working weight | 11000kg |
Rated bucket capacity | 2.5m³ |
Rated load | 4.0t |
Max. tractive force | ≥120kN |
Max. breakout force | ≥125kN |
Max. grade ability | 28° |
Max. dumping height | 2950mm |
Dumping distance | 1055mm |
Overall dimension(L*W*H) | 7295*2574*3240mm |
Engine | |
Model | WEICHAI |
Optional model | CUMMINS engine |
Type | Inline ,water cooling, dry cylinder, direct injection |
Number of cylinder-borestroke | 6-￠105*130mm |
Max. torque | 640N.M |
Rated power | 129kw |
Rated speed | 2000rmin |
Min. fuel-consume ratio | ≦210gkw.h |
Transmission system | |
Torque converter | Single-stage, four-element, double-turbine, torque converter |
Torque ratio | 4.0 |
Transmission type | Planetary power shift |
Gear shift | 2 forward shift,1 reverse shift |
Max. speed | 38kmh |
Front and rear axles | |
Main transmission type | Spiral gear, first stage decelerate |
Final decelerate type | First stage, planetary gear decelerate |
Tyre | |
Type specification | 20.5-25 |
Front tyre pressure | 0.33±0.01MPa |
Rear tyre pressure | 0.285±0.01MPa |
Steering system | |
Type | Articulated load-sensing hydraulic steering system |
Steering angle | 38°each side |
Min. turning radius | Outside of bucket 6116.6mm Outside of rear wheel 5365mm |
Hydraulic system | |
System working pressure | 16MPa |
Boom lifting time | ≦5.7s |
Total time | ≦10.2s |
Brake system | |
Service brake | Air -on-oil, caliper-disk |
Parking brake | Manual caliper disc |
Capacity | |
Fuel | 140L |
Hydraulic | 124L |
Related Products
YFL08 YFL18
YF26 YFL30
Product Details
1. This vehicle belongs to wheel type four-wheel drive full hydraulic tipper transport vehicle. The loader and Tipper are perfectly integrated, and the conversion is convenient.
2. One pedal controls travel and one handle controls operation.
3. Four wheel drive allows you to adapt to more terrain. Such as: mud, sand, and snow.
4. Domestic electric starting diesel engine
5. Full hydraulic power assisted priority steering, more flexible steering, mechanical leveling makes your operation convenient, and can realize high and low unloading.
6. The front and rear frames are connected by floating hinge; the road has strong passing force.
7. High strength chassis design, which can carry more load
8. Full hydraulic control is more comfortable for machine operation
9. It has excellent bearing capacity, 2100mm super high discharge height, and can quickly install a variety of accessories to achieve various operations. improve work efficiency.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
