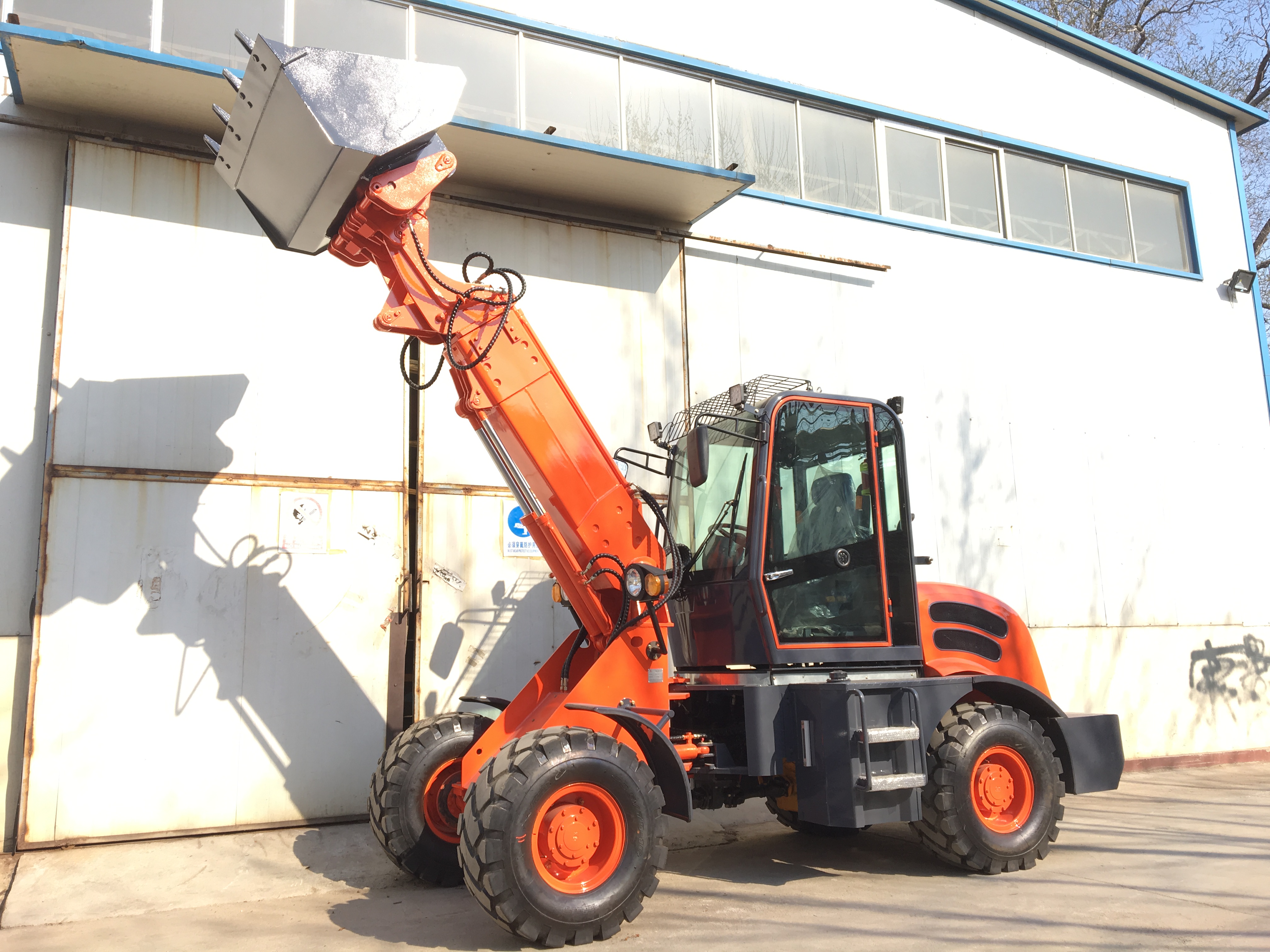

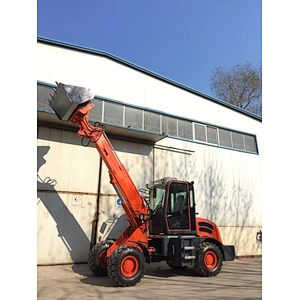

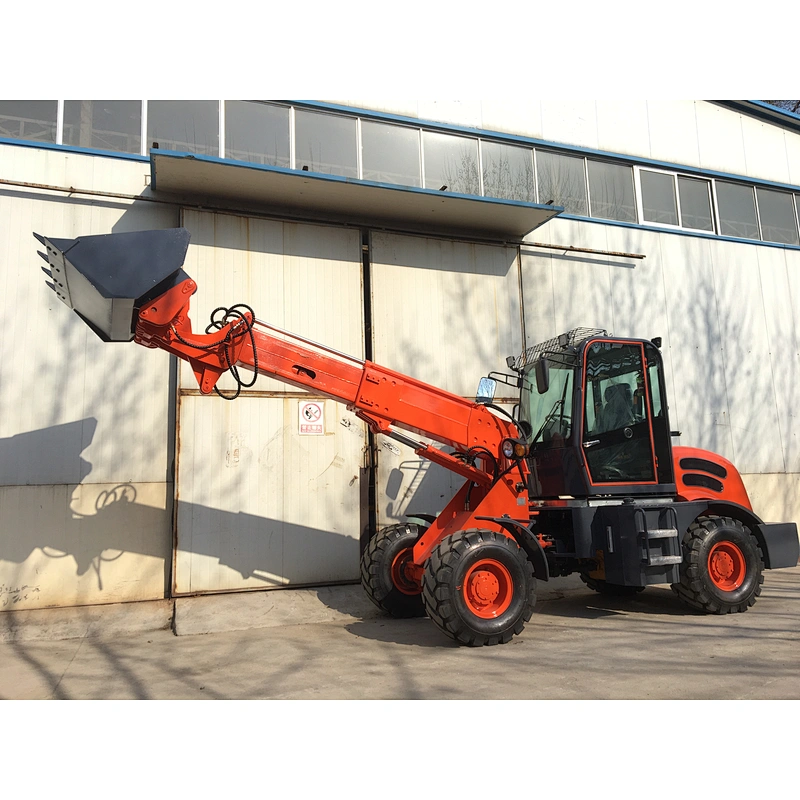

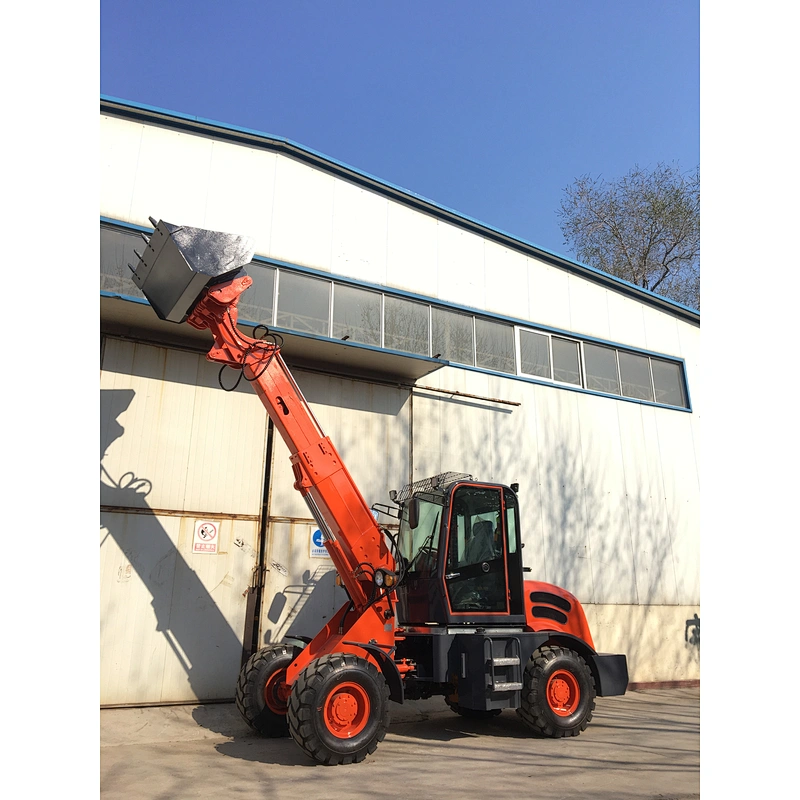

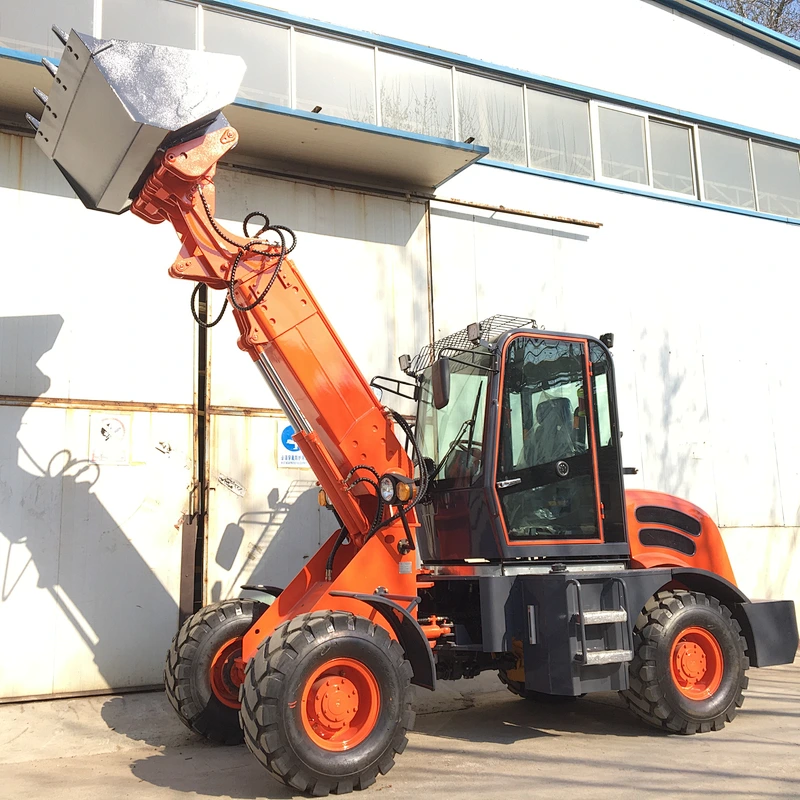

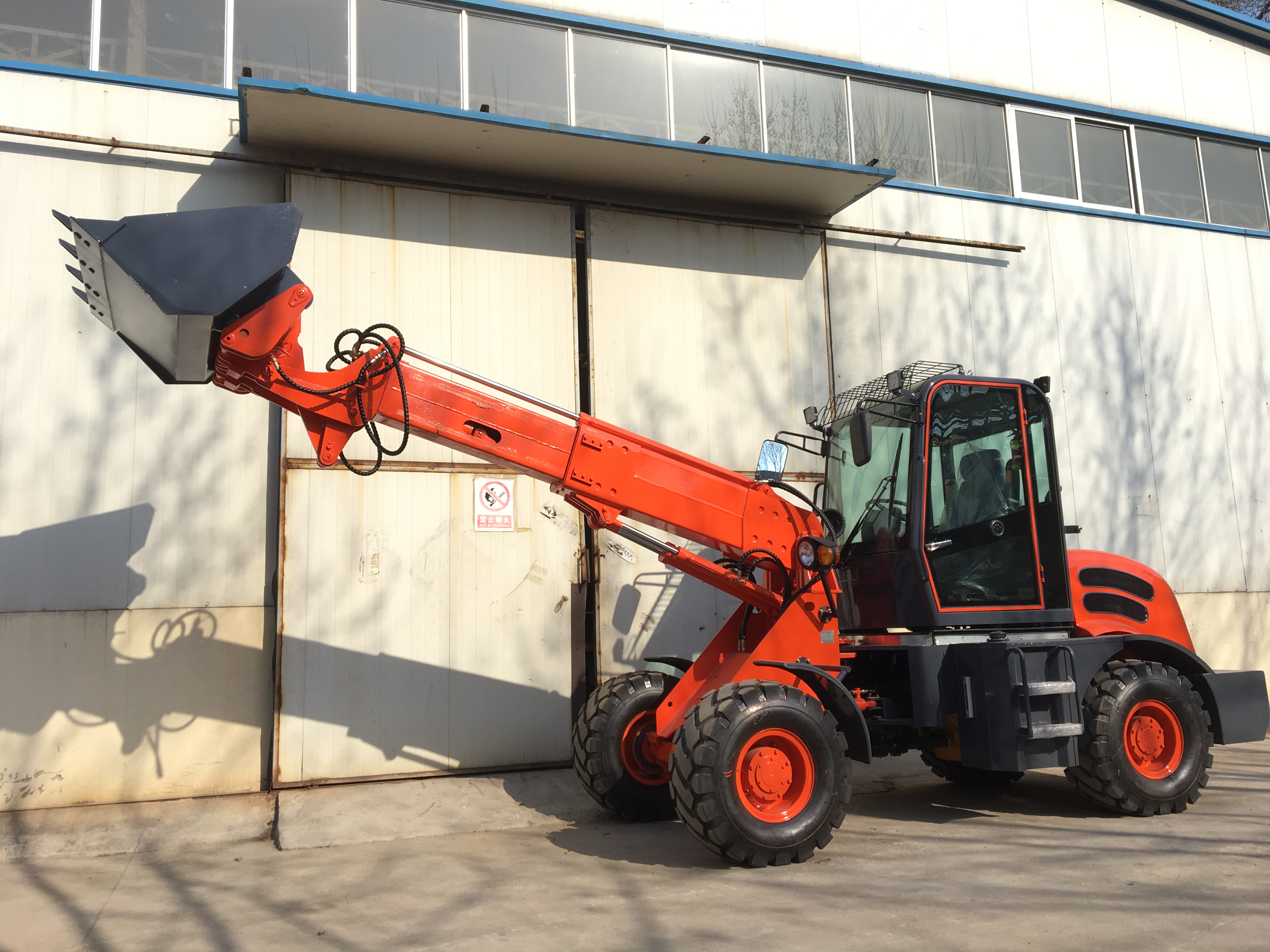

New 2t full hydraulic multifunctional small Telescopic boom wheel loader with CE
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
YFL2000telescopic loader伸缩臂装载机 | |
1.0 Engine发动机 | |
(1)Brand/Model:品牌/型号 | YunneiYN27GBZ云内 |
(2)Type:类型 | In-line arrangement, water-cooled, four cylinder, turbocharged dieselengine 直列,水冷,四缸,涡轮增压柴油发动机 |
(3) Rated Power:额定功率 | 58KW |
2.0Overall Dimensions | |
(1) Overall Length:长度 | 6200mm |
(2) Overall Width:宽度 | 2000mm |
(3) Overall Height:高度 | 2760mm |
(4) Bucket hinge pin Height: 铲斗铰接销轴高度 | 4300mm |
(5)Telescopic stroke伸缩行程 | 1100mm |
(6)Extend the arm length 伸出后臂长 | 2950mm |
铲斗最大举升高度 | 4900mm |
铲斗最大卸载高度 | 3700mm |
3.0 Transmission System：传动系统 Gearbox+Hydraulic converter + Drive shaft + Hub reduction axle 变速箱+液压变矩器+传动轴+轮边减速桥 | |
4.0 Bucket：铲斗 | |
(1) Capacity: 容量 | 1m³ |
(2)Width:宽度 | 2000mm |
(3)Type:类型 | Heavy-duty bolt on teeth重型铲齿 |
最大载重 | 2000kg including bucket or attachment 包含铲斗或者辅具 |
5.0 Operating Specifications | |
转向系统 | Articulated hydraulic steering 铰接式液压转向 |
| Four wheel drive四轮驱动 |
液压快换 | Yes 是的 |
机械先导 | Yes 是的 |
(5) Steady rise平稳上升 | Yes 是的 |
6.0 Brake System 刹车系统 | |
(1) Service Brake:脚刹 | Fourwheeldisc brake 四轮碟刹 |
(2) Parking Brake:手刹 | Disc brake 碟刹 |
7.0 Tyre 轮胎 | |
(1) Model:型号 | 16/70-20 Herringbone Tyre 人字花纹轮胎 |
(2)Size:尺寸 | 宽度Width: 380mm 直径Diameter:1075mm |
8.0 Wheel base: 轴距2550mm | |
9.0 Track: 轮距1600mm | |
10.System pressure:系统压力 | 20Mpa |
11. Weight:重量 | 5500KG |
Related Products
Product Details
1.The telescopic boom which can reach 3m greatly increase it’s working scope.
2.The articulated structure and axle transmission design makes it powerful and has better pass through ability.
3.The seals, valve & joystick handle are famous oversea products which guarantee that it’s a reliable long lasting machine.
4.Adjustable spring seat and optional air conditioner makes the operating more comfortable.
5.Wide view cabin and two entrance makes the operating convenient and safe.
6.Quick coupling system,mechanic joystick and buttons makes the operating easy and convenient.
7.The rear cover can be opened as a whole part just by your hands, which makes the maintenance much more simple.
A loader serves several purposes, with a quick hitch system,the mini wheel loader can change various attachments for more functions quickly and easily. Attachments: backhoe, digger, sweeper, dump bucket, tiller, lawn mower, angle blade, breaker, 4 in 1 bucket, snow blower, leveler, mixer, lawn aerator, trencher, grapple, auger, stone bucket, standard bucket, trailer system, and so on.
Packing:The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery:Within7 days upon receipt of down payment. Special models about 30days.
Millen Su
Skype:jkmachinery808 QQ:3313793974
Mobile/Whats up: +0086 138 6371 3908
WeChat:86 138 6371 3908
Email:sales19@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
