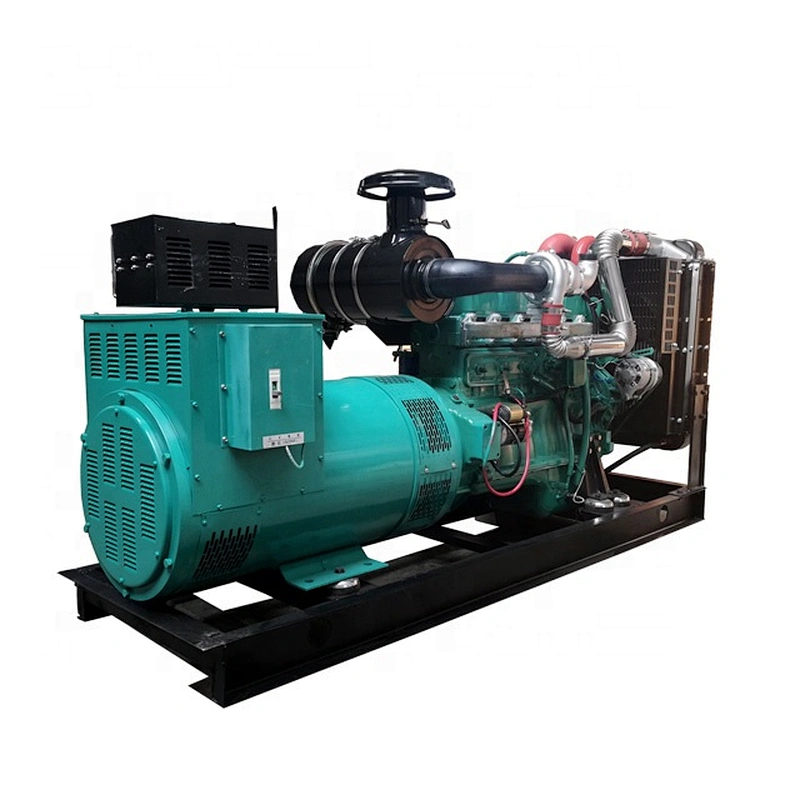

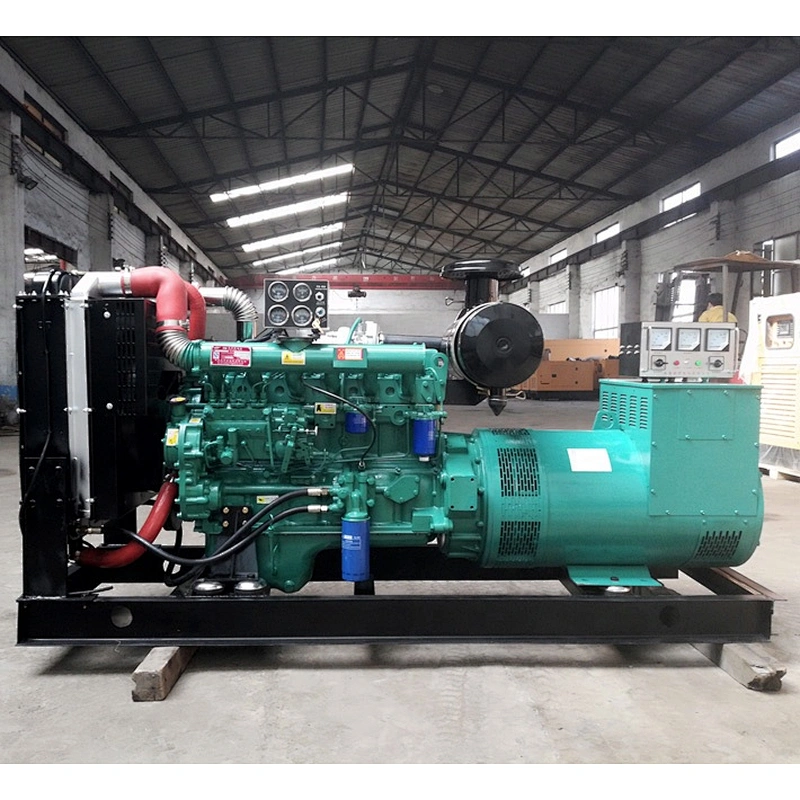

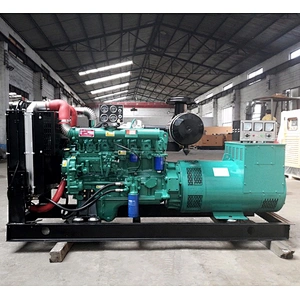

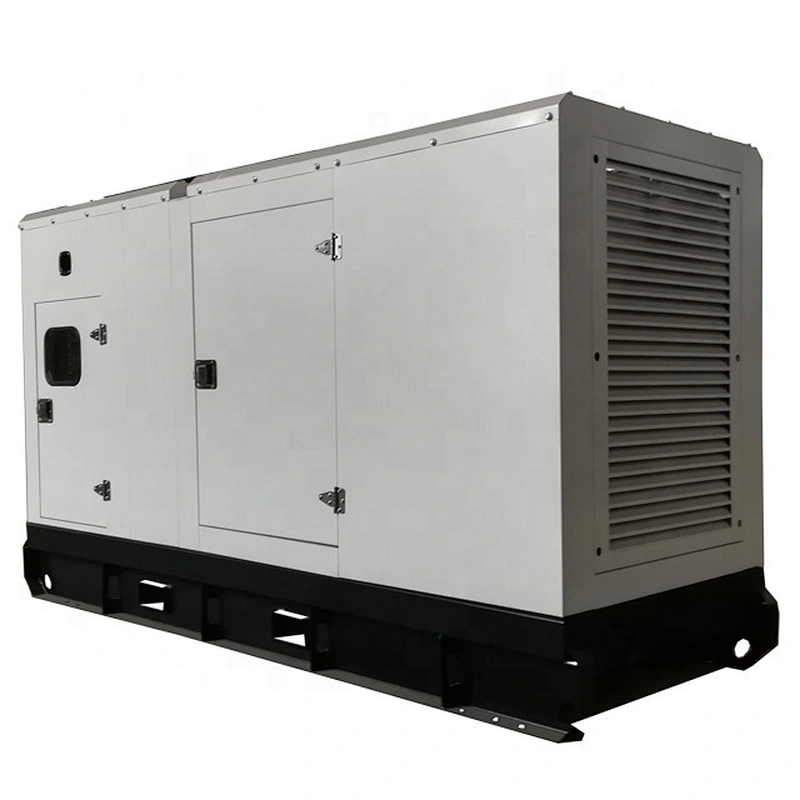

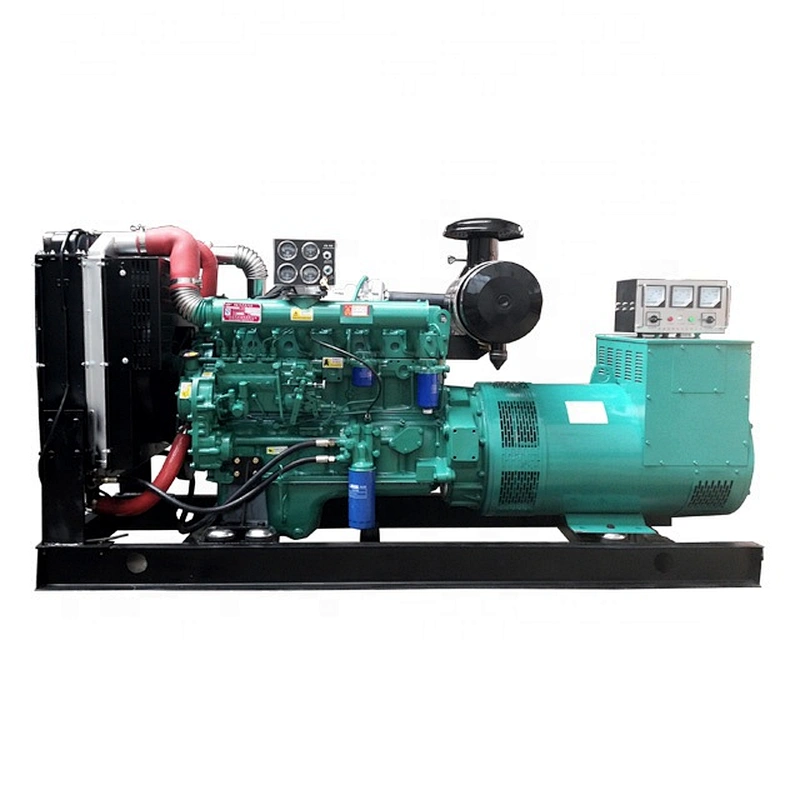

124KW Marathon Alternator Marine Diesel Generator set
l Wide scope of DC Input
l LED displayed alarms and data
l DIN72 standard housing. All the wires are connected by needle locked terminals; this makes installation, wire connection, movement and replacement easier and more convenient.
l Auto protection and instruction of high water temperature, low ail pressure, over speed and charge failure, etc.
l Charge failure alarm, not stop the generator.
l Program setting engine accelerator.
l Display voltage, current, frequency, water temperature, oil pressure and operating time, etc.
DIESEL GENERATOR | ||
G/set Details | ||
Model of the G/set | QC124GF | QC160GFS |

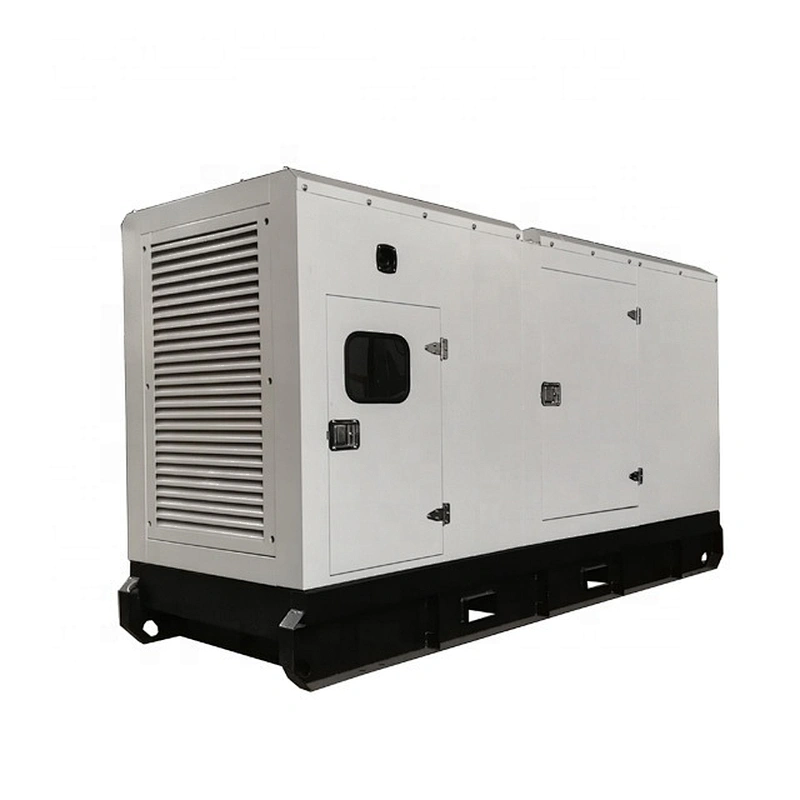

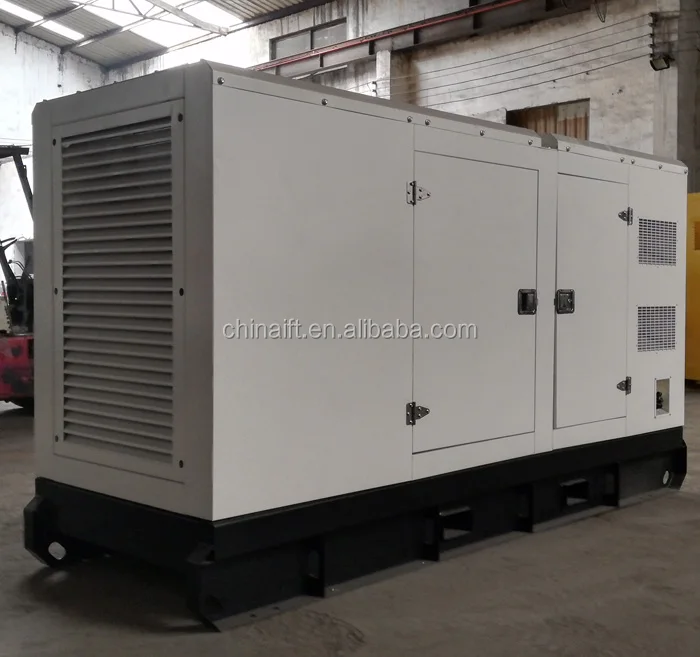

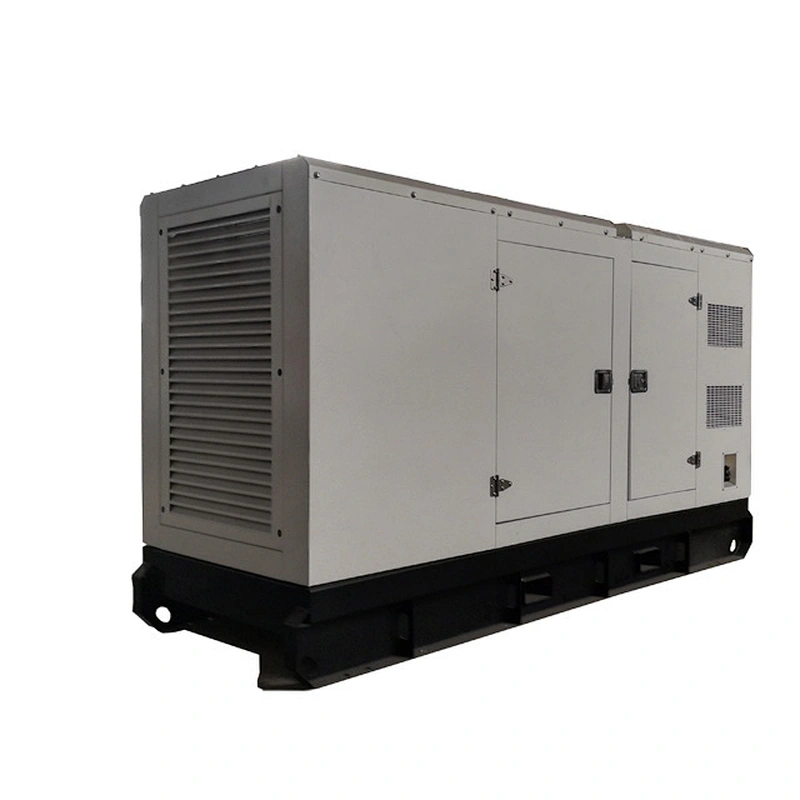

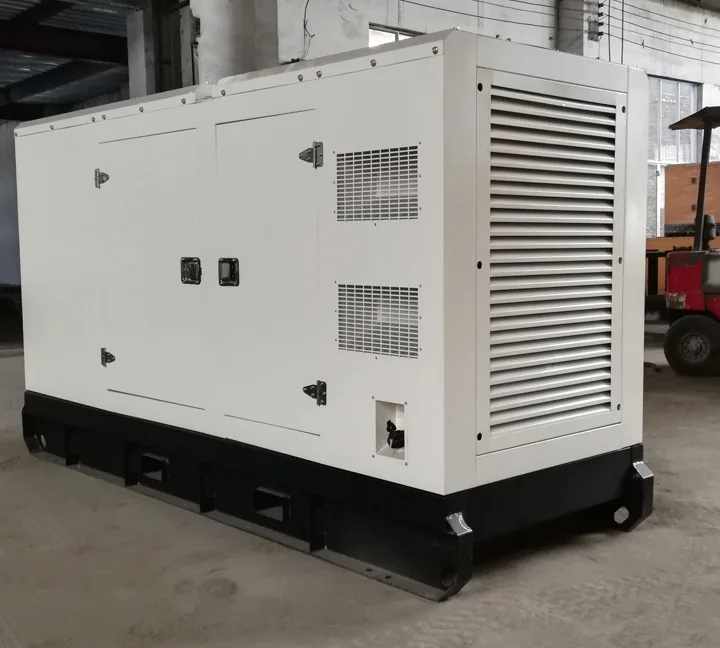

Type | OPEN | LOW NOISE TYPE |
Prime Power (KW/KVA) | 124/155 | 124/155 |
Standby Power (KW/KVA) | 136/171 | 136/171 |
Rated speed | 1500Rpm | |
Engine Details | ||
Model | 6BTAA5.9-G2 | 6BTAA5.9-G2 |
Rated Power (KW) | 130 | 130 |
Standby Power (KW) | 140 | 140 |
Full load Fuel Cons. (L/h) | 31 | 31 |
Air Intake Mode | Turbo | Turbo |
Governing Method | Electronic | Electronic |
Cylinder No. | 6Cylinders Inline | 6Cylinders Inline |
Displacement (L) | 5.9 | 5.9 |
Cooling Method | Water Cooled | Water Cooled |
Alternator Details | ||
Brand | KWISE | |
Model | S274G124C5 | |
Rated Voltage (V) | 120/208V | |
Frequency (Hz) | 60 | |
Power factor | COS 0.8LAGGING | |
Phase/Connection | 3Ph 4 Wires, Y TYPE | |
Excitation method | Brushless | |
Voltage Regulation | AVR | |
Control System | ||
Model of the Control Box | Q1001 with safety control unit | |
Main Functions | Please refer to remarks 7. | |
Approximate Packing Dimensions of the G/set | ||
Length*Width*Height(mm) | 2460*840*1650 | 3200*1100*1700 |
Gross Weight(Kg) | 1580 | 1960 |
Delivery Time | ||
Forstandard order | 10-15 working days | |
