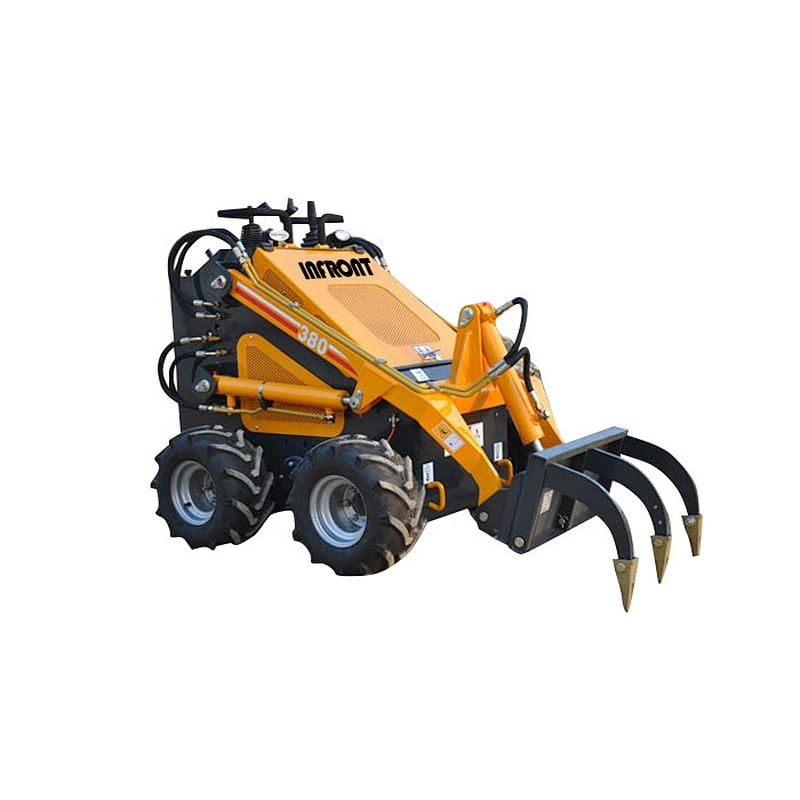

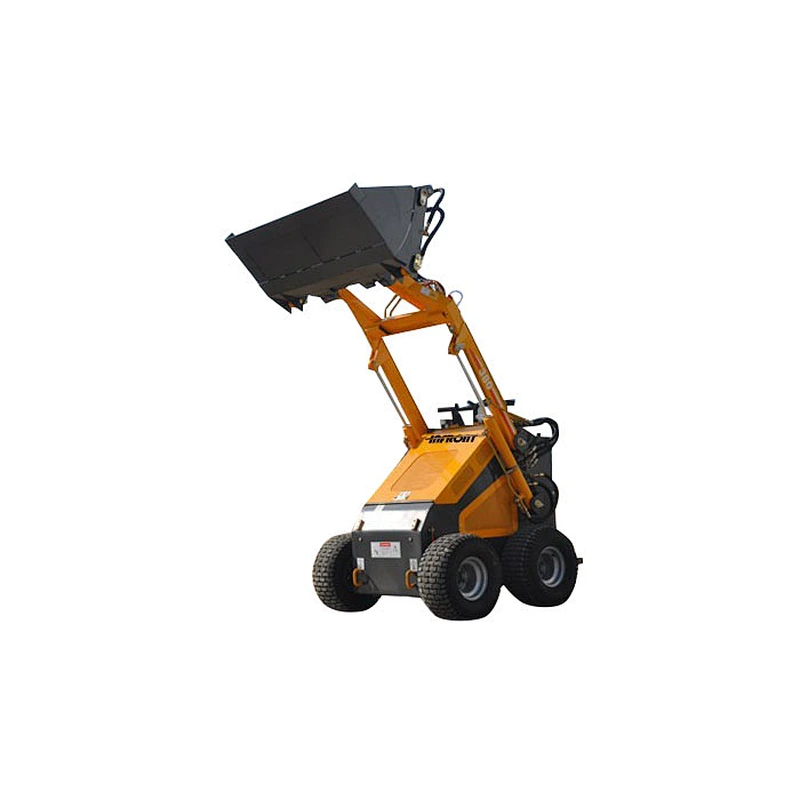

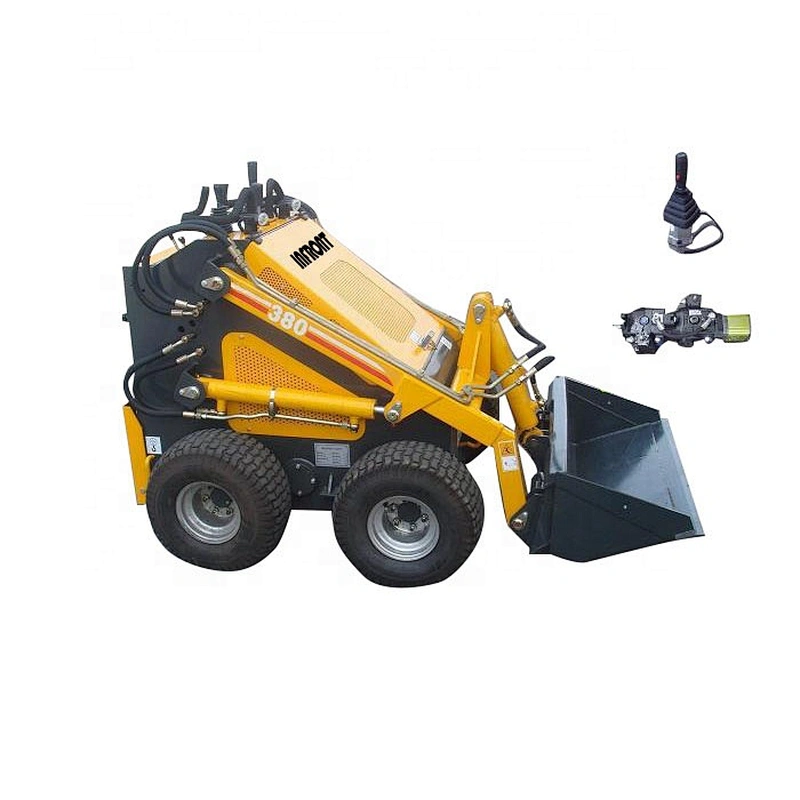

skid steer loader construction rock drilling machine
skid steer loader construction rock drilling machine
skid steer loader construction rock drilling machine
Dimensions
Item | With Chevron Engineering Tyre | |
| Max working height H1 | 2143mm | 84.37inch |
| Max dump height H2 | 1488mm | 58.58inch |
| Total Height H | 1233mm | 48.54inch |
| Max pin height | 1884mm | 74.17inch |
| The length of the foot plate | 678 mm | 26.7inch(foot plate level) |
| Total length with bucket L ( mm) | 2206mm | 86.9inch |
| Highest point dump distance L1(mm) | 348mm | 13.7inch |
| Length without bucket L2(mm) | 1752mm | 69inch |
| Bucket width B(mm) | 980mm | 38.6inch |
| Total width B1(mm) | 1160mm | 45.67nch |
| Wheel base | 940mm | 37inch |
| Ground clearance(mm) | 118mm | 4.65inch |
| Turning radius R(mm) | 1307 mm | 51.5inch |
| Bucket dumping angle α(°) | 30 | |
| Rollback of bucket on ground β(°) | 25 | |
| Departure angle(°) | 11(foot plate level) | |
Parameter
Item | Item | ||||
Engin | Rated power(KW) | 15.4KW(21HP) | |||
| Rated speed(rpm) | 3300 | ||||
Noise (Db) | 95 | ||||
Hydraulic system | Hydraulic pressure(Mpa) | 17 | |||
| Cycle time(s) | Raise | Dump | lower | ||
4.27 | 1.34 | 3.31 | |||
Technical Parameter | Operating Load | 200 Kg | 441lb | ||
| Bucket Capacity | 0.15 m3 | 5.33(ft 3) | |||
| Max Lifting Force | 375 Kg | 827lb | |||
| Travel Speed | 0-5.5Km/h | 0-3.4mile/h | |||
| Operating Weight | 890 Kg | 1958lb(With Chevron Engineering Tyre ) | |||
Tires | 18*6.5-8 | ||||
Optional attachments:

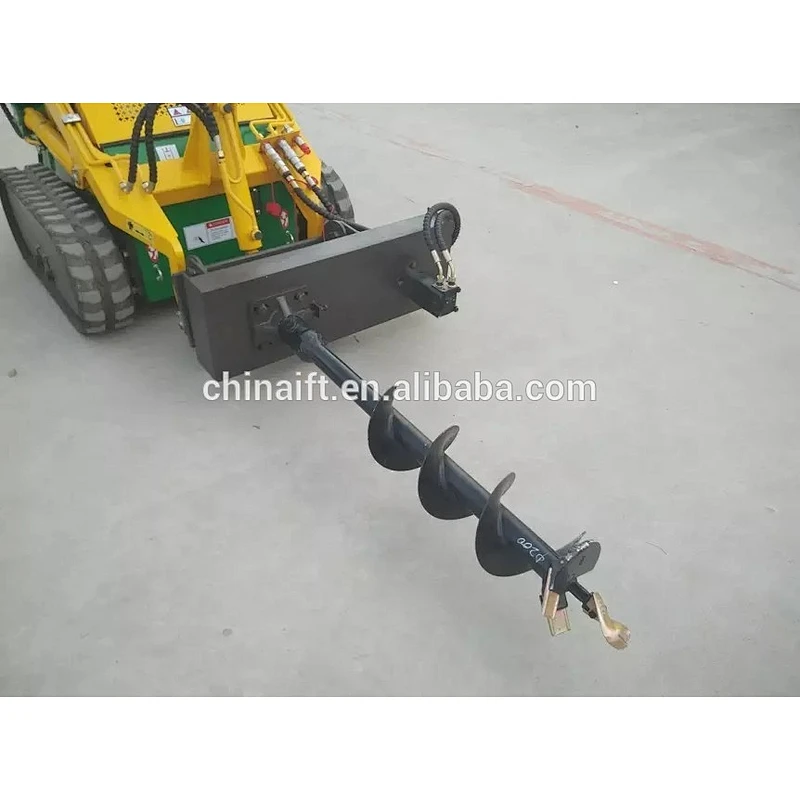

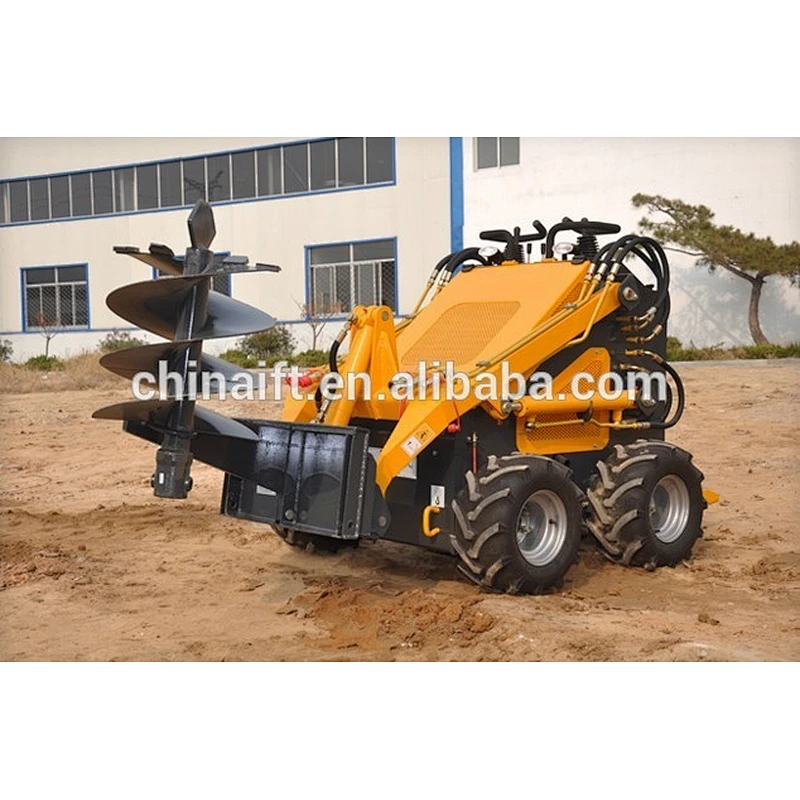

standard bucket,digger,hydraulic grapple,4 in 1 bucket,hydraulic breaker,auger,angle blade,fork,snow blower,lawn mower,trencher and so on
