Product Description

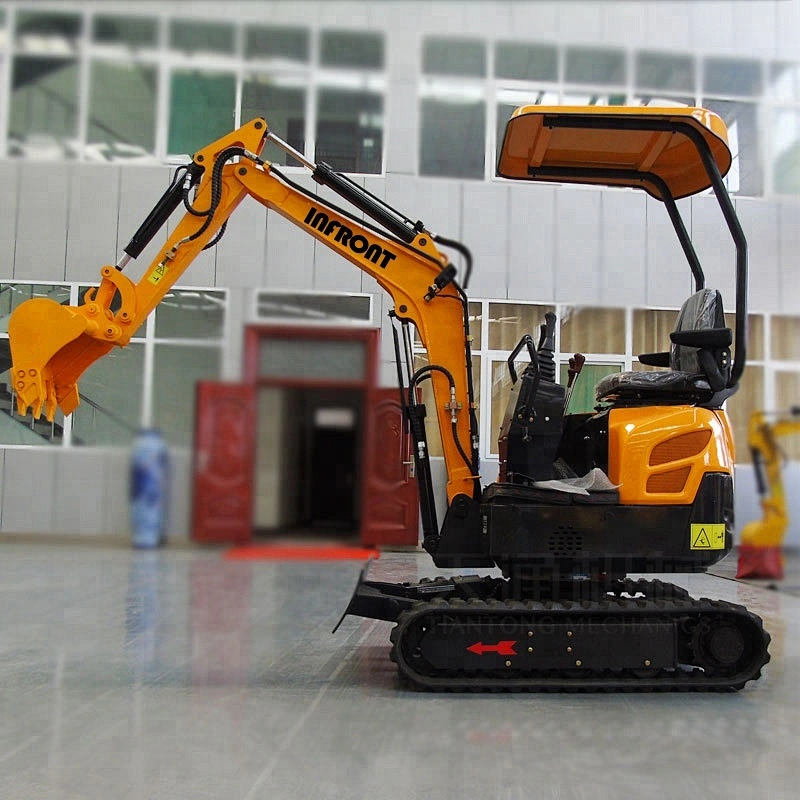

made in China 1.8 ton hydraulic mini excavator

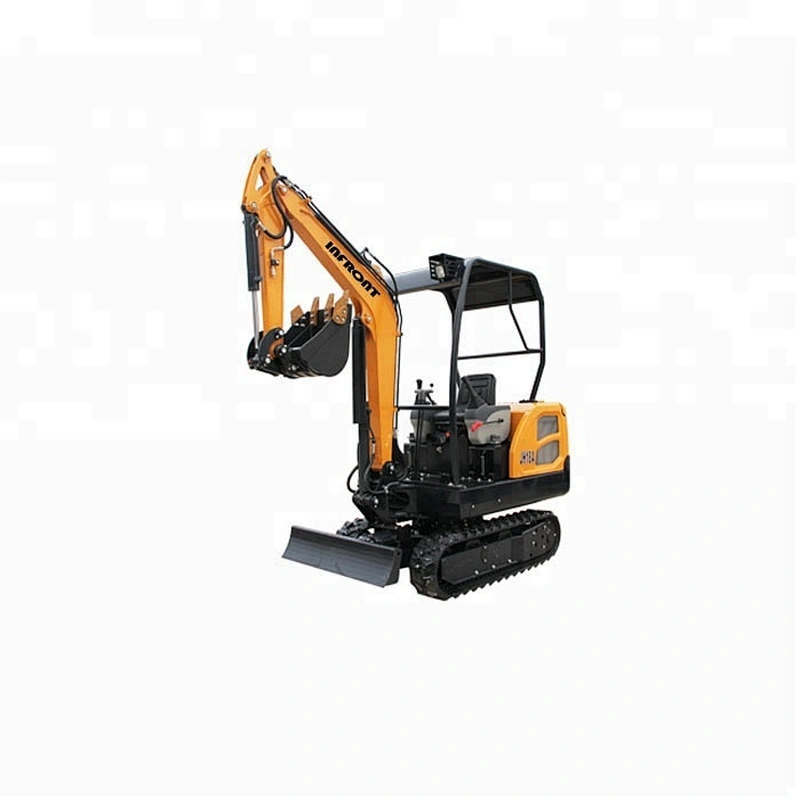

made in China 1.8 ton hydraulic mini excavator

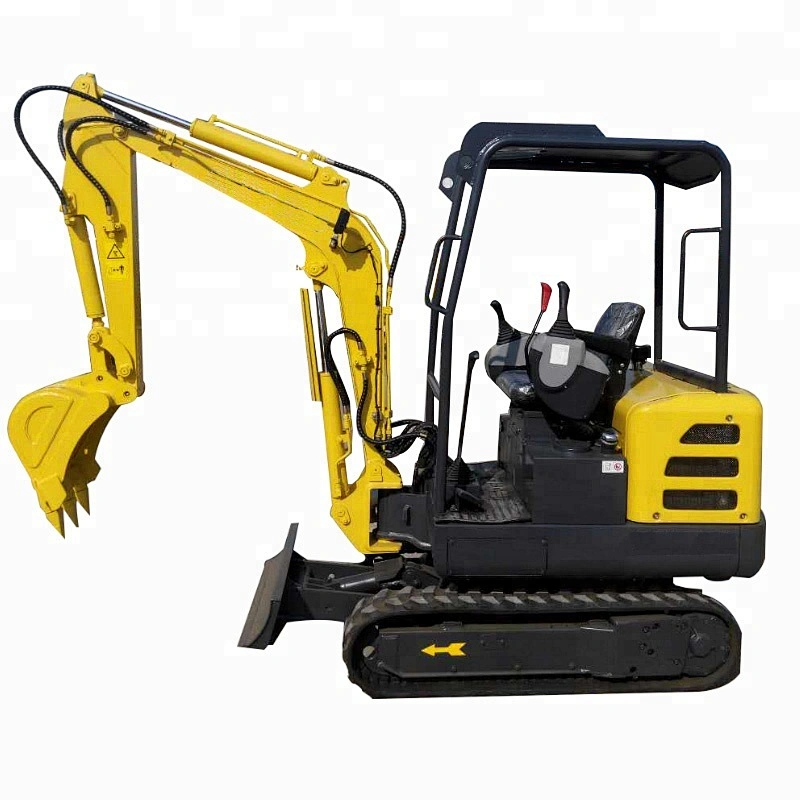

made in China 1.8 ton hydraulic mini excavator
| Performance parameter | |
| Bucket Capacity(M³) | 0.06 |
| Swing Speed(Rmp) | 10-12 |
| Gradeability(°) | 35 |
| Bucket Max.Digging Force(KN) | 14 |
| Arm Max.Digging Force(KN) | 10 |
| Engine Model | 3TE25 |
| Power/Rotation Speed(KW/Rmp) | 18.4/2350 |
| Tyre Model | - |
| System Pressure(MPa) | 18 |
| Working Range | |
| Max.Digging Height(Mm) | 3365 |
| Max. Dumping Height(Mm) | 2385 |
| Max.Digging Depth(Mm) | 2050 |
| Max.Vertical Digging Depth(Mm) | 1725 |
| Max.Digging Radius(Mm) | 3860 |
| Min.Swing Radius(Mm) | 1720 |
| Dozer Blade Max.Lifting Height(Mm) | 230 |
| Dozer Blade Max.Cutting Depth(Mm) | 275 |
| Boom Swing(Left)° | 75 |
| Boom Swing(Right)° | 45 |
| Dimensions | |
| Length*Width*Height(Mm) | 3865*1050*2270 |
| Cabin Height(Mm) | 2270 |
| Sproket To Idler(Mm) | 1230 |
| Axle Distancer(Mm) | 820 |
| Min.Ground Clearance(Mm) | 210 |
| Tail Swing Radius(Mm) | 1125 |
