Diesel self loading concrete mixer machine
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
MAIN PERFORMANCE PARAMETRES
| Mixing Drum | Drum capacity 5.3M3. Concrete output: 3.5 M3 per batch. 8.75Ton. |
| Mixing Speed | 20rpm in full, infinitely variable speed change. No interference from other actions. |
| Loading Speed | 3shovels/min, 650L/Shovel |
| Pump water | 1.5 min/batch. 40Ton/hour, Self-suction hydraulic driven water pump |
| Efficiency | 4 batches one hour. 14m3/hour |
| Speed | 0—10km/hour 0—20km/hour |
| Washing Gun | Hydraulic driven high pressure water pump & washing gun |
| Drum rotation | Horizontal rotation270°, high of discharge port is 1.8 meters |
| Engine | Yuchai,YC4A125Z, Diesel, water-cooled,4cylinders, 92kw/2200rpm. |
| Transmission | Powered by hydraulic. 4 wheel drive and 4 wheel steering. |
| Walk | Powered by Variable plunger pump and variable plunger motor. |
| Mixing | Powered by variable plunger pump and plunger motor. American DANFOSS brand |
| Joymix | Hydraulic pilot handle. |
| Driving seat | Left drive , front cab, on side of loading shovel. |
| Chute | Slewing. Fitted with two pins easily detachable to increase the discharge height. |
| brake | Hydraulic brake, double independent circuit. No power state 4 time effective brake. Hydraulic parking brake |
| Steering | Hydraulic steering. 3 way steering. |
| Tyre | 16/70-20, construction tyre 16/70-20. |
| Electric | 24V. Safety battery cut-off |
| Tanks | Water tank: 2x350L . Diesel tank: 150L. Hydraulic oil tank: 125L. |
| Weight | 8600kgs |
| Overall Dimensions | Long: 7.2M Width 2.5M High: 3.3M |
| Measuring | Electronic weighing system, with a printer. The deviation is less than 5% |
If contact Miss. Yilina Wang ,you can get one Thoughtful Gift
Skype:jkmachinery807 QQ:3149453337
Mobile/Whats up: +0086 135 1867 7059
WeChat: 86 135 1867 7059
Email:sales07@ jkmshantui.com / sales07@ chinaift.com

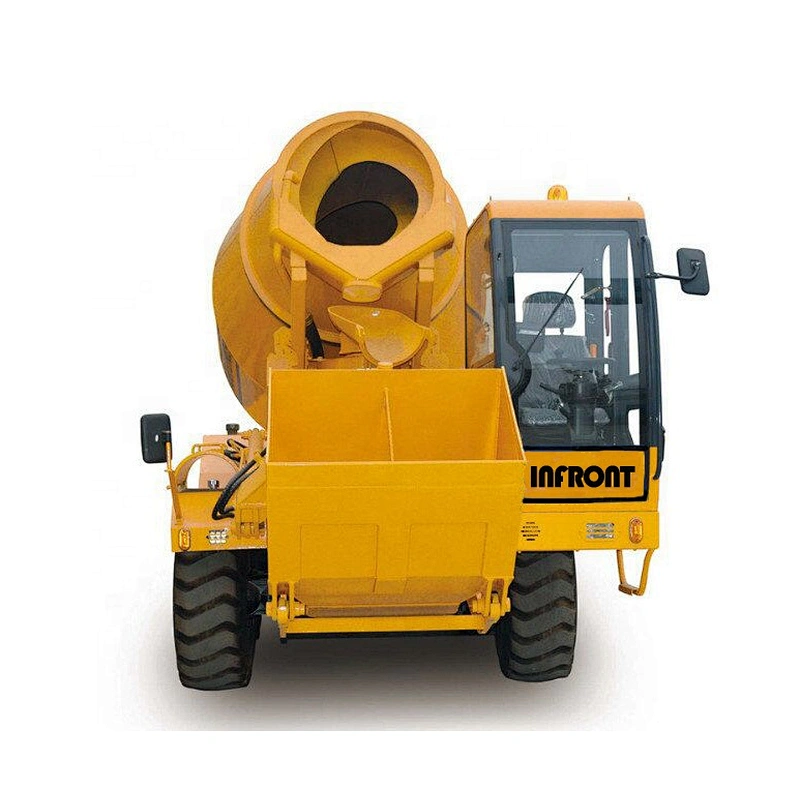

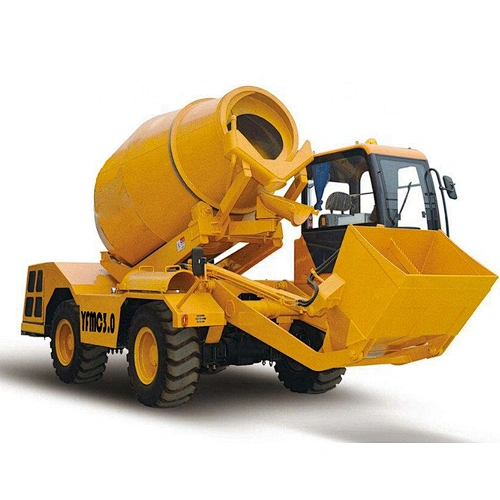

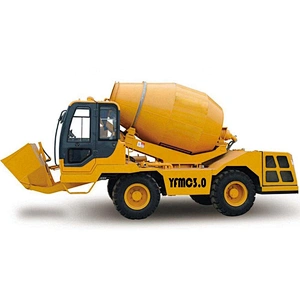

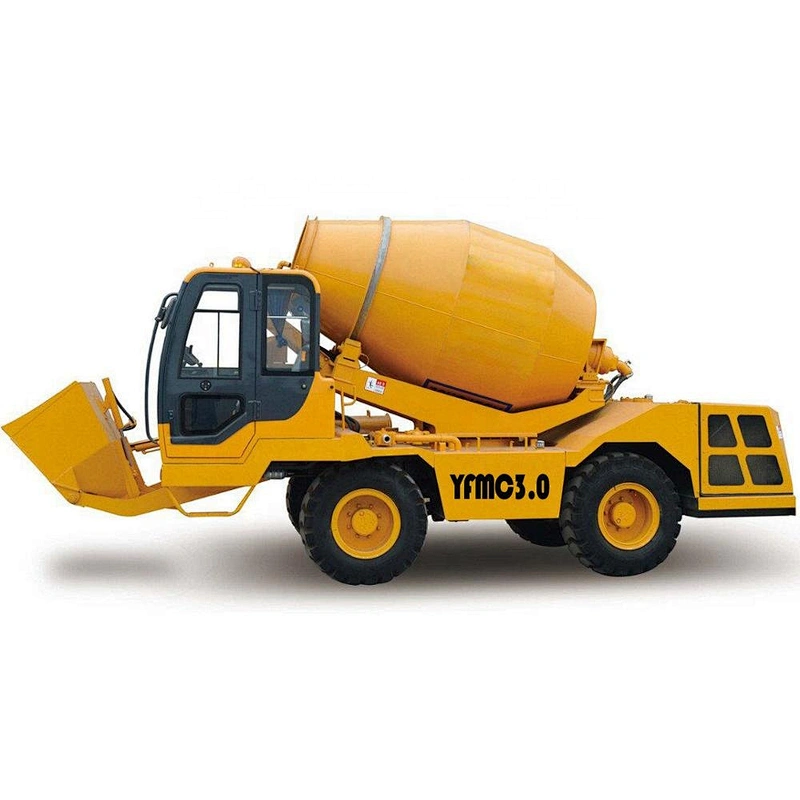

Self-loading concrete mixer is the combination of concrete mixer truck and cement mixer, which can automatically feed, measure, mix and discharge concrete mixture. Equipped with a powerful engine and 4 wheel steering, the self loading concrete mixer is just like a small car and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. The raw material is scattered in the construction site. With self loading mixer machine, you will never to worry about transporting raw material.
The efficient self loading mixer concrete machine just need one operator to drive, load, and mix raw material while moving it. It has a higher working efficiency, higher mixing effect. At the same time, it greatly reduces the labor cost and working time. The self loading concrete mixers can bring you great benefits. Compared with concrete mobile mixer, the self loader mobile cement mixer truck.
