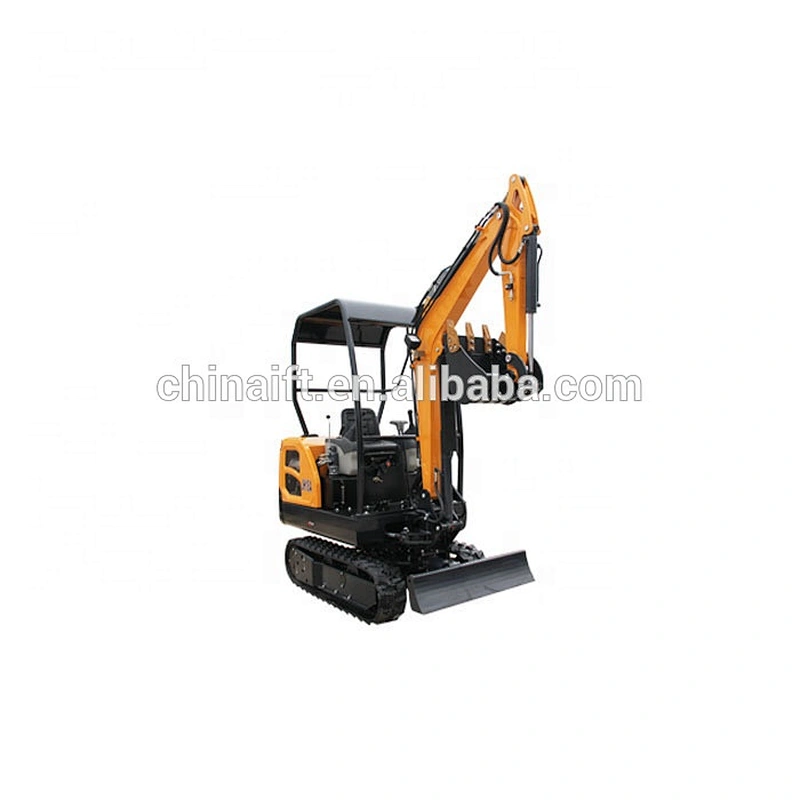

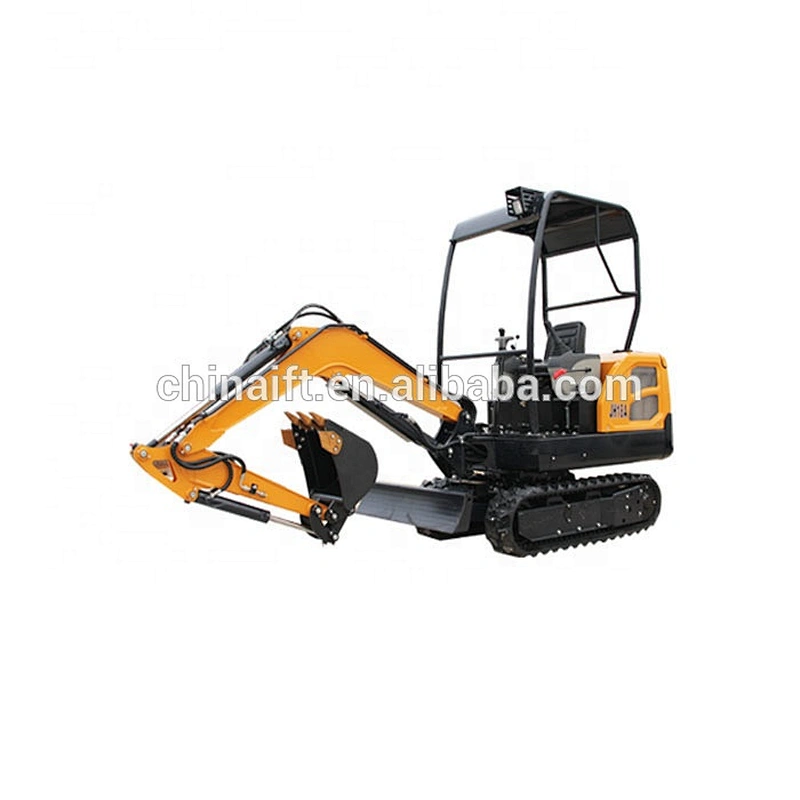

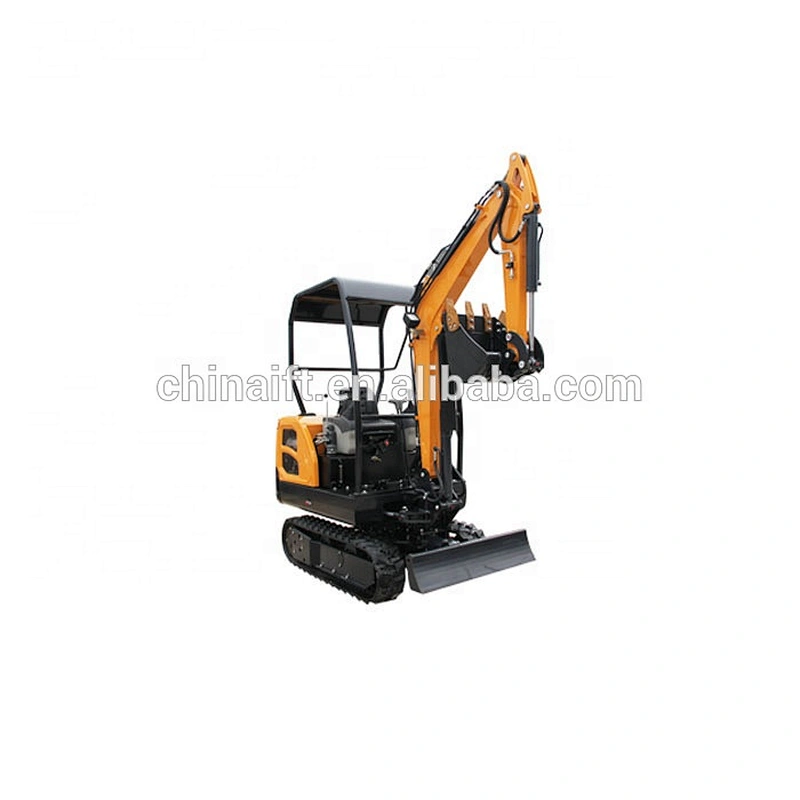

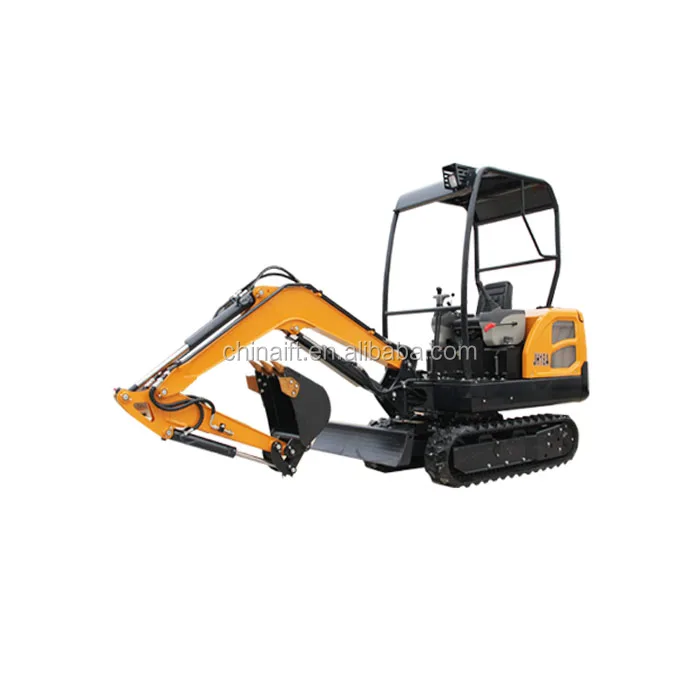

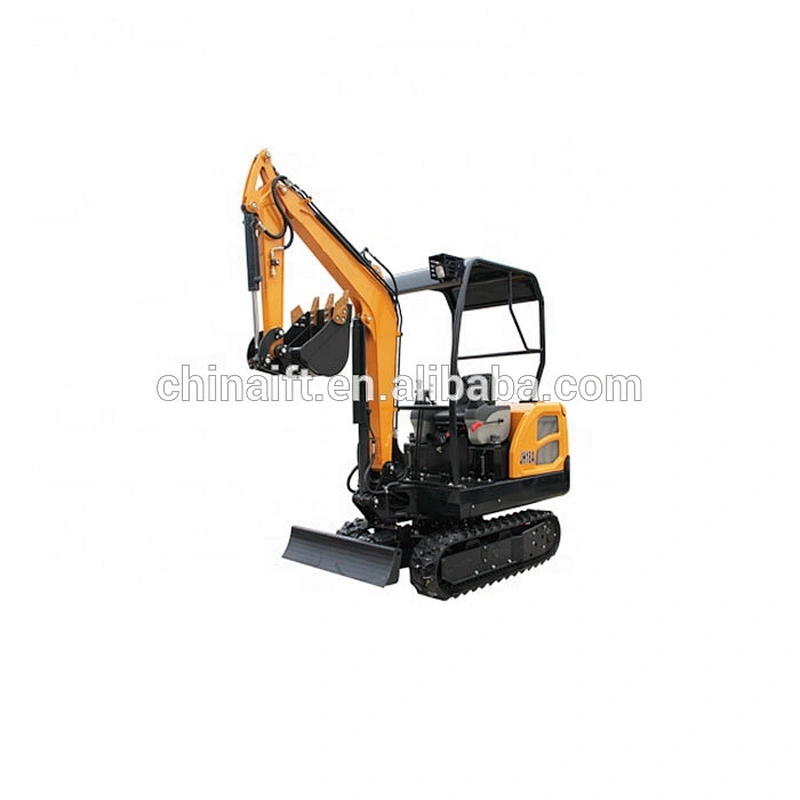

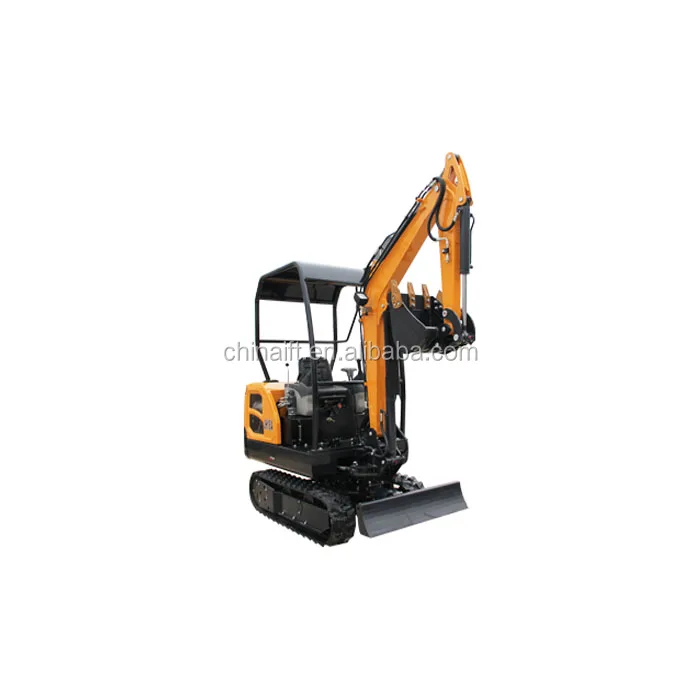

The mini excavator YF18 is widely used in municipal engineering and transportation,it also plays a wonderful role in garden constructions.This type of mini excavator can help to save manpower and material resources to meet various requirements of operation and to maximize production capacity in the city's narrow work space.Its low pollution and small radius of rotation are popular with many customers.
PARAMETERS
Operate weight | 1.8 Ton |
Bucket capacity | 0.06CBM |
Engine Model | Laidong KM385B |
Engine Power | 18.1Kw/2200rpm |
Fuel Tank Capacity | 18L |
Travel Speed | 2.8/3.0 Km/h |
Gradeability | 70% (35°) |
Boom Swing Angle | 75°(right)/45°(left) |
System Pressure | 16MPa |
Arm digging force | 11.5kN |
Max. Digging Radius | 3860mm |
Max. Digging Depth | 2050mm |
Max. Digging Height | 3370mm |
Max. Dumping Height | 2390mm |
Min. Swing Radius | 1125mm |
Overall Length | 3800mm |
Overall Width | 1050mm |
Overall Height | 2280mm |
MAX Dozer Cutting | 270mm |
MAX Dozer Lifting | 235mm |
