Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
We provide you with the best quality of BULLDOZER, EXCAVATOR,COMPACTOR, FORKLIFT, MOTOR GRADER,WHEEL ROADER,ETC.
Also we specialized in all kinds of MACHINERY PARTS related to construction machine with competitive price. In China, Shantui's name is synonymous with bulldozers. In fact, Shantui has been King of the Hill for decades, and now Shantui's dozers have cleared the way for the growth in offering a complete line of construction machinery and cement handling equipment.

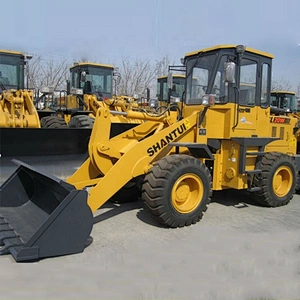

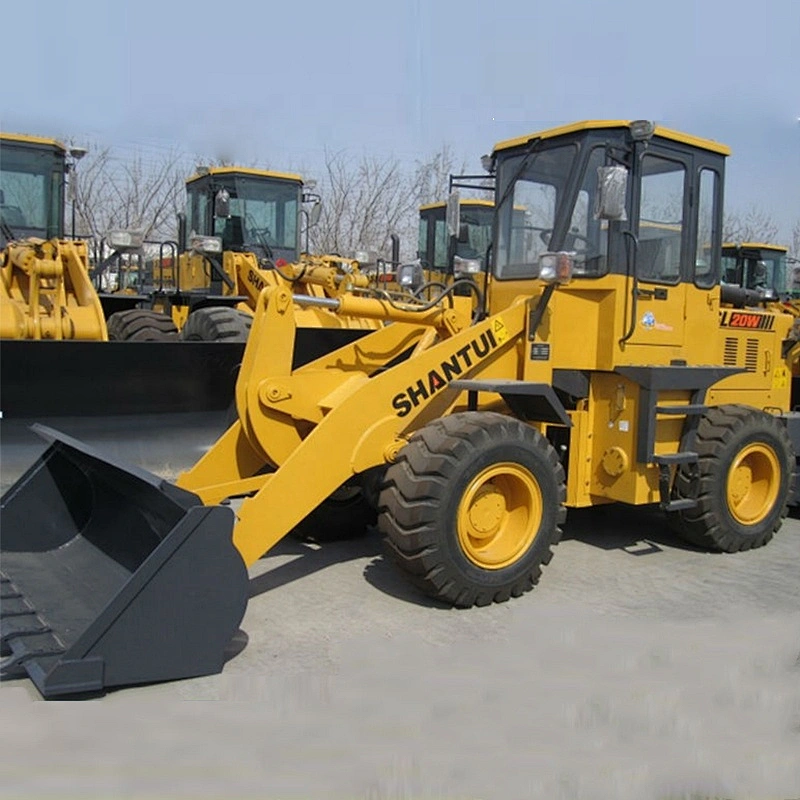

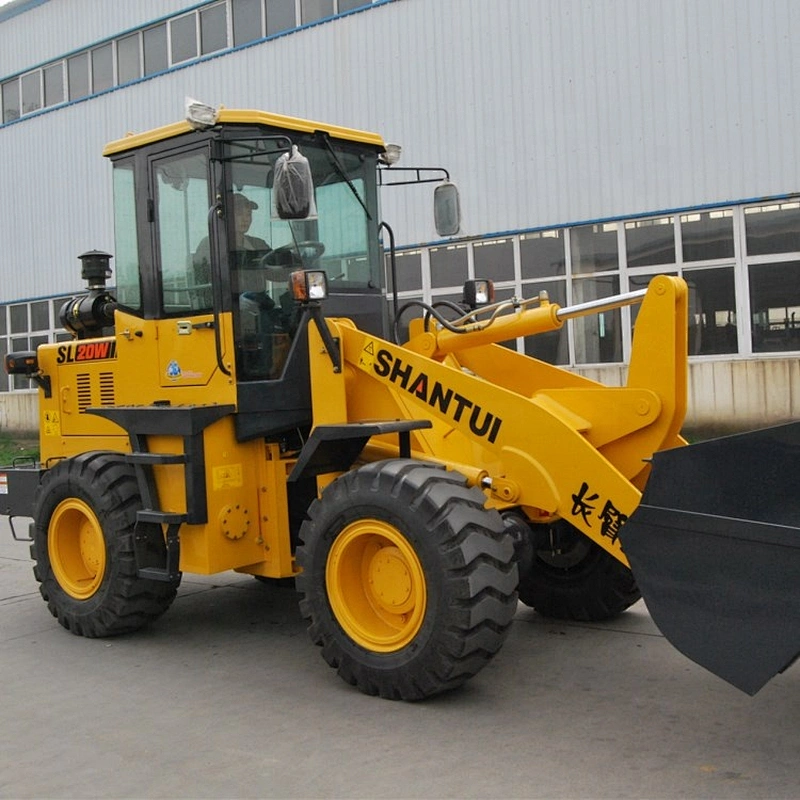

From the SL20W on up,Shantui wheel loaders offer the latest safety features,such as the anti-explosion design in the engine compartment.They come with various adaptable fittings such as pitch forks,timber forks,side dumping hoppers,rock buckets,bale loaders,underground loaders and more.
| SL20W | Overall width: 2078 mm | ||
| Technical specifications: | Overall length: 5930 mm | ||
| Overall height: 2850 mm | |||
| GENERAL SPECIFICATIONS | Operating weight | 6200 kg | |
| Related loading | 2000 kg | ||
| Bucket capacity | 1.0 m3 | ||
| Maximum lifting force | 55 kN | ||
| Static tipping load (full turn) | 4000 kg | ||
| Dumping height | 2850 mm | ||
| Dumping reach | 865 mm | ||
| ENGINE | Engine model | Luotuo LR4B3-24 | |
| Type | In-line, water-cooled, 4-cylinder, direct injection, turbocharged | ||
| Rated power | 60 kW | ||
| Rated speed | 2400 rpm | ||
| Displacement | 4.48 L | ||
| Maximum torque | 280 N·m | ||
| Minimum fuel consumption | 242 g/kW·h | ||
| AXLES AND FINAL DRIVES | DRIVE SYSTEM | Four-wheel drive | |
| Gradeability | 30° | ||
| Maximum traction | 54 kN | ||
| BRAKE SYSTEM: | Service brakes | Air over oil four-wheel dual-loop disc brake system | |
| Parking brake | Automatically air-cut brake, disc brake | ||
| STEERING SYSTEM: | Type | Articulated type, full-hydraulic power steering | |
| Maximum steering angle | 35° each direction | ||
| The center of outside tire | 4664 mm | ||
| The center of outside bucket | 5090 mm | ||
| TIRES | Type | 23.5-25 16PR | |
| Pattern level | L3 | ||
