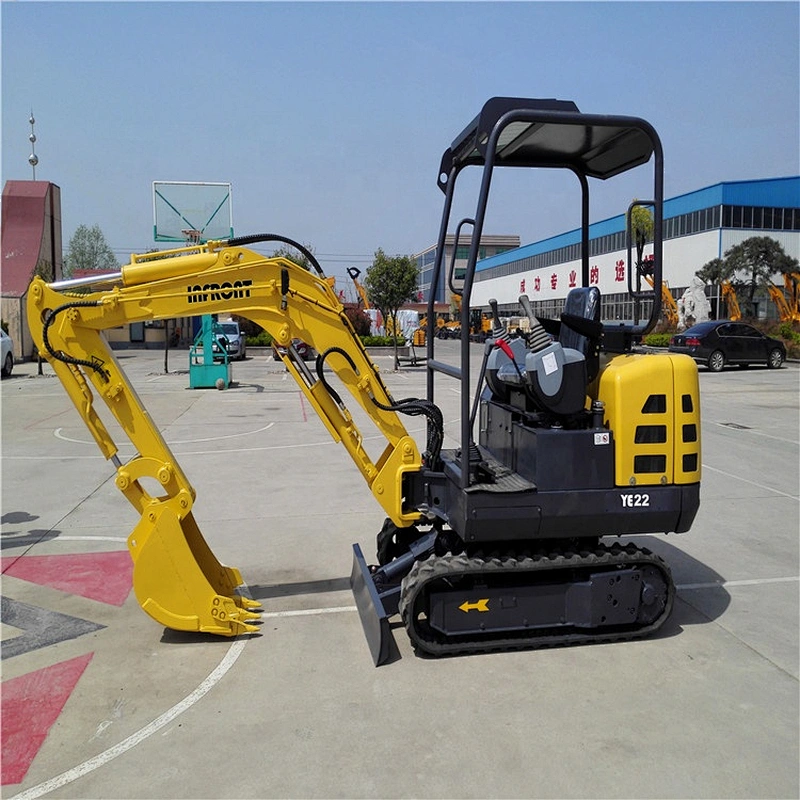

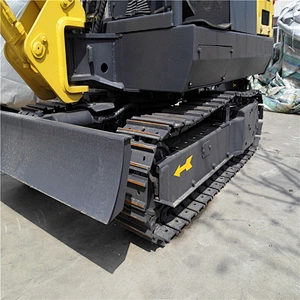

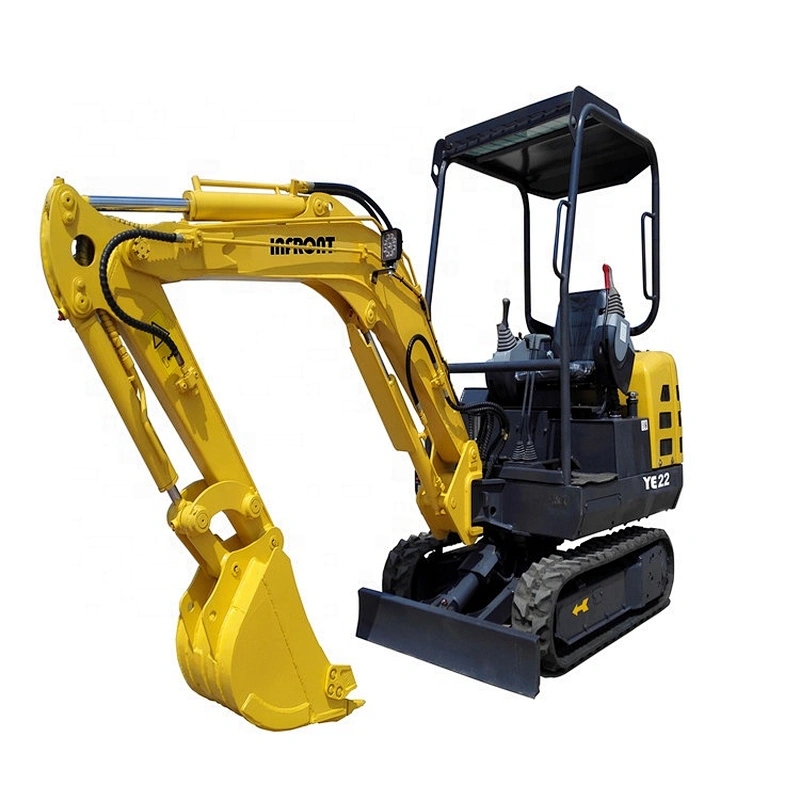

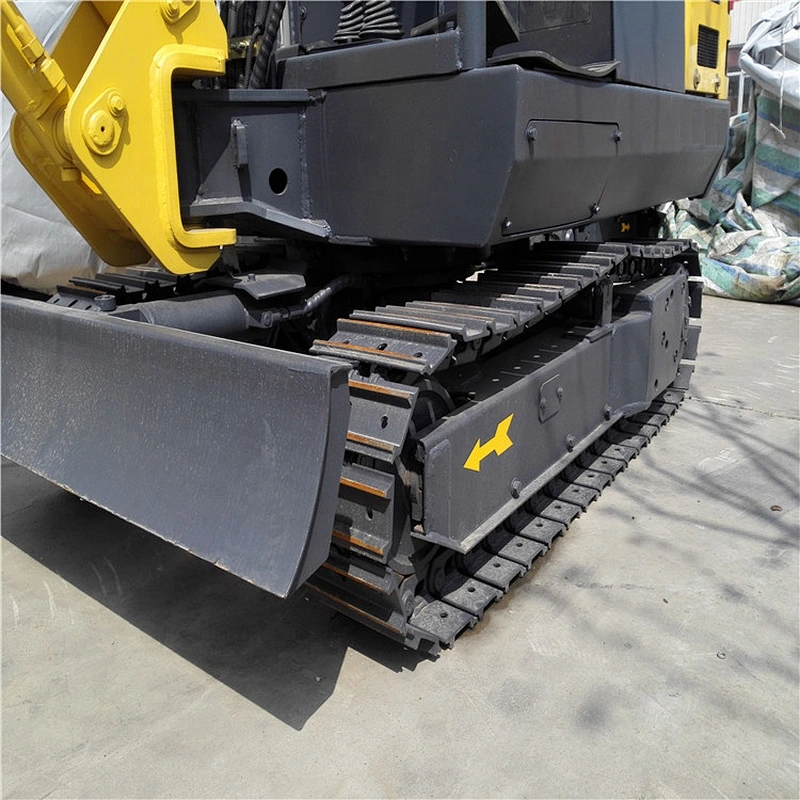

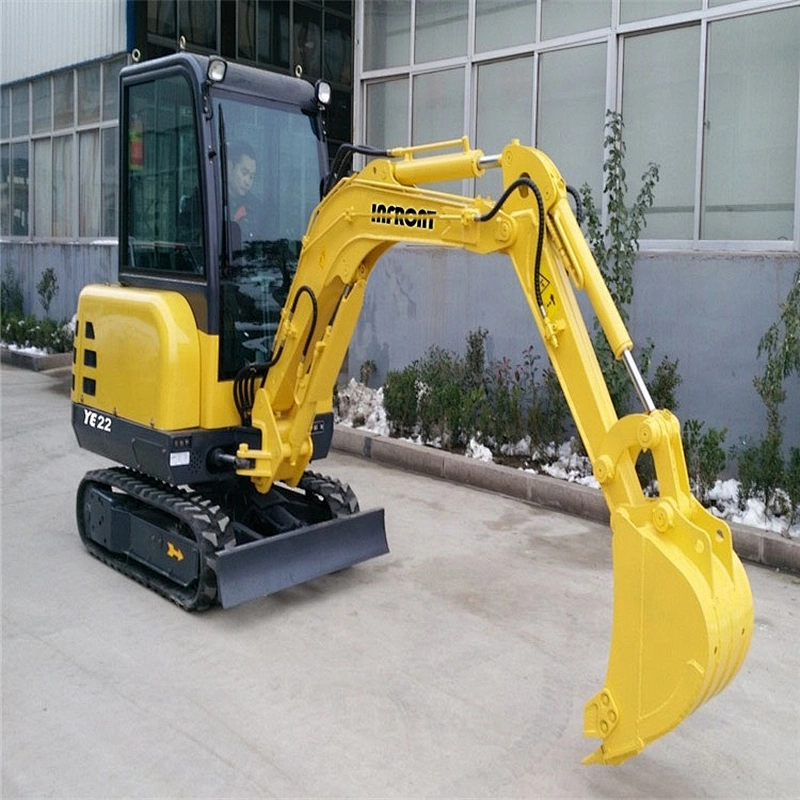

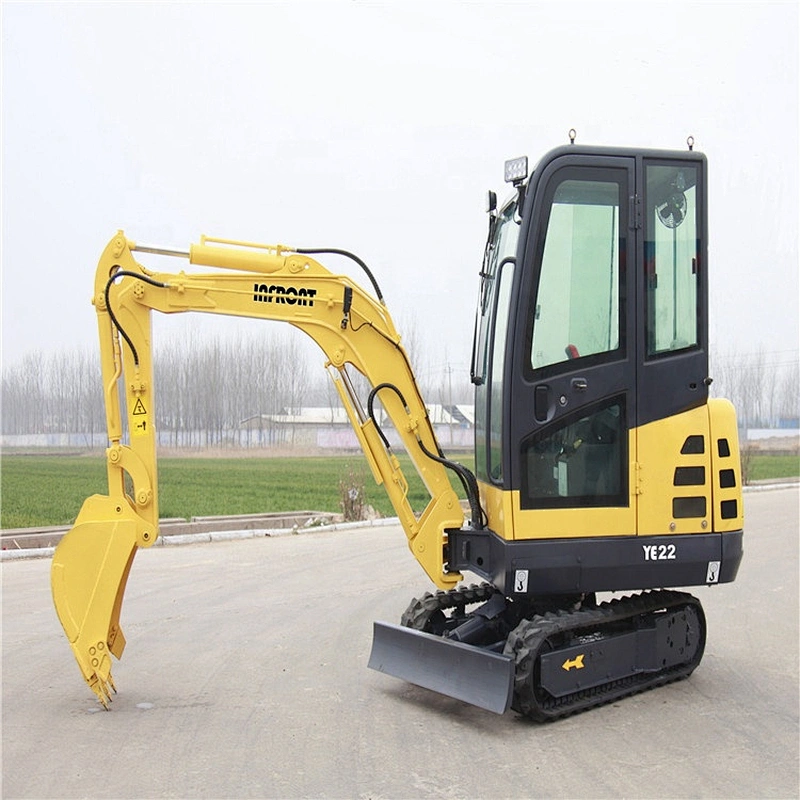

Cheap price small garden mini excavator 1 Ton
Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Technical parameters
Operating Weight | 980kg |
Digging bucket capacity | 0.025cbm/100kg |
Bucket width | 200/400/600 mm |
Engine | KOOP |
Rated power | 24P |
Displacement | 0.997 L |
Bore stroke | 92x55 |
Mainpump | 310 |
Swing motor | BMP-200 |
Traveling motor | OMS-2450 |
Travel speed | 3.5km/h |
MAIN DEMENSIONS | |
Overall dimension( LxWxH) | 2770x896x1490 mm |
Wheelbase | 800mm |
Total length of track | 1200mm |
Platform ground clearance | 380 mm |
Platform back turning radius | 784 mm |
Chassis width | 896 mm |
Track width | 180 mm |
Chassis ground clearance | 132 mm |
Track height | 320 mm |
OPERATING RANGE | |
Max. Digging depth | 1800 mm |
Max. Vertical digging depth | 1320 mm |
Max. Digging height | 2550 mm |
Max. Dumping height | 1850 mm |
Max. Digging radius on ground | 2550 mm |
Min. Rotation radius | 1800 mm |
Max. Upgrade width of bulldozer blade | 930 mm |
Max. Digging depth of bulldozer blade | 210 mm |
