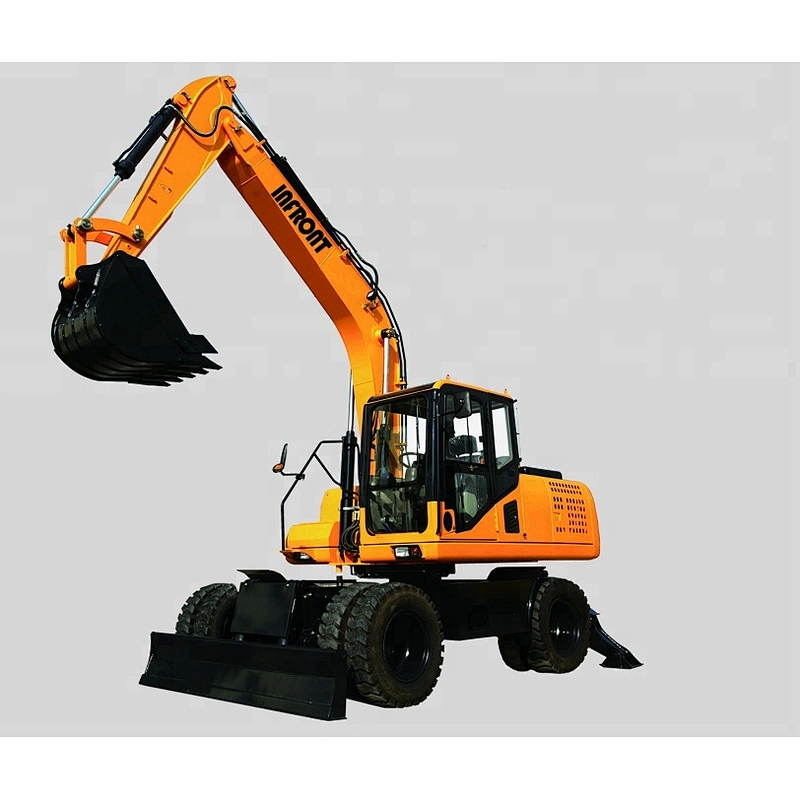

New Jining supplier 13.5tons wheel excavator
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| MODEL | YFW135 |
| Rated Power:115(Hp) Bucket Capacity:0.6(M3) Operation Weight:13500(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.6 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 25 |
| Bucket Max.Digging Force(KN) | 91 |
| Arm Max.Digging Force(KN) | 55 |
| Engine Model | YC4D115 |
| Power/Rotation Speed(KW/Rmp) | 85/2200 |
| Tyre Model | 9.00-20 |
| System Pressure(MPa) | 32 |
| Working Range | |
| Max.Digging Height(Mm) | 8930 |
| Max. Dumping Height(Mm) | 6520 |
| Max.Digging Depth(Mm) | 4750 |
| Max.Vertical Digging Depth(Mm) | 4200 |
| Max.Digging Radius(Mm) | 8000 |
| Min.Swing Radius(Mm) | 2445 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 7520*2570*3425 |
| Cabin Height(Mm) | 3015 |
| Sproket To Idler(Mm) | 2600 |
| Axle Distancer(Mm) | 1944 |
| Min.Ground Clearance(Mm) | 350 |
| Tail Swing Radius(Mm) | 2420 |
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
Company Information
Exhibition
Contact Us
Jining Infront Construction Machinery Co., Ltd.
Miss. Leah Zhang
Skype:jkmachinery801 QQ:2748523788
Mobile/Whats up: +0086 183 6981 5899
WeChat: 86 183 6981 5899
Email:sales08@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
