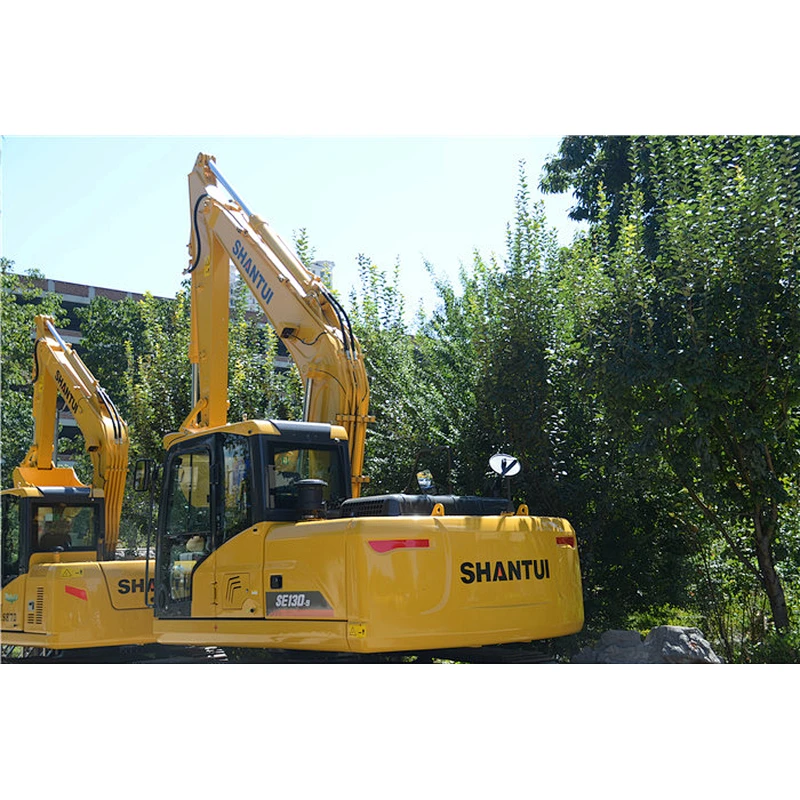

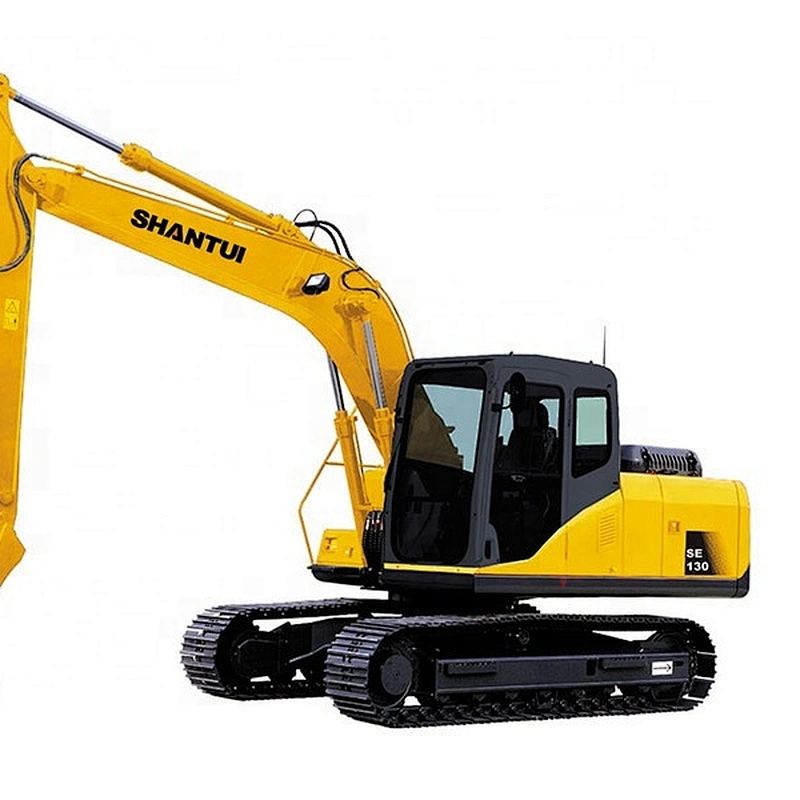

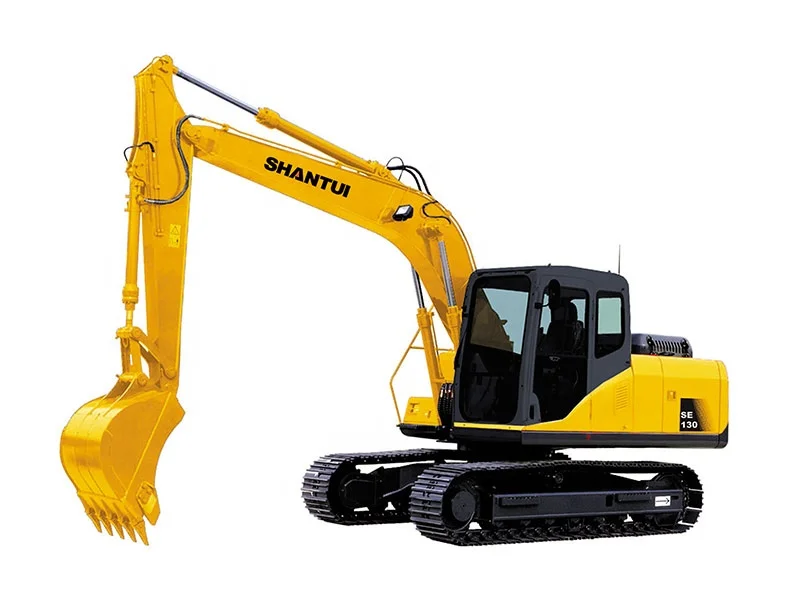

SHANTUI brand 14ton crawler excavator SE130 for project hot sale
International leading high adaptive turbocharged engine
World-class hydraulic configuration, high working pressure and low pressure loss
Enhanced working device
Comprehensively optimize the structural design, strengthen the key position of the force, no fear of bad conditions
The bucket bottom plate, side plate and reinforcing plate are made of high-strength wear-resistant material to improve the durability of the bucket.
Multi-size boom, stick and bucket are easily combined to adapt to various working conditions
Four rounds
30 years of four rounds of R&D and manufacturing experience, industry leading technology
Mature high quality forging heat treatment process, stable and reliable quality
The double-cylinder support and the hood that is opened backwards are light and easy to maintain.
Electrical components are arranged centrally for easy inspection and maintenance
Coolant filling, air filter replacement, power main switch at your fingertips
The fuel filter, oil filter and pilot filter are arranged centrally, and all maintenance and replacement can be completed in the same position.
High-precision fuel filter with large water capacity, strong fuel adaptability, self-contained electric oil pump, automatic oil replenishment, easy to start
Dimensions | |
Total length(mm) | 7860 |
Grounding length (during transportation))(mm) | 4320 |
Total height (to the top of the boom) (mm) | 2800 |
Total width (mm)(mm) | 2500 |
Total height (to the top of the cab(mm) | 2855 |
Counterweight ground clearance(mm) | 915 |
Minimum ground clearance(mm) | 425 |
Tail radius of gyration(mm) | 2380 |
Track length(mm) | 3645 |
Gauge(mm) | 2000 |
Track width(mm) | 2500 |
Track shoe width(mm) | 500 |
Slewing platform width(mm) | 2490 |
Distance from the center of rotation to the rear end(mm) | 2375 |
The scope of work | |
Maximum excavation height(mm) | 8495 |
Maximum unloading height(mm) | 6060 |
Maximum excavation depth(mm) | 5490 |
Maximum vertical excavation depth (mm) | 4625 |
Maximum excavation distance(mm) | 8300 |
Maximum digging distance of ground plane(mm) | 8175 |
Working device minimum radius of gyration(mm) | 2445 |
Engine | |
Model | QSF3.8T |
Type | Water-cooled 4-cylinder in-line turbocharger |
Displacement (L) | 3.76 |
Rated power kw/rpm) | 86/2200 |
Hydraulic system | |
Hydraulic pump form | Variable double piston pump |
Rated working flow(L/min) | 2x130 |
| Bucket | |
Bucket capacity(m3) | 0.4~0.65(0.55) |
