Product Description

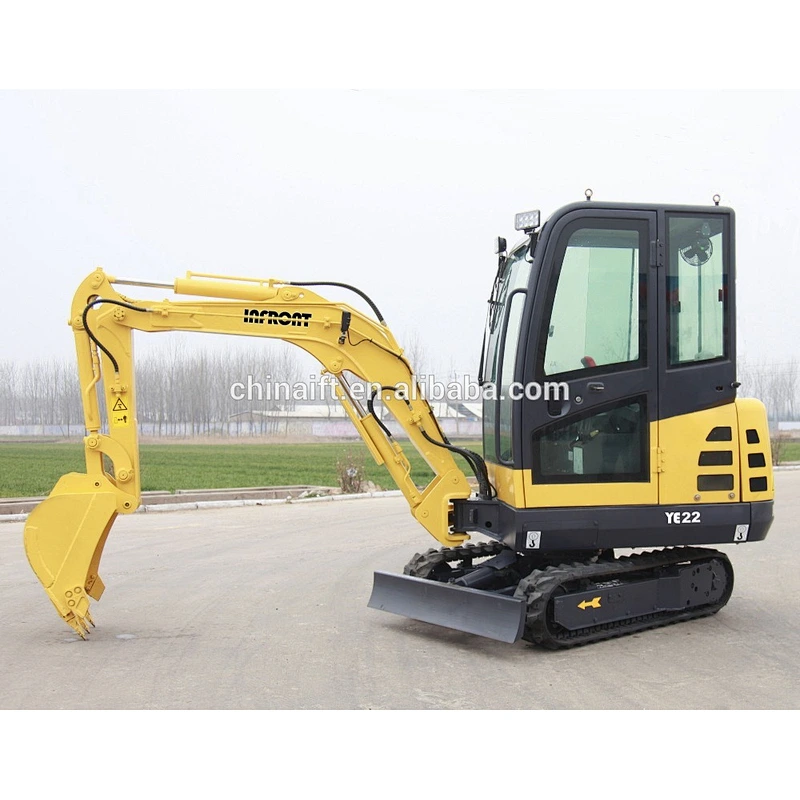

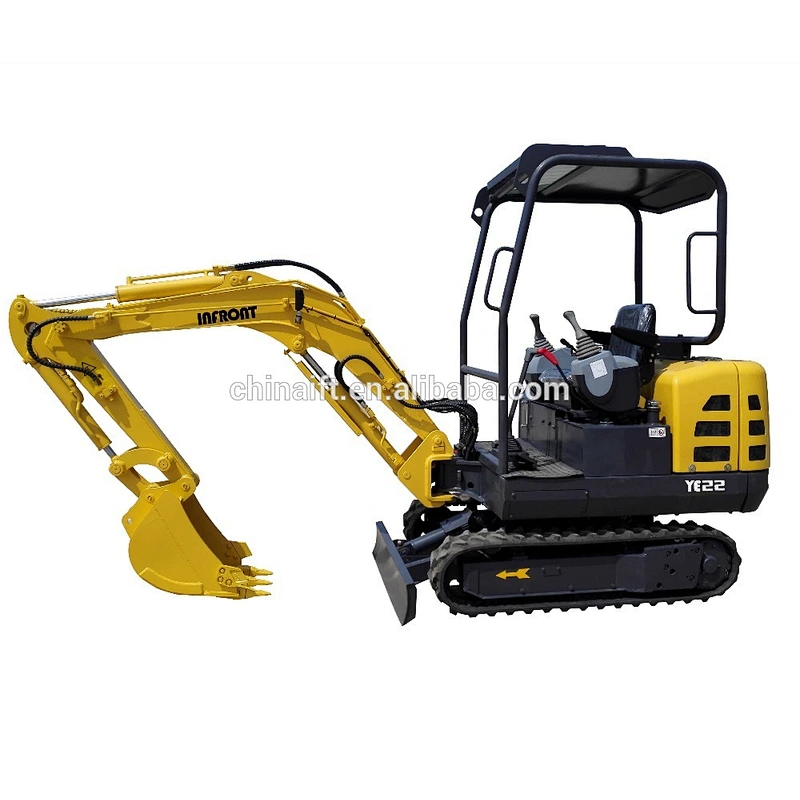

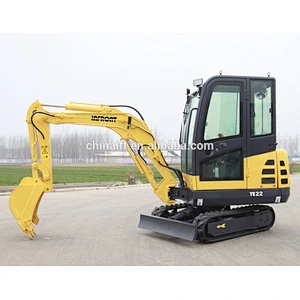

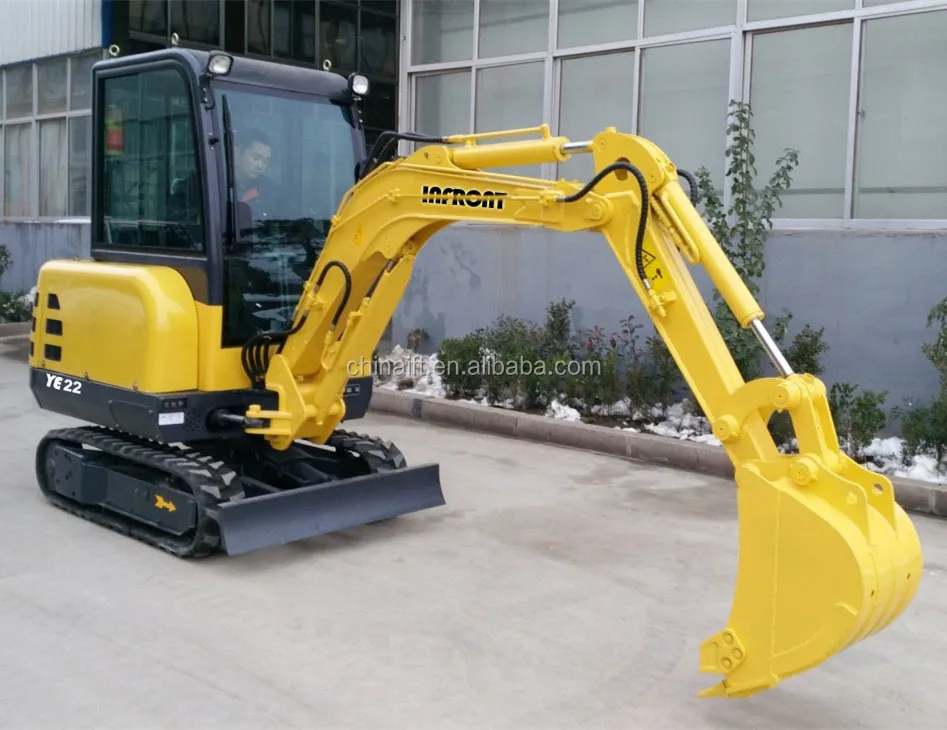

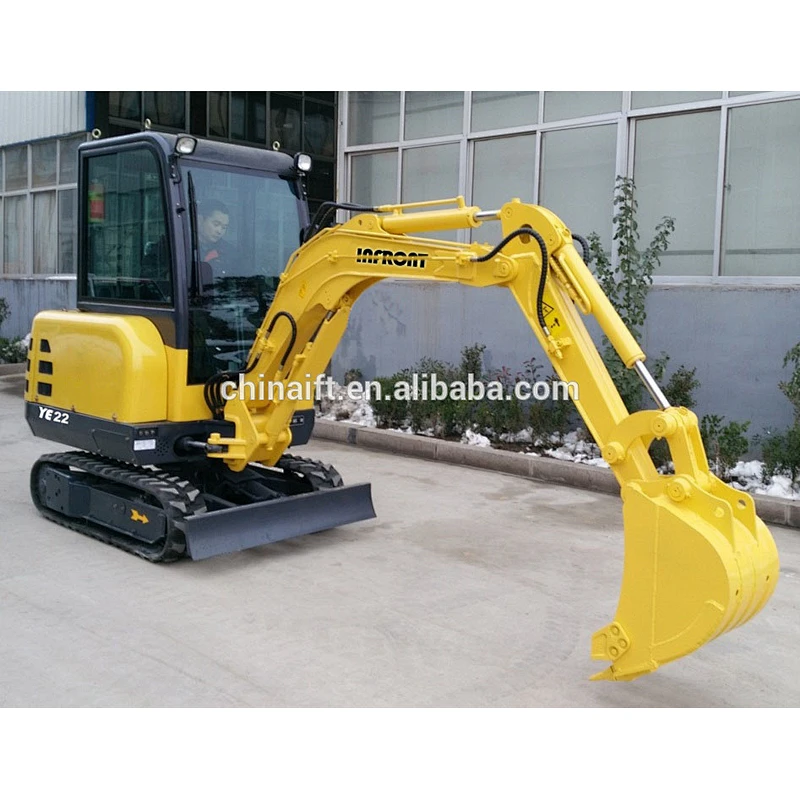

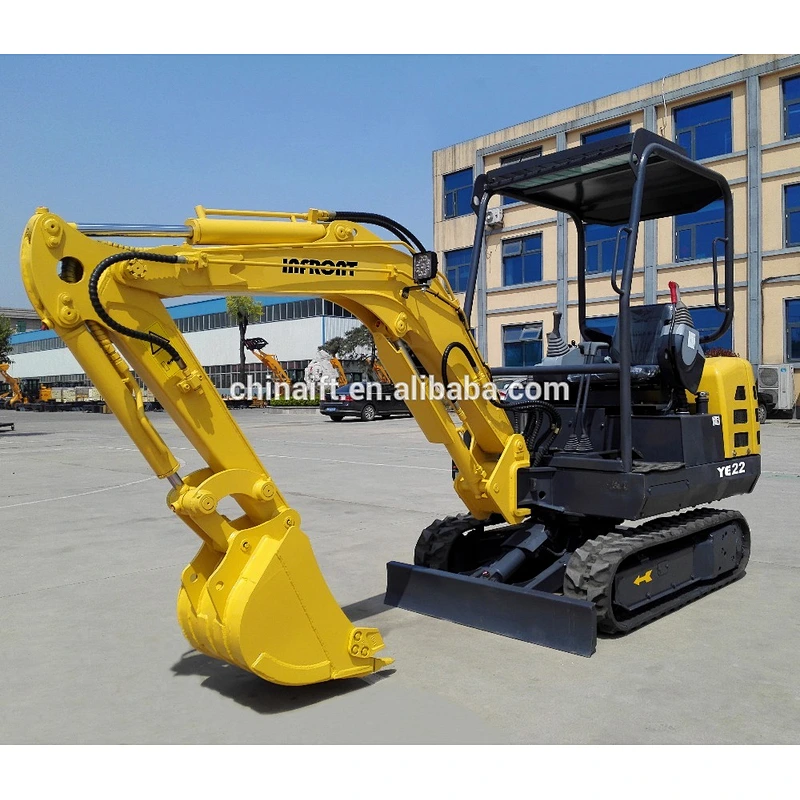

digger excavator cheap price 2.2 ton mini excavator
digger excavator cheap price 2.2 ton mini excavator
Please kindly provide me with the specific Machine model or Parts NO. so that I could quote you exactly. Thank you in advance! Any other questions please feel free to contact me!
| Technical Details | |
| Specs | |

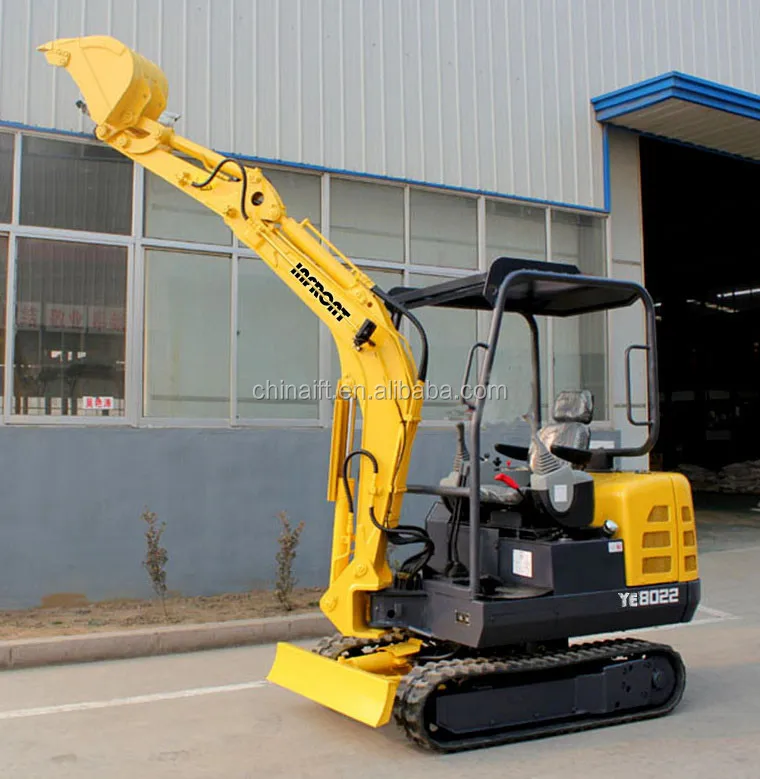

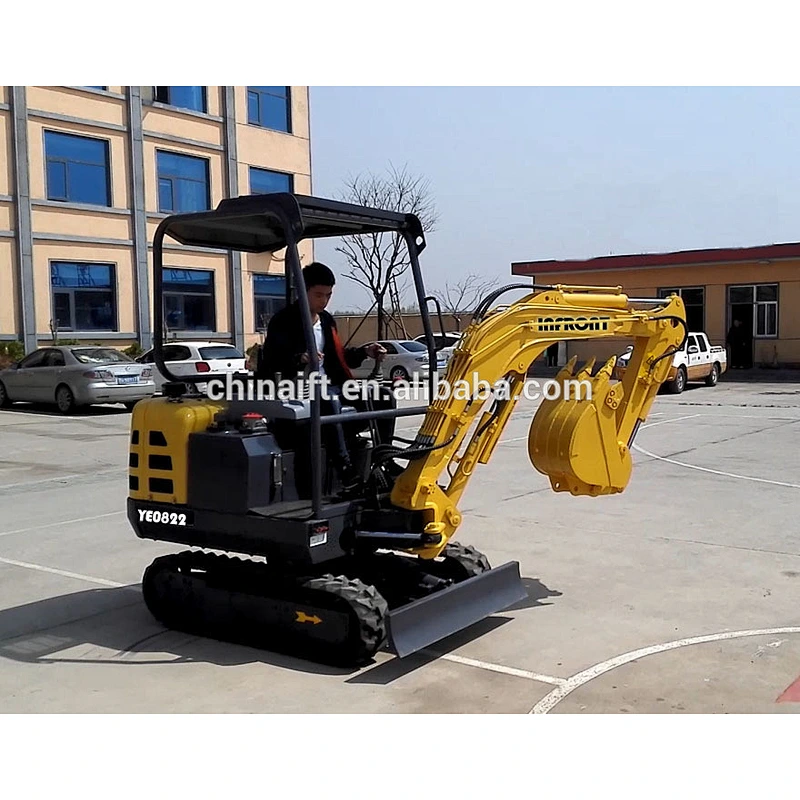

| Model | YE8022 |
| Operating Weight | 2200KG |
| Bucket Capacity | 0.08m³ |
| Bucket Width | 490mm |
| Boom Length | 2000mm |
| Arm Length | 1000mm |
| Performance | |
| Swing speed | 10rpm |
| Travel Speed | 0-2.5km/h |
| Grade Ability | 25°% |
| Ground Pressure | 34Kpa |
| Bucket digging force | 18.2kN |
| Engine | |
| engine Model | Changchai ZN390Q |
| Rated Power | 22/2200 Kw/rpm |
| Max.Torque | ≥75N.m/rpm |
| Displacement | 1.813L |
| Cylinders | 3 |
| Cooling type | water |
| Hydraulic system | |
| Main pump | Double pump |
| Rated Pressure | 25/25Mpa |
| Swing hydraulic motor | 2.5K-245 |
| Travel Hydraulic Circuit | 18Mpa |
| Swing hydraulic circuit | 18Mpa |
| Oil Capacity | |
| Fuel Tank | 40L |
| Hydraulic Oil tank | 60L |
| fuel consumption | 2.5-3.0L/h |
| Overall dimensions | |
| Overall Length | 4090mm |
| Overall Width | 1200mm |
| Overall Height | 2310mm |

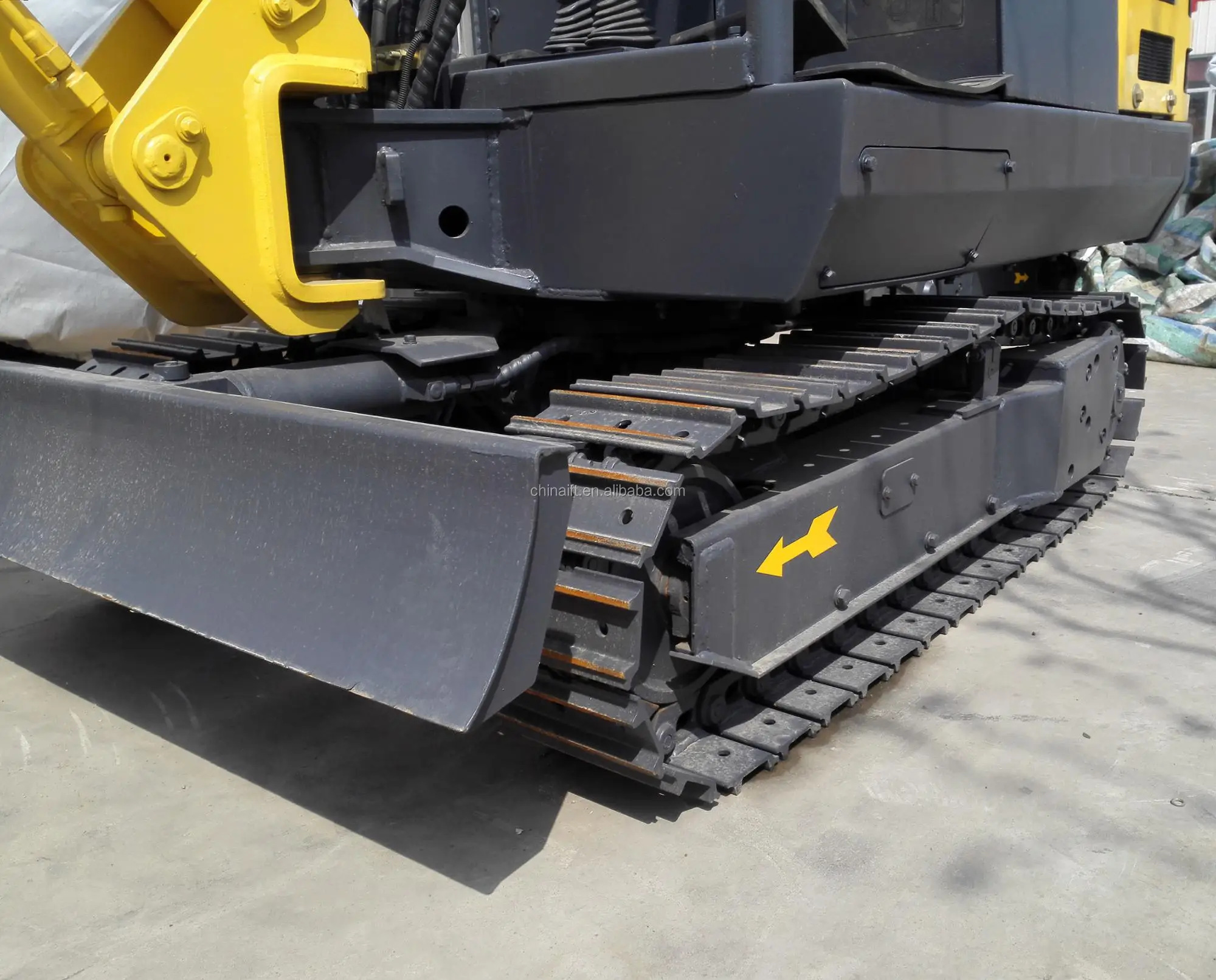

| Track grounding length | 1200mm |
| Total track length | 1610mm |
| Track shoe width | 230mm |
| Total track width | 1180mm |
| Track gauge | 950mm |
| Min.ground clerance | 190mm |
| Operation range | |
| Max.Diiging radius | 4023mm |
| Max.Digging Depth | 2150mm |
| Max.Digging Height | 3800mm |
| Max.Dumping Height | 2600mm |
| dozer balde width | 174/218mm |
Packaging & Shipping
Our Services
Company Information
Jining Infront Construction Machinery Co., Ltd.Miss. Leah Zhang
Skype:jkmachinery801 QQ:2748523788
Mobile/Whats up: +0086 183 6981 5899
WeChat: 86 183 6981 5899
Email:sales08@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
