Shandong Infront chinese mini garden tools garden machine mini loader
Product Description

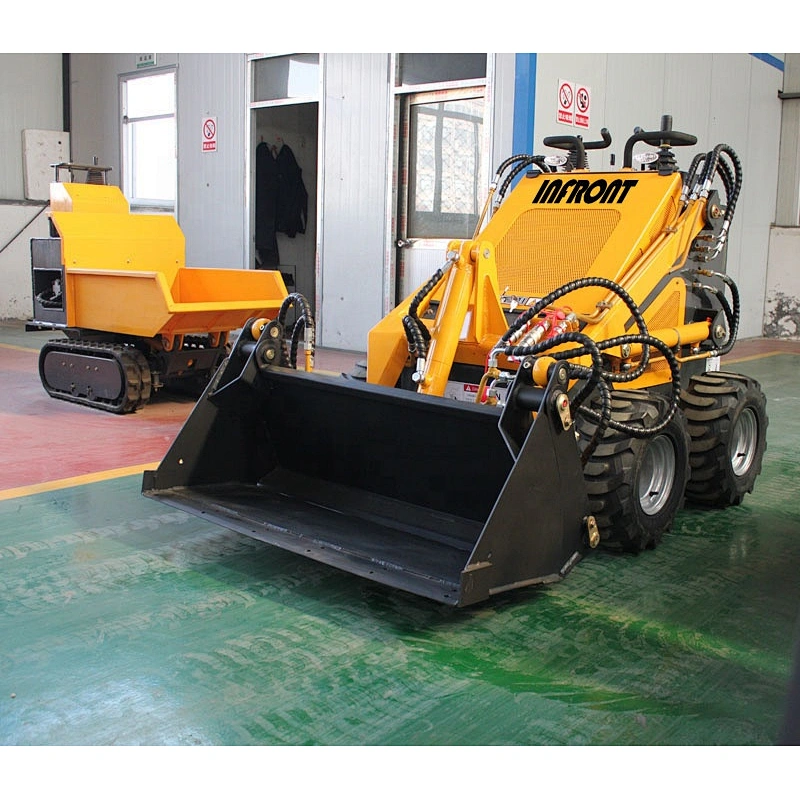

Our skid steer loader with strong power and rich attachments, the YF380 skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
Main dimensions(Metric unit)
The max.working highly | 2194mm |
Max. pin shaft height | 1985 mm |
Biggest unloading height | 1600 mm |
High unloading distance | 350mm |
Bucket angular | 68° |
Bucket unloading Angle | 33° |
Angle of departure | 11° |
Accept dou Angle | 35° |
Total height | 1265 mm |
From ground height | 118 mm |
wheelbase | 630mm |
No bucket length | 1752 mm |
Total wide | 1150 mm |
bucket width | 980 mm |
Overall length with bucket | 2242 mm |
Front turning radius | 1292 mm |
Attachment
