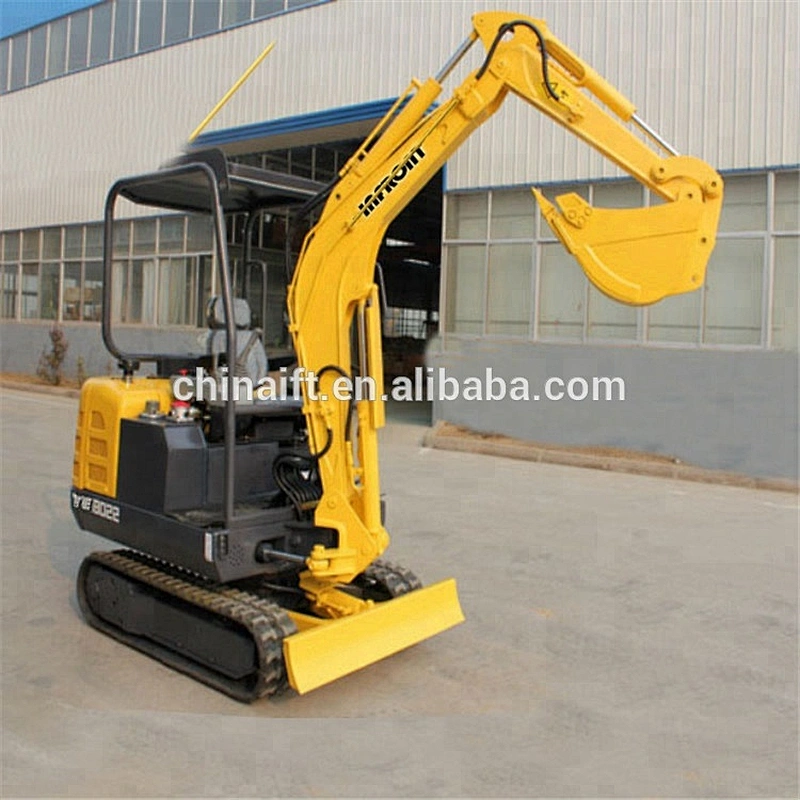

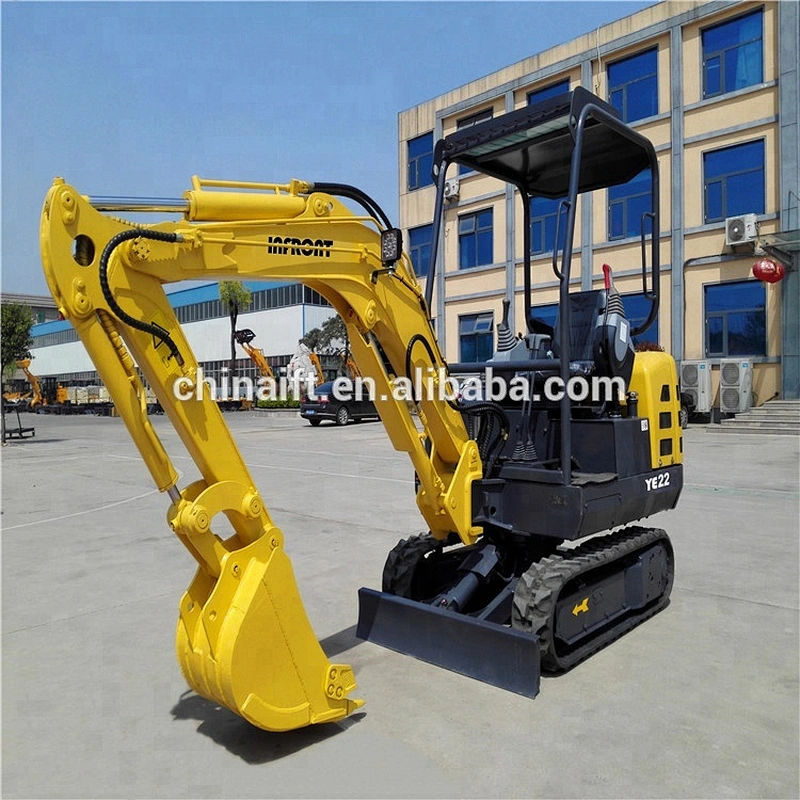

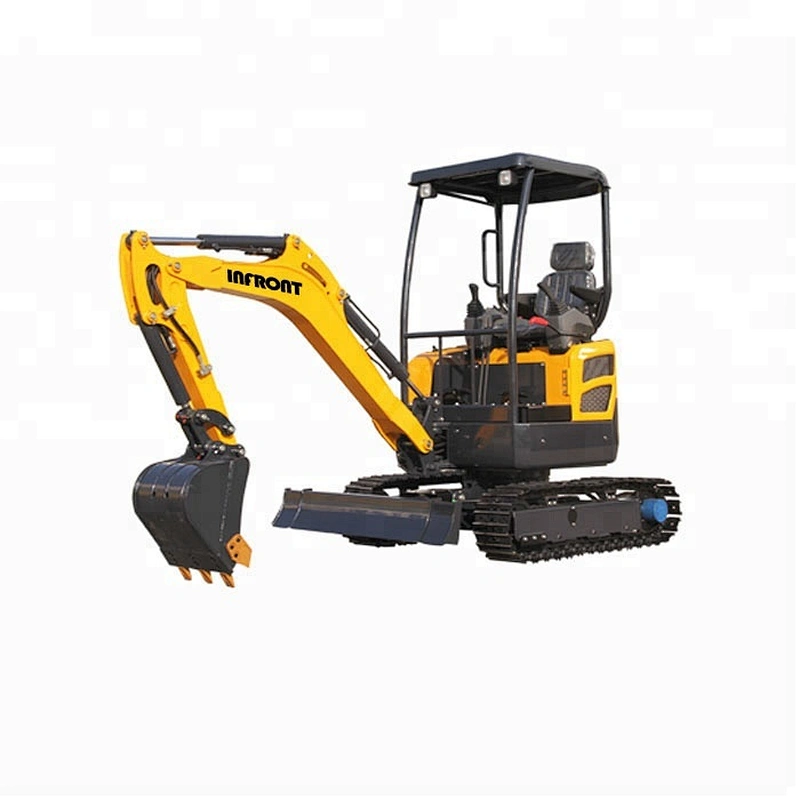

Hot Sale Mini small 2.2ton excavator YFE22
2.2ton small mini excavator has the advantages of flexible and practical, high configuration, high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
This type excavator is 2.2 ton crawler excavators , track shoe width is 230 mm, we use 3 cylinder 22 Kw power water cooling engine,import hydraulic pump ,rate speed is 2200 rpm, travel speed is about 2.2 km/h, max digging radius is 4023 mm, max digging depth is 2150 mm, max digging height is 3714 mm, max dumping height is 2488mm.
PARAMETERS
| Model | Option | YANMAR 3TNV88 |
| Standard | ChangChai ZN390Q | |
| Rated Power | Kw/rpm | 19.7/2200 |
| 22/2200 | ||
| Max Torque | N.m/rpm | 107.8 |
| 102.8 | ||
| Displacement | L | 1.642 |
| 1.813 | ||
| Cylinders | 3 | |
| Bore and Stroke | mm*mm | 88*90 |
| 90*95 | ||
| Cooling Type | Water | |
| Overall Dimensions | ||
| Overall Length*Width*Height | mm | 4090*1200*2310 |
| Track Grounding Length | mm | 1250 |
| Track Shoe Width | mm | 230 |
| Track Gauge | mm | 950 |
| Min Ground Clerance | mm | 190 |
| Tail Swing Radius | mm | 1200 |
| Dozer Blade Width | mm | 1200 |
| Operating Range | ||
| Max Digging Radius | mm | 4023 |
| Max Digging Depth | mm | 2150 |
| Max Digging Height | mm | 3800 |
| Max Dumping Height | mm | 2660 |
| Boom Offset (Left/Right) | mm | 490/640 |
| Boom Swing Angle L/R | ° | 70/50 |
| Dozer Blade Lift/Digging | mm | 174/218 |
