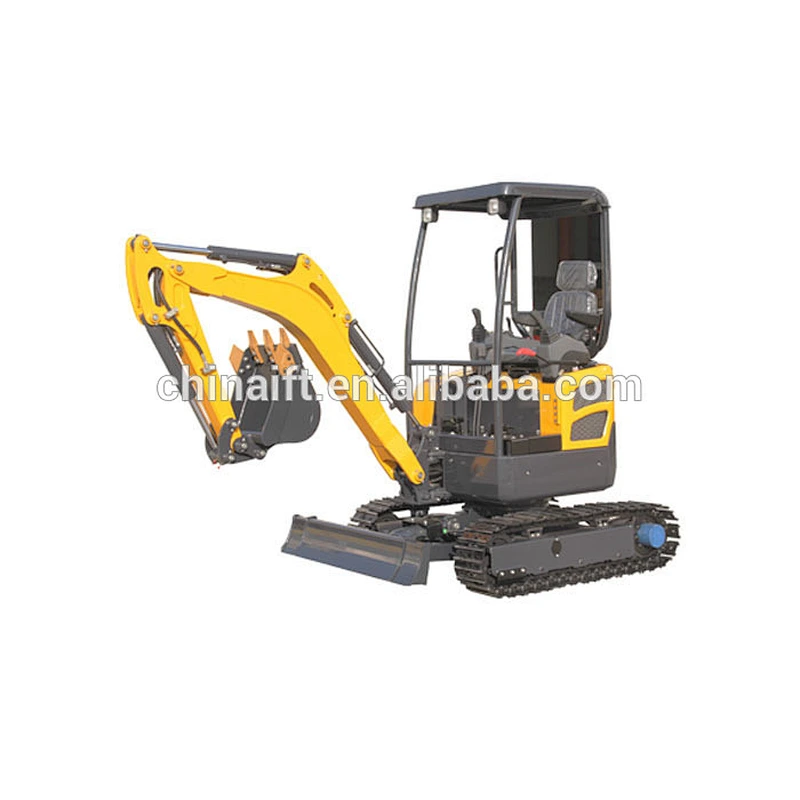

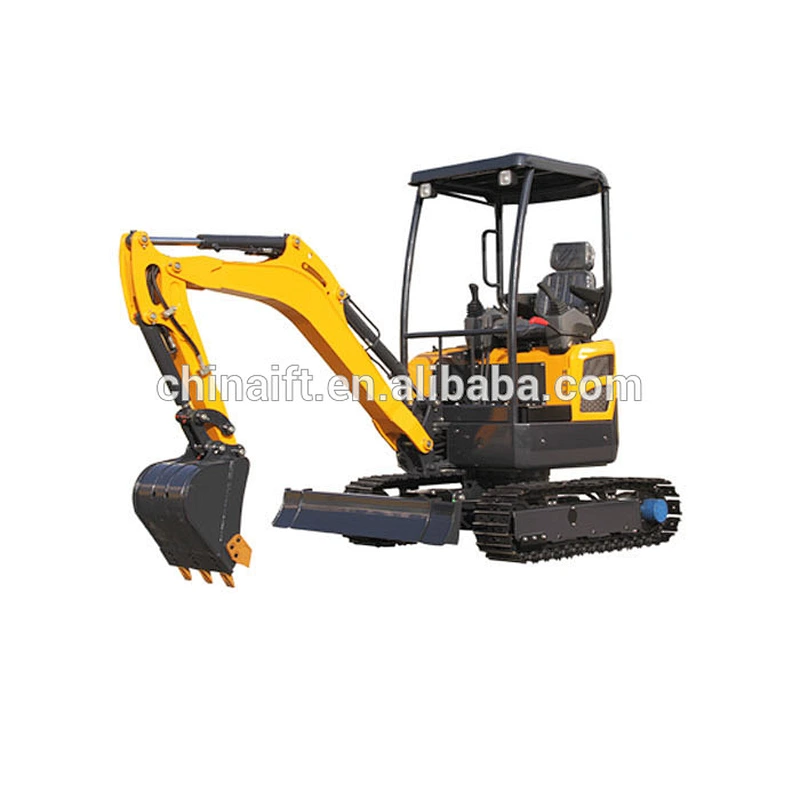

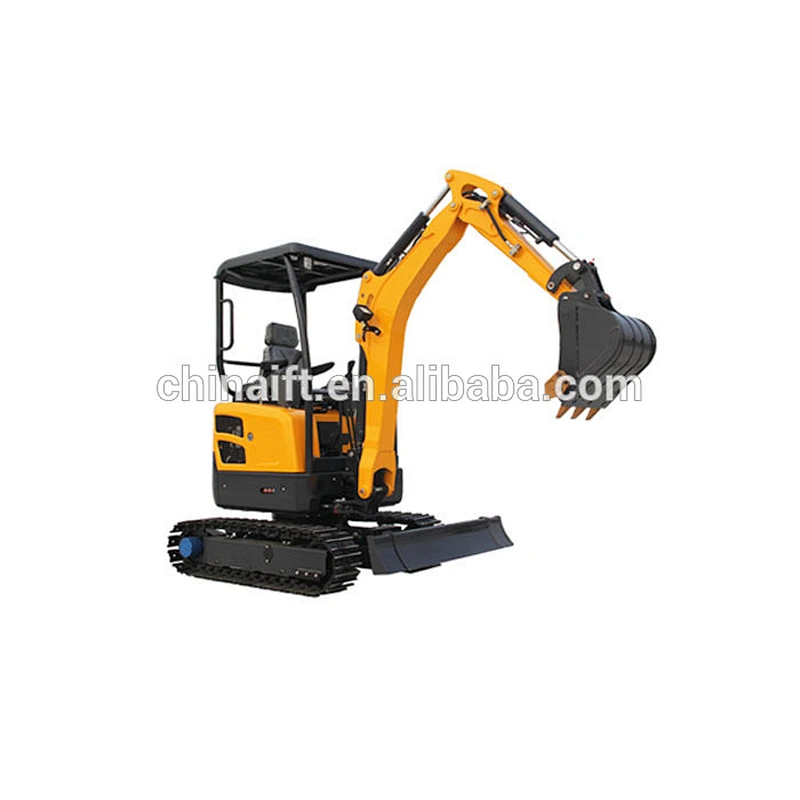

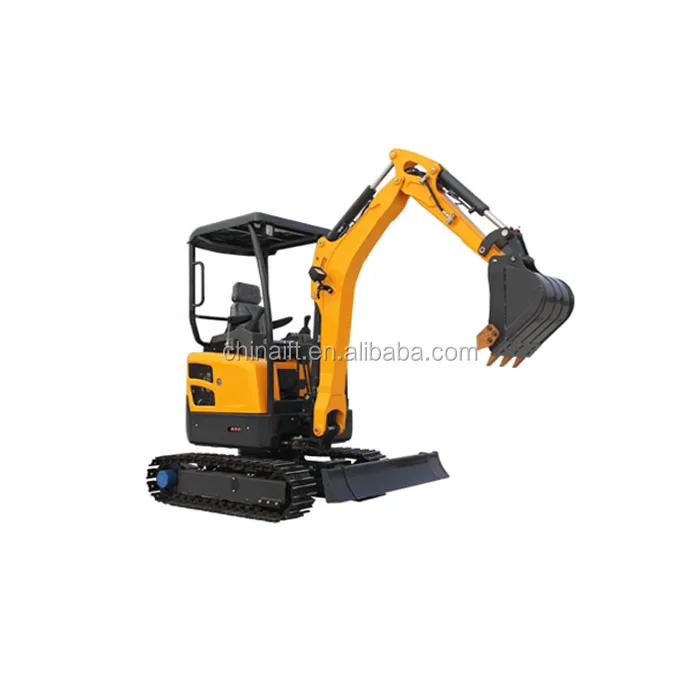

agricultural hydraulic China new model cheap mini small rubber crawler 2.2T Excavator
Main Specifications and characters
1.Engine 3TE30 with optimized silencer and air intake system offers great power,lower noise,lower fuel consumption,low emission,etc and maintenance becomes more easy.
2.Pilot controls imported from Korea makes operation more convenient and moderate.
3.High precision integrated instrument panel provides rea-time monitoring on machine performance.
4.Adopt load sensitive multi-way valve of Rexroth to reinforce synchronism of every action.
5.Reinforced rubber track greatly improves the wear-resisting ability as well as the protection to the road while walking.
6.With pilot operated foot valve,double action triple valve and pipeline,breaking hammer,hydraulic clamp and other devices are available.
Performance Paramete
| Bucket Capacity(M³) | 0.1 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 30 |
| Bucket Max.Digging Force(KN) | 15.3 |
| Arm Max.Digging Force(KN) | 10.5 |
| Engine Model | 3TE30 |
| Power/Rotation Speed(KW/Rmp) | 22.1/2300 |
| Tyre Model | - |
| System Pressure(MPa) | 18 |
| Working Range | |
| Max.Digging Height(Mm) | 3700 |
| Max. Dumping Height(Mm) | 2290 |
| Max.Digging Depth(Mm) | 2450 |
| Max.Vertical Digging Depth(Mm) | 2160 |
| Max.Digging Radius(Mm) | 4370 |
| Min.Swing Radius(Mm) | 2020 |
| Dozer Blade Max.Lifting Height(Mm) | 240 |
| Dozer Blade Max.Cutting Depth(Mm) | 310 |
| Boom Swing(Left) | 70 |
| Boom Swing(Right) | |
| Dimensions | |
| Length*Width*Height(Mm) | 4170*1300*2280 |
| Cabin Height(Mm) | 2280 |
| Sproket To Idler(Mm) | 1230 |
| Axle Distancer(Mm) | 1050 |
| Min.Ground Clearance(Mm) | 230 |
| Tail Swing Radius(Mm) | 1180 |
