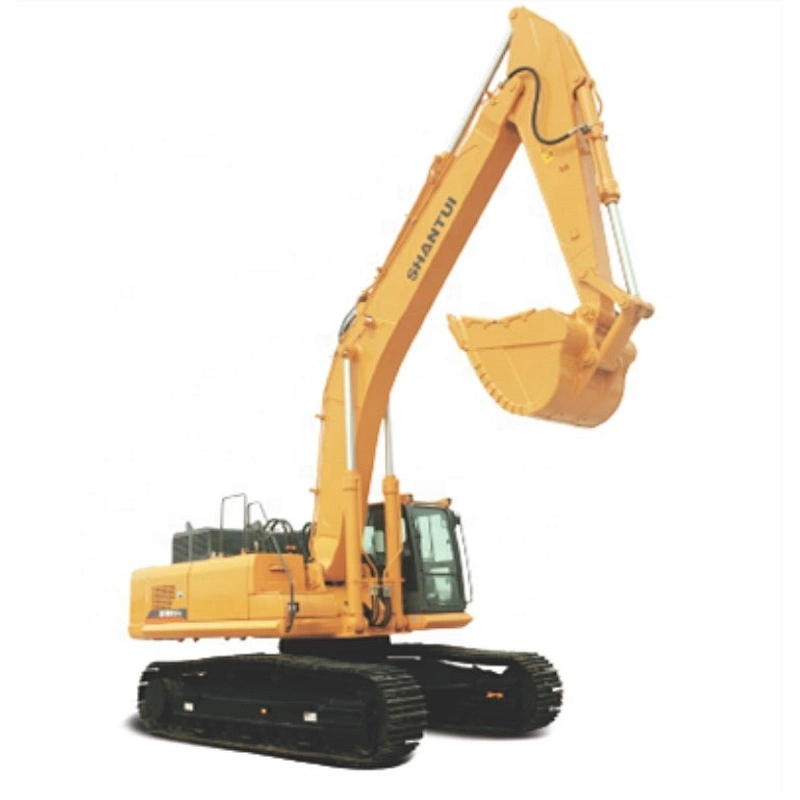

SHANTUI SE240 Medium-sized Rc Hydraulic Excavator within diesel engine B5.9-C
The medium-sized workhorse in Shantui’s lineup of excavators, the SE220 comes standard with imported Kawasaki hydraulics and Korean-made cylinders. It has a state-of-the-art multifunctional monitor, four working modes and either electronic or manual throttle controls. It sports an imported Cummins B series engine.
The boom confluence and diffluence combine for superior swing performance, making digging more efficient.
Performance Paramete
| SE220 Technical specifications: | Minimum ground clearance: 468 mm | Overall length: 9549 mm |
| Operating weight: 21.6 t | Overall height: 3073 mm | |
| Ground pressure: 47 kPa | Overall width: 2800 mm | |
| ENGINE | Model | Cummins B5.9-C |
| Type | Water-cooled,6-cylinder inline,turbocharged,air-to-air intercooled | |
| Quantity of cylinders | 6 | |
| Bore x stroke | 102 x 120 mm | |
| Displacement | 5.9 L | |
| Power output | 112 kW/1950 rpm | |
| Maximum torque | 614 Nm/1500 rpm | |
| HYDRAULIC SYSTEM | Pump | Imported |
| Type | Variable double-piston pump | |
| Maximum discharge flow | 2 x 208 L/min | |
| Boom, arm and bucket | 31.9 MPa | |
| Travel circuit | 31.9 MPa | |
| Swing circuit | 25.5 MPa | |
| TRAVEL SYSTEM | Travel motor | Variable axial piston |
| Travel brakes | Lubricated double-disc | |
| Parking brake | Pressure release | |
| Travel shoes | 2 x 46 | |
| Drawbar pulling force | 201 kN | |
| Travel speed | 3.9~5.6 km/h | |
| Gradeability | 70% (35) | |
| Ground clearance | 468 mm | |
| CONTROLS & CABIN | Cabin | New ergonomic cab design strengthens the structure of the entire stamping with such features as: strong impact resistance, vibration damping pads, vibration absorption, comfortable seat with broad vision, leather-like and ABS & PVC plastic technology applied to interior, smooth contour lines of the outer surface & durability. |
| Controls | Two joysticks, two foot pedals, manual-/electronic-controlled throttle.Functions of two joysticks: digging & swinging. | |
| Boom cylinder | 120 x 85 x 1285 mm | |
| Arm cylinder | 135 x 95 x 1490 mm | |
| Bucket cylinder | 115 x 80 x 1120 mm | |
| SWING SYSTEM | Swing motor type | Swash plate piston motor |
| Brake | Pressure release | |
| Parking brake | Lubricated double-disc | |
| Swing speed | 11.9 rpm | |
| Tail swing radius | 2905 mm | |
| BUCKET | Bucket capacity | Backhoe bucket 1.2 m3 (SAE) |
| Number of bucket teeth | 5 | |
| Bucket width | 1189 mm | |
| Arm length | 2919 m | |
| Max digging reach/Max digging reach at ground level | 9.839 m/9.64 m | |
| Max digging depth/height | 6.59 m/9.27 m | |
| Max dumping height | 6.490 m | |
| Minimum swing radius | 3.585 m | |
