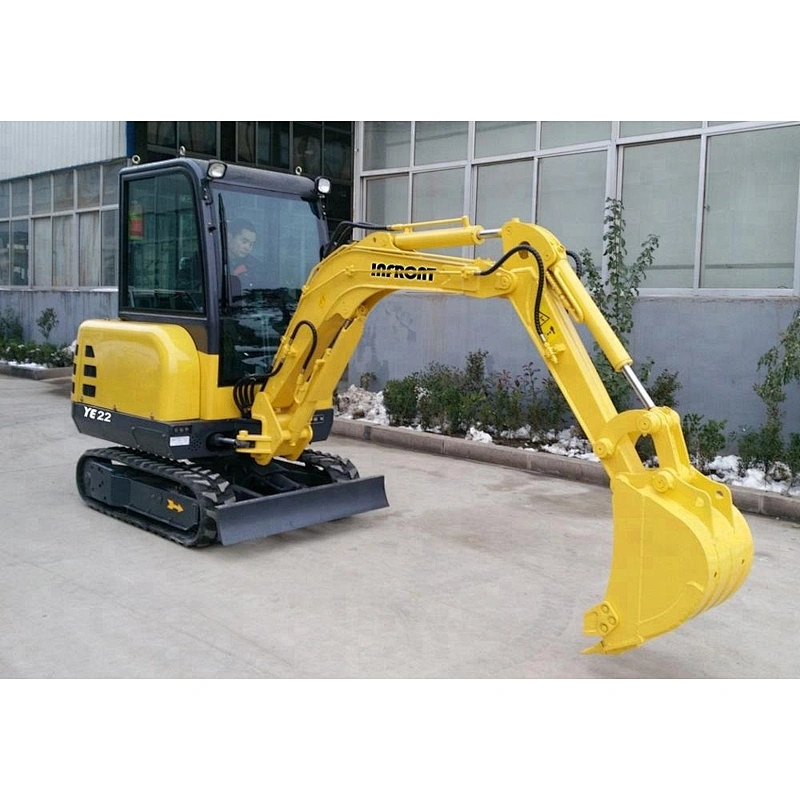

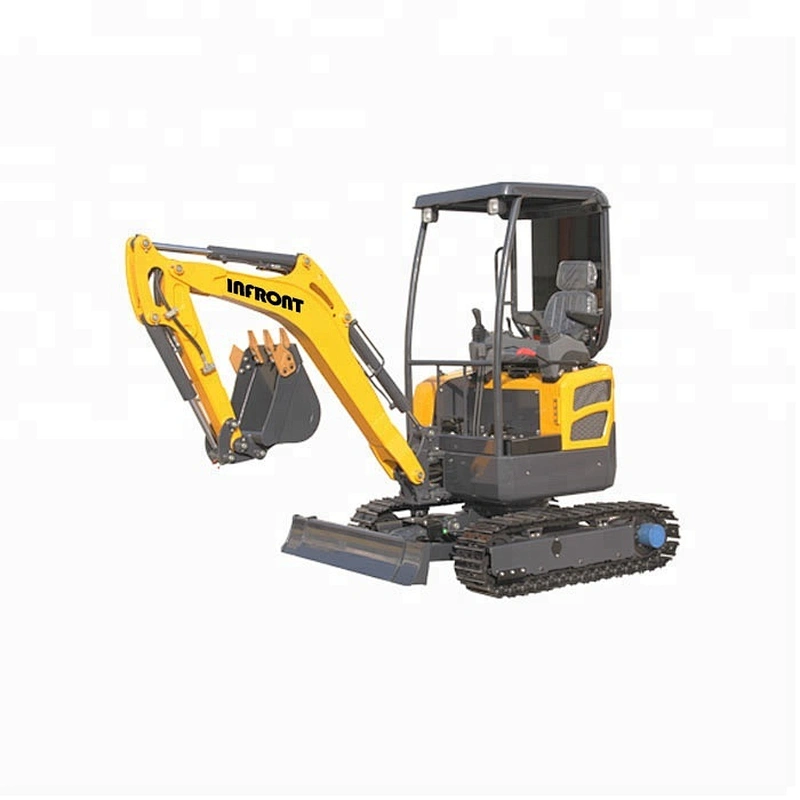

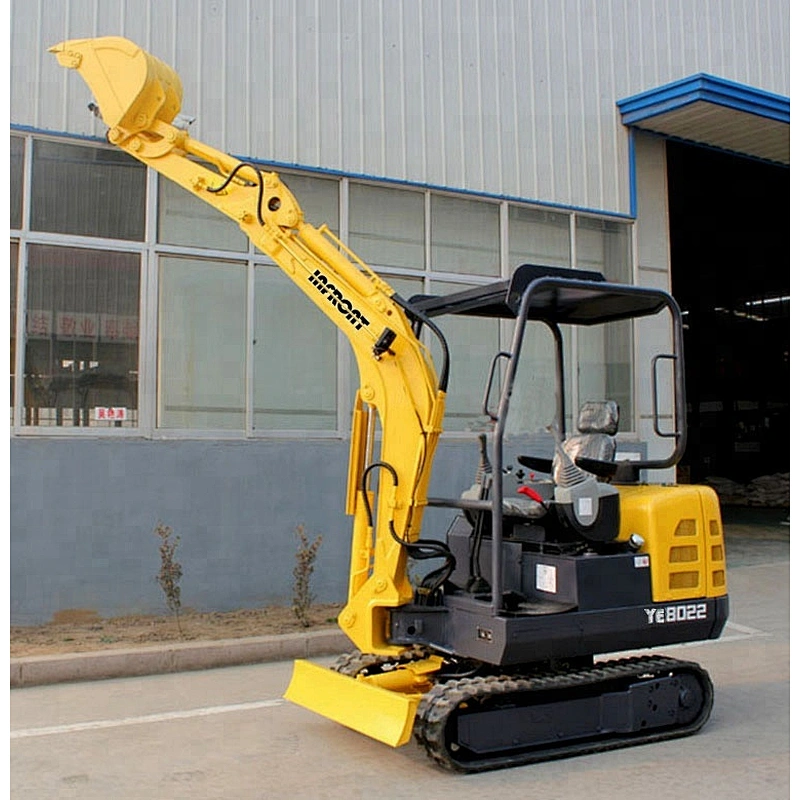

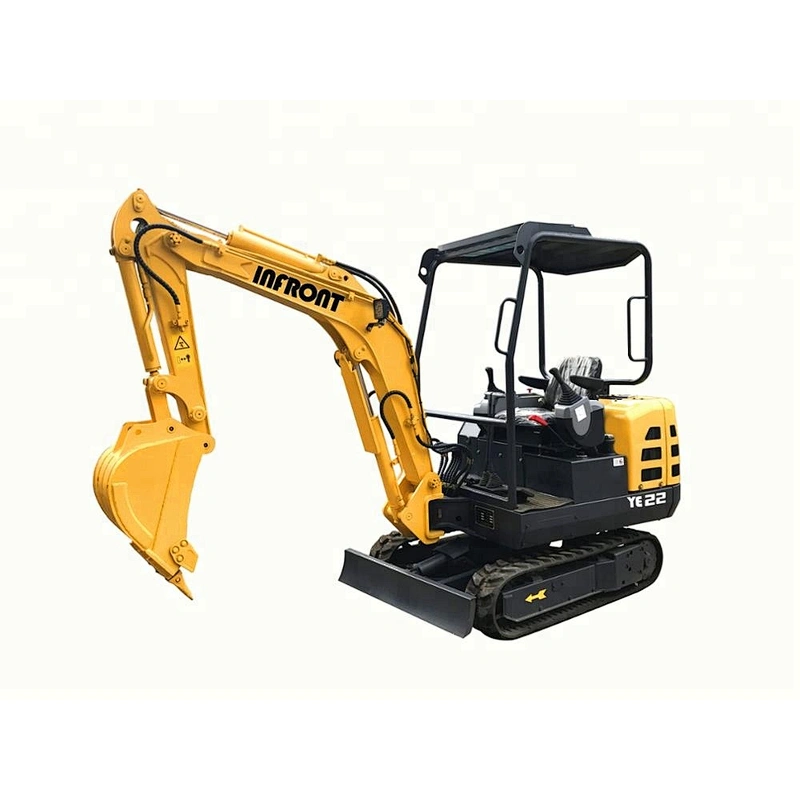

Best seller excavator 2.2 ton mini hydraulic crawler excavator
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| Technical details | Unit | YFE22 |
| Specs | ||
| Operating Weight | kg | 2200 |
| Bucket Capacity | m³ | 0.08 |
| Bucket Width | mm | 490 |
| Boom Length | mm | 2000 |
| Arm Length | mm | 1000 |
| Performance | ||
| Swing Speed | rpm | 10 |
| Travel Speed | Km/h | 0-2.5 |
| Grade Ability | % | 25 |
| Ground Pressure | Kpa | 34 |
| Bucket Digging Force | KN | 18.2 |
| Arm Digging Force | KN | 10.5 |
| Max Traction Force | KN | 13.8 |
| Engine | ||
| Model | Option | YANMAR 3TNV88 |
| Standard | ChangChai ZN390Q | |
| Rated Power | Kw/rpm | 19.7/2200 |
| 22/2200 | ||
| Max Torque | N.m/rpm | 107.8 |
| 102.8 | ||
| Displacement | L | 1.642 |
| 1.813 | ||
| Cylinders | 3 | |
| Bore and Stroke | mm*mm | 88*90 |
| 90*95 | ||
| Cooling Type | Water | |
| Overall Dimensions | ||
| Overall Length*Width*Height | mm | 4090*1200*2310 |
| Track Grounding Length | mm | 1250 |
| Track Shoe Width | mm | 230 |
| Track Gauge | mm | 950 |
| Min Ground Clerance | mm | 190 |
| Tail Swing Radius | mm | 1200 |
| Dozer Blade Width | mm | 1200 |
| Operating Range | ||
| Max Digging Radius | mm | 4023 |
| Max Digging Depth | mm | 2150 |
| Max Digging Height | mm | 3800 |
| Max Dumping Height | mm | 2660 |
| Boom Offset (Left/Right) | mm | 490/640 |
| Boom Swing Angle L/R | ° | 70/50 |
| Dozer Blade Lift/Digging | mm | 174/218 |
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
