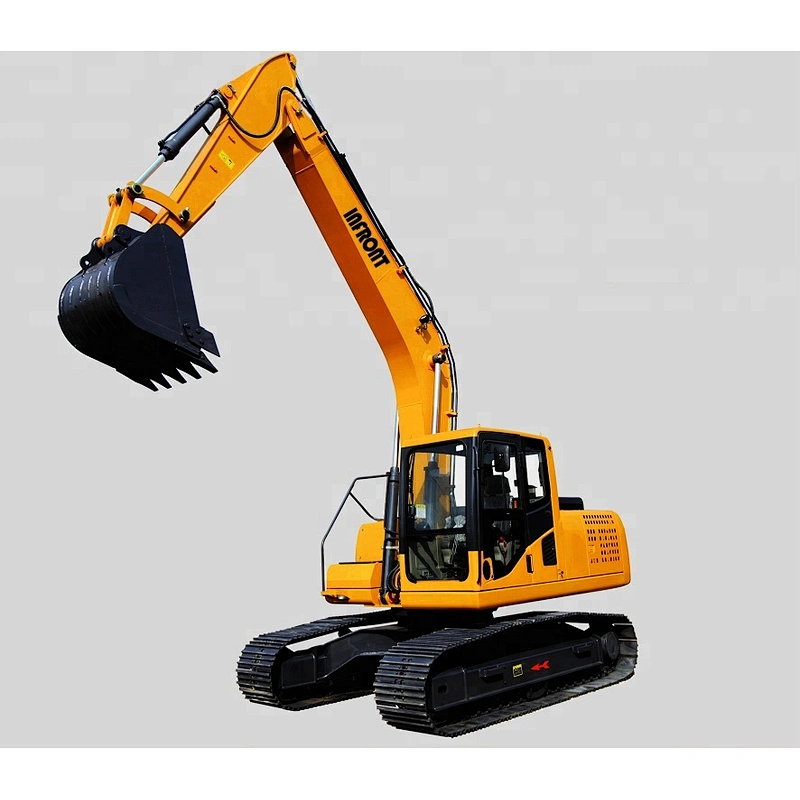

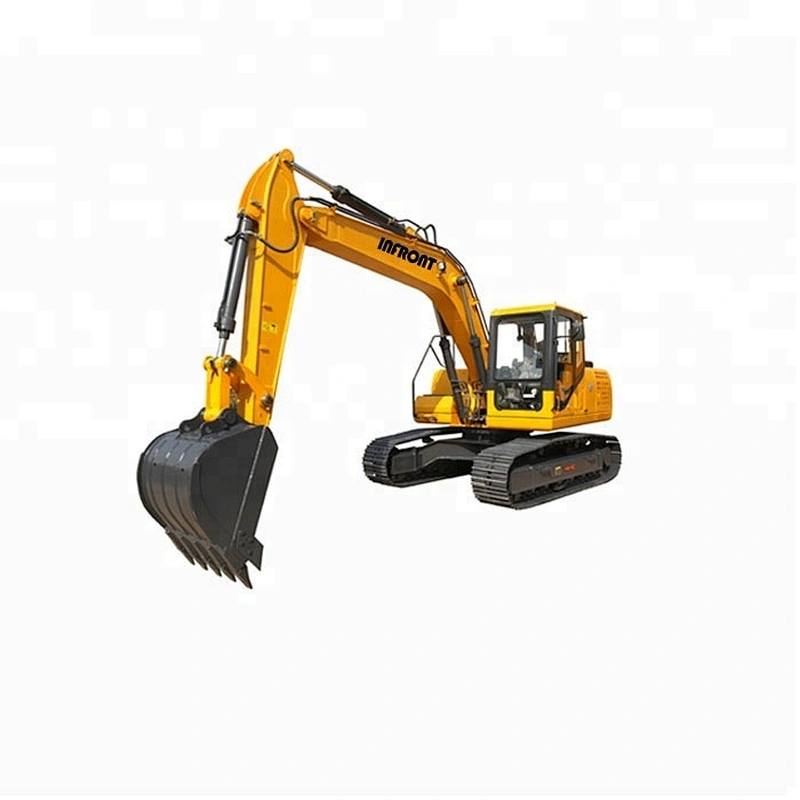

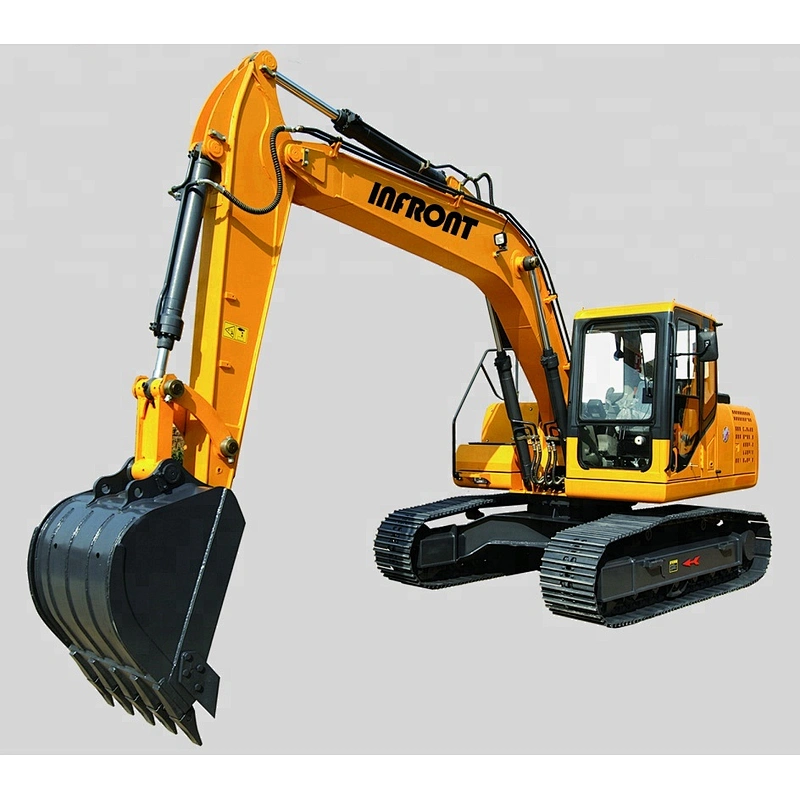

0.8 m3 bucket capacity 18ton Crawler Excavator made in China
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| MODEL | YFE180 |
| Rated Power:140(Hp) Bucket Capacity:0.8(M3) Operation Weight:18000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.8 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 30 |
| Bucket Max.Digging Force(KN) | 98 |
| Arm Max.Digging Force(KN) | 68 |
| Engine Model | YC4A140 |
| Power/Rotation Speed(KW/Rmp) | 103/2200 |
| Tyre Model | - |
| System Pressure(MPa) | 32 |
| Working Range | |
| Max.Digging Height(Mm) | 9430 |
| Max. Dumping Height(Mm) | 6960 |
| Max.Digging Depth(Mm) | 5975 |
| Max.Vertical Digging Depth(Mm) | 5630 |
| Max.Digging Radius(Mm) | 8985 |
| Min.Swing Radius(Mm) | 2725 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 8540*2720*2920 |
| Cabin Height(Mm) | 2920 |
| Sproket To Idler(Mm) | 3200 |
| Axle Distancer(Mm) | 2120 |
| Min.Ground Clearance(Mm) | 480 |
| Tail Swing Radius(Mm) | 2430 |
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
