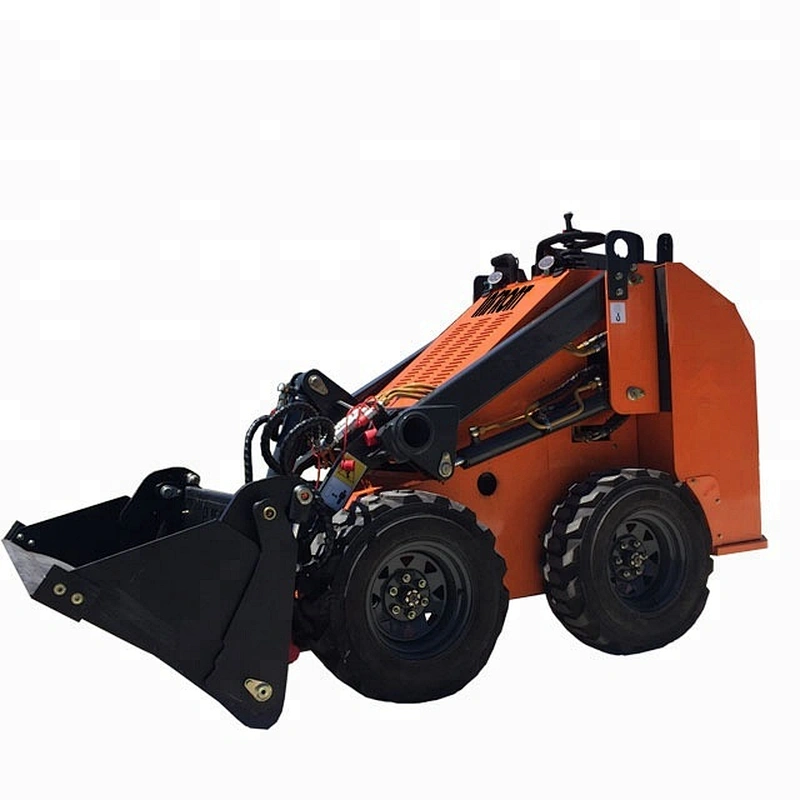

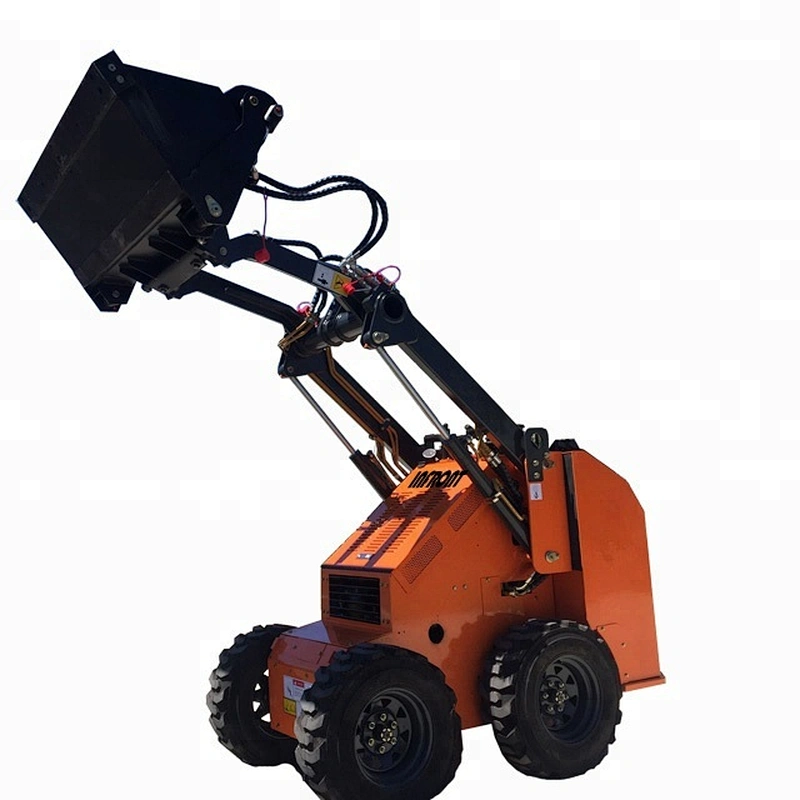

mini skid steer loader 200kg capacity GN380
Small loader GN380 is a mechanical equipment with many uses. The fuselage is narrow, easy handling, can easily and quickly stogether to hook up a variety of different functions to realize all kinds of workwidely used in park, courtyard, lawn, garden or any other place in the environment.
Max working height |
2143 mm |
Max pin height |
1884 mm |
Max dump height |
1488 mm |
Max Dumping distance |
348 mm |
Bucket swing angle |
55° |
Dumping Angle |
30° |
Collection bucket angle |
25° |
Departure angle |
11° |
Total height |
1233 mm |
Ground clearance |
118 mm |
Wheelbase |
636 mm |
Length without bucket |
1752 mm |
Total width |
1160 mm |
bucket width |
980 mm |
Total length | 2206 mm |
Front turning radius
| 1307 mm |
Engine power | 15.438kw(21hp) |
