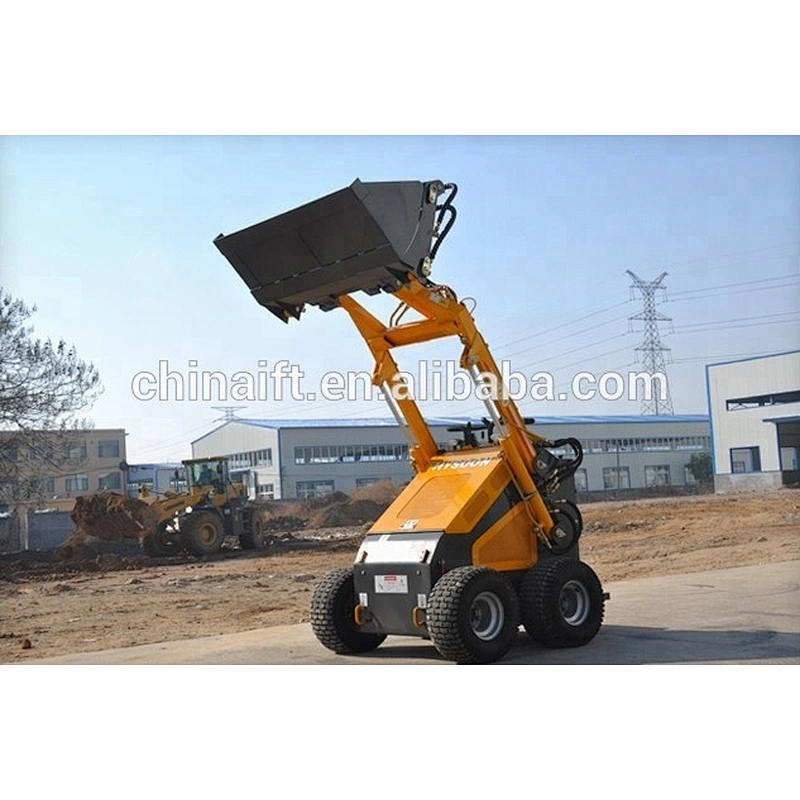

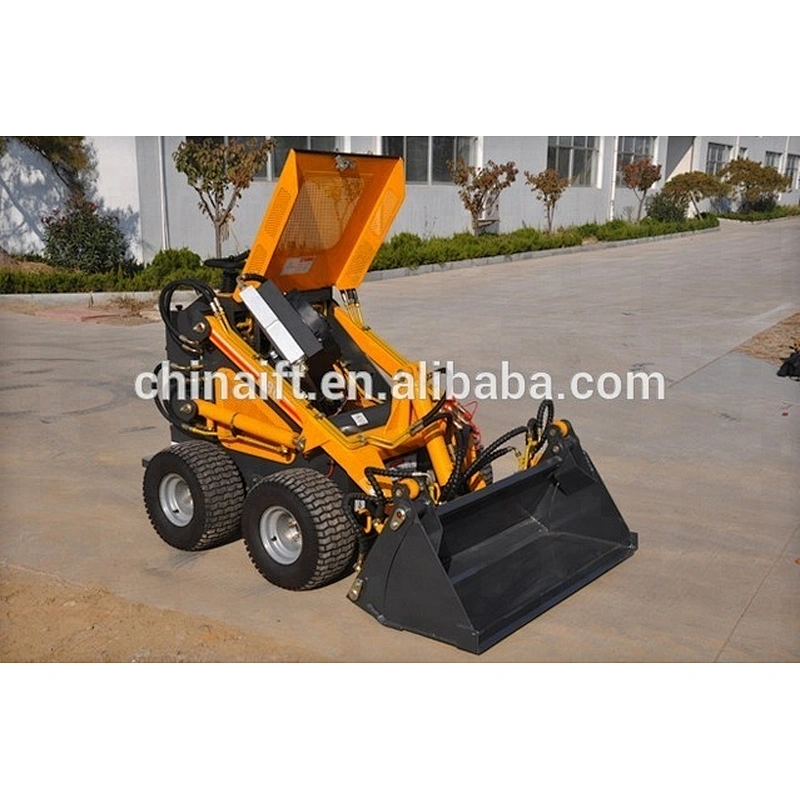

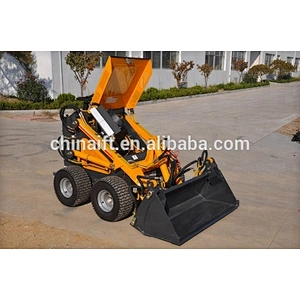

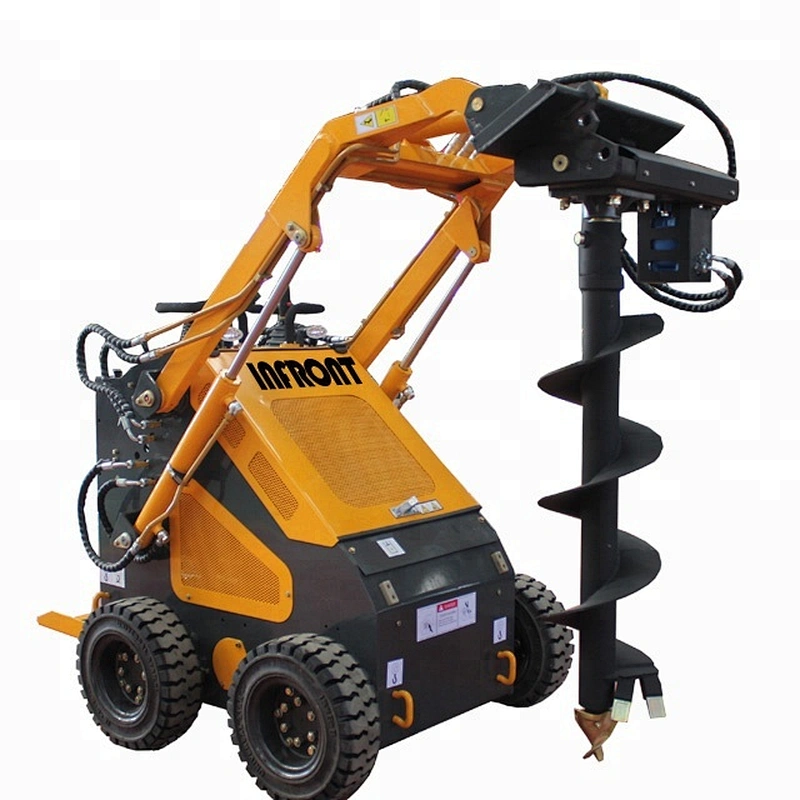

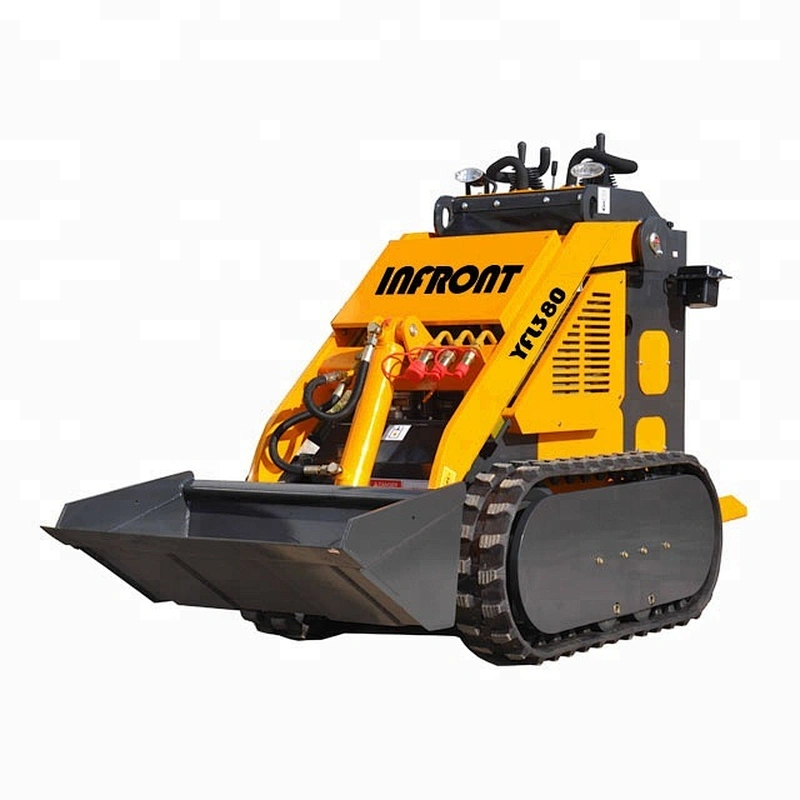

YF380 mini skid steer loader for construction machinery
Skid steer loaders we produced have the high locomotive speed, reduce the time of reverse action and shifting action. It can reverse at the same place and the turning radius is small. The operation is simple, flexible and convenient. It is very suitable for cleaning up the warehouse, city planning, highway maintenance, etc. Also it is multifunctional. You can change the different accessories to attain the different function, for example, loading, excavating, ditching, digging, bulldozer, transit, sweep, drilling, breaking up, grasping woods, etc.
MAIN FEATURES
1. It is mainly used for the narrow workplaces and frequently changed operating places, also, it can be used for the accessorial equipment in large-scale machinery construction.
2. It is specially used for the basic establishment of city, road or construction building site, workshop, warehouse, port, board of ship and even in the cabin.
3. It’s also used for the safeguard, cleaning up and the ending of engineering in the engineering of large-scale machinery.
MAIN PERFORMANCE PARAMETRES
Item | Item | ||||
Engin | Rated power(KW) | 15.4KW(21HP) | |||
Rated speed(rpm) | 3300 | ||||
Noise (Db) | 95 | ||||
Hydraulic system | Hydraulic pressure(Mpa) | 17 | |||
Cycle time(s) | Raise | Dump | lower | ||
4.27 | 1.34 | 3.31 | |||
Technical Parameter | Operating Load | 200 Kg | 441lb | ||
Bucket Capacity | 0.15 m3 | 5.33(ft3) | |||
Max Lifting Force | 375 Kg | 827lb | |||
Travel Speed | 0-5.5Km/h | 0-3.4mile/h | |||
Operating Weight | 890 Kg | 1958lb(With Chevron Engineering Tyre ) | |||
Tires | 18*6.5-8 | ||||
1,How long will take to delivery the goods after placing an order?
It will take about 1-7workdays after getting the deposit if we have goods in stock. Some customized goods will need about 30workdays to delivery.
2,If our machines have any problems, When will your side can reply to us?
We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.
3,What kind of good policy your can supply if we want to be your distributor?
Special discount and protection of sales area can be provided to your distributor.
4,Which incoterms 2010 terms can we work?
We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on EXW,FOB,CFR,CIF, Etc.
Miss. Leah Zhang
Skype:jkmachinery801 QQ:2748523788
Mobile/Whats up: +0086 183 6981 5899
WeChat: 86 183 6981 5899
Email:sales08@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
