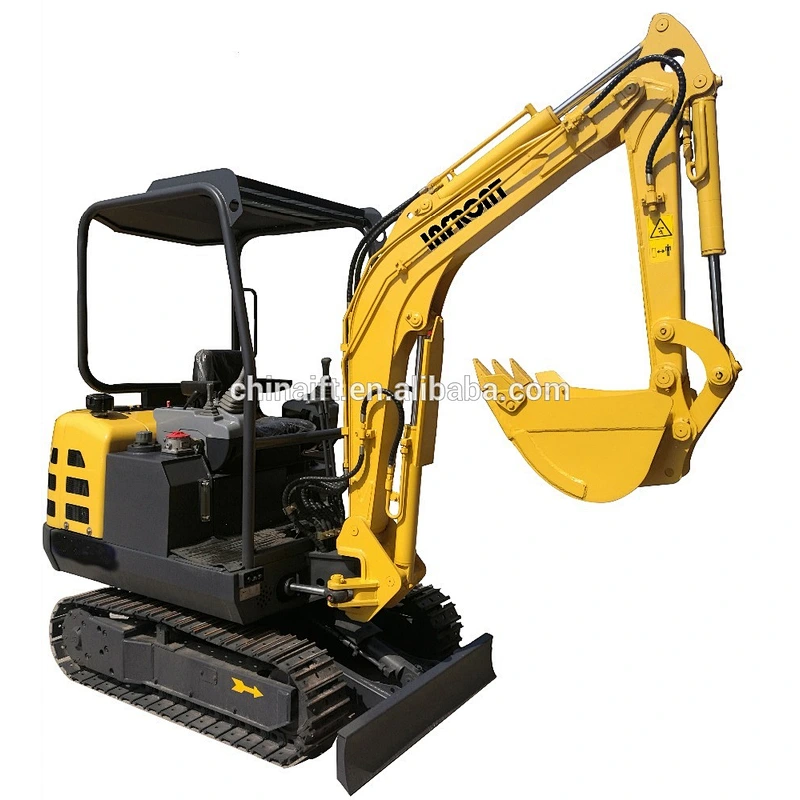

0.8 Ton YE8008 Mini Excavator Boom Excavator Bucket Excavator Seats

Price:: USD 8100.00-13000.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 100 piece / Month
Country of Origin: Qingdao/Shanghai/Guangzhou
Stock Time: Shipped in 15 days after payment Day

Quantity:

Product Description
Basic Information

Main Specifications and characters:
1.Changchai Changchai EV80 engine with optimized silencer and air intake system offers great power,lower noise,lower fuel consumption,low emission,etc and maintenance becomes more easy.
2.Pilot controls imported from Korea makes operation more convenient and moderate.
3.High precision integrated instrument panel provides rea-time monitoring on machine performance.
4.Adopt load sensitive multi-way valve of Rexroth to reinforce synchronism of every action.
5.Reinforced rubber track greatly improves the wear-resisting ability as well as the protection to the road while walking.
6.With pilot operated foot valve,double action triple valve and pipeline,breaking hammer,hydraulic clamp and other devices are available.

Product Description

The mini excavator in municipal engineering, transportation and other construction play a greater advantage and develop rapidly, saves manpower and material resources, to meet the various requirements of operation, to maximize its production capacity in the city's narrow work space,its impact on the surrounding environment is small, safe, low pollution, small radius of rotation, easy to transport.

SG8022 (6) SG8022 (10) IMG_20170411_103322 SG8022 (14)

Performance Paramete

Technical Details/Models	YE8008
Specs
Operating Weight	800
Bucket Capacity	0.025
Bucket Width	350
Boom Length	1350
Arm Length	700
Performance
Swing speed	10
Travel Speed	0-2.6
Grade Ability	20
Ground Pressure	25
Bucket digging force	9.6
Arm digging force	8.5
Max traction(kN):	6.7
Engine
Modell	EV80
Rated Power	12/3000
Max.Torque	43
Displacement	0.794
Cylinders	2
bore and stroke	80*79
Cooling type	water
Overall dimensions
Overall Length	2660
Overall Width	820
Overall Height	1500
Superstructure width	815
Counterweight ground clerance	358
Track grounding length	810
Total track length	1100
Track shoe width	150
Total track width	810
Track gauge	670
Min.ground clerance	138
Min.Front Swing radius	1800
Tail Swing radius	470
Dozer blade with	820
Operation range
Max.Diiging radius	2612
Max.Diiging radius(ground level) (mm):	2520
Max.Digging Depth (mm):	1328
Max.Digging Height(mm):	2443
Max.Dumping Height(mm):	1724
Boom offset (mm):	-
Boom swing angle L/R (°):	-
dozer balde width (mm):	820*210
dozer blade lift/digging (mm):	155\|172
