Product Description

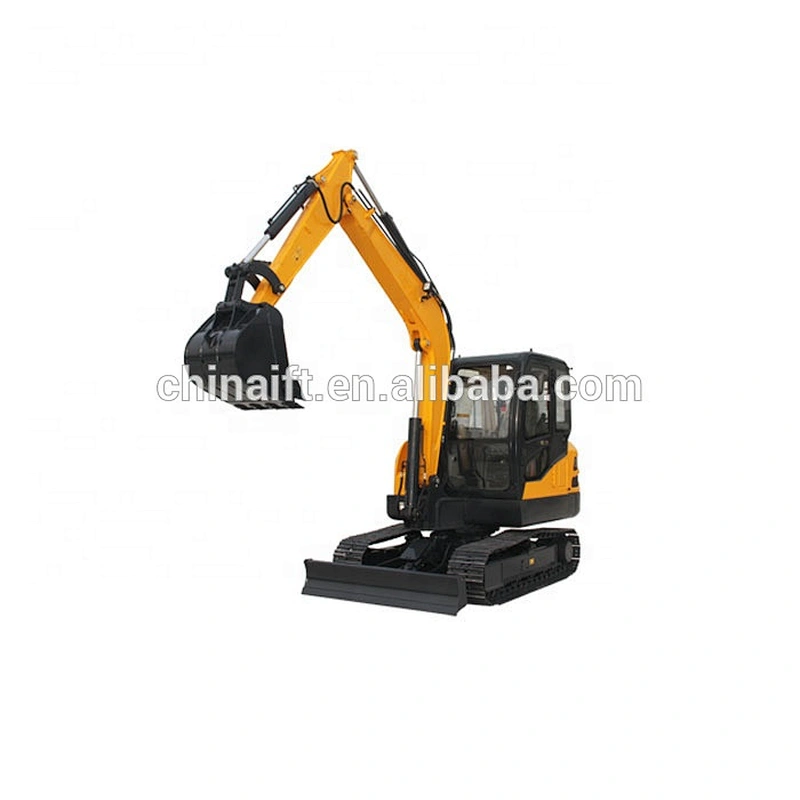

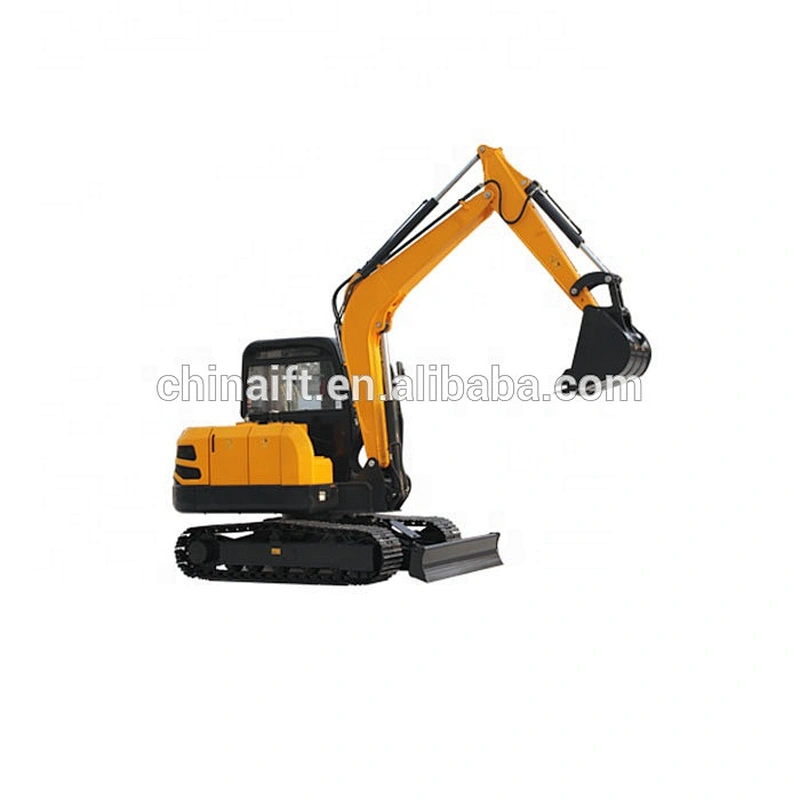

9 ton crawler excavator with engine hot sale excavator for scrap
Features:
Length*Width*Height 6,690mm*2,150mm*2,750mm
Gear pumps(dual)
crawler shoes,forged (400mm)
360°rotary,hydraulic systerm control
DongFangHong4108 engine,63KW/2,400rpm
PARAMETERS
Operating Weight | 8,500Kg |
Engine power | 83horsepower |
Bucket Capacity | 0.4m3SAE |
Swing Speed | 12rpm |
Travel Speed | 2.9-4.6km/h |
Gradeability | 30° |
Max.digging radius | 6,765mm |
Max. digging depth | 4,020mm |
Max. vertical wall digging depth | 3,800mm |
Max. digging height | 6,600mm |
Max. unload height | 4,500mm |
Max. dozer cutting depth | 430mm |
Max. dozer lifting height | 420mm |
Hydraulic system pressure | 24.5Mpa |
