Product Description

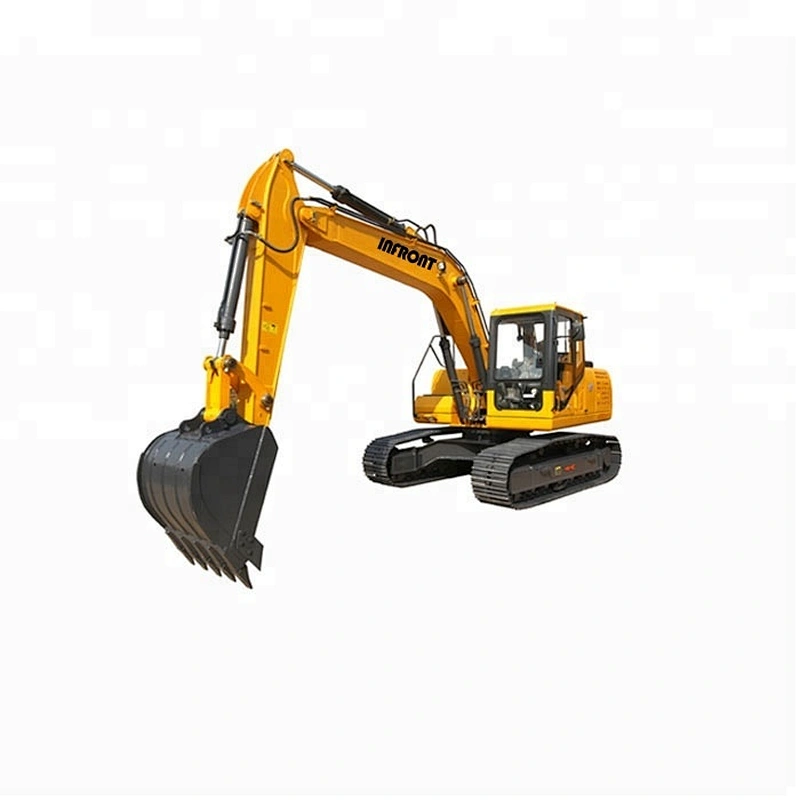

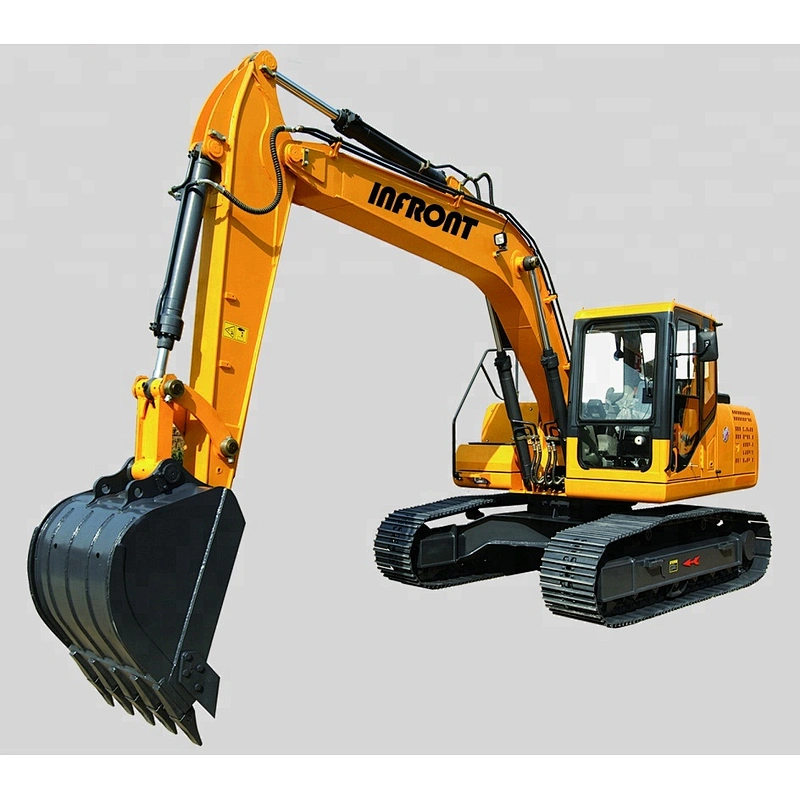

13.5 ton hydraulic crawler excavator with 99hp ISUZU engine YFE135
it is a new kind of product characterized by high efficiency , safety, convenience, beauty. steel track, with dozer blade. hydraulic pilot servo handle controlling system ,easy to operation .Adopted the ISUZU brand engine with strong power. imported international brand hydraulic system , ensure the machine has high working efficiency. the professional structure parts and working mechanism , ensure the machine has reliability and durability. the breaking pipeline improve the working performance.
PARAMETERS
| Bucket capacity | 0.6m³ |
| swing speed | 0~12rpm |
| Max.gradeability | 30° |
| Max.digging force of grab | 91KN |
| Max.digging force of arm | 55KN |
| Engine model/power | |
| ISUZU 4BG1, 72.7kw/2200rpm | |
| Tack width | 500mm |
| System pressure | 32Mpa |
| Description | Unit-Metric | Unit-US |
| Overall length | 7635mm | 300.6in |
| Overall width | 2500mm | 98.4in |
| Overall height | 2750mm | 108.3in |
| Cabin height | 2750mm | 108.3in |
| Track length on ground | 2950mm | 116.1in |
| Track gauge | 2000mm | 78.7in |
| Min.ground clearance | 400mm | 15.7in |
| Swing radius at tail | 2340mm | 92.1in |
| Max.digging height | 8540mm | 336.2in |
| Max.dumping height | 6125mm | 241.1in |
| Max.digging depth | 5095mm | 200.6in |
| Max.vertical digging depth | 4650mm | 183.0in |
| Max.digging radius | 8000mm | 315in |
| Min.swing radius | 2445mm | 96.3in |
