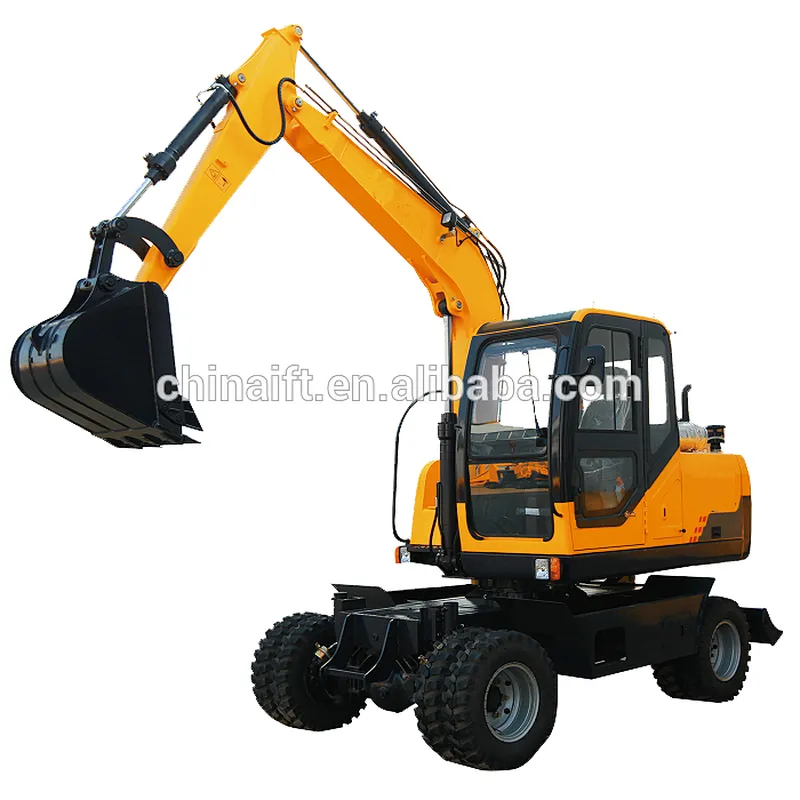

Cheap Wheel moving type 13t hydraulic condition wheel excavator
Main Specifications and characters:
1.Electrical system: with colorful LCD display, with self-test, monitoring, emergency fault alarm, human-computer interaction and good, high-profile electrical control software, higher reliability.
2.Power system: advanced turbocharged engine exhaust enough power reserves, it is possible to maximize the power of the engine to achieve the perfect match, reducing power losses.
3.Hydraulic system: imported international brands hydraulic parts, power loss, fast action, complex motor coordination, high efficiency and energy saving, reliability and long service life.
4.Walking System: use heavier type front and rear drive axle, gearbox, providing higher carrying capacity.
5.Cab: new style cab, new interior design, vision, bright and spacious, humane front gear mechanism, adjustable suspension seat with a high-grade, silicone shock absorption, superior driving environment.
6.Cooling system: parallel cooling installation, installation and removal are easy to clean; it has very high cooling efficiency.
wheel excavator is a china famous brand Infront which researched and developed with world latest technical standard. it is a new kind of product characterized by high efficiency , safety, convenience, beauty. tire type, mechanical drive,with dozer blade. hydraulic pilot servo handle controlling working system ,easy to operation .Adopted the china XINCHAI brand engine with strong power. imported international brand hydraulic system , ensure the machine has high working efficiency. the professional structure parts and working mechanism , ensure the machine has reliability and durability. the breaking pipeline or wood grab pipeline improve the working performance.
Performance Paramete
| Bucket Capacity(M³) | 0.6 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 25 |
| Bucket Max.Digging Force(KN) | 91 |
| Arm Max.Digging Force(KN) | 55 |
| Engine Model | YC4D115 |
| Power/Rotation Speed(KW/Rmp) | 85/2200 |
| Tyre Model | 9.00-20 |
| System Pressure(MPa) | 32 |
| Working Range | |
| Max.Digging Height(Mm) | 8930 |
| Max. Dumping Height(Mm) | 6520 |
| Max.Digging Depth(Mm) | 4750 |
| Max.Vertical Digging Depth(Mm) | 4200 |
| Max.Digging Radius(Mm) | 8000 |
| Min.Swing Radius(Mm) | 2445 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | 100 |
| Dimensions | |
| Length*Width*Height(Mm) | 7520*2570*3425 |
| Cabin Height(Mm) | 3015 |
| Sproket To Idler(Mm) | 2600 |
| Axle Distancer(Mm) | 1944 |
| Min.Ground Clearance(Mm) | 350 |
| Tail Swing Radius(Mm) | 2420 |
