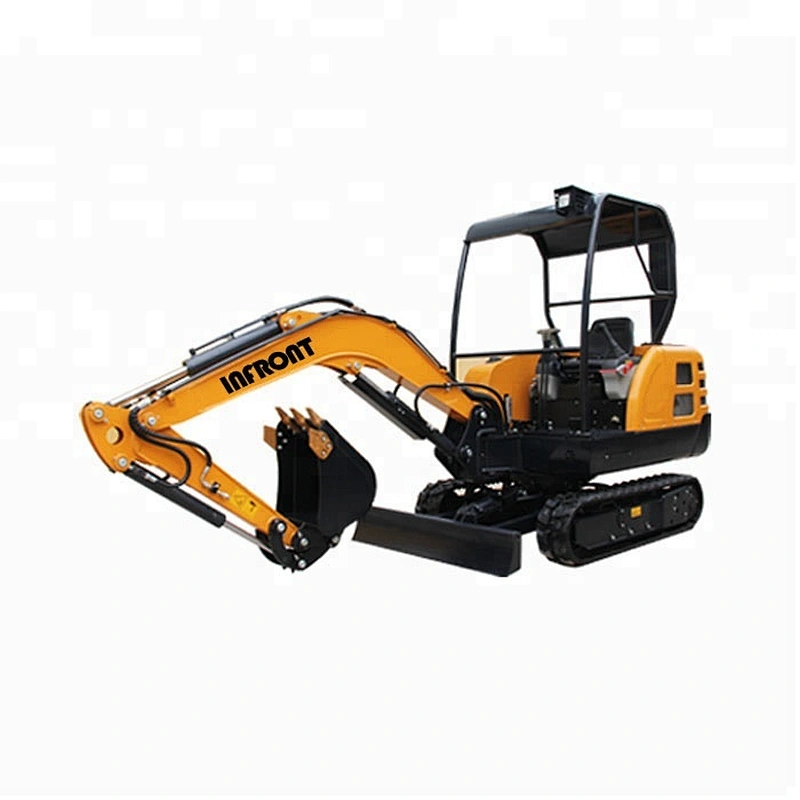

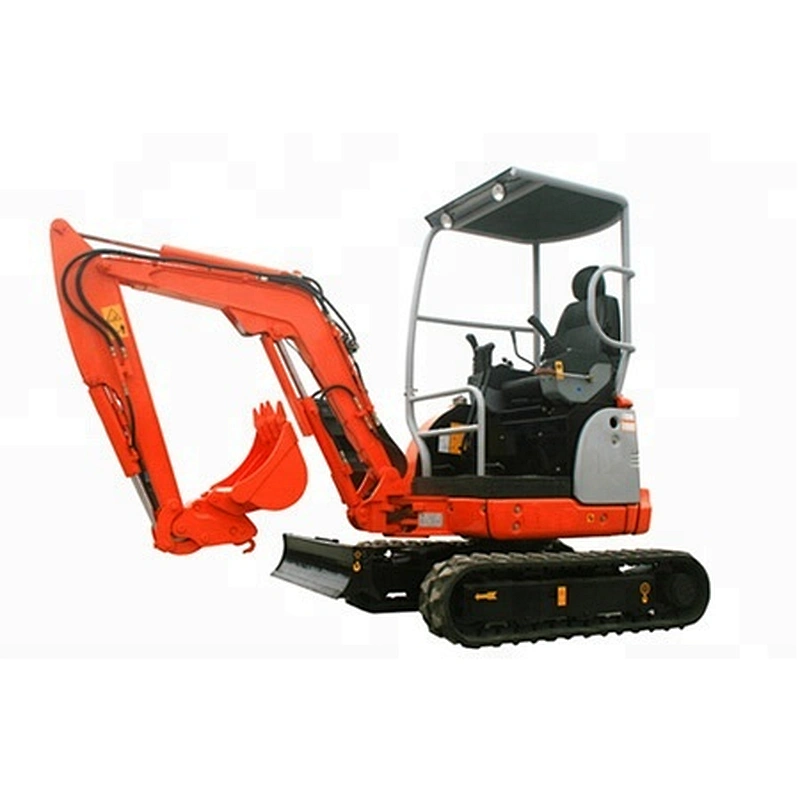

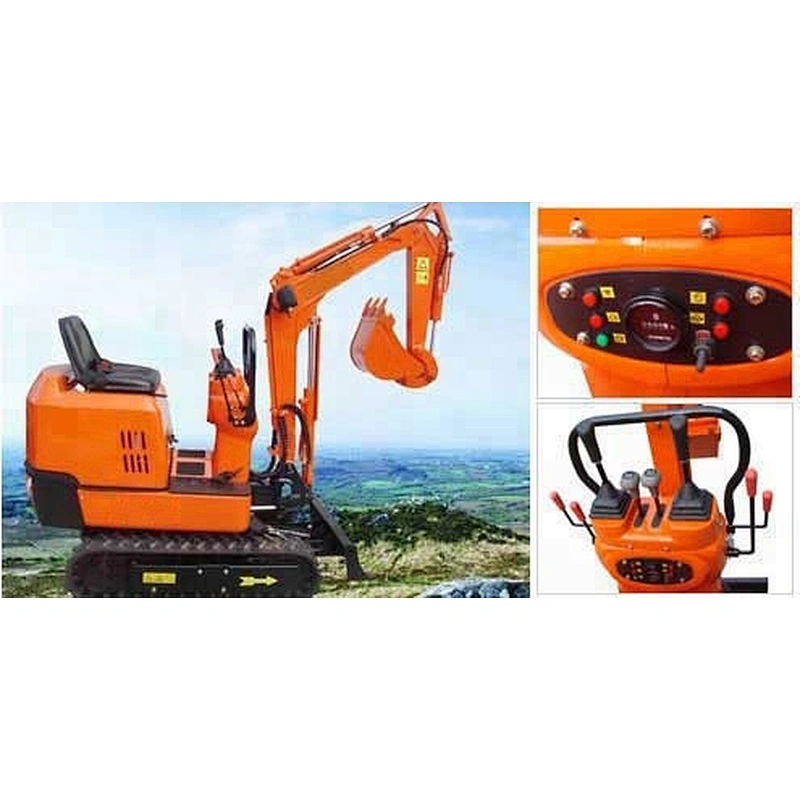

Chinese manufacture 0.8 to13 ton mini excavator small digging machine
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| MODEL | YFE20 |
| Rated Power:19(Hp) Bucket Capacity:0.07(M3) Operation Weight:2000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.07 |
| Swing Speed(Rmp) | 0-9 |
| Gradeability(°) | 35 |
| Bucket Max.Digging Force(KN) | 18 |
| Arm Max.Digging Force(KN) | 11 |
| Engine Model | Kubota Lll |
| Power/Rotation Speed(KW/Rmp) | 14.2/2000 |
| Tyre Model | - |
| System Pressure(MPa) | 21.5 |
| Working Range | |
| Max.Digging Height(Mm) | 3700 |
| Max. Dumping Height(Mm) | 2440 |
| Max.Digging Depth(Mm) | 2400 |
| Max.Vertical Digging Depth(Mm) | 2025 |
| Max.Digging Radius(Mm) | 4040 |
| Min.Swing Radius(Mm) | 1610 |
| Dozer Blade Max.Lifting Height(Mm) | 240 |
| Dozer Blade Max.Cutting Depth(Mm) | 270 |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 3555*13000*2290 |
| Cabin Height(Mm) | 2290 |
| Sproket To Idler(Mm) | 1230 |
| Axle Distancer(Mm) | 760 |
| Min.Ground Clearance(Mm) | 150 |
| Tail Swing Radius(Mm) | 650 |
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
