Product Description

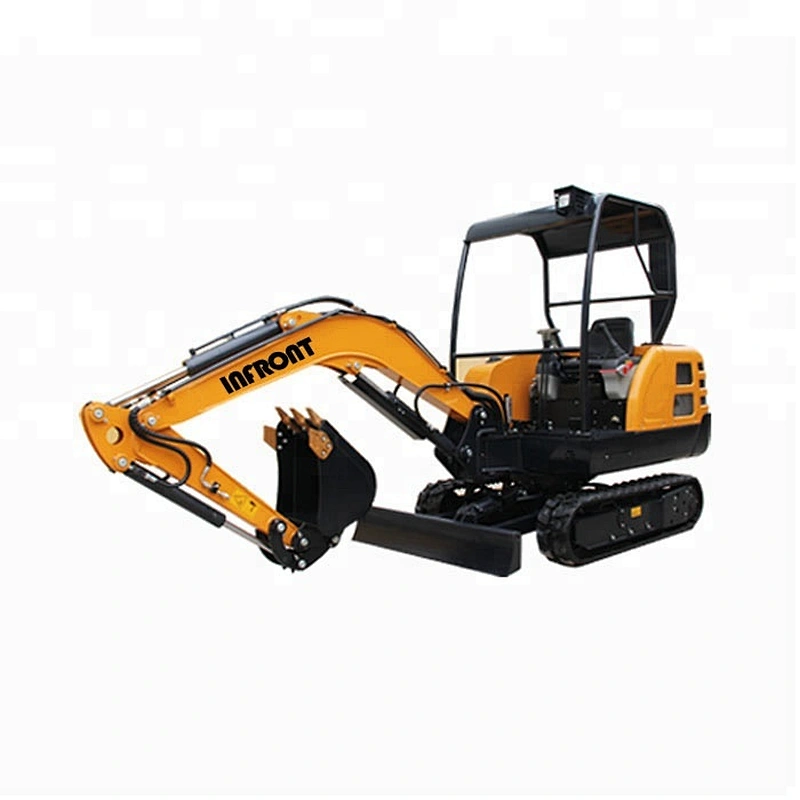

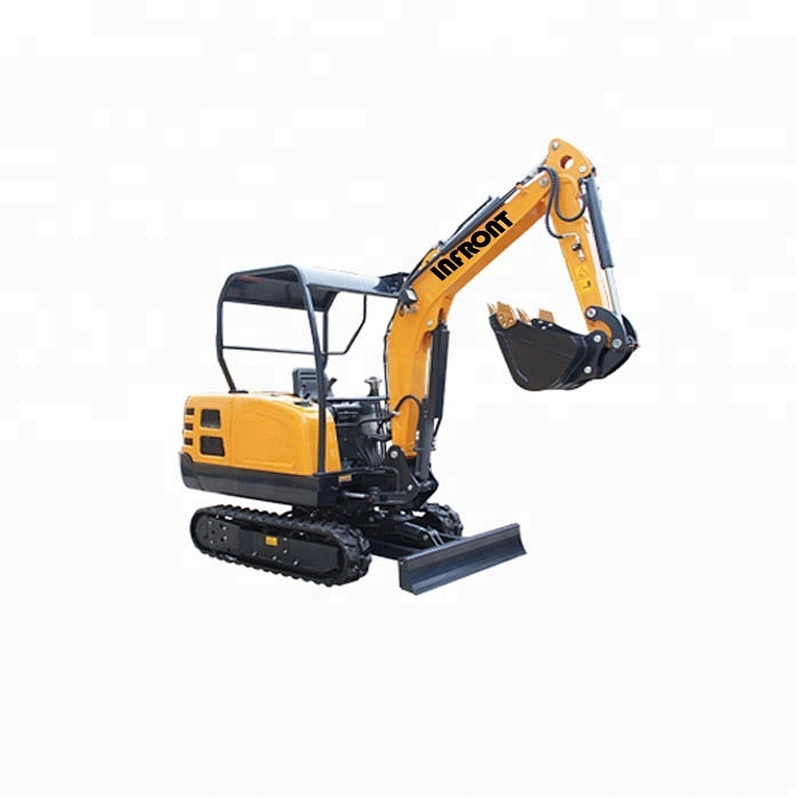

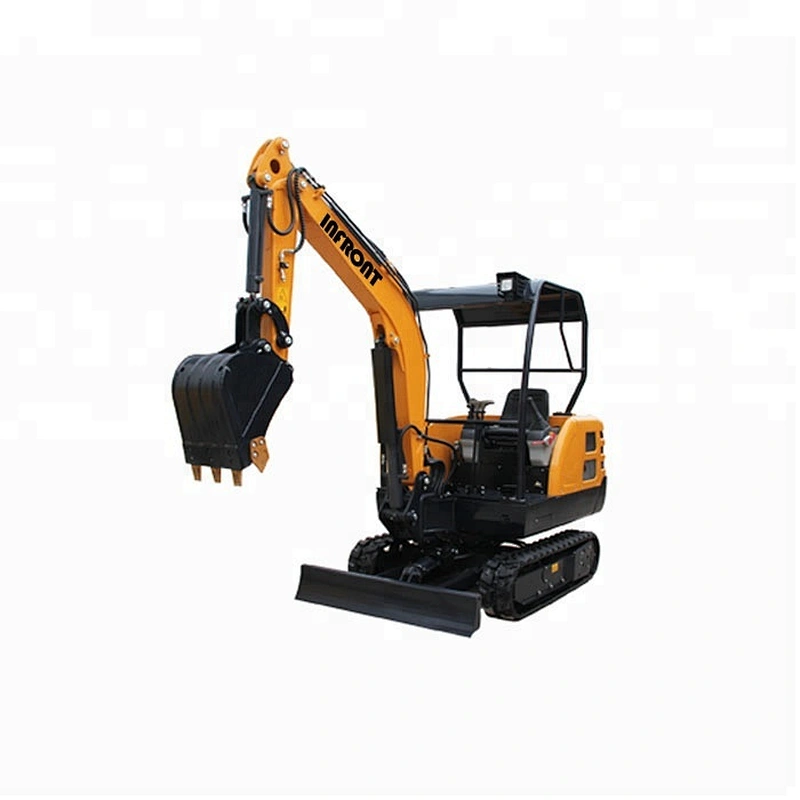

2000kg Full Hydraulic Digger Small Mini Crawler Excavator
Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
PARAMETERS
| MODEL | YFE20 |
| Rated Power:19(Hp) Bucket Capacity:0.07(M3) Operation Weight:2000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.07 |
| Swing Speed(Rmp) | 0-9 |
| Gradeability(°) | 35 |
| Bucket Max.Digging Force(KN) | 18 |
| Arm Max.Digging Force(KN) | 11 |
| Engine Model | Kubota Lll |
| Power/Rotation Speed(KW/Rmp) | 14.2/2000 |
| Tyre Model | - |
| System Pressure(MPa) | 21.5 |

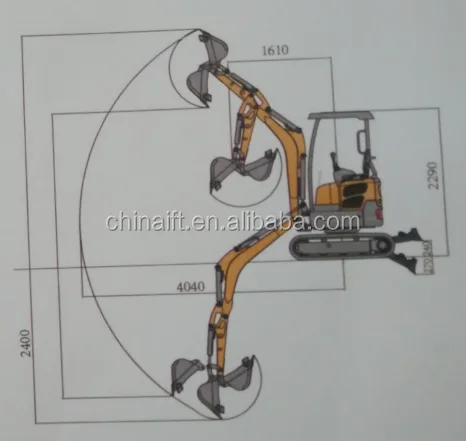

| Working Range | |
| Max.Digging Height(Mm) | 3700 |
| Max. Dumping Height(Mm) | 2440 |
| Max.Digging Depth(Mm) | 2400 |
| Max.Vertical Digging Depth(Mm) | 2025 |
| Max.Digging Radius(Mm) | 4040 |
| Min.Swing Radius(Mm) | 1610 |
| Dozer Blade Max.Lifting Height(Mm) | 240 |
| Dozer Blade Max.Cutting Depth(Mm) | 270 |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 3555*13000*2290 |
| Cabin Height(Mm) | 2290 |
| Sproket To Idler(Mm) | 1230 |
| Axle Distancer(Mm) | 760 |
| Min.Ground Clearance(Mm) | 150 |
| Tail Swing Radius(Mm) | 650 |
