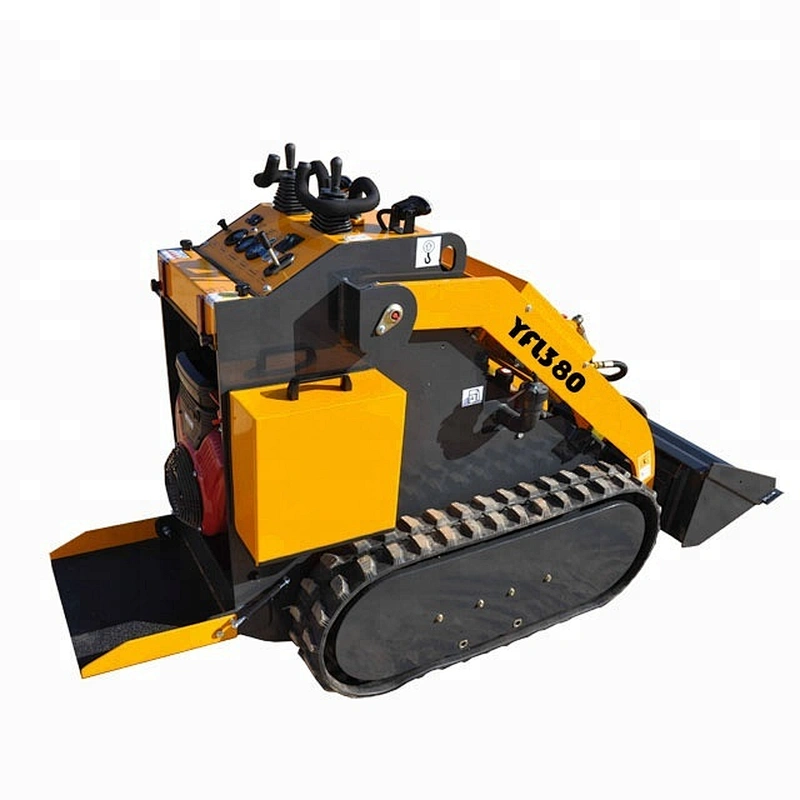

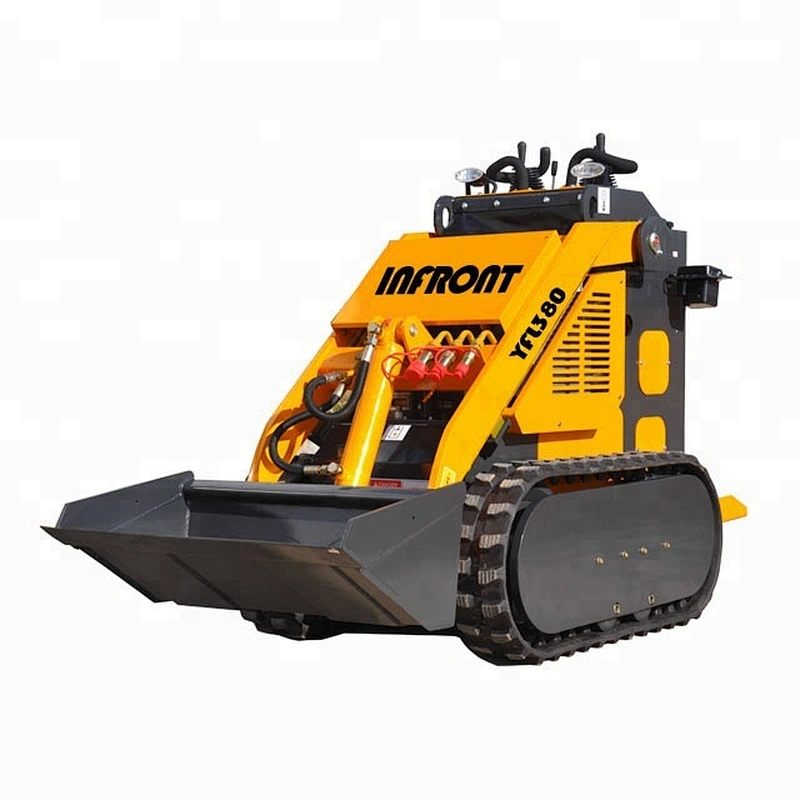

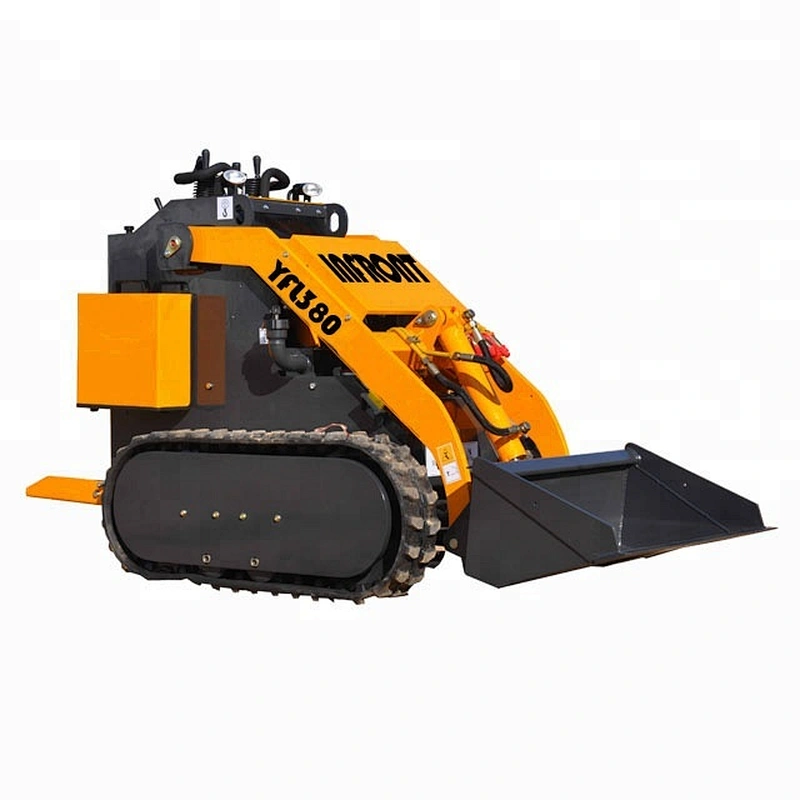

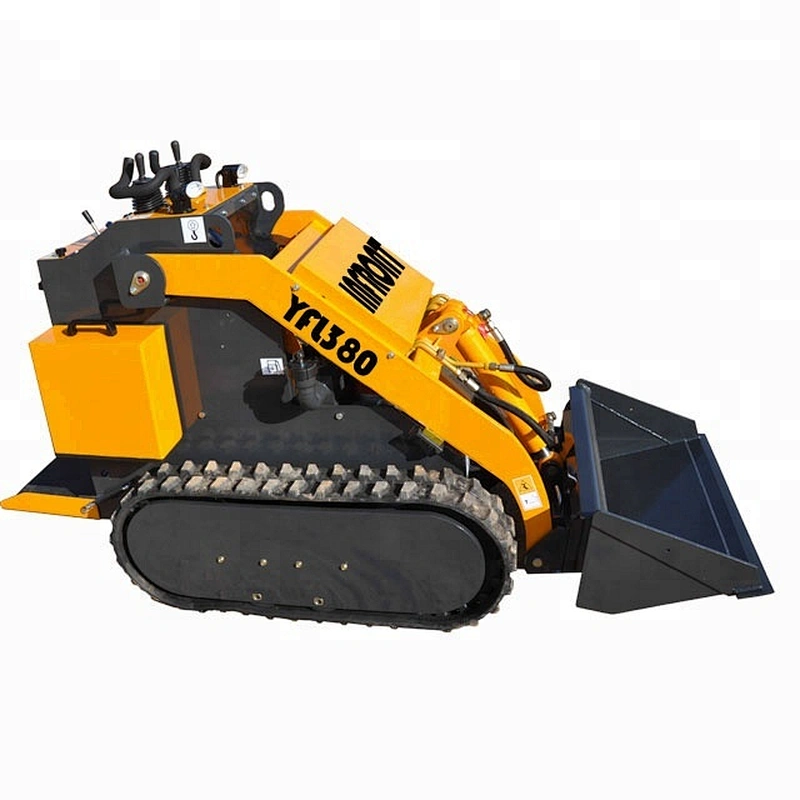

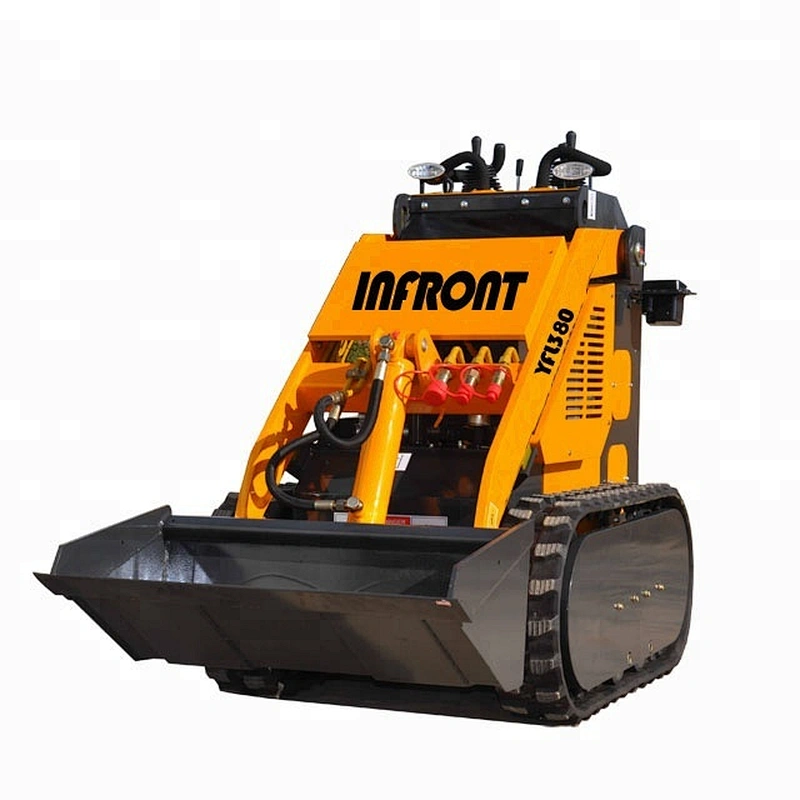

CE and EPA Approved Mini Skid Steer Loader YFL380

CE and EPA Approved Mini Skid Steer Loader YFL380

Price:: USD 5000.00-7500.00 / set
Delivery: FOB
Minimum order quantity: 1 set
Supply Ability: 100 set / Month
Country of Origin: qingdao,shanghai

Quantity:

Product Description
Basic Information

Product Description

Item	mini skid steer loader
	Wheel Type				Track Type
Max working height(A)	Metric	Inch			Metric		Inch
Max pin height (B)	2143 mm	84.37 inch			2128 mm		83.8 inch
Max dump height(C)	1884 mm	74.17 inch			1869 mm		73.6 inch
The highest point discharge distance(D)	1488 mm	58.58 inch			1473 mm		58.0 inch
Total height (H)	1233 mm	48.54 inch			1218 mm		48.0 inch
The height from the ground(F)	118 mm	4.65 inch			105mm		4.1 inch
Wheelbase (G)	636 mm	25.0 inch			612mm		24.1 inch
No bucket length(J)	1752 mm	69.0 inch			1752 mm		69.0 inch
Total width (W)	1160 mm	45.67 inch			1060 mm		41.7 inch
Bucket width (K)	980 mm	38.6 inch			980 mm		38.6 inch
Total length(L)(with bucket)	2206 mm	86.9 inch			2206 mm		86.9 inch
Turning radius (R)	1307 mm	51.5 inch			1317 mm		51.9 inch
Angle of departure(α)	11°	11°			10°		10°
Bucket swing angle(β)	55°
Bucket unloading angle(γ)	30°
Opening-closing angle(θ)	25°
Engine
Rated Power (KW)			17.15KW(23HP)
Fuel			Gasoline(Petrol)
Rotating Speed			3600rpm
Noise(Dd)			≤95
Hydraulic System
Pressure			17Mpa
Working Time(s)
Raise			4.27
Dump			1.34
Lower			3.31
Performance parameters
Operating Load			200kg			441Lb
Bucket Capacity			0.15m³			5.33ft³
Max Lifting Force			375kg			827Lb
Travel Speed			0-5.5km/h			0-3.4 mile/h
Operating Weight			890kg			1958lb
Configuration				Optional configuration
Engine
American Briggs&Stratton gasoline engine 23HP.				Kohler gasoline engine 23.5hp
Pump:
Chinese gear pump, double pump.				Chinese Triple pump; Italian servo pump(joystick)
Valve:
Chinese double valve.				Chinese triple valve.
Operating Handle:
double hydraulic mechanical handles.				one servo handle & one mechanical handle
Moving way:
wheel type with engineering tires.				wheel type with solid tires; rubber track type
Attachment:
Original with a standard bucket.				various attachments.

Company Information

Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
