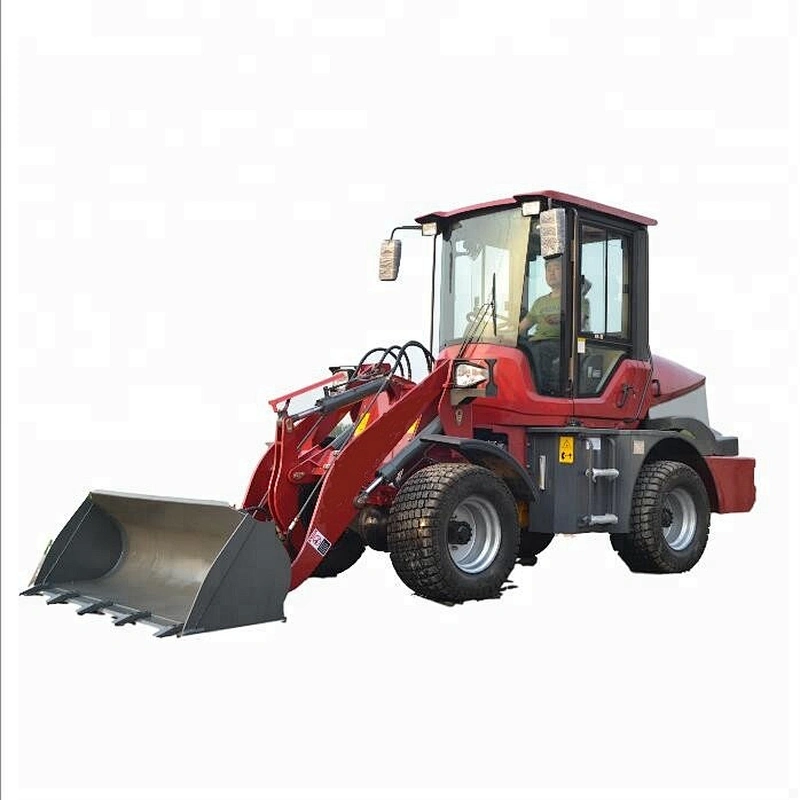

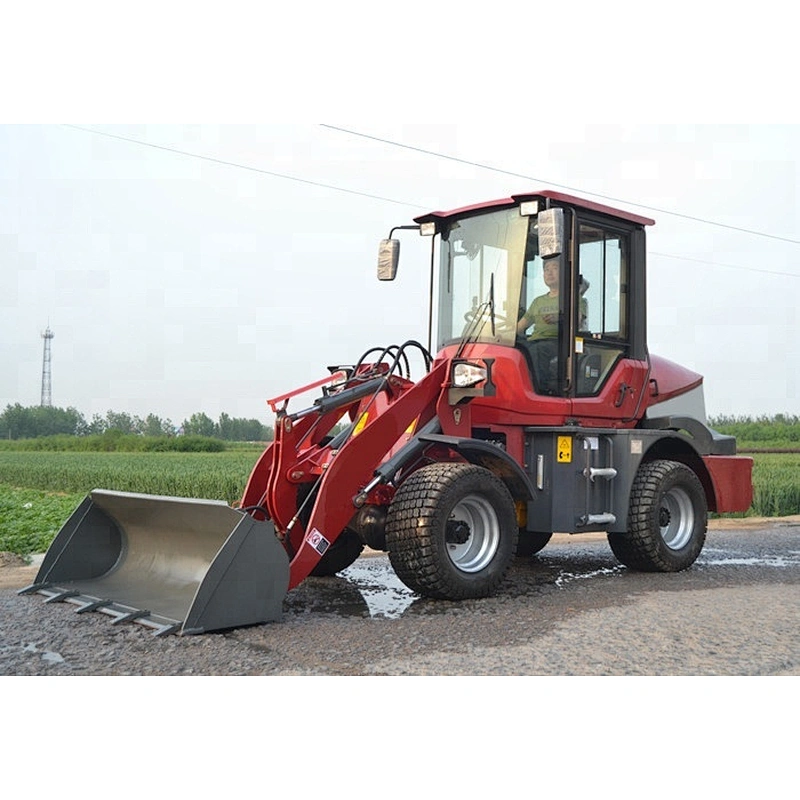

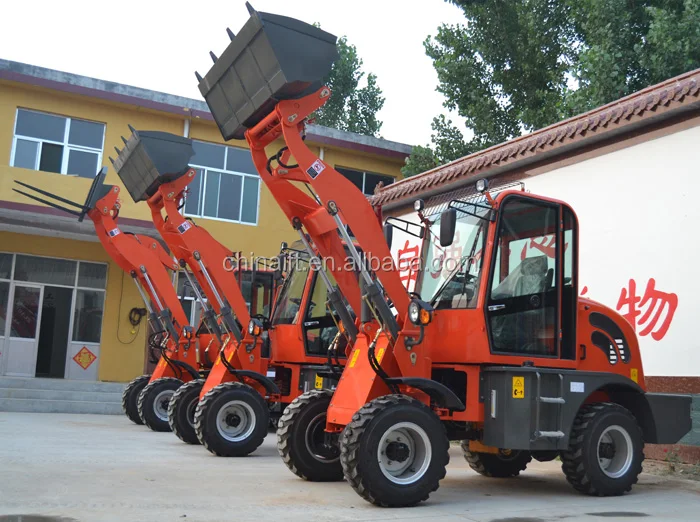

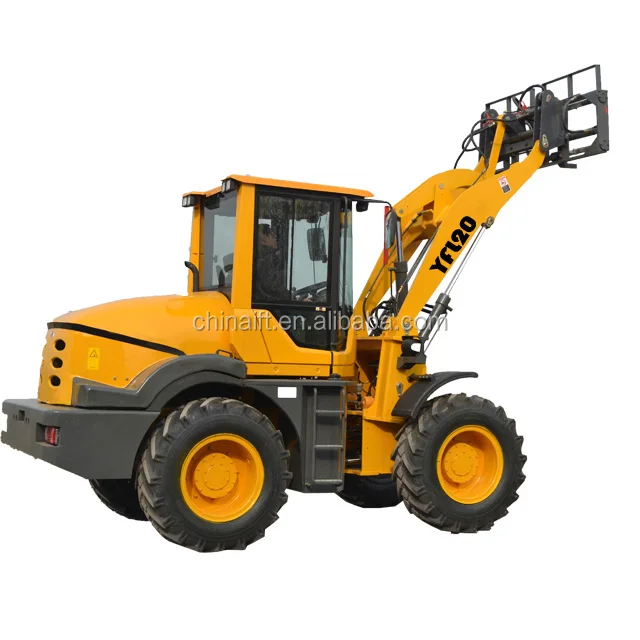

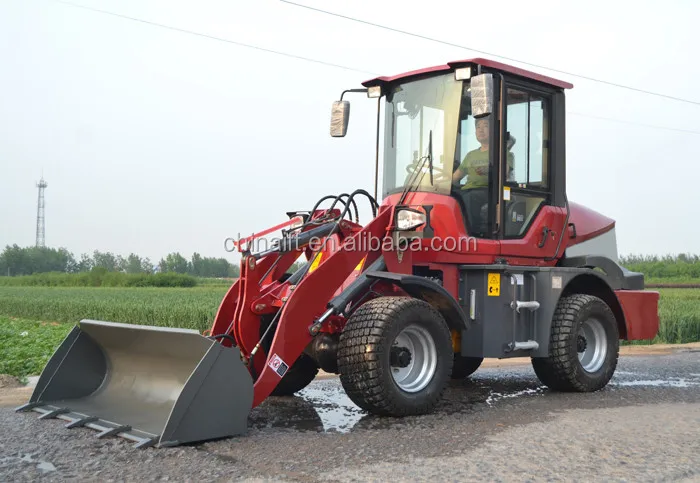

3.5ton mini loaders competitive price Mini skid steer loader wheeled type for sale
Welcome to Jining Infront Construction Machinery Co.,Ltd!
MAIN PERFORMANCE PARAMETRES
Bucket Capacity(m³) | 0.7 | |
Operating Weight(kg) | 3500 | |
Bucket Width(mm) | 1750 | |
Rated Load(kg) | 1500 | |
Driving Mode | Four-wheel drive | |
Overall Dimensions (mm)(L*W*H) | 4900x1750x2700 | |
Max. Breakout Force(KN) | 32 | |
Forward Speed 1st(km/h) | 0-12 | |
Forward Speed 2nd(km/h) | 0-25 | |
Reverse Speed (km/h) | 0-25 | |
Max. Dumping Height(mm) | 2650 | |
Optional Max. Dumping Height(mm) | 2900 | |
Max. Dumping Reach (mm) | 850 | |
Min. Turning Radius(mm) | 3890 | |
Full Bucket Lifting Time (s) | 4.5 | |
Total Hydraulic Cycle Time (s) | 9 | |
Tread Width (mm) | 220 | |
Wheel Base (mm) | 1580 | |
Min. Clearance Over Ground (mm) | 230 | |
Diesel Engine | Brand | YUNNEI YN27 Engine |
Optional brand | Euro3 and EPA XINCHAI 36.8kw A498BT1Engine or YANMAR/PERKINS/KUBOTA/CUMMINS/KOHLER Tier 3/4 engine | |
Type | In-line arrangement,four-stroke,water cooled, 4-cylinderdiesel engine | |
Rated Output(KW) | 42 | |
Engine starting mode | Electric | |
Transmission | Type | Fixed-spindle power shift with converter |

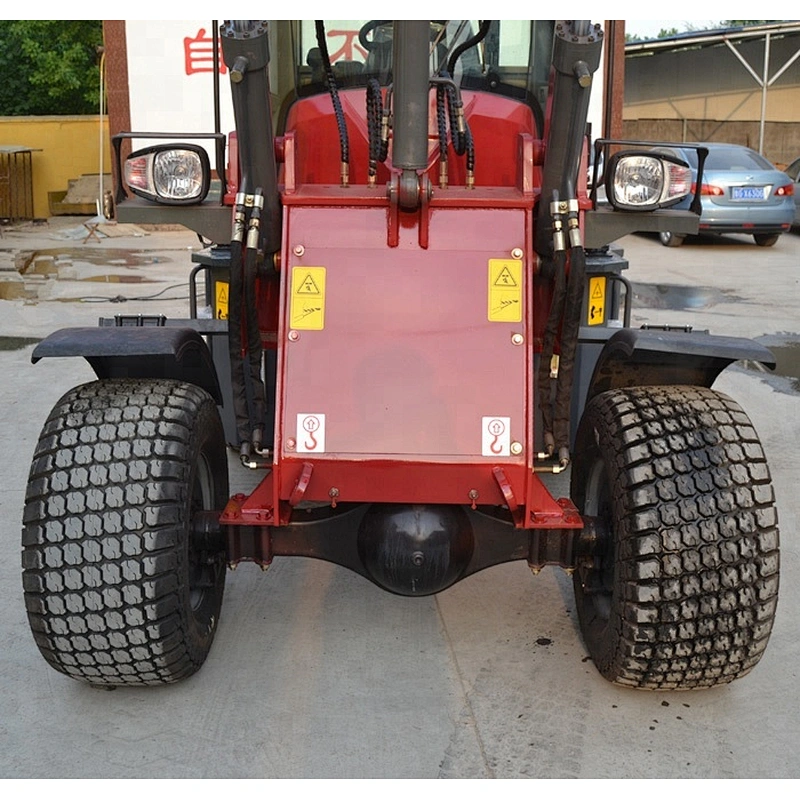

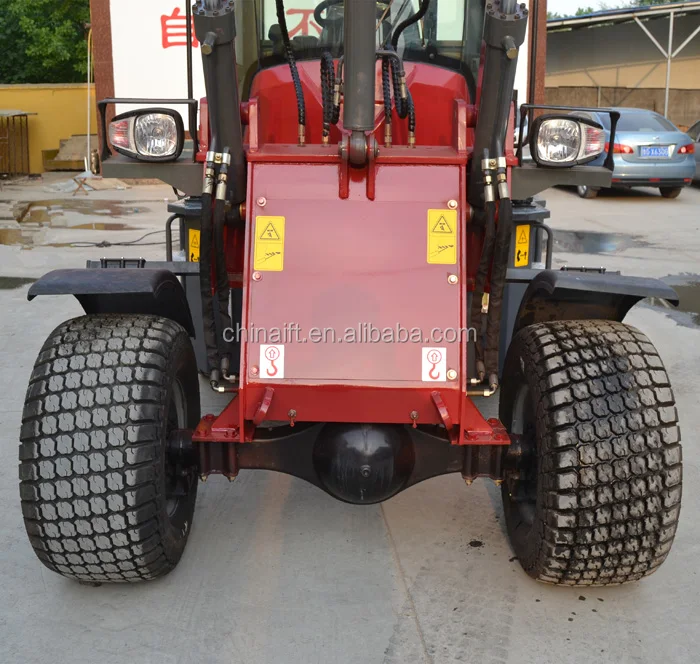

Drive axle | Rear Axle Oscillation | Center oscillation |
Oscillating Angle Of Rear Axle | 13° | |

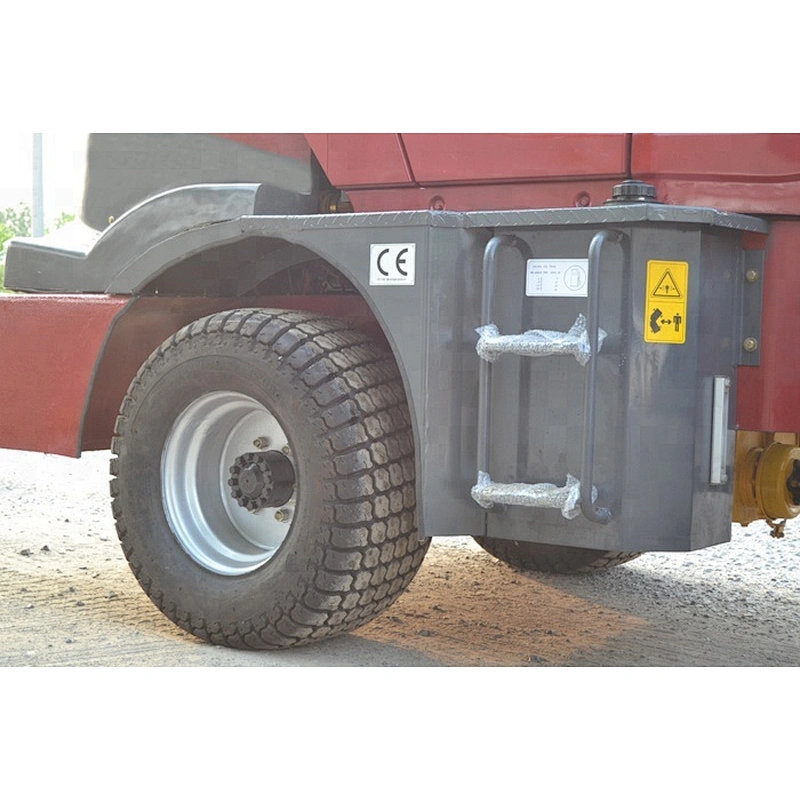

Tire | Model | 20.5-16 or 20.5/70-16 |
Optional model | 12-16.5 or 14-17.5 wider tire 31*15.5-15 Agriculture Tubeless tire 295/80R22.5 or 315/80R22.5 Truck tire | |
Steering System | Working Pressure (MPa) | 10 |
Max. Steering Angle (°) | 35 | |
Hydraulic System | Pressure Of Tire (MPa) | 2.5-3.5 |
Working Pump Type | Gear pump | |
Working Pressure (MPa) | 16 | |
Brake System | Service Brake | Four Wheel Hydraulic drum brake |
Parking Brake | Hand operated with disc brake | |
Package | 1 unit with cab packed into 20GP,3 units with cab packed into 40HQ. | |
Warranty | 12 months after delivery or 1500 work hours(whichever comes first) | |
Delivery time | 15-25 days after 30% down payment. | |
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
