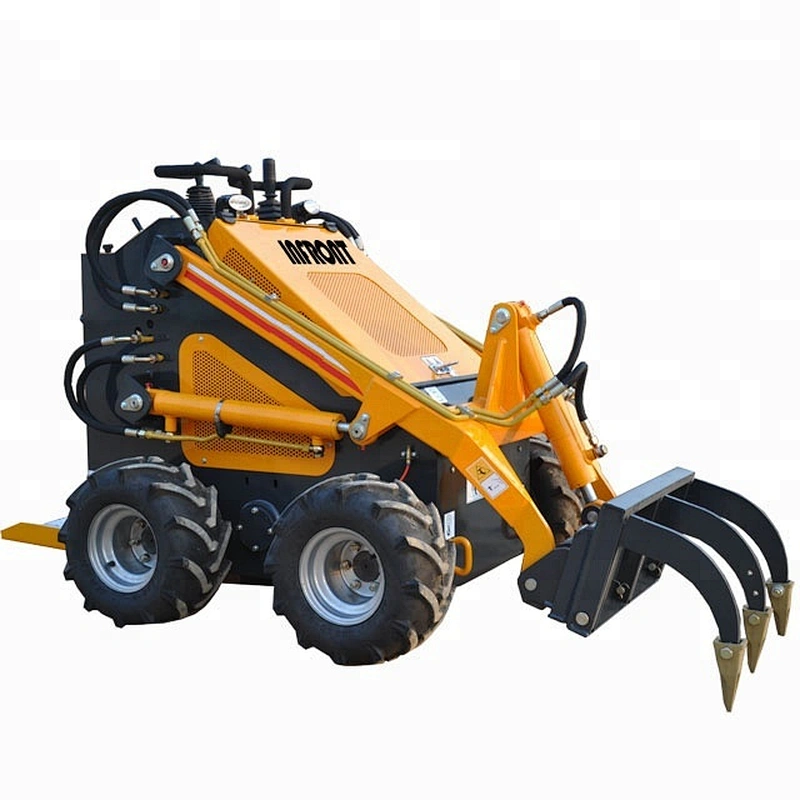

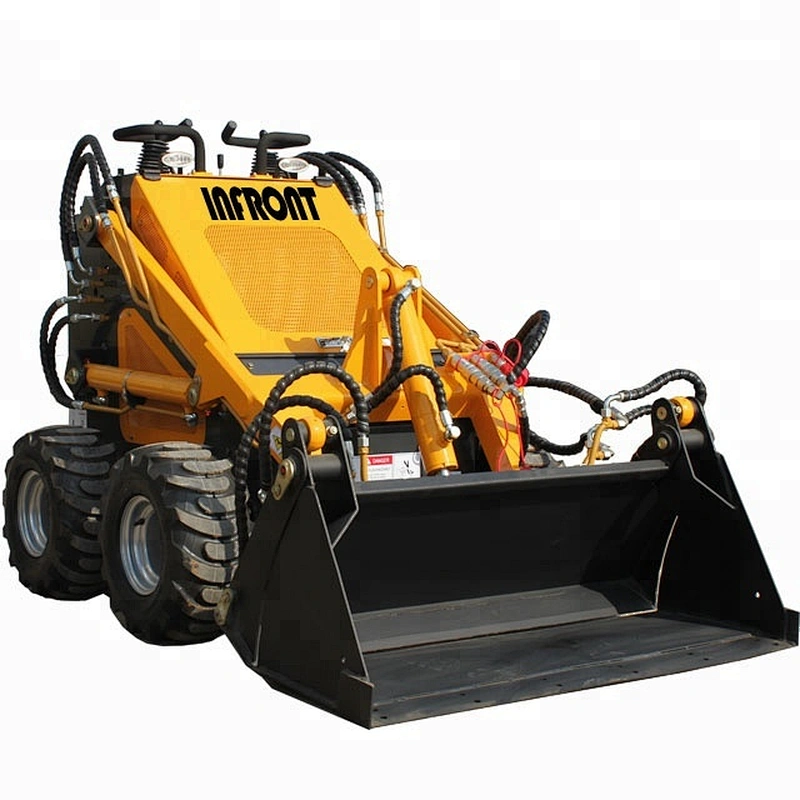

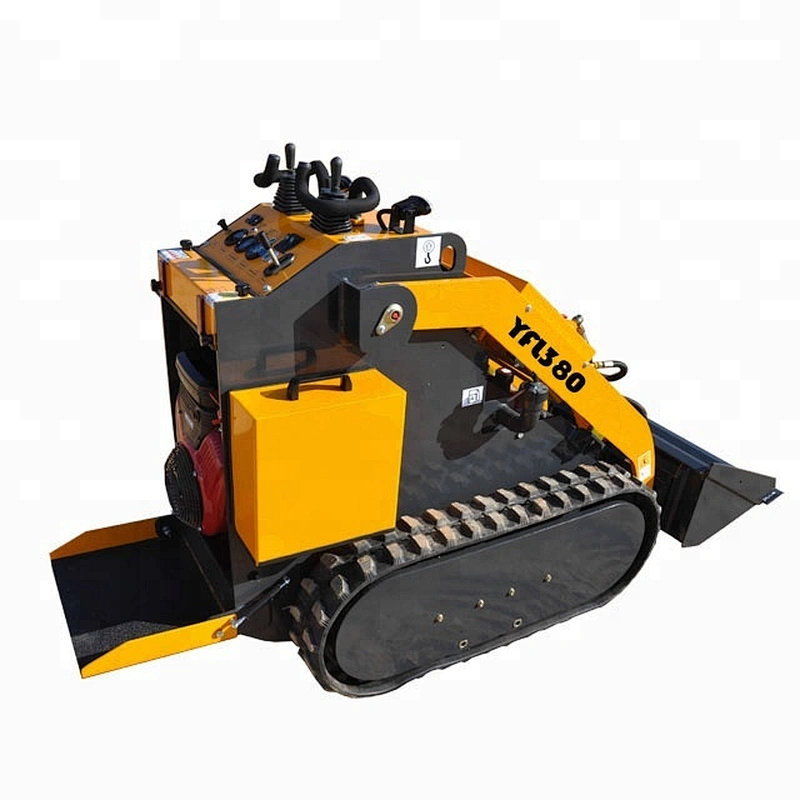

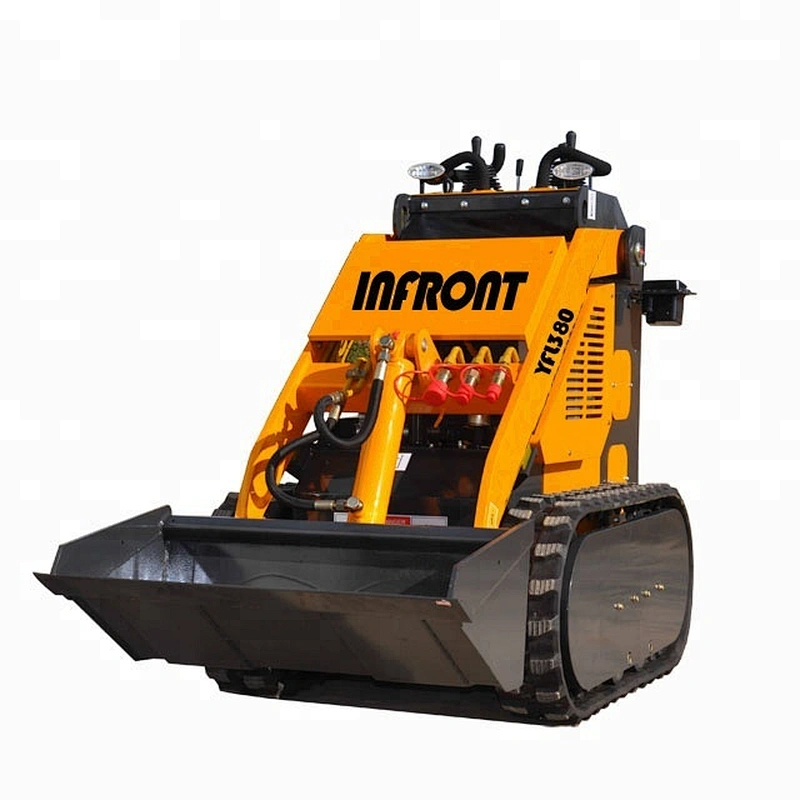

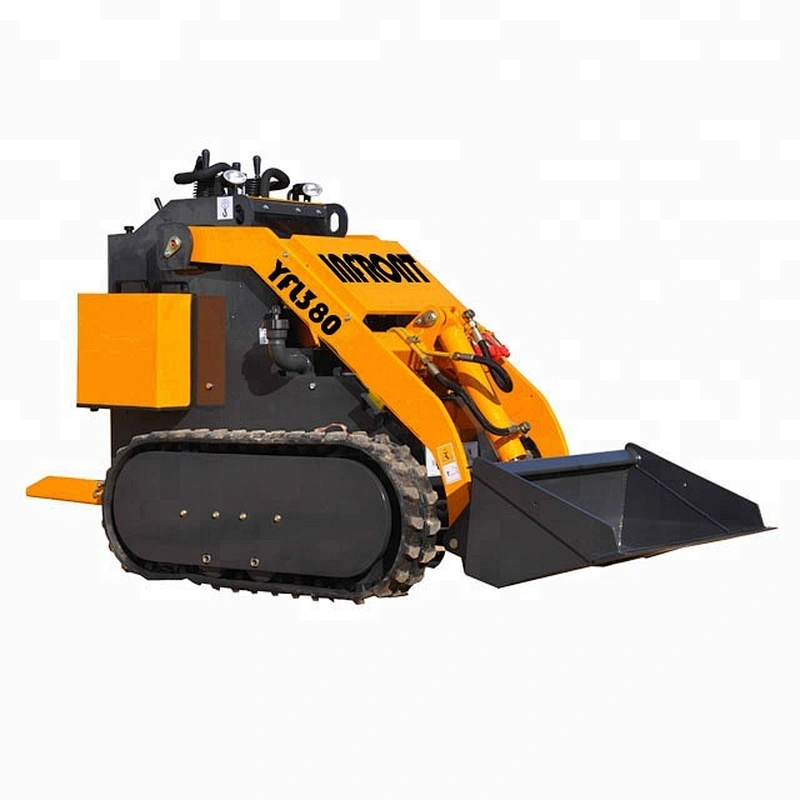

mini 380 wheel crawler skid steer loader for construction machinery
Main Dimension:
Item | With Chevron Engineering Tyre | |
Max working height H1 | 2143mm | 84.37inch |
Max dump height H2 | 1488mm | 58.58inch |
Total Height H | 1233mm | 48.54inch |
Max pin height | 1884mm | 74.17inch |
The length of the foot plate | 678 mm | 26.7inch(foot plate level) |
Total length with bucket L ( mm) | 2206mm | 86.9inch |
Highest point dump distance L1(mm) | 348mm | 13.7inch |
Length without bucket L2(mm) | 1752mm | 69inch |
Bucket width B(mm) | 980mm | 38.6inch |
Total width B1(mm) | 1160mm | 45.67nch |
Wheel base | 940mm | 37inch |
Ground clearance(mm) | 118mm | 4.65inch |
Turning radius R(mm) | 1307 mm | 51.5inch |
Bucket dumping angle α(°) | 30 |
|
Rollback of bucket on ground β(°) | 25 |
|
Departure angle(°) | 11(foot plate level) | |
Technical Parameter:
Item YF380 | Item | |||
Engine | Rated power(KW) | 15.4KW(21HP) | ||
Rated speed(rpm) | 3300 | |||
Noise (Db) | 95 | |||
Hydraulic system | Hydraulic pressure(Mpa) | 17 | ||
Cycle time(s) | Raise | Dump | lower | |
4.27 | 1.34 | 3.31 | ||
Technical Parameter | Operating Load | 200 Kgs | 441lb | |
Bucket Capacity | 0.15 m3 | 5.33(ft 3) | ||
Max Lifting Force | 375 Kgs | 827lb | ||
Travel Speed | 0-5.5Km/h | 0-3.4mile/h | ||
Operating Weight | 890 Kg | 1958lb(With Chevron Engineering Tyre ) | ||
Tires | 18*6.5-8 | |||
