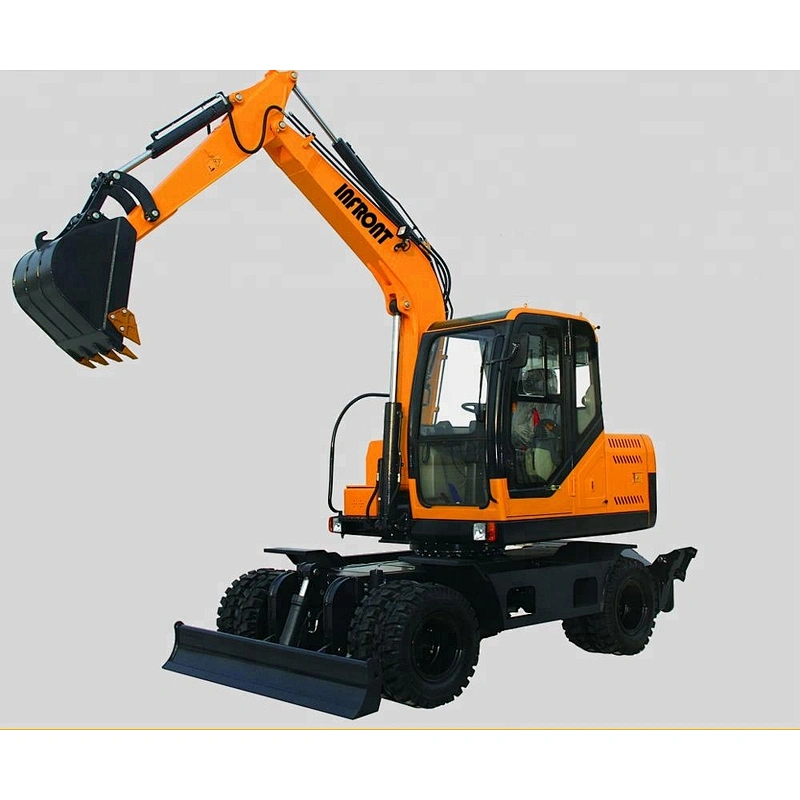

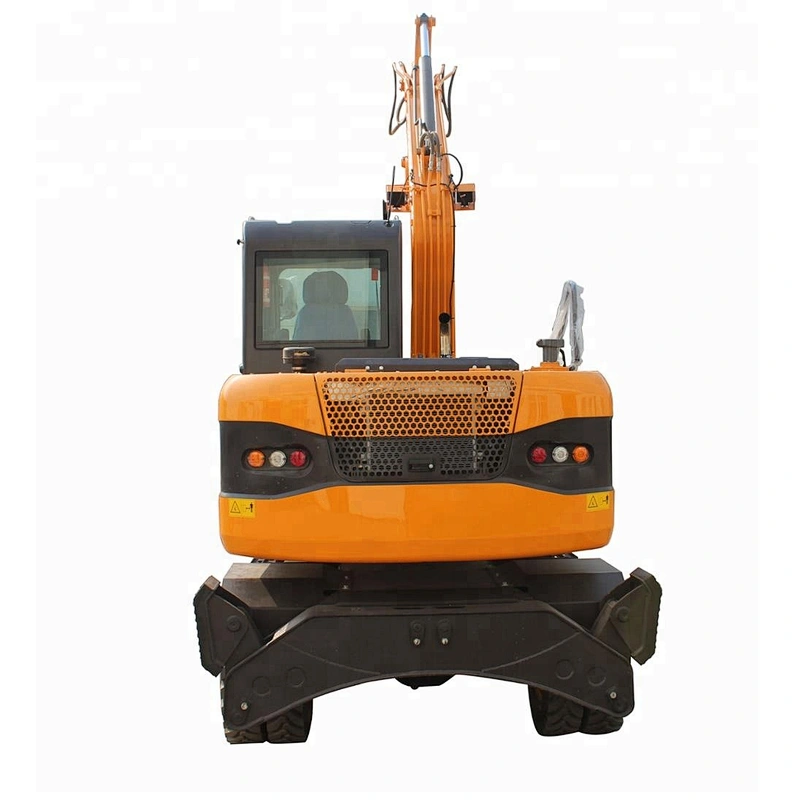

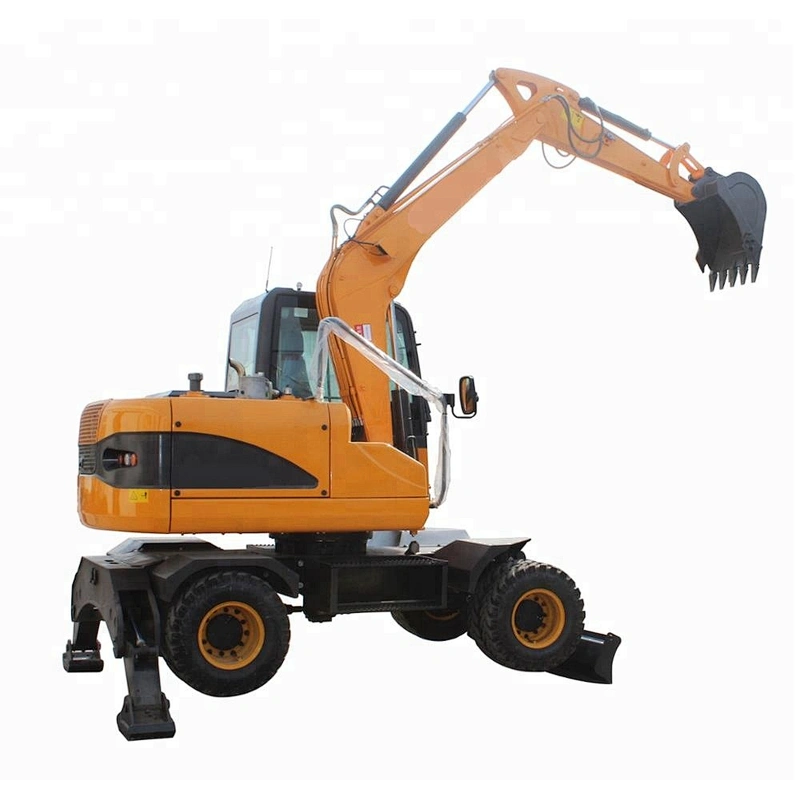

2018 Hot sale 9 ton to 13.5 ton wheel excavator
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| MODEL | YFEW90 |
| Rated Power:85(Hp) Bucket Capacity:0.28(M3) Operation Weight:9000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.28 |
| Swing Speed(Rmp) | 0-11 |
| Gradeability(°) | 50 |
| Bucket Max.Digging Force(KN) | 56 |
| Arm Max.Digging Force(KN) | 38 |
| Engine Model | YC4FA85 |
| Power/Rotation Speed(KW/Rmp) | 62.5/2200 |
| Tyre Model | 7.50-20 |
| System Pressure(MPa) | 27 |
| Working Range | |
| Max.Digging Height(Mm) | 7364 |
| Max. Dumping Height(Mm) | 5537 |
| Max.Digging Depth(Mm) | 3556 |
| Max.Vertical Digging Depth(Mm) | 2627 |
| Max.Digging Radius(Mm) | 5923 |
| Min.Swing Radius(Mm) | 1740 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 6087*2394*3010 |
| Cabin Height(Mm) | 3010 |
| Sproket To Idler(Mm) | 2200 |
| Axle Distancer(Mm) | 1910 |
| Min.Ground Clearance(Mm) | 264 |
| Tail Swing Radius(Mm) | 1730 |
![`[I7Q[P]]Y$U~BS72]ON_F0_.jpg](http://sc02.alicdn.com/kf/HTB1vBnuBpmWBuNjSspdq6zugXXa4/225542882/HTB1vBnuBpmWBuNjSspdq6zugXXa4.jpg)
![U`[1C]6C%4T6F6DL~VCP3~G_.jpg](http://sc01.alicdn.com/kf/HTB1XvZFjRnTBKNjSZPfq6zf1XXaM/225542882/HTB1XvZFjRnTBKNjSZPfq6zf1XXaM.jpg)
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
