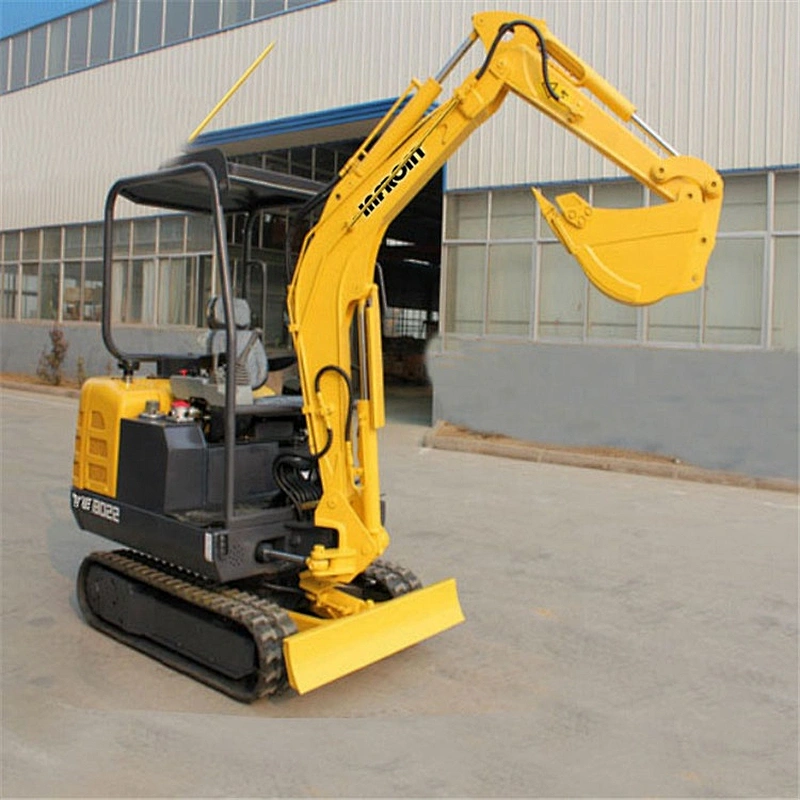

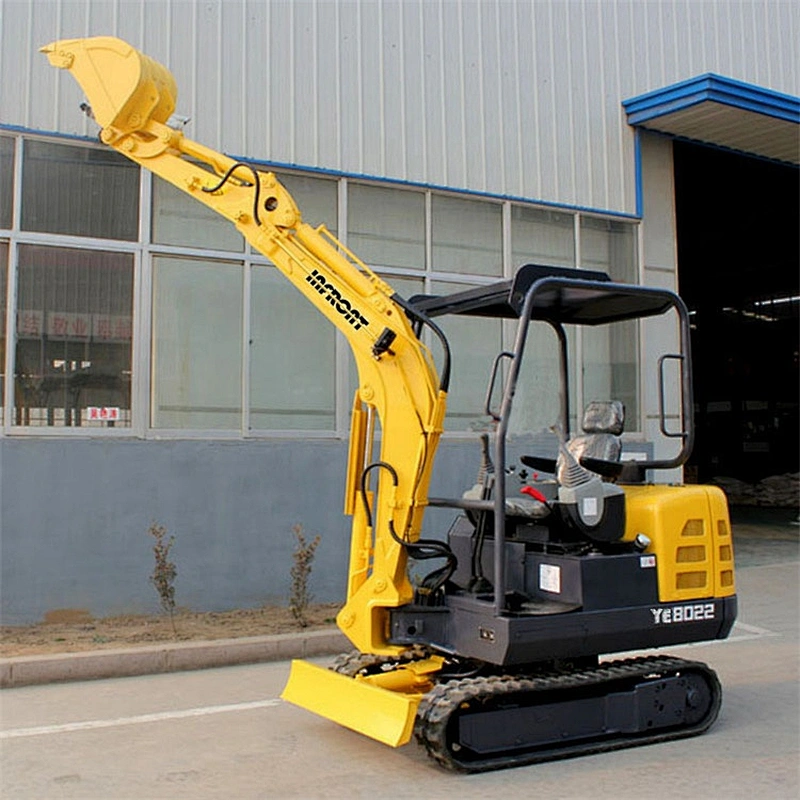

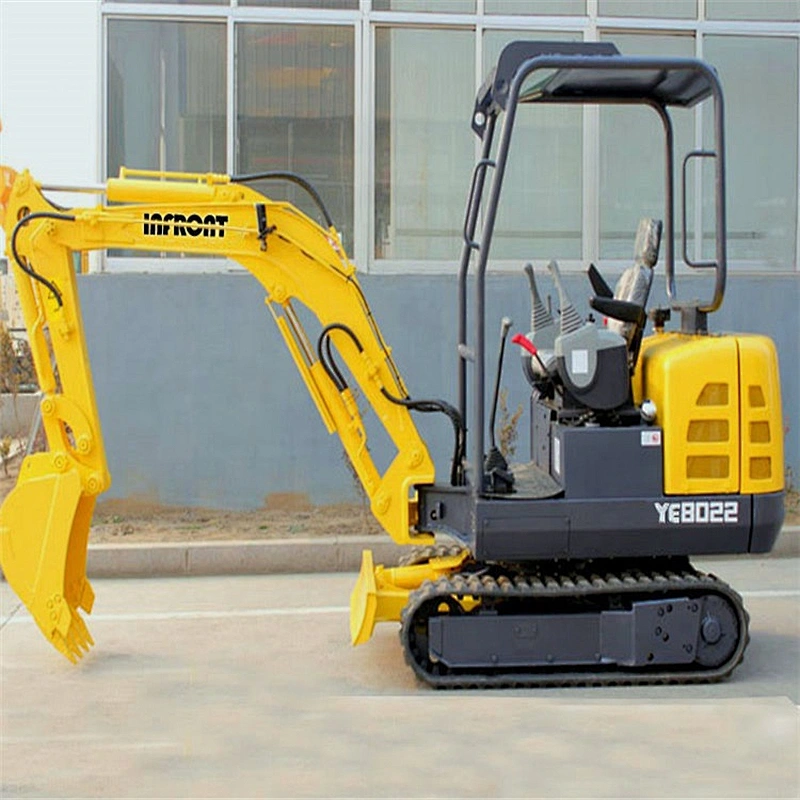

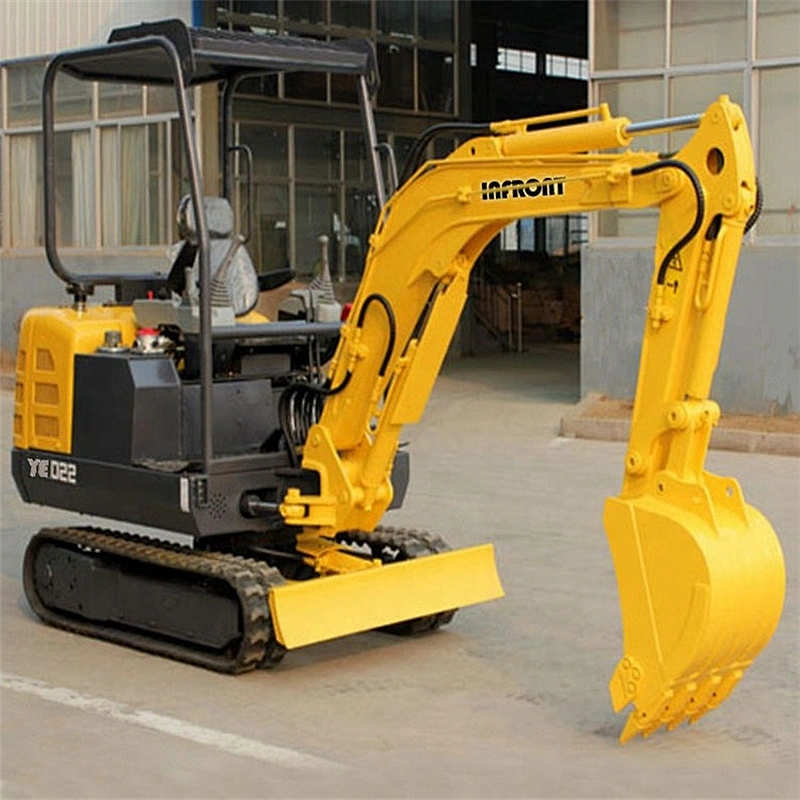

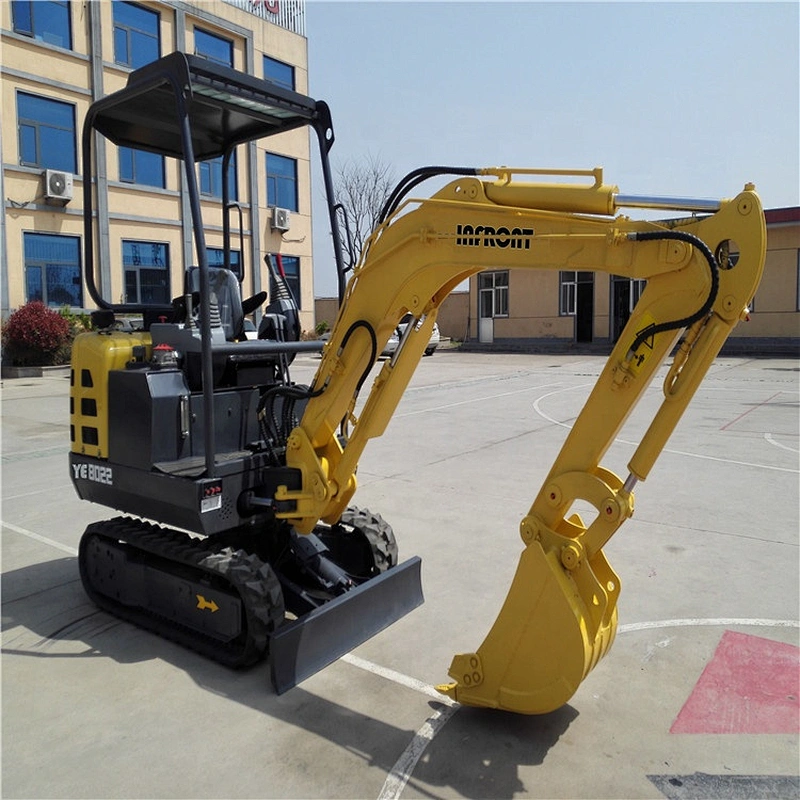

Farming 1 ton hydraulic crawler digger cheap price mini excavator
Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Technical parameters
| NO. | Item | Data |
| 1 | Operating Weight: | 1200 KG |
| 2 | Bucket Capacity | 0.025 CBM |
| 3 | Bucket Width | 380 mm |
| 4 | Boom Length | 1350 mm |
| 5 | Arm Length | 700 mm |
| 6 | Swing speed | 15 rpm |
| 7 | Swing | 800 N·m |
| 8 | Travel Speed | 0-3.5 |
| 9 | Grade Ability | 25-30° |
| 10 | Ground Pressure | 25 mm |
| 11 | Bucket digging force | 800 kg |
| 12 | Arm digging force | 600 kg |
| 13 | maximum drawbar pull | 500 kg |
| 14 | Modell | 292F |
| 15 | Engine brand | KOOP |
| 16 | Rated Power | 24/16/2200 HP/KW/RPM |
| 17 | Max.Torque | 43 N·m/rpm |
| 18 | Displacement | 0.499 |
| 19 | Cylinders | 1 |
| 20 | bore and stroke | 92*72 |
| 21 | Cooling type | Air cooling |
| 22 | Main pump | 310 |
| 23 | Rated Pressure | 18 Mpa |
| 24 | Main pump Max.Flow | 10 L/min |
| 25 | Walking hydraulic motor type | OMS-2450 |
| 26 | Swing hydraulic motor | BMP200 |
| 27 | Working hydraulic circuit | 20 Mpa |
| 28 | Travel Hydraulic Circuit | 20 Mpa |
| 29 | Swing hydraulic circuit | 20 Mpa |
| 30 | Maximum working pressure | 25 Mpa |
| 31 | Auxiliary Piping for Hammer | No |
| 32 | Fuel Tank | 12 L |
| 33 | Hydraulic Oil tank | 18 L |
| 34 | Engine Oil | 2.5 L |
| 35 | fuel consumption | 0.8-1.2 1.5 |
| 36 | Overall Length | 2550 mm |
| 37 | Overall Width | 930 mm |
| 38 | Overall Height | 1350 mm |
| 39 | Superstructure width | 800 mm |
| 40 | Counterweight ground clerance | 400 mm |
| 41 | Track grounding length | 1100 mm |
| 42 | Total track length | 1200 mm |
| 43 | Track shoe width | 180 mm |
| 44 | Total track width | 930 mm |
| 45 | Track gauge | 77 mm |
| 46 | Number of tracks | 36 |
| 47 | Min.ground clerance | 150 mm |
| 48 | Min.Front Swing radius | 1800 mm |
| 49 | Tail Swing radius | 470 mm |
| 50 | Dozer blade with | 930 mm |
| 51 | Max.Diiging radius | 2550 mm |
| 52 | Max.Digging Depth | 1600 mm |
| 53 | Max.Digging Height | 2500 mm |
| 54 | Max.Dumping Height | 1750 mm |
| 55 | dozer balde width | 930*210 mm |
| 56 | dozer blade lift/digging | 155 325 mm |
