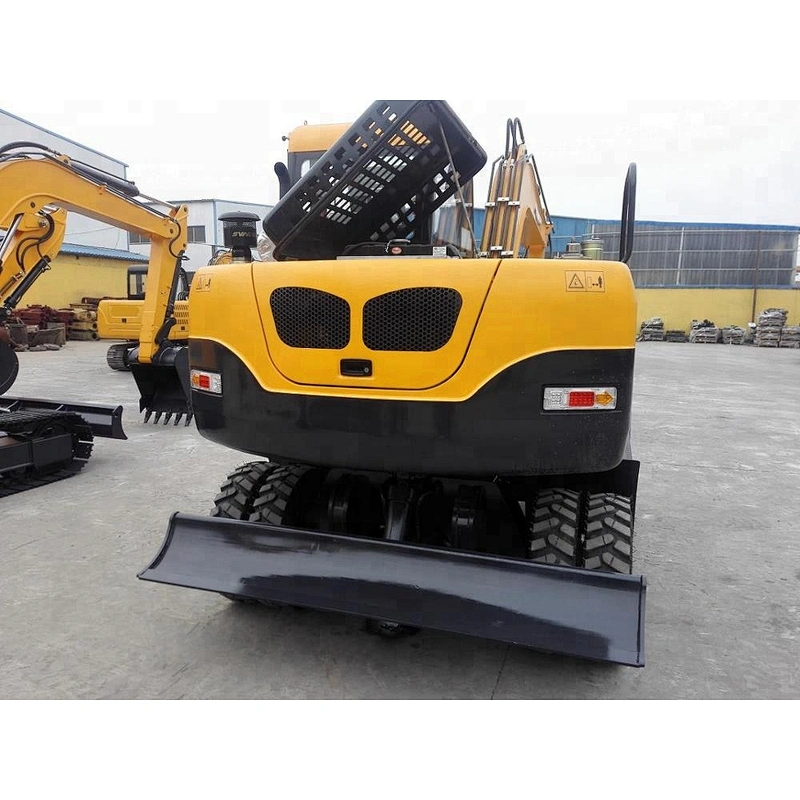

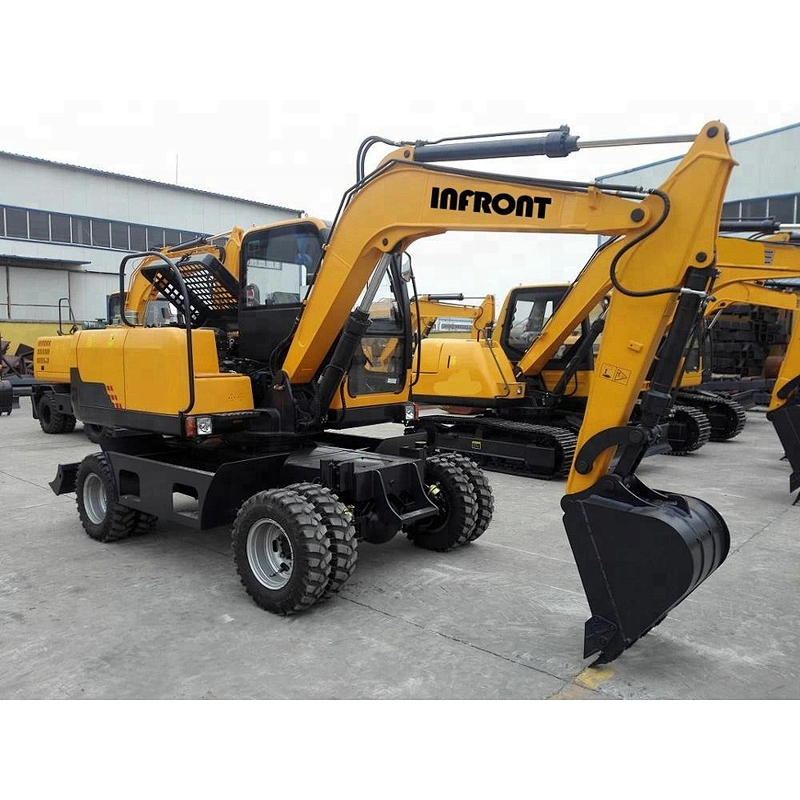

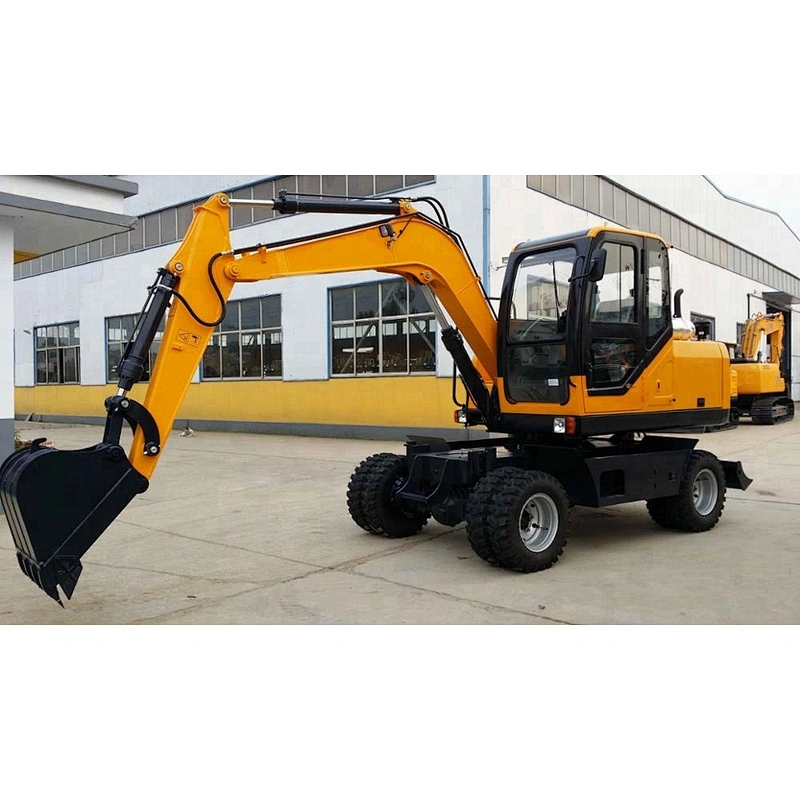

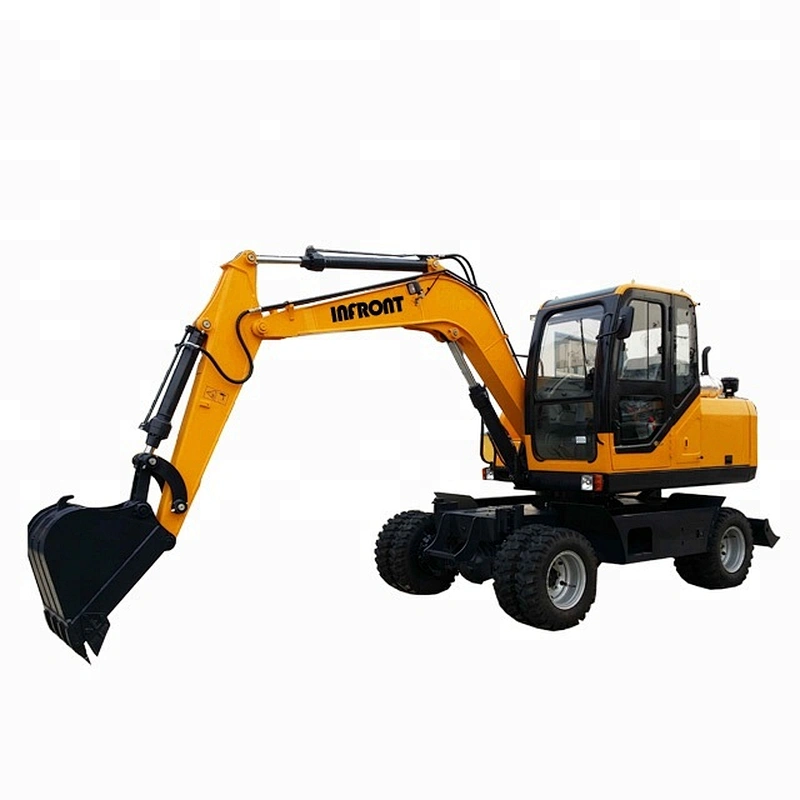

Cheap 7ton wheel excavator from China Infront factory
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Product Description
MAIN PERFORMANCE PARAMETRES
| MODEL | YFEW70 |
| Rated Power:65(Hp) Bucket Capacity:0.21(M3) Operation Weight:7000(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.21 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 25 |
| Bucket Max.Digging Force(KN) | 45 |
| Arm Max.Digging Force(KN) | 36 |
| Engine Model | 4D32ZG31 |
| Power/Rotation Speed(KW/Rmp) | 48/2300 |
| Tyre Model | 7.50-16 |
| System Pressure(MPa) | 20 |
| Working Range | |
| Max.Digging Height(Mm) | 5865 |
| Max. Dumping Height(Mm) | 4212 |
| Max.Digging Depth(Mm) | 3290 |
| Max.Vertical Digging Depth(Mm) | 2616 |
| Max.Digging Radius(Mm) | 5820 |
| Min.Swing Radius(Mm) | 2296 |
| Dozer Blade Max.Lifting Height(Mm) | 310 |
| Dozer Blade Max.Cutting Depth(Mm) | 130 |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 5930*2205*2850 |
| Cabin Height(Mm) | 2850 |
| Sproket To Idler(Mm) | 2400 |
| Axle Distancer(Mm) | 1675 |
| Min.Ground Clearance(Mm) | 260 |
| Tail Swing Radius(Mm) | 1940 |
![`$RBF0R_GAFRR329]`H0MTF_.jpg](http://sc01.alicdn.com/kf/HTB1hIQ4BACWBuNjy0Faq6xUlXXac/225542882/HTB1hIQ4BACWBuNjy0Faq6xUlXXac.jpg)
![`[I7Q[P]]Y$U~BS72]ON_F0_.jpg](http://sc02.alicdn.com/kf/HTB1vBnuBpmWBuNjSspdq6zugXXa4/225542882/HTB1vBnuBpmWBuNjSspdq6zugXXa4.jpg)
![U`[1C]6C%4T6F6DL~VCP3~G_.jpg](http://sc01.alicdn.com/kf/HTB1XvZFjRnTBKNjSZPfq6zf1XXaM/225542882/HTB1XvZFjRnTBKNjSZPfq6zf1XXaM.jpg)
Product Details
Packaging & Shipping
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
