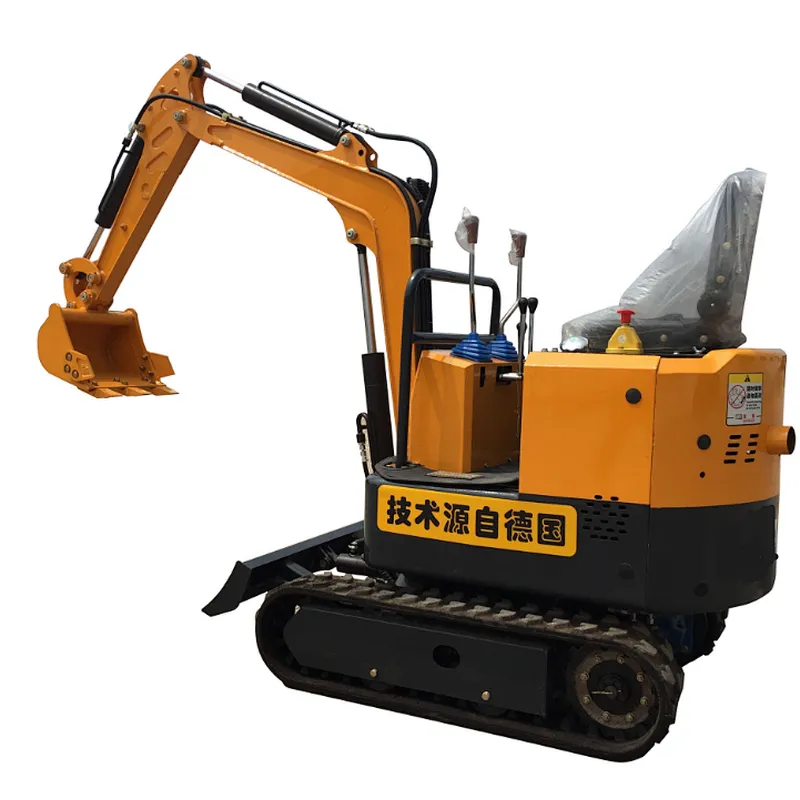

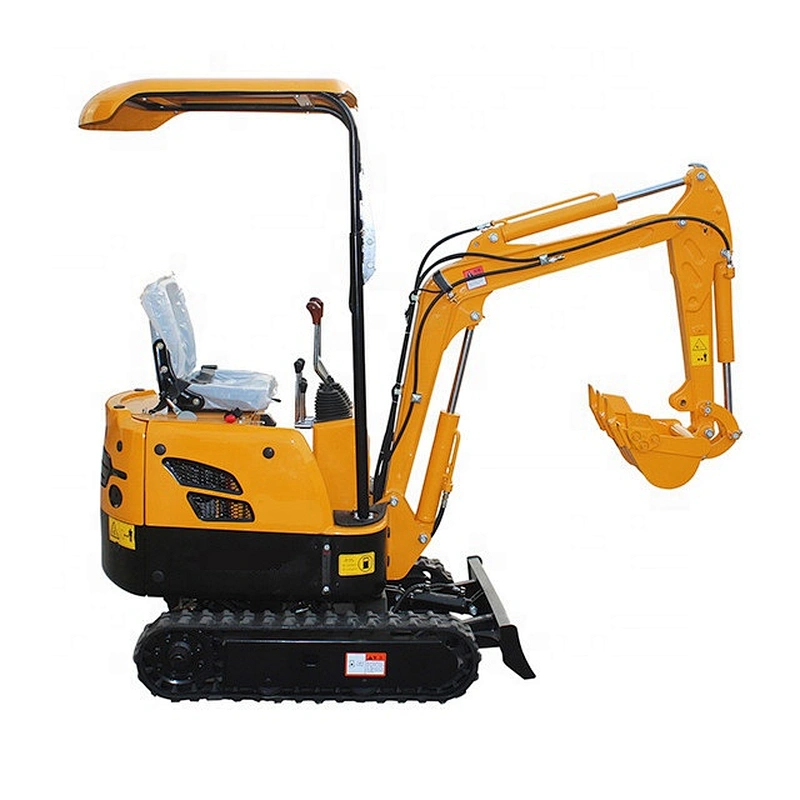

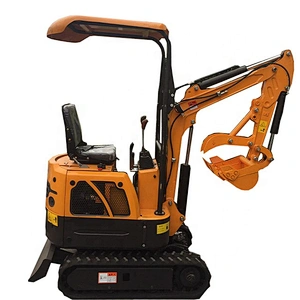

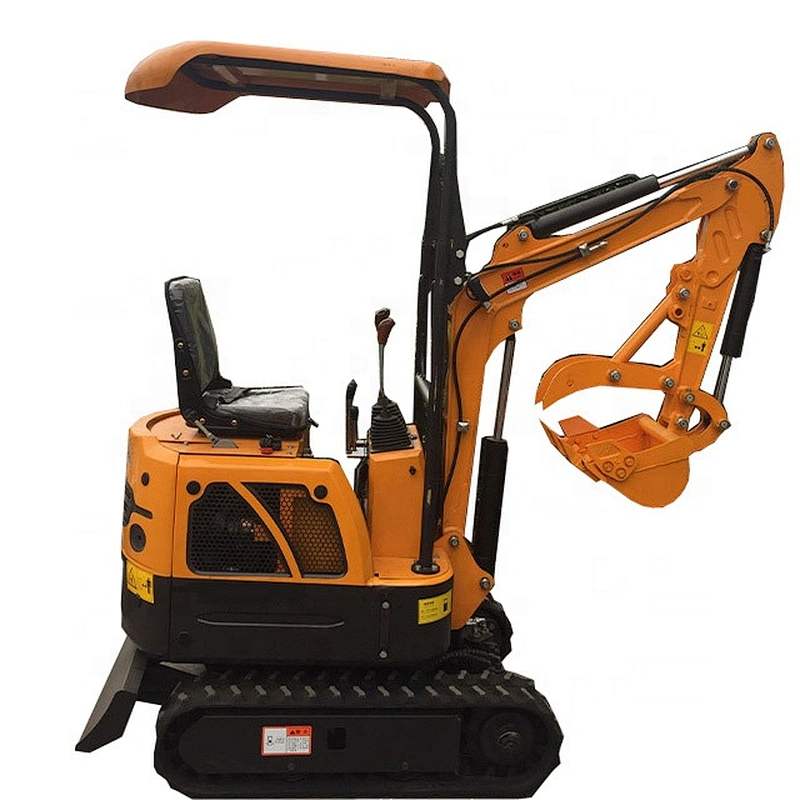

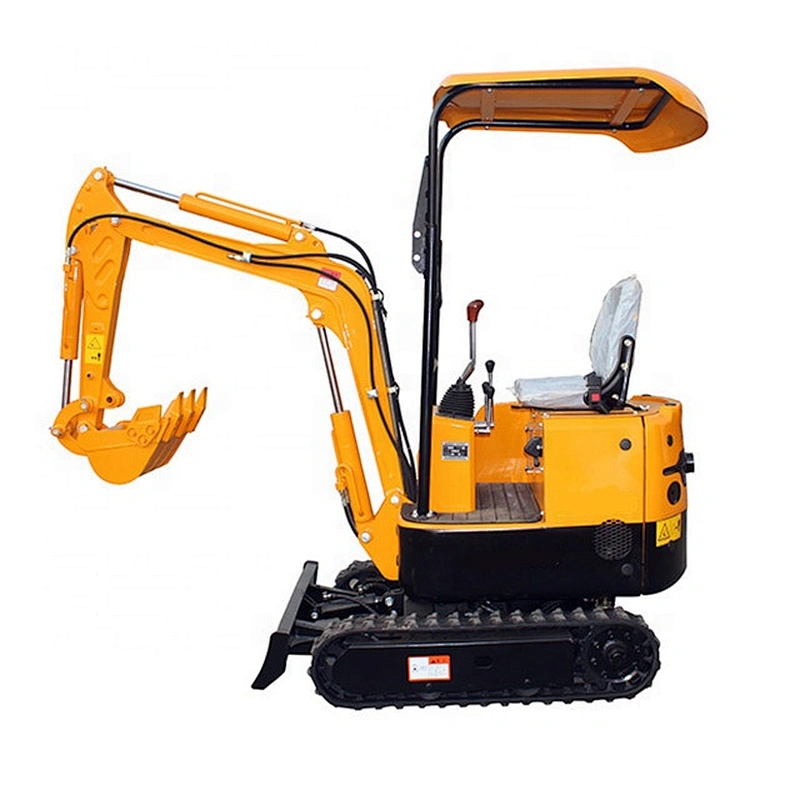

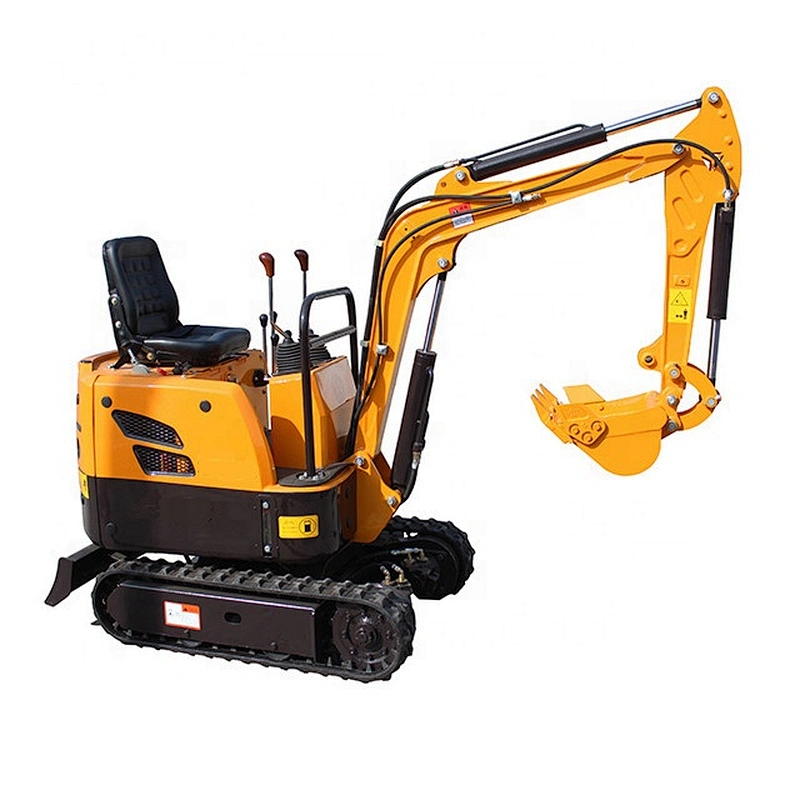

Mini crawler digger 0.8Ton cheap mini excavator china excavator price
Product Description
| Specs | ||
| Operating Weight | kg | 800 |
| Bucket Capacity | m³ | 0.03 |
| Bucket Width | mm | 350 |
| Boom Length | mm | 1350 |
| Arm Length | mm | 700 |
| Performance | ||
| Swing Speed | rpm | 10 |
| Travel Speed | Km/h | 0-2.6 |
| Grade Ability | % | 20 |
| Ground Pressure | Kpa | 25 |
| Bucket Digging Force | KN | 9.6 |
| Arm Digging Force | KN | 8.5 |
| Max Traction Force | KN | 6.7 |
| Engine | ||
| Rated Power | Kw/rpm | 12/3000 |
| Max Torque | N.m/rpm | 43 |
| Displacement | L | 0.794 |
| Cylinders | 2 | |
| Bore and Stroke | mm*mm | 80*79 |
| Cooling Type | Water | |
| Overall Dimensions | ||
| Overall Length*Width*Height | mm | 2660*820*1500 |
| Track Grounding Length | mm | 810 |
| Track Shoe Width | mm | 150 |
| Track Gauge | mm | 670 |
| Min Ground Clerance | mm | 138 |
| Tail Swing Radius | mm | 470 |
| Dozer Blade Width | mm | 820 |
| Operating Range | ||
| Max Digging Radius | mm | 2612 |
| Max Digging Depth | mm | 1328 |
| Max Digging Height | mm | 2443 |
| Max Dumping Height | mm | 1724 |
| Dozer Blade Lift/Digging | mm | 155/172 |
