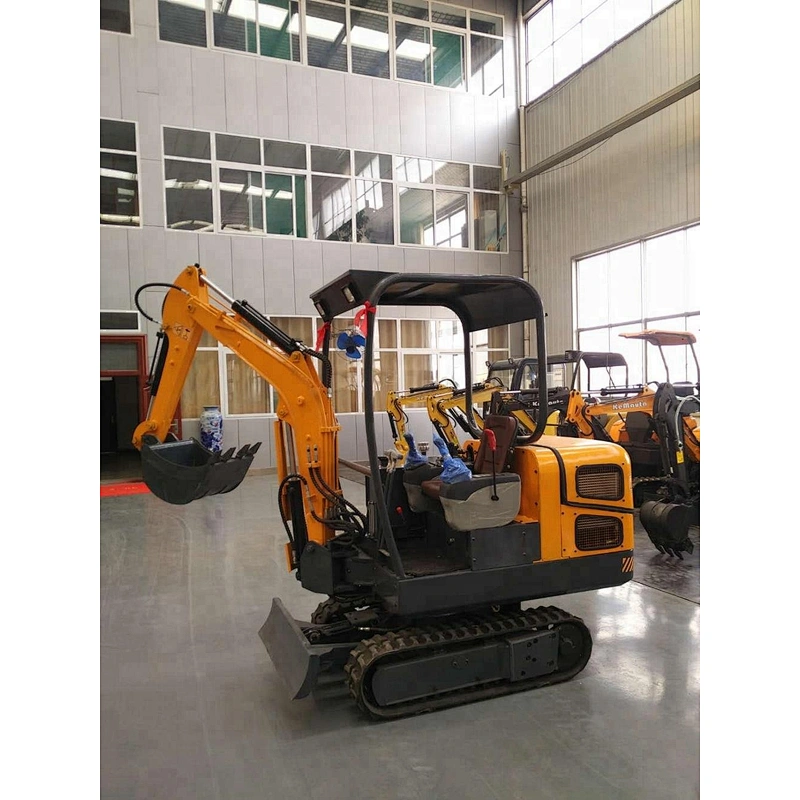

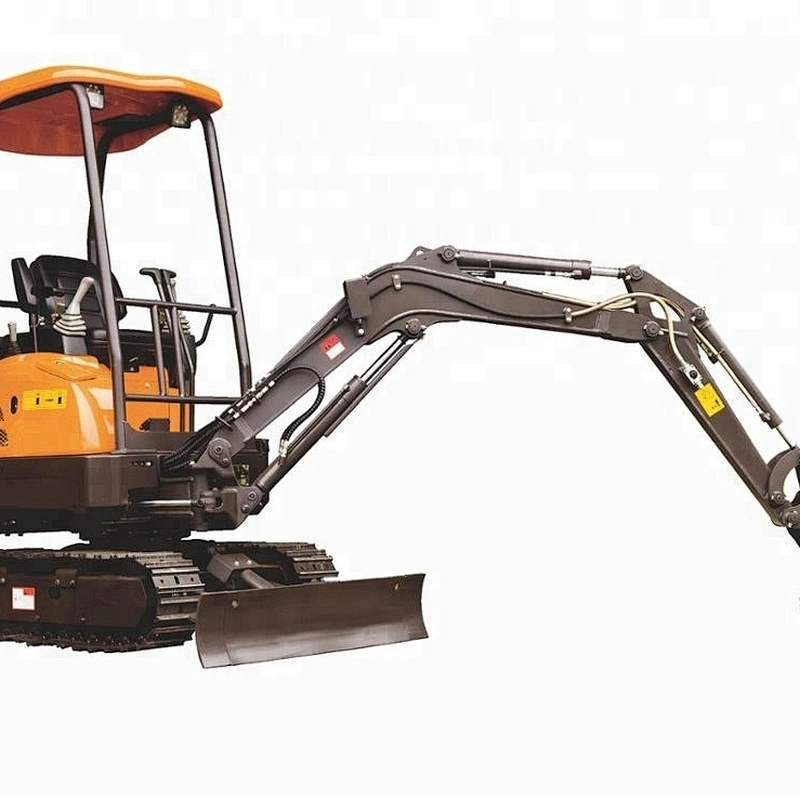

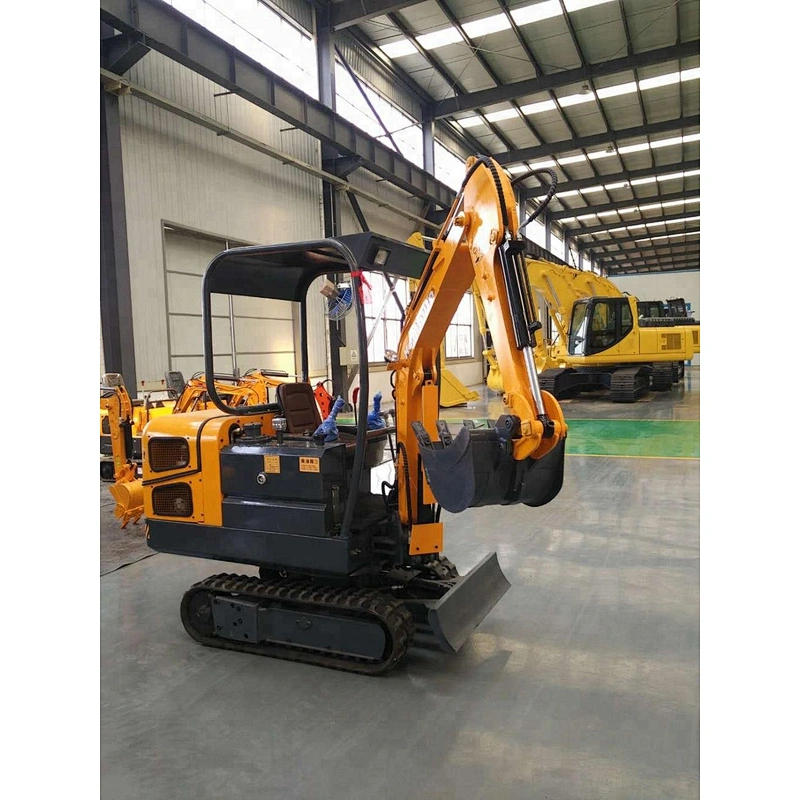

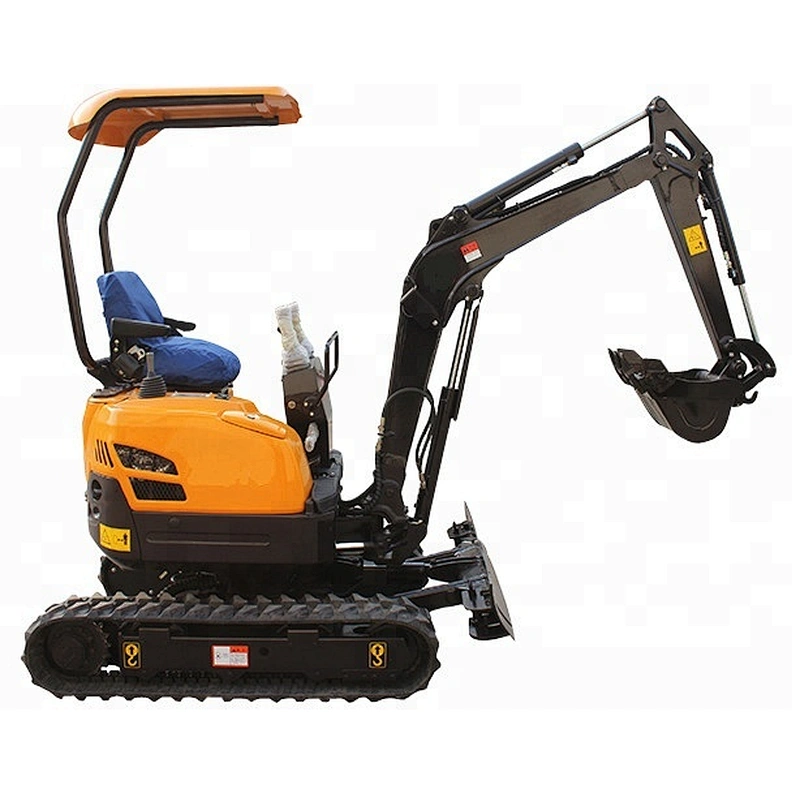

YFE16 1.6t super mini rubber crawler excavator digger machine
Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Main feature
=Originally imported Japan Yanmar 3TNV82A diesel engine;
=Originally imported US Parker double-connecting gear pump;
=Originally imported Italian Comer walking motor and reducer;
=Originally imported US Eaton swing motor
=Originally imported Italian hydraulic main Valve;
=Originally imported Italian pilot control lever;
=Originally imported Italian Oil-sucking valve;
=Japan-made Bridgestone rubber tracks.
PARAMETERS
| Model | YFE16 |
| Operating Weight | 1500kg |
| Digging bucket capacity | 0.045cbm/200kg |
| Bucket width | 420mm, can add narrow bucket is 200mm |
| Engine | YANMAR 3TNV70 |
| Rated power | 10kw/2200/r/min |
| Displacement | 0.854L |
| Bore stroke | three cylinder, water cool |
| Main pump | KDK |
| Pump flow | |
| Hydraulic oil tank capacity | |
| Engine oil tank capacity | |
| Diesel tank capacity | |
| Valve | PERMCO |
| Displacement | 6.8ml/r |
| Swing motor | EATON |
| Traveling motor | KOREA DONGHYUN |
| Travel speed | |
| MAIN DEMENSIONS | |
| Overall dimension( LxWxH) | 3160x1040x2377 mm |
| Wheelbase | |
| Total length of track | 1450mm |
| Platform ground clearance | 437 mm |
| Platform back turning radius | 740mm |
| Chassis width | 1040 mm |
| Track width | 180 mm |
| Chassis ground clearance | 132 mm |
| Track height | 320 mm |
| Bucket digging force | 10.5kn |
| Arm digging force | 6.5kn |
| Theoretical Maximum traction | 13.5Kn |
| Ground specific pressure | |
| Swing boom to left | |
| Swing boom to right | |
| OPERATING RANGE | |
| Max. Digging depth | 2150 mm |
| Max. Vertical digging depth | 1740 mm |
| Max. Digging height | 3275 mm |
| Max. Dumping height | 2310 mm |
| Max. Digging radius on ground | 3470mm |
| Min. Rotation radius | 1440 mm |
| Max. Upgrade height of bulldozer blade | 262 mm |
| Max. Digging depth of bulldozer blade | 192mm |
