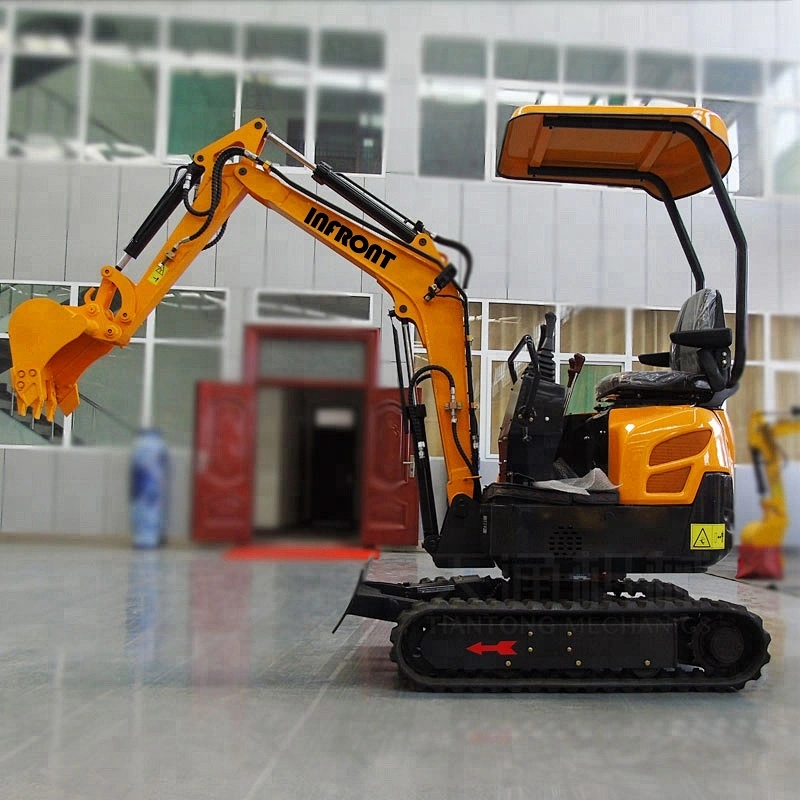

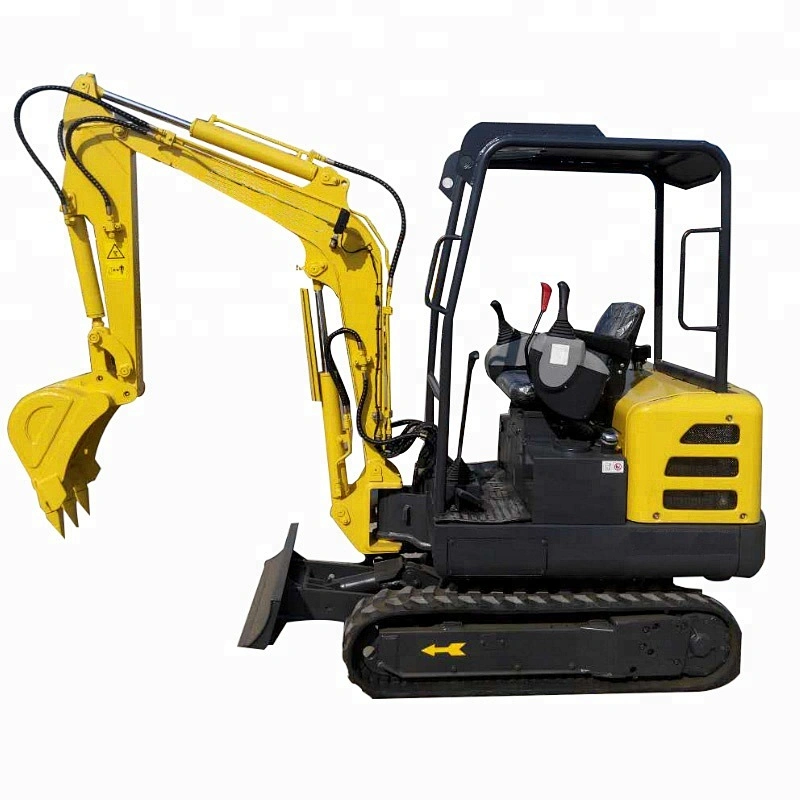

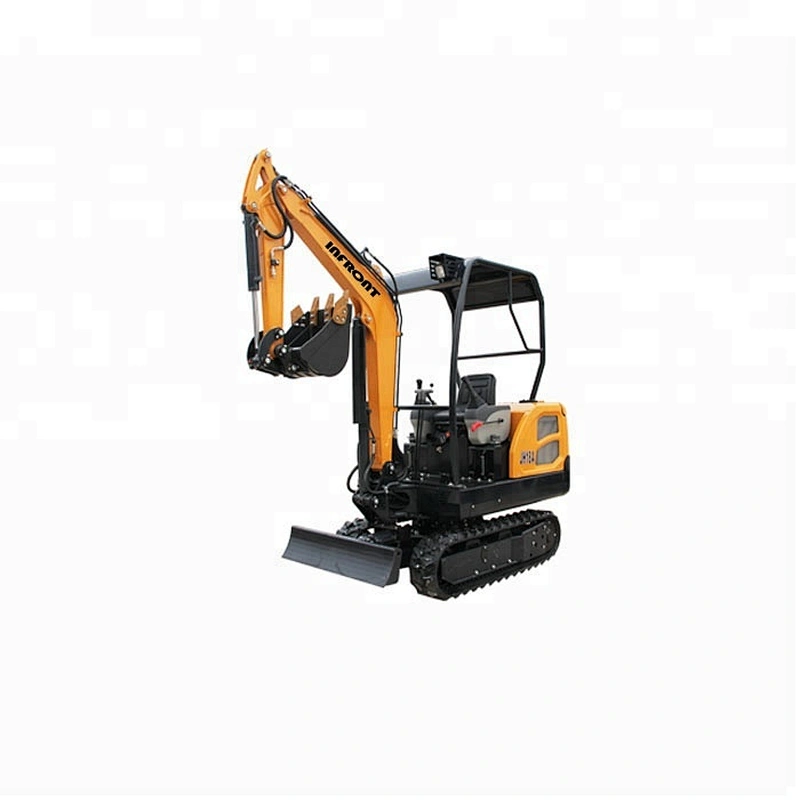

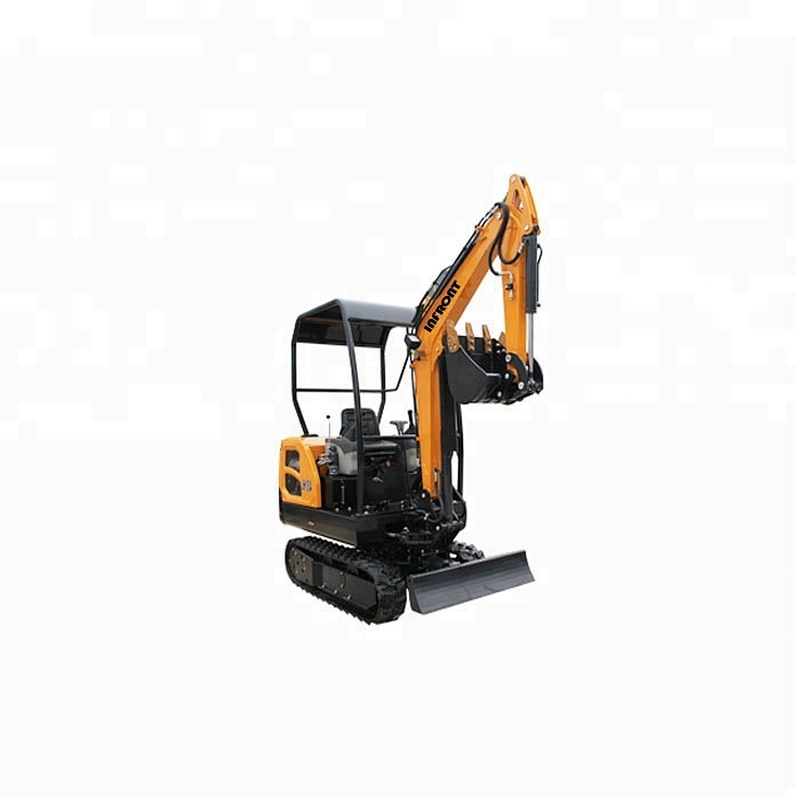

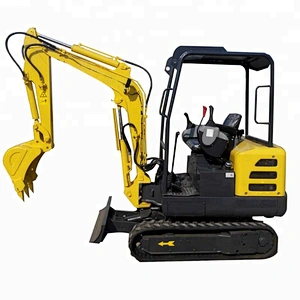

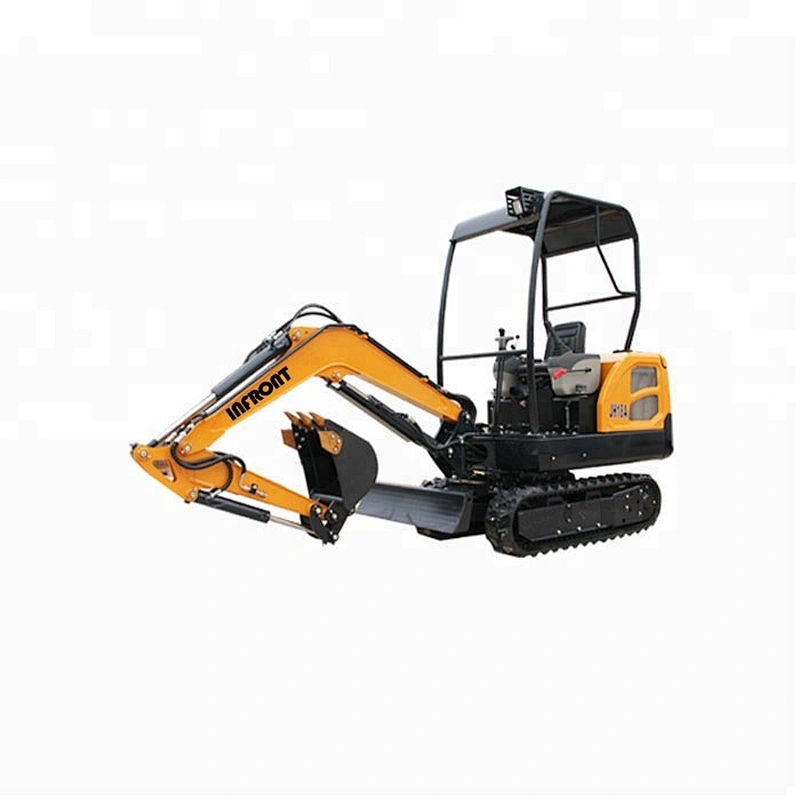

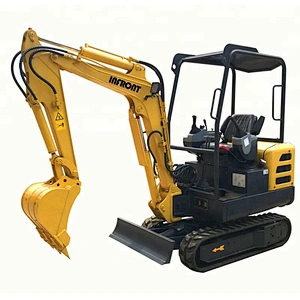

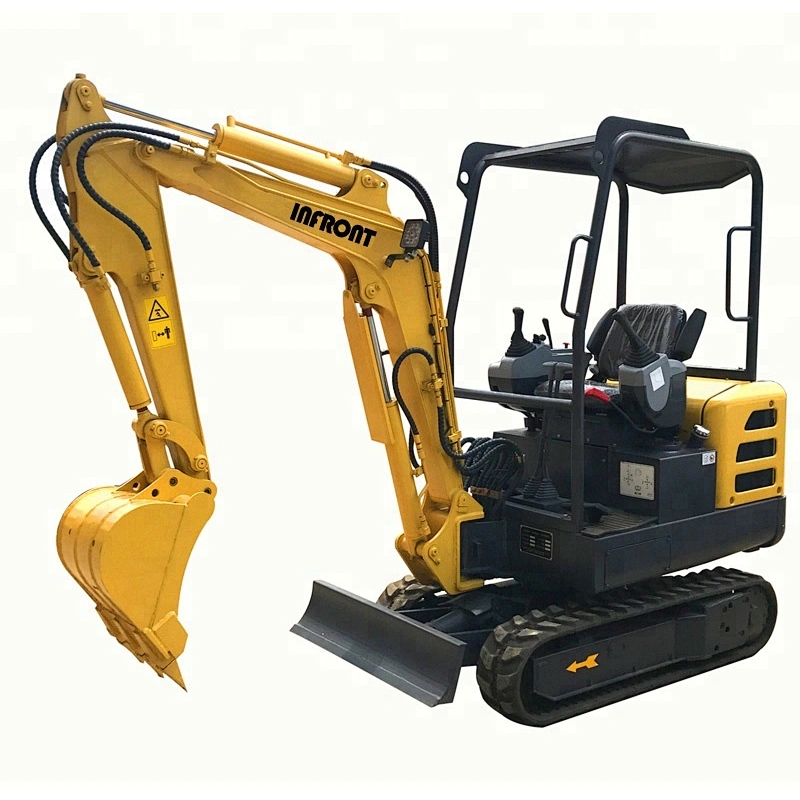

High Efficiency 1.8T Mini Wheel Excavator YFE18
Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
Main feature
=Originally imported Japan Yanmar 3TNV82A diesel engine;
=Originally imported US Parker double-connecting gear pump;
=Originally imported Italian Comer walking motor and reducer;
=Originally imported US Eaton swing motor
=Originally imported Italian hydraulic main Valve;
=Originally imported Italian pilot control lever;
=Originally imported Italian Oil-sucking valve;
=Japan-made Bridgestone rubber tracks.
PARAMETERS
| Technical details | Unit | YFE18 |
| Specs | ||
| Operating Weight | kg | 1800 |
| Bucket Capacity | m³ | 0.06 |
| Bucket Width | mm | 450 |
| Boom Length | mm | 1823 |
| Arm Length | mm | 1130 |
| Performance | ||
| Swing Speed | rpm | 10 |
| Travel Speed | Km/h | 0-2.2 |
| Grade Ability | % | 25 |
| Ground Pressure | Kpa | 34 |
| Bucket Digging Force | KN | 15.2 |
| Arm Digging Force | KN | 8.7 |
| Max Traction Force | KN | 12.5 |
| Engine | ||
| Model | Option | YANMAR 3TNV88 |
| Standard | LaiDong KM385B | |
| Rated Power | Kw/rpm | 19.7/2200 |
| 18.1/2200 | ||
| Max Torque | N.m/rpm | 107.8 |
| 99.3 | ||
| Displacement | L | 1.642 |
| 1.532 | ||
| Cylinders | 3 | |
| Bore and Stroke | mm*mm | 88*90 |
| 85*90 | ||
| Cooling Type | Water | |
| Overall Dimensions | ||
| Overall Length*Width*Height | mm | 3725*990*2300 |
| Track Grounding Length | mm | 1250 |
| Track Shoe Width | mm | 230 |
| Track Gauge | mm | 740 |
| Min Ground Clerance | mm | 160 |
| Tail Swing Radius | mm | 1080 |
| Dozer Blade Width | mm | 990 |
| Operating Range | ||
| Max Digging Radius | mm | 3920 |
| Max Digging Depth | mm | 2140 |
| Max Digging Height | mm | 3330 |
| Max Dumping Height | mm | 2440 |
| Boom Offset (Left/Right) | mm | 240/460 |
| Boom Swing Angle L/R | ° | 73/47 |
| Dozer Blade Lift/Digging | mm | 228/218 |
| Configuration | ||
| Operating | Pilot Control | |
| Valve | Standard | Hydraulic control sensitive multiple valve |
| Option | US “HUSCO” Hydraulic control multiple valve | |
| Pump | Standard | Double gear pump |
| Option | Triple gear pump | |
| Track | Standard | Rubber |
| Option | Steel | |
| Auxiliary Line for attachment | Standard | Hydraulic control |
| two-way | ||
| Cabin/Shed | Standard | Shed |
| Option | No | |
