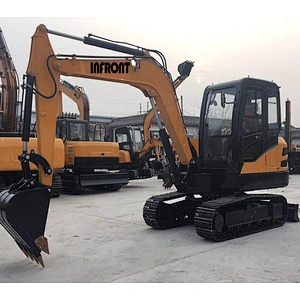

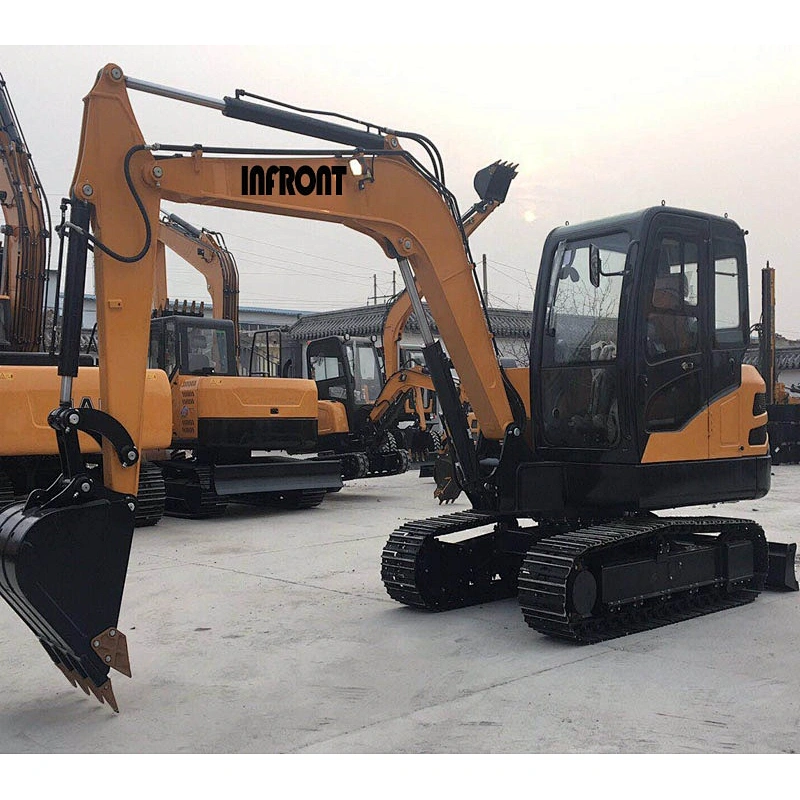

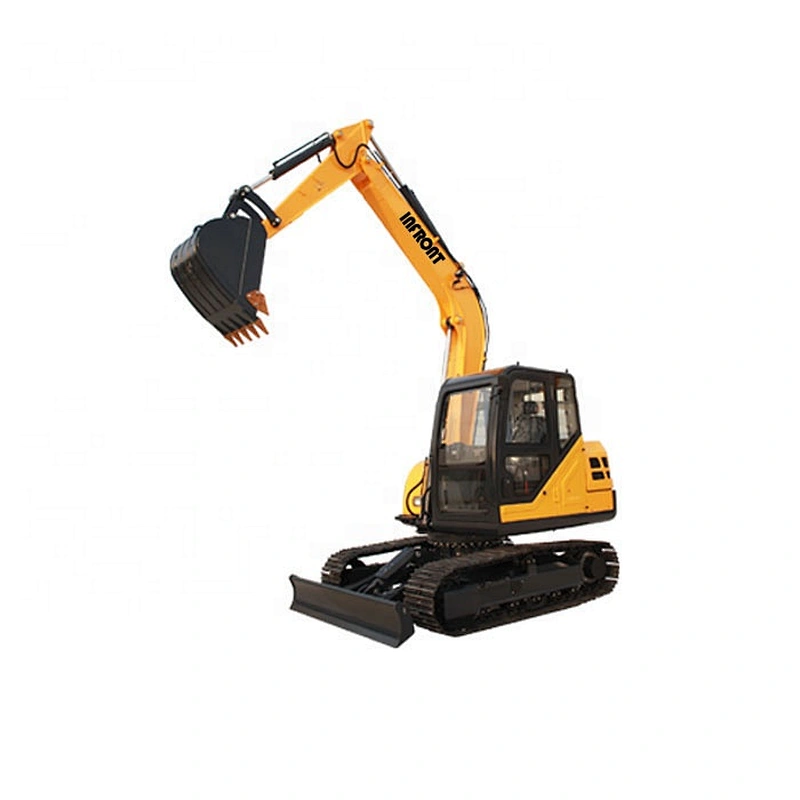

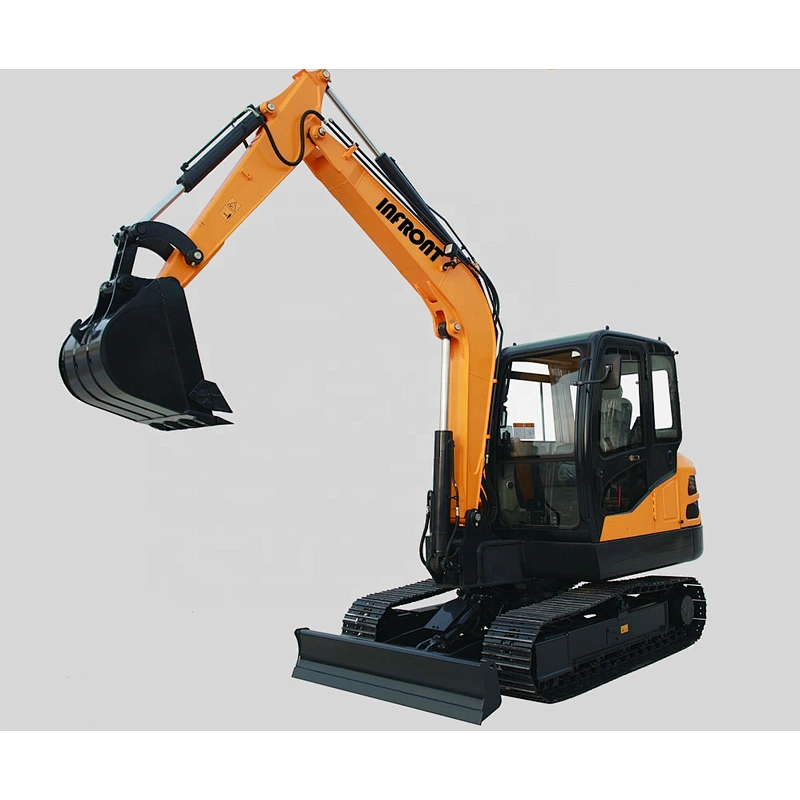

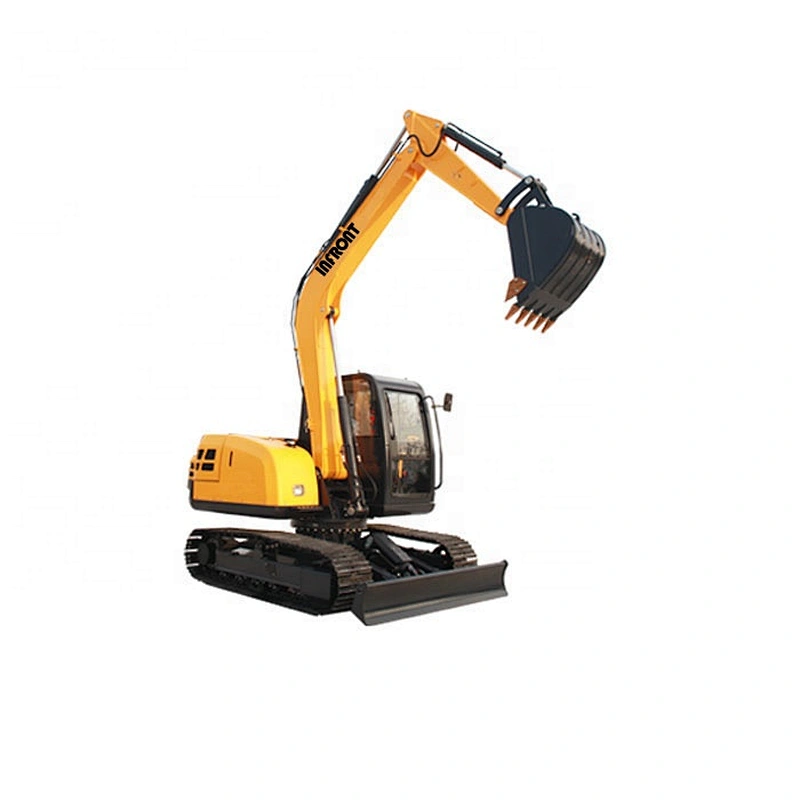

Directly manufacturer 6.5T 6.5 Ton mini hydraulic crawler excavator YFE65 with cheap price
| MODEL | YFE65 |
| Rated Power:57(Hp) Bucket Capacity:0.21(M3) Operation Weight:6100(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.21 |
| Swing Speed(Rmp) | 0-11 |
| Gradeability(°) | 35 |
| Bucket Max.Digging Force(KN) | 48 |
| Arm Max.Digging Force(KN) | 35 |
| Engine Model | KUBOTA V2607 |
| Power/Rotation Speed(KW/Rmp) | 42.4/2000 |
| Tyre Model | - |
| System Pressure(MPa) | 28 |
| Working Range | |
| Max.Digging Height(Mm) | 5499 |
| Max. Dumping Height(Mm) | 3845 |
| Max.Digging Depth(Mm) | 3808 |
| Max.Vertical Digging Depth(Mm) | 2983 |
| Max.Digging Radius(Mm) | 6128 |
| Min.Swing Radius(Mm) | 2607 |
| Dozer Blade Max.Lifting Height(Mm) | 376 |
| Dozer Blade Max.Cutting Depth(Mm) | 474 |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |
| Dimensions | |
| Length*Width*Height(Mm) | 5940*1880*2570 |
| Cabin Height(Mm) | 2600 |
| Sproket To Idler(Mm) | 1990 |
| Axle Distancer(Mm) | 1480 |
| Min.Ground Clearance(Mm) | 353 |
| Tail Swing Radius(Mm) | 1689 |
Based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specialized in cross-border online sales of large-scale construction machine and related spare parts.
Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road machine and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc.
We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. Let’s seize the chance for a better future!
