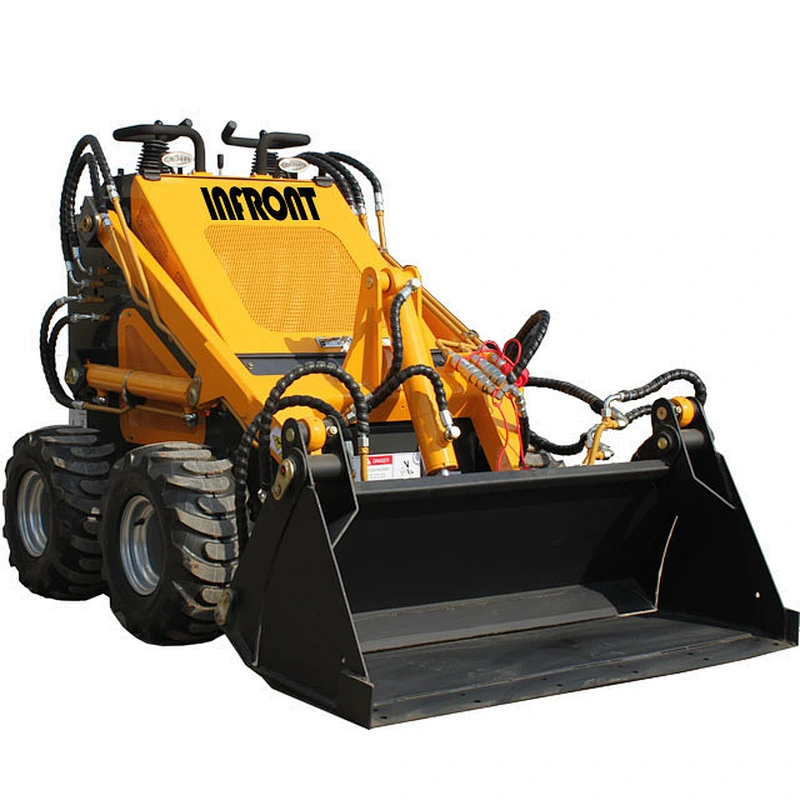

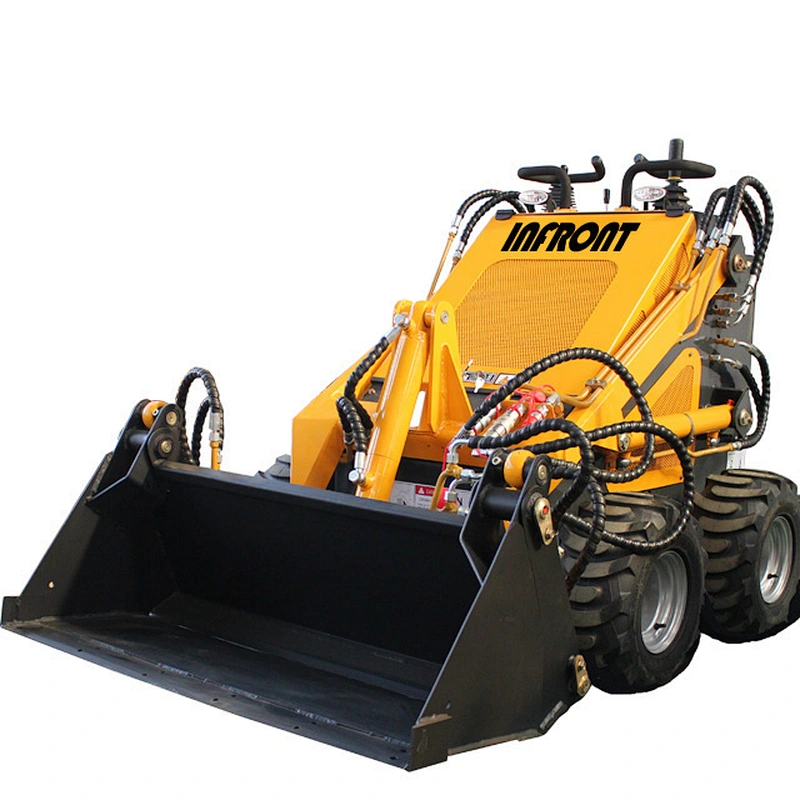

900kg mini skid steer loader small skid steer loader YF380 with 4 in 1 bucket
Hello!
Welcome to browsing our company products!

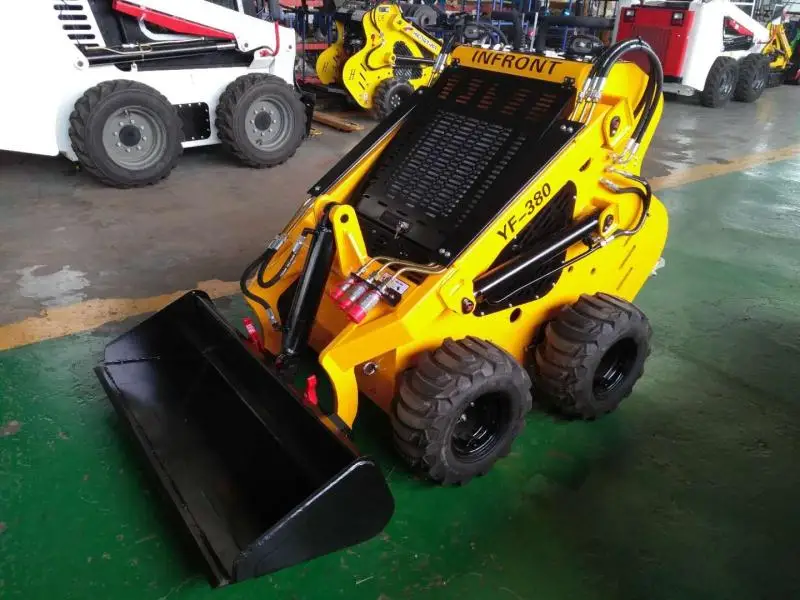

YF380mini Skid Steers
Product Description
Main specification
With strong power and rich attachments, the YF380 skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance, port handling, garden maintenance, and pasture production, featuring low operation cost and remarkable economic benefits.
Item | Item | ||||
Engin | Rated power(KW) | 15.4KW(21HP) | |||
Rated speed(rpm) | 3300 | ||||
Noise (Db) | 95 | ||||
Hydraulic system | Hydraulic pressure(Mpa) | 17 | |||
Cycle time(s) | Raise | Dump | lower | ||
4.27 | 1.34 | 3.31 | |||
Technical Parameter | Operating Load | 200 Kg | 441lb | ||
Bucket Capacity | 0.15 m3 | 5.33(ft 3) | |||
Max Lifting Force | 375 Kg | 827lb | |||
Travel Speed | 0-5.5Km/h | 0-3.4mile/h | |||
Operating Weight | 890 Kg | 1958lb(With Chevron Engineering Tyre ) | |||
Tires | 18*6.5-8 | ||||
Product Advantages
Factory price 800kg mini skid steer loader YF380 with CE
1.U.S.A. Briggs& Stratton 23hp Vanguard V -Twin 2-cylinder gasoline engine Donaldson Heavy duty cyclonic air filter
2. Full Japan NSK bearing fit out
3. Italy control valves
4. Ergonomic panel and controls for easyoperating
5. U.S.A. White Hydraulic motor
6. Auxiliary Hydraulics
7. Fold-up foot platform with high departure for rough terrain
8. Electrophoresis painting protecting your machines never rust
9. Big and High intensity LED light
Product overview
Main Dimension:
Item | With Chevron Engineering Tyre | |
Max working height H1 | 2143mm | 84.37inch |
Max dump height H2 | 1488mm | 58.58inch |
Total Height H | 1233mm | 48.54inch |
Max pin height | 1884mm | 74.17inch |
The length of the foot plate | 678 mm | 26.7inch(foot plate level) |
Total length with bucket L ( mm) | 2206mm | 86.9inch |
Highest point dump distance L1(mm) | 348mm | 13.7inch |
Length without bucket L2(mm) | 1752mm | 69inch |
Bucket width B(mm) | 980mm | 38.6inch |
Total width B1(mm) | 1160mm | 45.67nch |
Wheel base | 940mm | 37inch |
Ground clearance(mm) | 118mm | 4.65inch |
Turning radius R(mm) | 1307 mm | 51.5inch |
Bucket dumping angle (°) | 30 | |
Rollback of bucket on ground (°) | 25 | |
Departure angle(°) | 11(foot plate level) | |
Related Products
Factory price 800kg mini skid steer loader YF380 with CE
-It helps you save labor while getting more done!

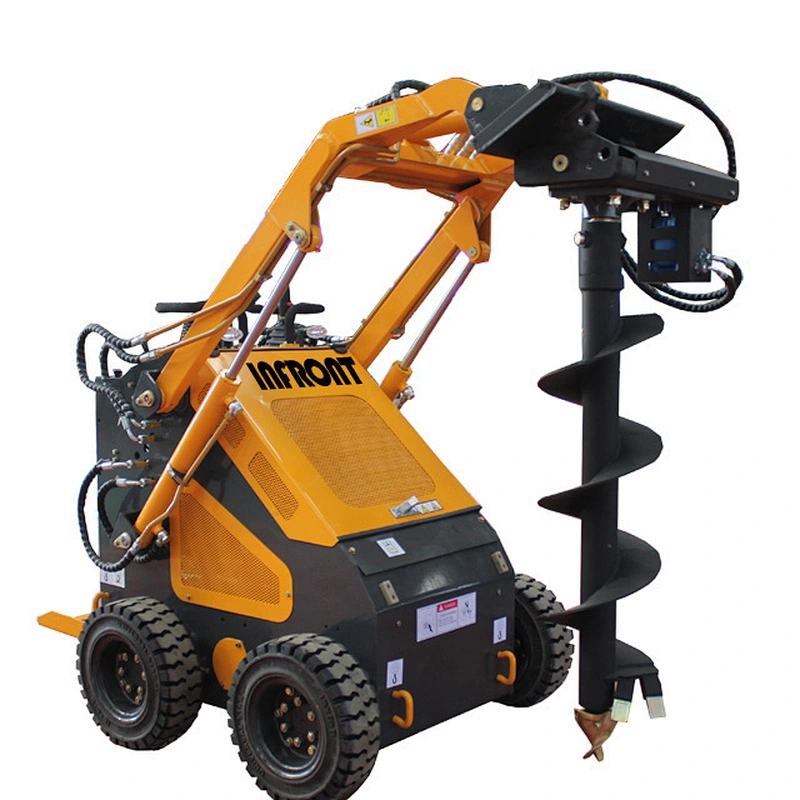

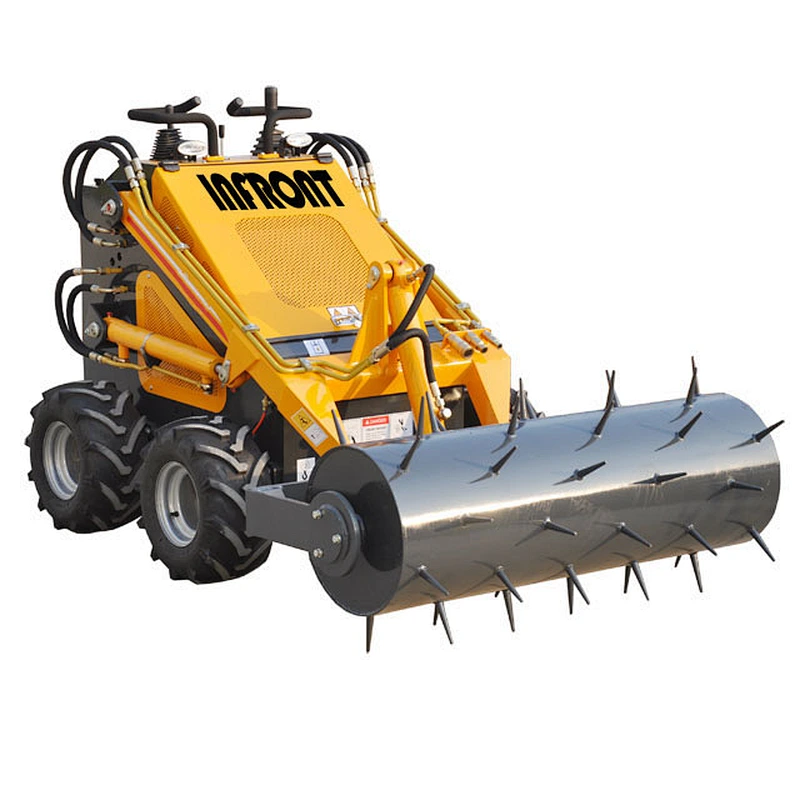

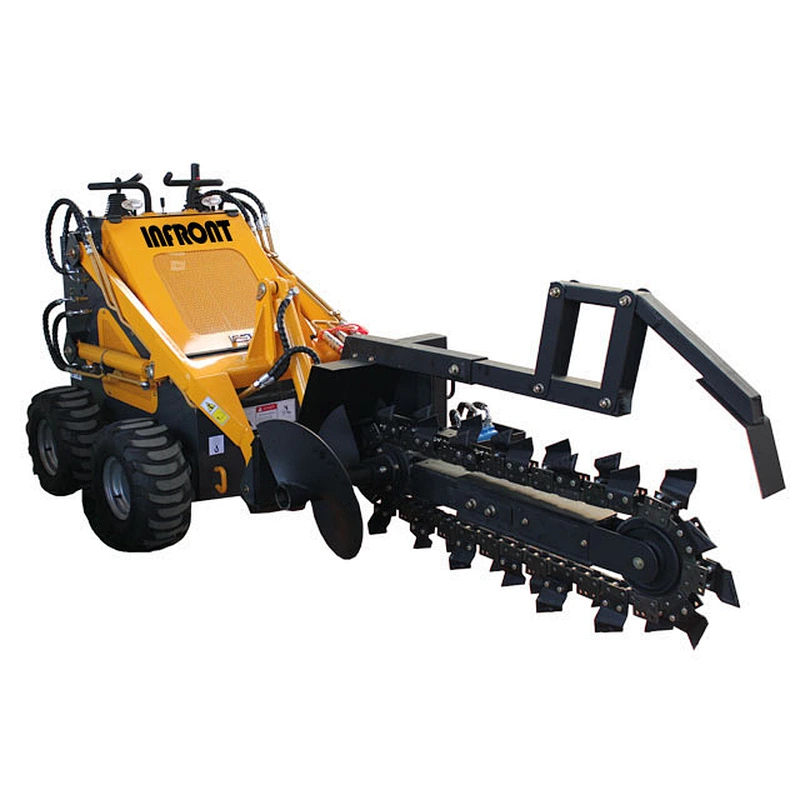

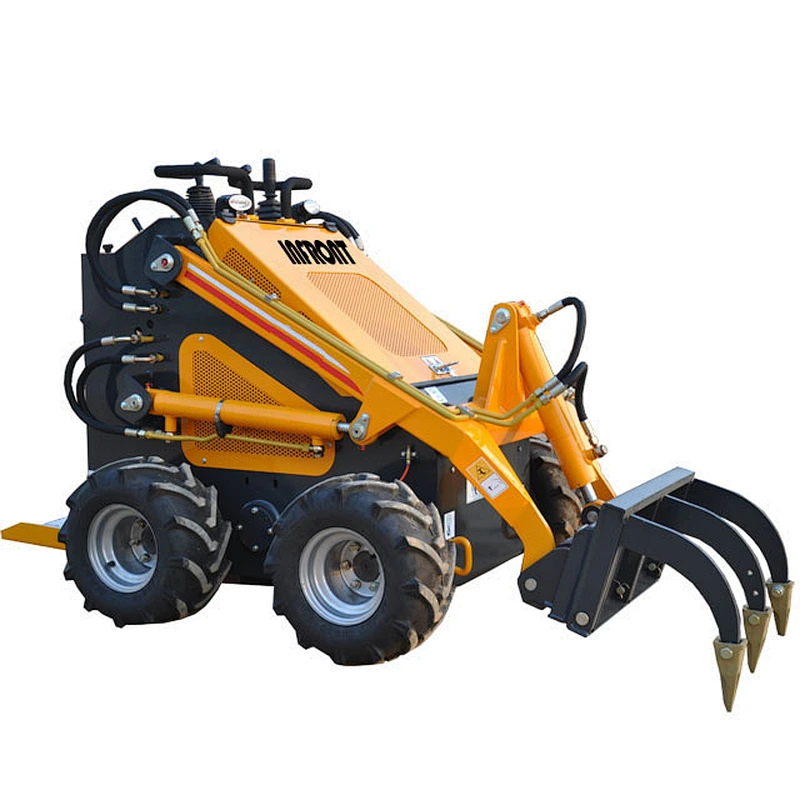

Determine the Hi-tech YF-380 mini skid steer loader , that’s right for you! From auger drilling, earth trencher, tilling and trench filling to mixer, leveling , cleaning , hauling and demolishing... the options are endless!
