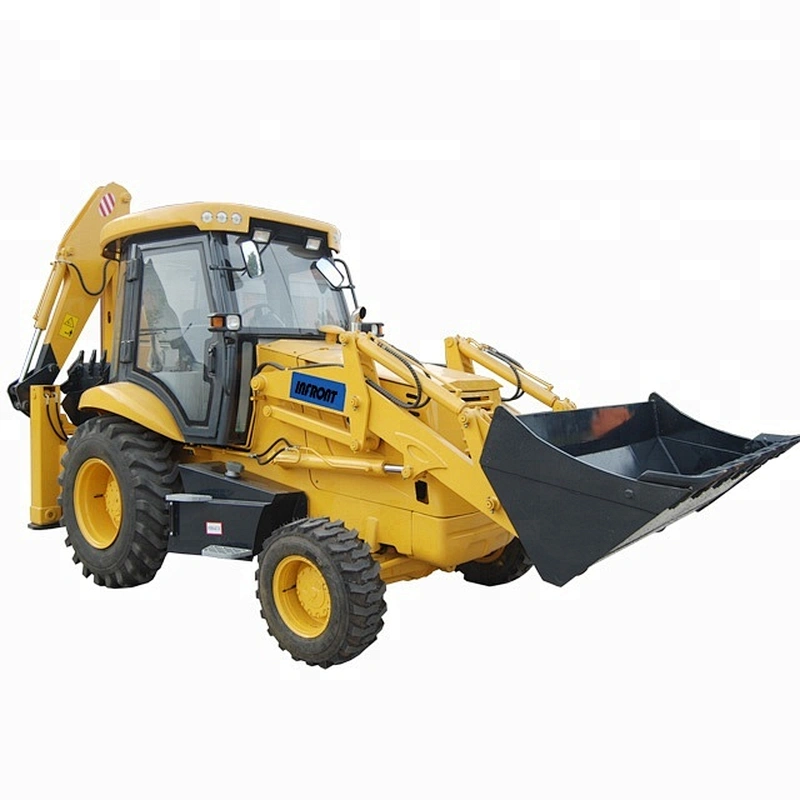

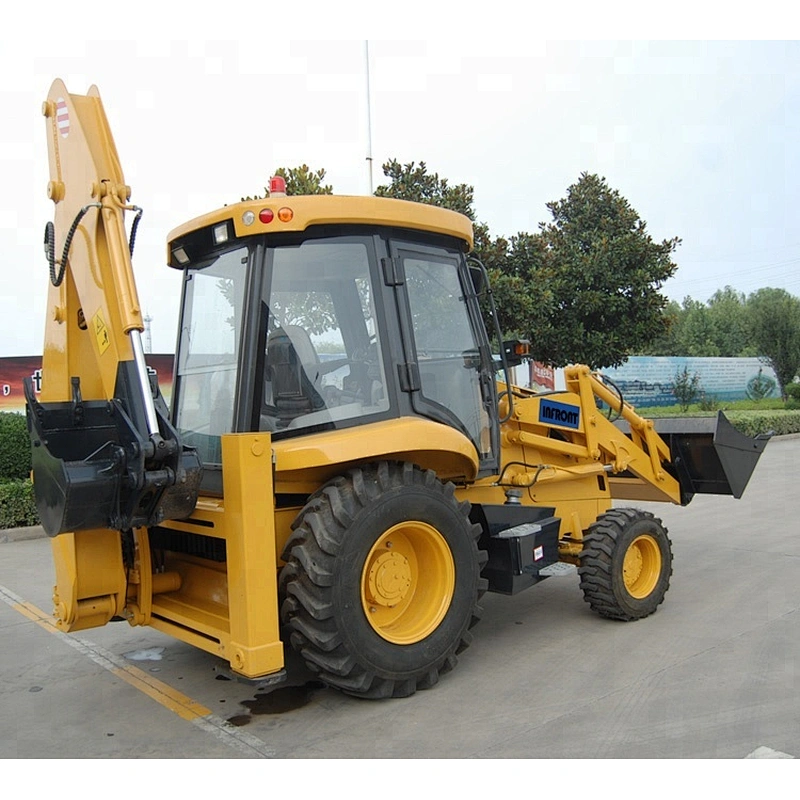

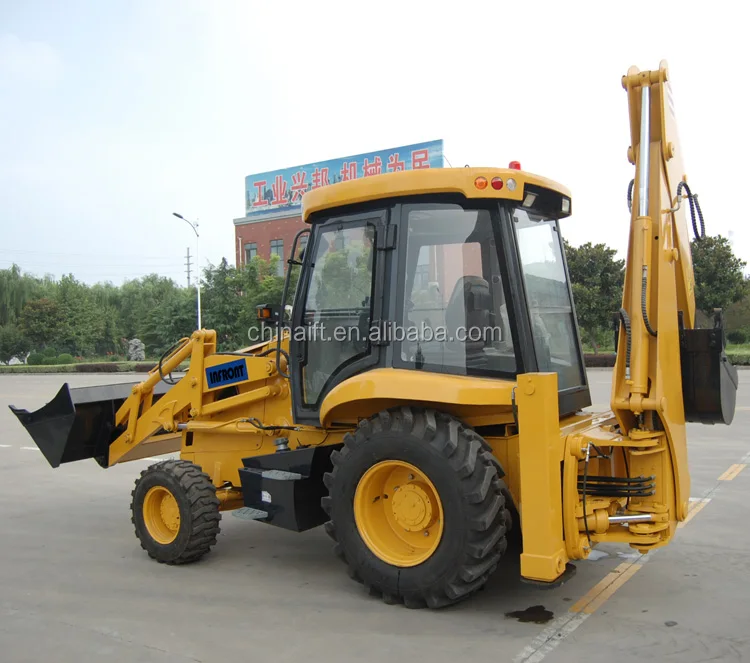

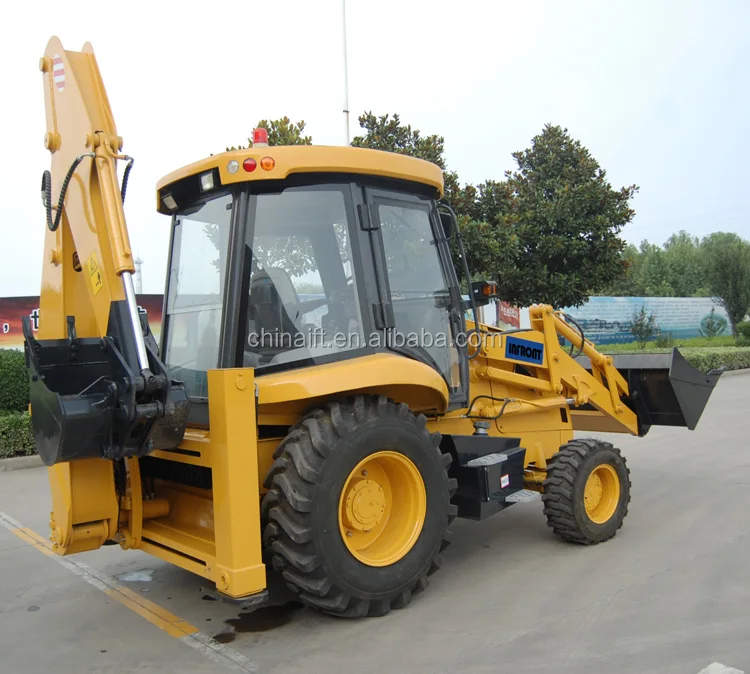

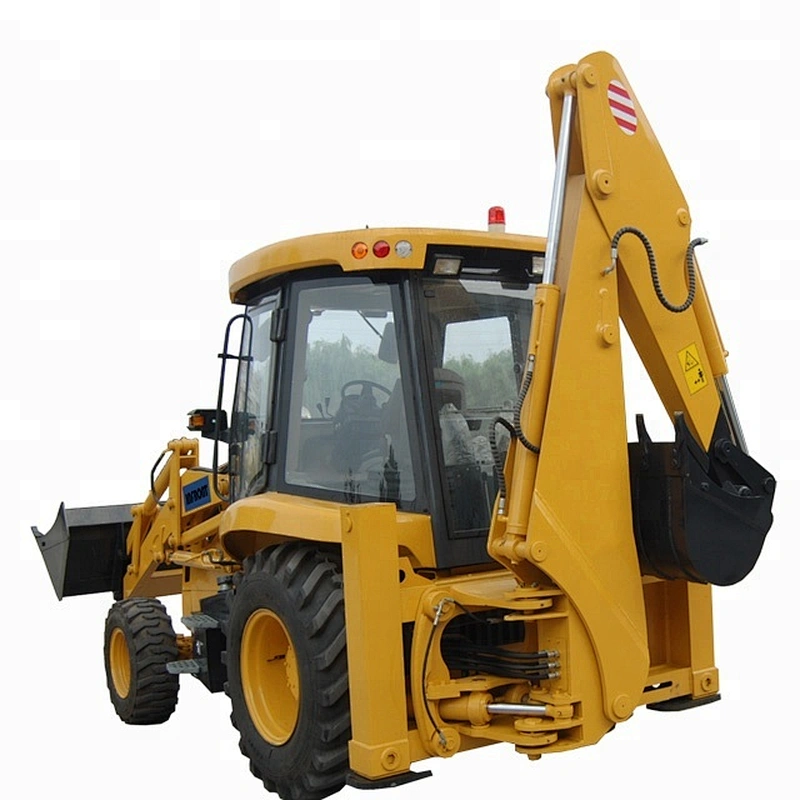

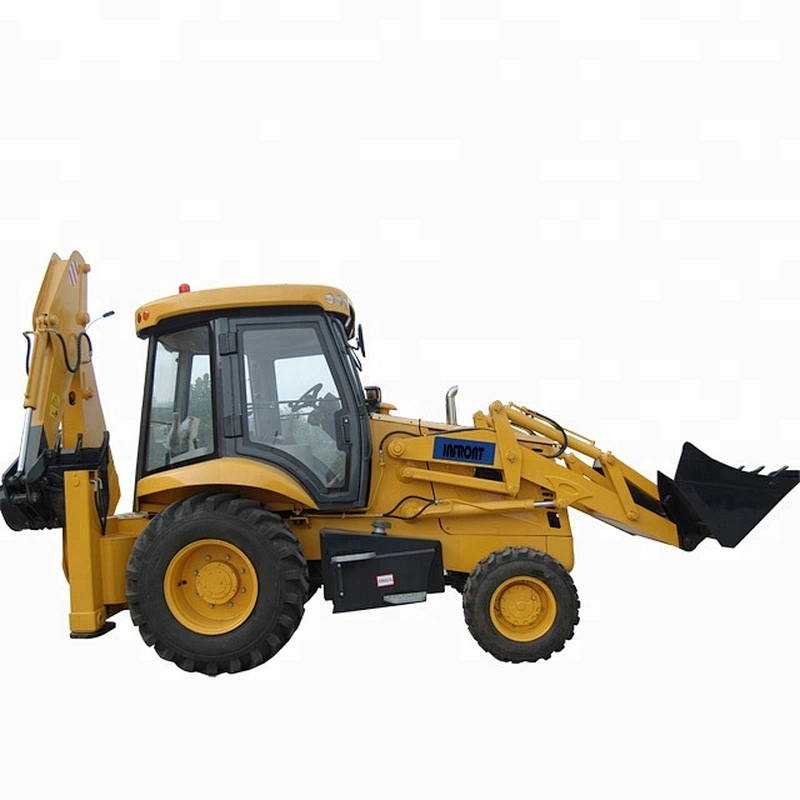

mini excavator backhoe loader
Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
MAIN FEATURES
1. Enlarged operator cabin, with secure glass, is capacious and bright some.
2. Working table, water temperature, oil temperature, current, work timing are all in sight.
3. Famous brand hydraulic components are adopted, two gear oil pump work together, the power is driving and loading and dumping can change freely.
4. Adjustable seat, convenient and comfortable to use.
5. Rear and front body, with smell rotary radius, hydraulic steering, comfy and convenient to operate.
6. Hydraulic traction, the moving arm can leveled skid and expend digging range.
7. Completely have the all functions of mini type digging machines.
8. Ascendant performance of complete appliance, with extraordinary operation efficiency.
MAIN PERFORMANCE PARAMETRES
Model | YFBL25A |
Weight(kg) | 6900 |
Engine power KW/speed rpm | YT4A2Z-G76Q 70/2300Q |
Anti-bucket capacity(m3) | 0.24 |
Transport dimensions (LXWXH)(mm) | 5100X2200X3470 |
Max. digging radius(mm) | 4900 |
Max. digging depth(mm) | 3350 |
Max. digging height(mm) | 5160 |
|
|
Max. unloading height(mm) | 3720 |
Travel speed (Km/h) | 30 |
Hydraulic system pressure (MPa) | 20 |
Wheel tread(mm) | Front:1700 Back:1725 |
Wheel base(mm) | 2245 |
Tire models | Front:21.5-16 Back:15-24 |
Max. loading height(mm) | 4050 |
The largest after discharge height(mm) | 2650 |
buyer's request.
Delivery: Within7 days upon receipt of down payment. Special models about 30days.
Packing: The excavator are in nude, 20GP, 40HQ standard exporting package, or according to the
Miss. Leah Zhang
Skype:jkmachinery801 QQ:2748523788
Mobile/Whats up: +0086 183 6981 5899
WeChat: 86 183 6981 5899
Email:sales08@ chinaift.com
Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !
