Product Description

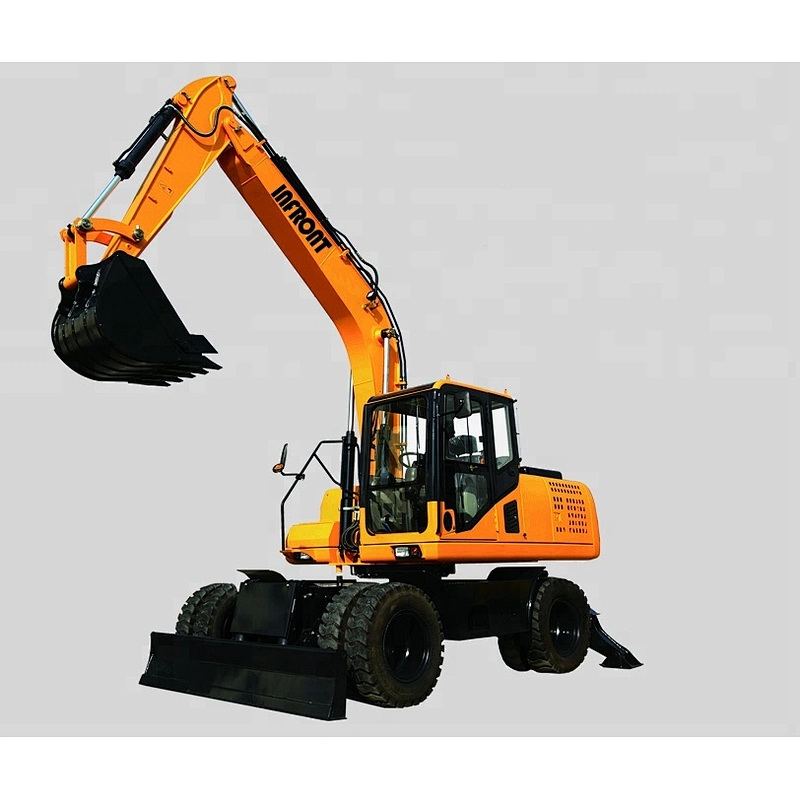

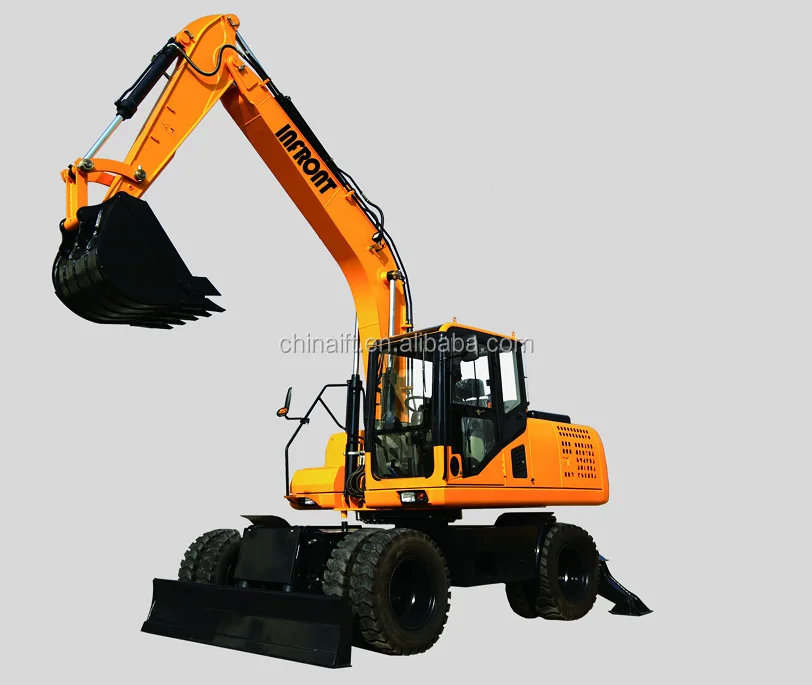

YFEW135 13.5 ton hydraulic wheel excavator with 99hp ISUZU engine
it is a new kind of product characterized by high efficiency , safety, convenience, beauty. steel track, with dozer blade. hydraulic pilot servo handle controlling system ,easy to operation .Adopted the ISUZU brand engine with strong power. imported international brand hydraulic system , ensure the machine has high working efficiency. the professional structure parts and working mechanism , ensure the machine has reliability and durability. the breaking pipeline improve the working performance.
PARAMETERS
| MODEL | YFW135 |
| Rated Power:115(Hp) Bucket Capacity:0.6(M3) Operation Weight:13500(Kg) | |
| Performance parameter | |
| Bucket Capacity(M³) | 0.6 |
| Swing Speed(Rmp) | 0-12 |
| Gradeability(°) | 25 |
| Bucket Max.Digging Force(KN) | 91 |
| Arm Max.Digging Force(KN) | 55 |
| Engine Model | YC4D115 |
| Power/Rotation Speed(KW/Rmp) | 85/2200 |
| Tyre Model | 9.00-20 |
| System Pressure(MPa) | 32 |

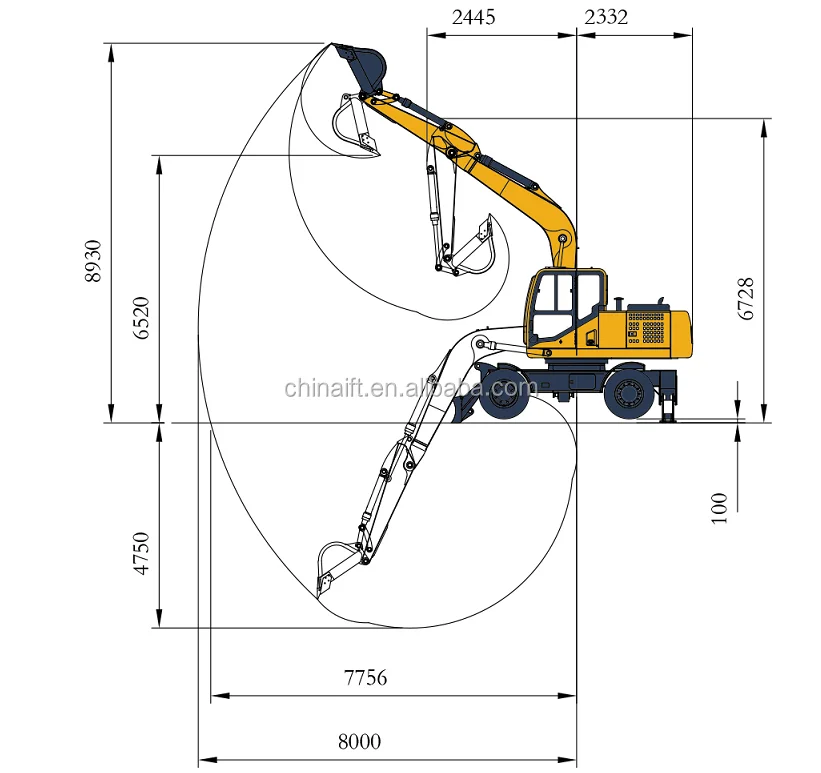

| Working Range | |
| Max.Digging Height(Mm) | 8930 |
| Max. Dumping Height(Mm) | 6520 |
| Max.Digging Depth(Mm) | 4750 |
| Max.Vertical Digging Depth(Mm) | 4200 |
| Max.Digging Radius(Mm) | 8000 |
| Min.Swing Radius(Mm) | 2445 |
| Dozer Blade Max.Lifting Height(Mm) | |
| Dozer Blade Max.Cutting Depth(Mm) | |
| Boom Swing(Left)° | |
| Boom Swing(Right)° | |

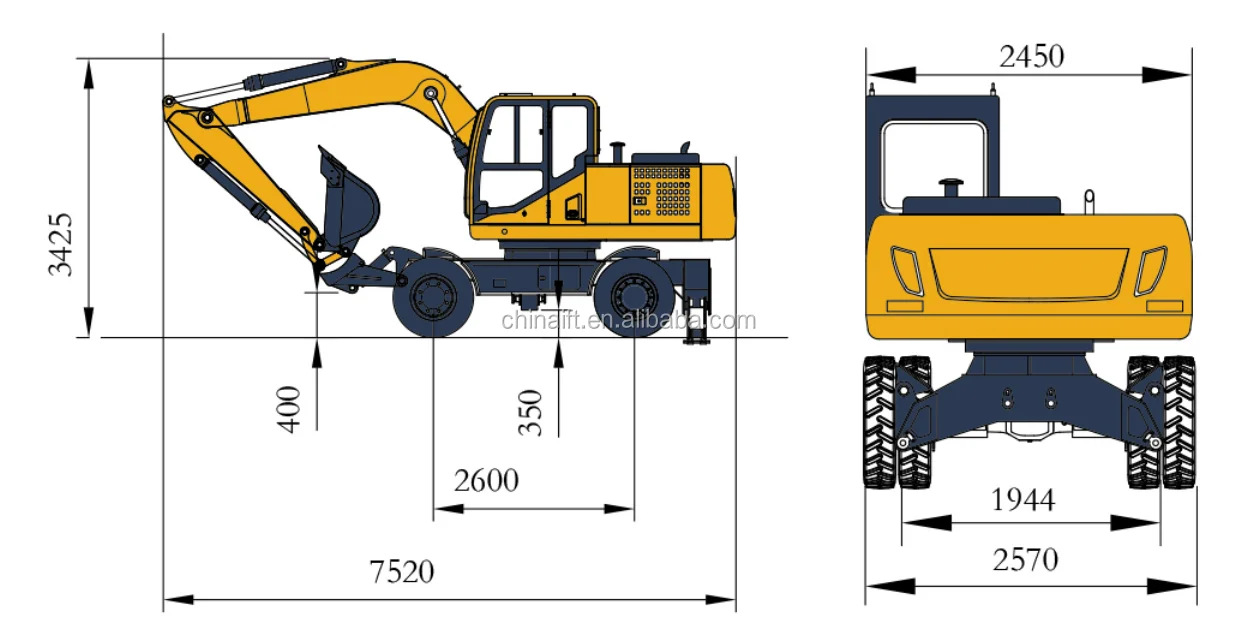

| Dimensions | |
| Length*Width*Height(Mm) | 7520*2570*3425 |
| Cabin Height(Mm) | 3015 |
| Sproket To Idler(Mm) | 2600 |
| Axle Distancer(Mm) | 1944 |
| Min.Ground Clearance(Mm) | 350 |
| Tail Swing Radius(Mm) | 2420 |
