Welcome to Jining Infront Construction Machinery Co.,Ltd!
Home of value that works!
We provide you with the best quality of BULLDOZER, EXCAVATOR,COMPACTOR, FORKLIFT, MOTOR GRADER,WHEEL ROADER,ETC.
Also we specialized in all kinds of MACHINERY PARTS related to construction machine with competitive price. In China, Shantui's name is synonymous with bulldozers. In fact, Shantui has been King of the Hill for decades, and now Shantui's dozers have cleared the way for the growth in offering a complete line of construction machinery and cement handling equipment.

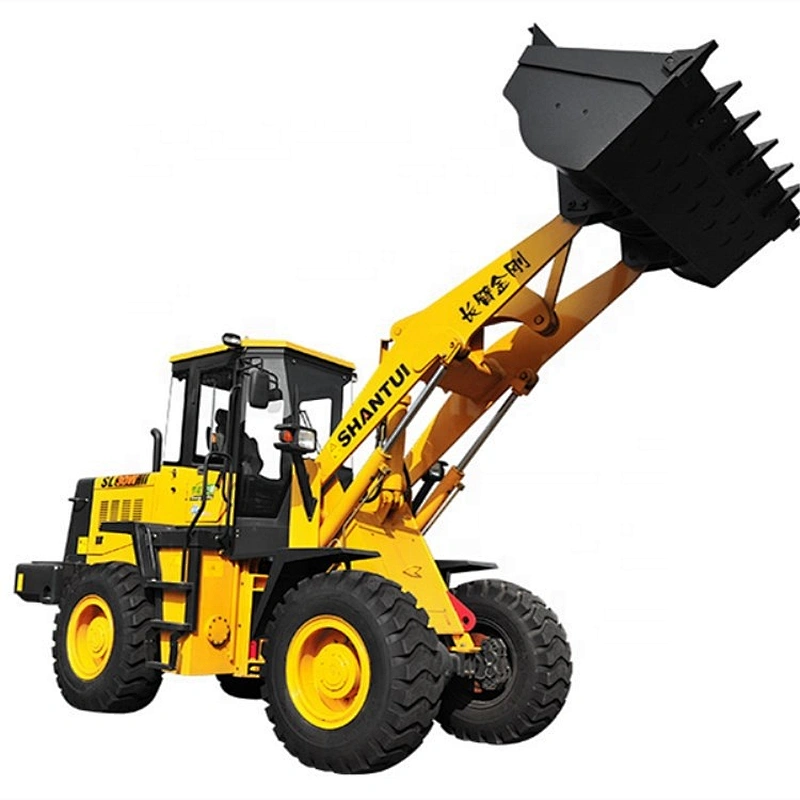

Another small offering in wheel loaders, the SL30W still offers mid-range performance for its size. It has auto-lubrication in the bucket and arm joints, and comes with a choice of three engines: Xichai, Weichai Deutz and Dongfeng Cummins. The sealed glass cabin offers a wide field of vision and a shock absorbing seat for greater driver comfort and safety.
| SL30W | Overall width: 2484 mm | ||
| Technical specifications: | Overall length: 7043 mm | ||
| Overall height: 3235 mm | |||
| GENERAL SPECIFICATIONS | Operating weight | 10500 kg | |
| Related loading | 3000 kg | ||
| Bucket capacity | 1.7 m3 | ||
| Maximum lifting force | 96 kN | ||
| Static tipping load | 6000 kg | ||
| (full turn) | |||
| Dumping height (Extended/Long) | 2875(3057/3200) mm | ||
| Dumping reach (Extended/Long) | 955(906/886) mm | ||
| ENGINE | Engine model | Xichai CA6DF1D-12GAG2/Weichai WP6G125E22/Cummins 6BT5.9-C130 | |
| Type | In-line, water-cooled, 4-cylinder, direct injection, turbocharged | ||
| Rated power | 92/92/97 kW | ||
| Rated speed | 2200 rpm | ||
| Displacement | 6.557/6.75/5.9 L | ||
| Maximum torque | 520/500/560 N·m | ||
| Minimum fuel consumption | 220/215/- g/kW·h | ||
| AXLES AND FINAL DRIVES | DRIVE SYSTEM | Four-wheel drive | |
| Gradeability | 30° | ||
| Maximum traction | 95 kN | ||
| BRAKE SYSTEM: | Service brakes | Air over oil four-wheel dual-loop disc brake system | |
| Parking brake | Automatically air-cut brake, disc brake | ||
| STEERING SYSTEM: | Type | Articulated type, full-hydraulic power steering | |
| Maximum steering angle | 36° each direction | ||
| The center of outside tire | 5300 mm | ||
| The center of outside bucket | 6004 mm | ||
| TIRES | Type | 17.5-25 PR | |
| Pattern level | L3 | ||
| Center distance of tires | 1856 mm | ||
| Wheel base | 2700 mm | ||
