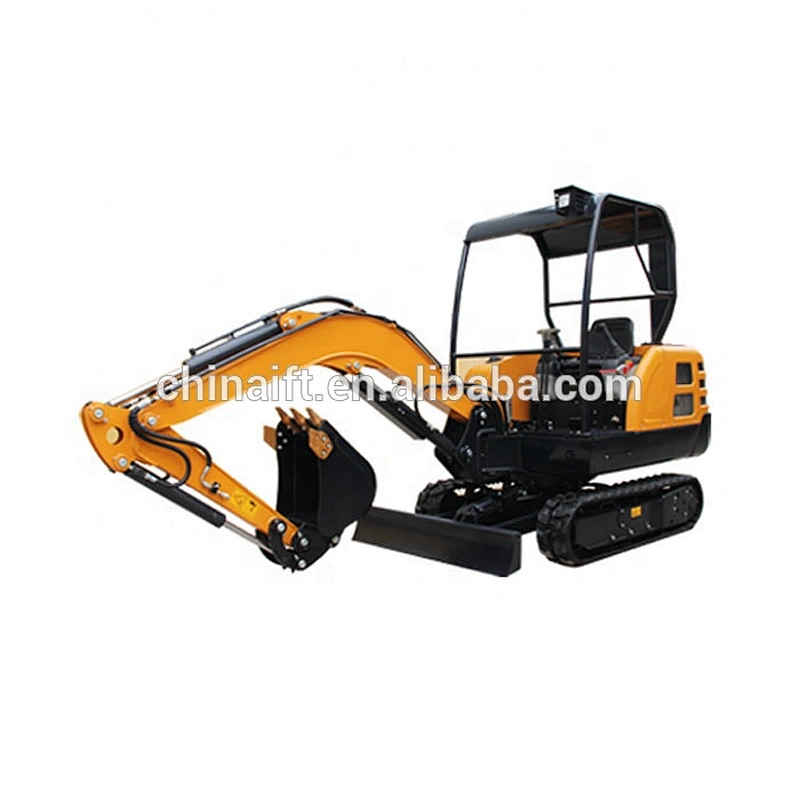

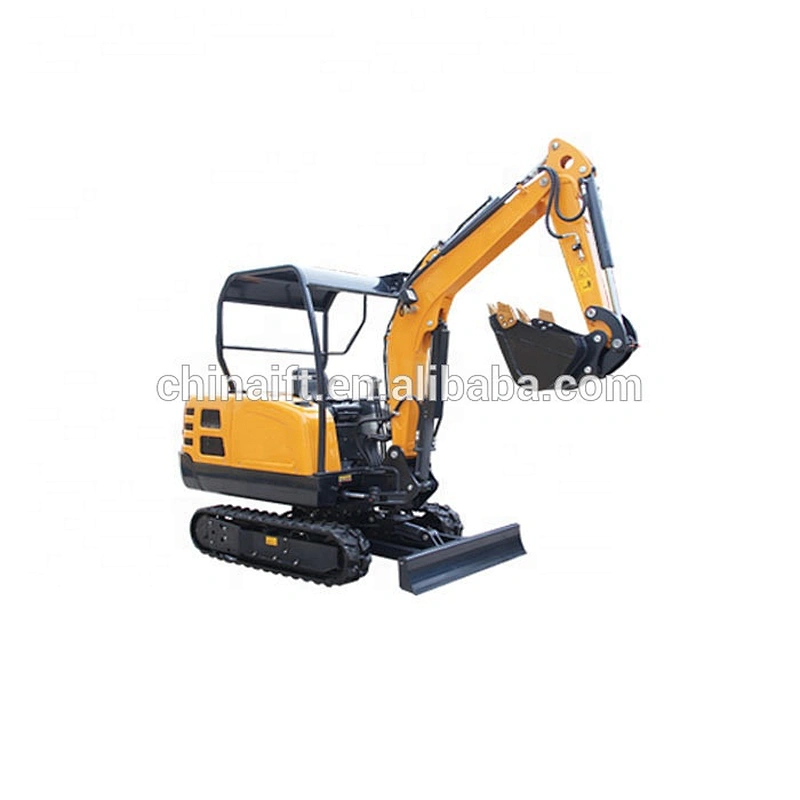

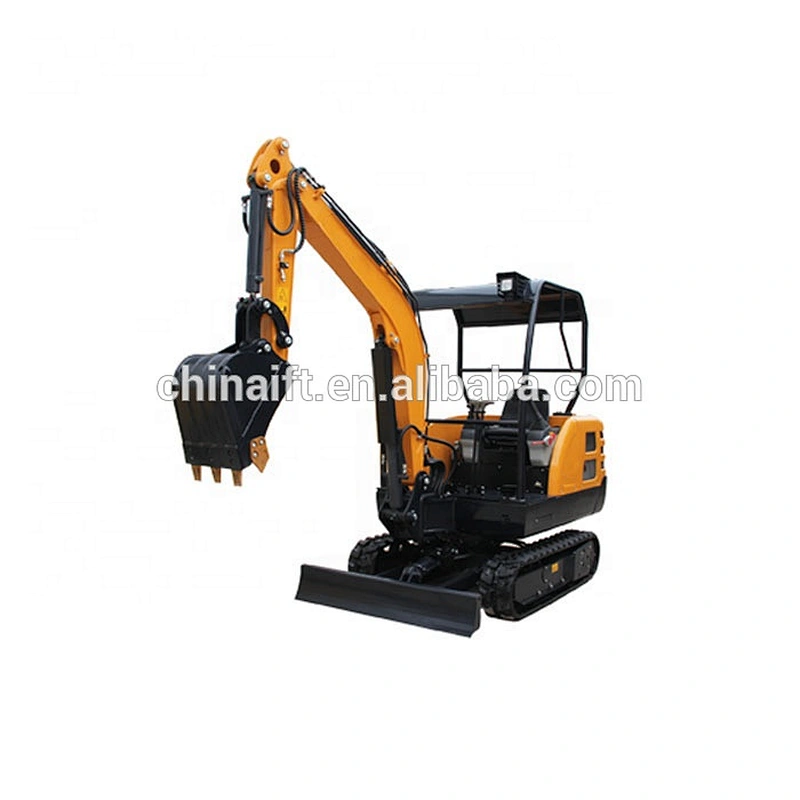

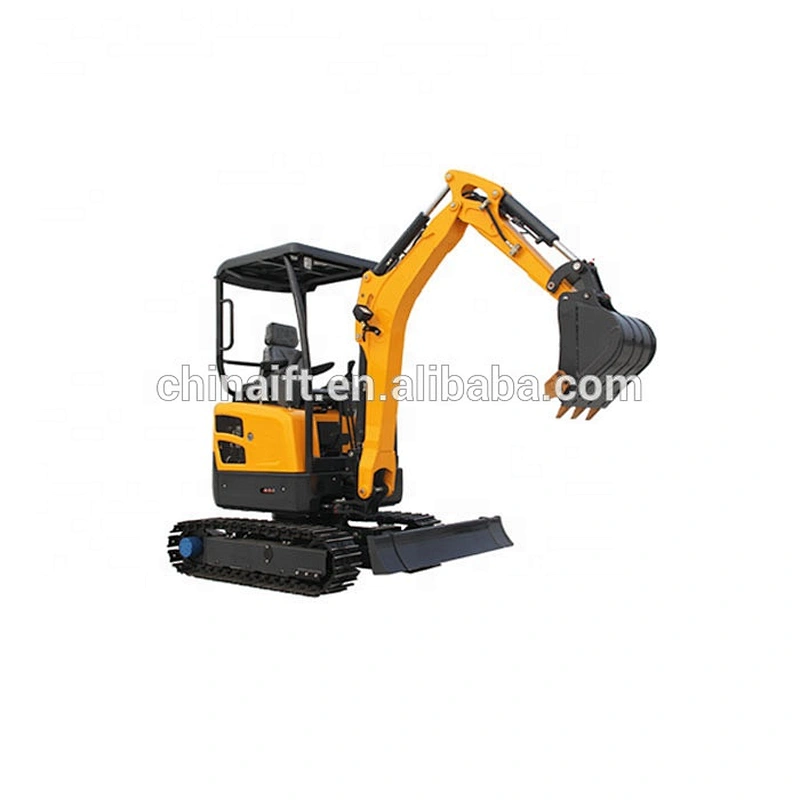

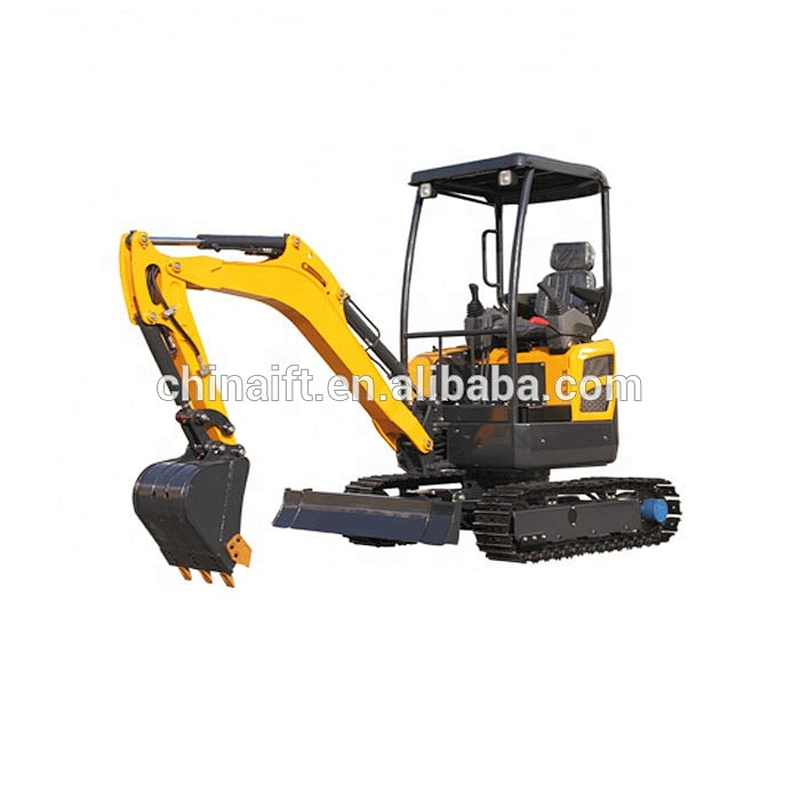

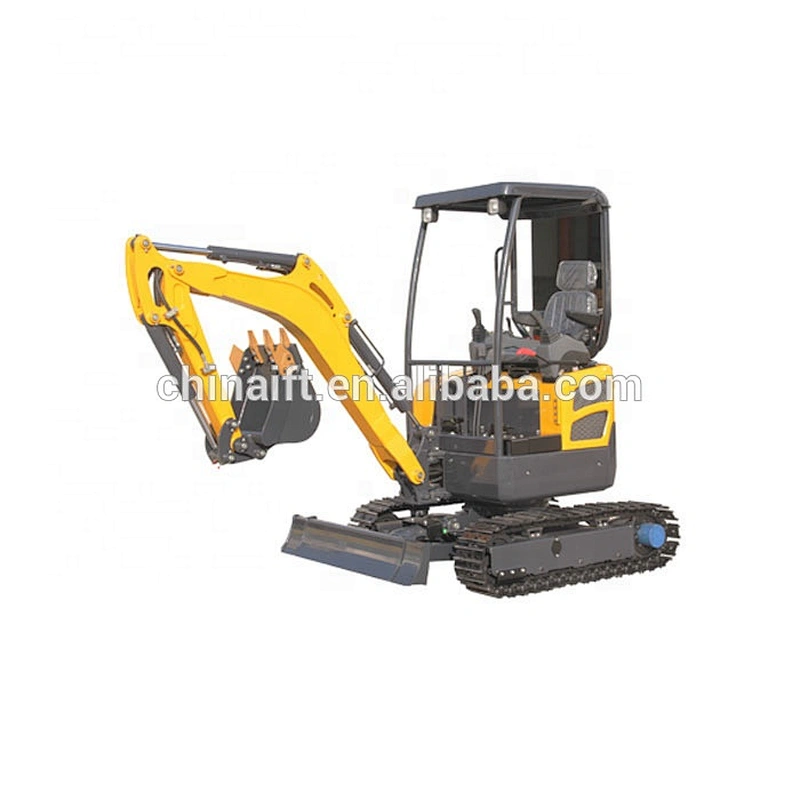

Mini excavator has the advantages of flexible and practical, high configuration,high performance, low oil consumption, beautiful appearance and wide application.Suitable for vegetable greenhouses loose, landscaping of municipal departments,orchard nursery tree digging, concrete pavement broken, sand and stone material mixing and small space construction operations,reducing maintenance and operating costs, improving the degree of mechanization.
PARAMETERS
Specifications | |
Model | YF-22 |
Bucket Capacity | 0.1m3 |
Swing speed | 0-12rmp |
Gradeablity | 30° |
Max. Bucket Digging Force | 15.3KN |
Max.Arm Digging Force | 10.5KN |
Engine Model | 3TE30 |
Power/revolution speed | 22.1/2300 KW/rmp |
System Pressure | 18 Mpa |
Machine Size | |
Dimension Length*Width*height | 4170*1300*2280mm |
Cabin Height | 2280mm |
Sproket to idler | 1230mm |
Wheel(Track) Guage | 1050mm |
Min Ground clearance | 230mm |
Tail Swing Radius | 1180mm |
Working range | |
Max Digging Height | 3700mm |
Max Dumping Height | 2290mm |
Max Digging Depth | 2450mm |
Max Vertical Digging Depth | 2160mm |
Max Digging Radius | 4370mm |
Min Swing Radius | 2020mm |
Max Dozer Blade Lifting Distance | 240mm |
Max Dozer Blade cuttingDistance | 310mm |
Boom Swing Angle(Left) | 70mm |
Boom Swing Angle(Right) | 50mm |
