33 ton long boom micro compare Crawler excavator with grab for sale

Price:: USD 88200.00-142000.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 100 piece / Month
Country of Origin: Qingdao/Shanghai/Guangzhou
Stock Time: Shipped in 25 days after payment Day

Quantity:

Product Description
Basic Information

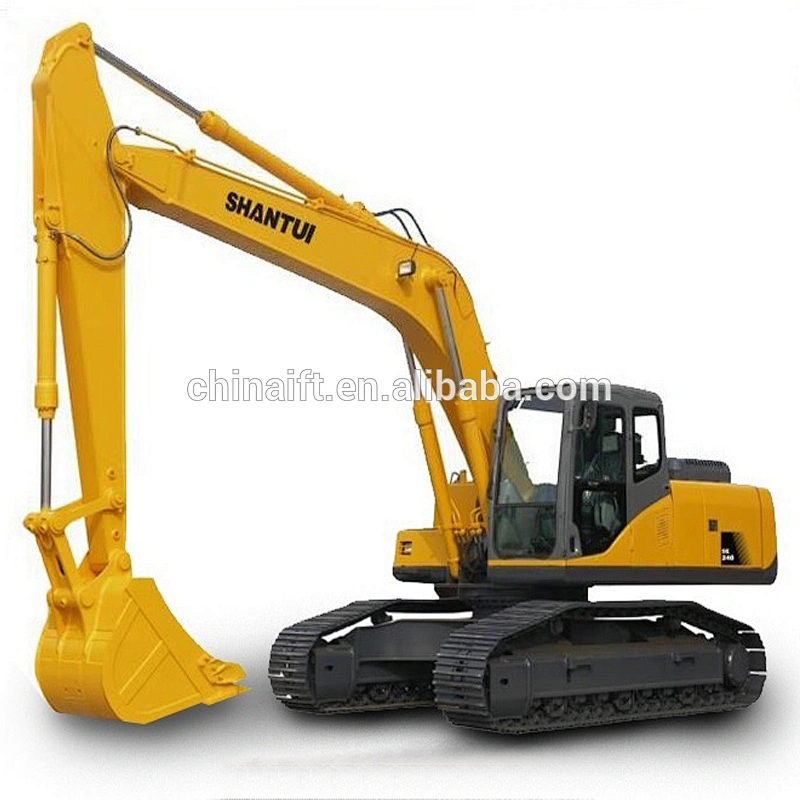

33t Crawler Hydraulic Excavator SE330 excavator SHANTUI/Foton Lovol

The medium-sized workhorse in Shantui’s lineup of excavators, the SE330 comes standard with imported Kawasaki hydraulics and Korean-made cylinders. It has a state-of-the-art multifunctional monitor, four working modes and either electronic or manual throttle controls. It sports an imported Cummins B series engine.

The boom confluence and diffluence combine for superior swing performance, making digging more efficient.

Product Description

SE210 -1.jpg SE210 -2.jpg

Performance Paramete

Specifications

U.S made Cummins engine, Japanese Kawasaki hydraulic system, KYB travel motor, 1M3 bucket

Characteristics:
- Komatsu KES standard production with strict quality control
- The US made Cummins engine 198KW global service available
- Japanese Kawasaki hydraulic pump, valve and swing motor
- Japanese Kayaba travel motor
- World famous electric parts
- Spacious cab with A/C and pilot control
Specifications:
- Engine:
  - Model: Cummins 6CTA8.3
  - Type: 4-cycle, water-cooled, direct injection and turbocharged
  - Piston displacement: 8.3L
  - Rating power: 198/2,200kW/rpm
  - Alternator: 24V, 70A
  - Battery: 24V, 120 x 2Ah
- Undercarriage:
  - Number of carrier rollers: 2 each side
  - Number of track rollers: 8 each side
  - Number of shoes: 45 each side
- Hydraulics:
  - Hydraulic pump: Kawasaki
  - Type: variable displacement piston type
  - Maximum flow: 265 x 2 + 30L/min
  - Valve: Kawasaki
  - Type: KMX15R
  - Control: full hydraulic joystick
  - Travel motor(KYB): axial piston (brake valve/parking brakes) x 2
  - Swing motor (Kawasaki)
  - Axial piston (safety valve/parking brakes) x 1
  - Hydraulic cylinders (KYB)
- Attachment:
  - Boom length: 6,470mm
  - Arm length: 3,185mm
- Working range:
  - Operating weight: 33,600kg
  - Maximum digging height: 10,200mm
  - Maximum dumping height: 7,135mm
  - Maximum digging depth: 7,370mm
  - Maximum vertical wall digging depth: 6,380mm
  - Maximum digging reach: 11,100mm
  - Maximum digging reach at ground level: 10,910mm
  - Maximum height at minimum swing radius: 8,500mm
  - Bucket digging force at power maximum: 248kN
  - Swing speed: 10.6rpm
  - Travel speed: 3.2 to 5.2km/hour
  - Average group press: 60.8kPa
- Size:
  - Overall length: 11,080mm
  - Length on ground (transport): 5,720mm
  - Width of crawler: 2,995mm
  - Overall height (to top of boom): 3,180mm
  - Over height (to top of cab): 3,278mm
  - Ground clearance counter weight: 1,208mm
  - Minimum ground clearance: 498mm
  - Tail swing radius: 3,418mm
  - Length of track on ground: 3,700mm
  - Track length: 4,622mm
  - Track gauge: 2,390mm
  - Width of crawler: 3,190mm
