800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker
800kg Low price YF08 mini small crawler excavator with hydraulic breaker

800kg Low price YF08 mini small crawler excavator with hydraulic breaker

Price:
USD 4900.00-5200.00 / piece
Delivery
FOB
Minimum order quantity
1 piece
Supply Ability
100 piece / Month
Country of Origin
shanghai, any port in China
Quantity:
Product Description

800kg Low price YF08 mini small crawler excavator with hydraulic breaker

800kg Low price YF08 mini small crawler excavator with hydraulic breaker



MINI EXCAVATOR:YF08

This excavator is designed for small project, garden, farmland municipal works etc, also can be used in playground, public park. It is with small engine, simple design, easy to maintain.





SPECIFICATION:

Model

YF08

Manufacturer

Jining Infront Construction Machinery Co., Ltd.

Brand

Infront

Operating Weight

800kg

Digging bucket capacity

0.025cbm/120kg

Digging bucket width

350mm, can add narrow bucket is 200mm

Engine

CHANGCHAI (KD192) / KOOP(KD192)

Rated power

8.6kw/3600r/min

Displacement

6.8ml/r

Bore stroke

single cylinder, fan cool

Main pump

SAISIDA

Pump flow

16L/min

Valve

BEIFANG

Swing motor

SJ-TECH (MP-1-160)

Traveling motor

KERSEN (OMS-2450)

MAIN DEMENSIONS

Overall dimension( LxWxH)

2770x896x1490 mm

Wheelbase

910 mm

Total length of track on land

1230mm

Platform ground clearance

380 mm

Platform back turning radius

784 mm

Chassis width

896 mm

Track width

180 mm

Chassis ground clearance

132 mm

Bucket digging force

9.6kn

Arm digging force

8.5kn

Track height

320 mm

OPERATING RANGE

Max. Digging depth

1650 mm

Max. Vertical digging depth

1375 mm

Max. Digging height

2610 mm

Max. Dumping height

1850 mm

Max. Digging radius on ground

2850 mm

Min. Rotation radius

1330 mm

Max. Upgrade height of bulldozer blade

345 mm

Max. Digging depth of bulldozer blade

255 mm

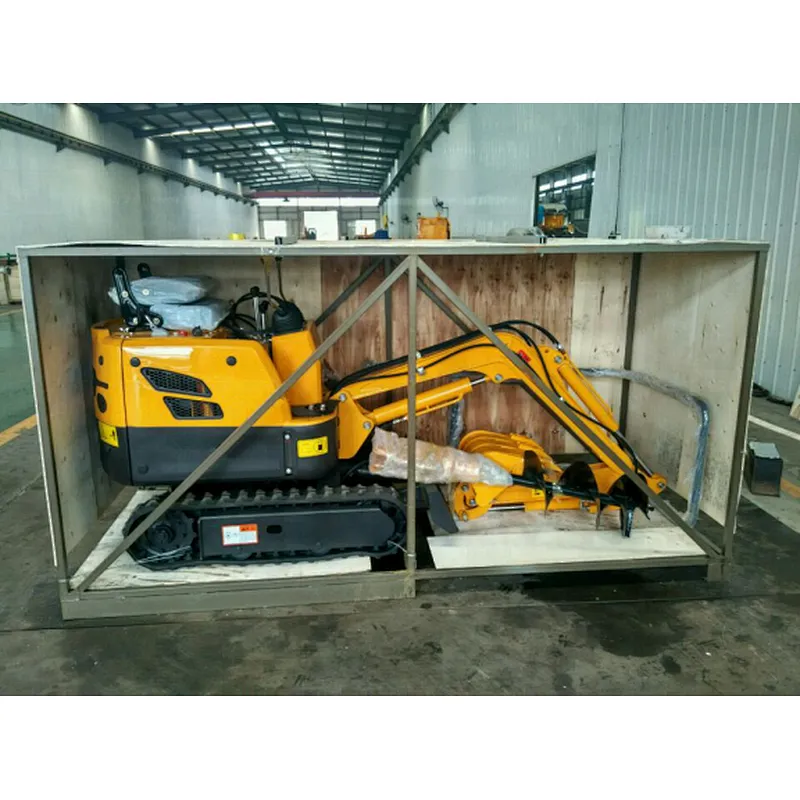

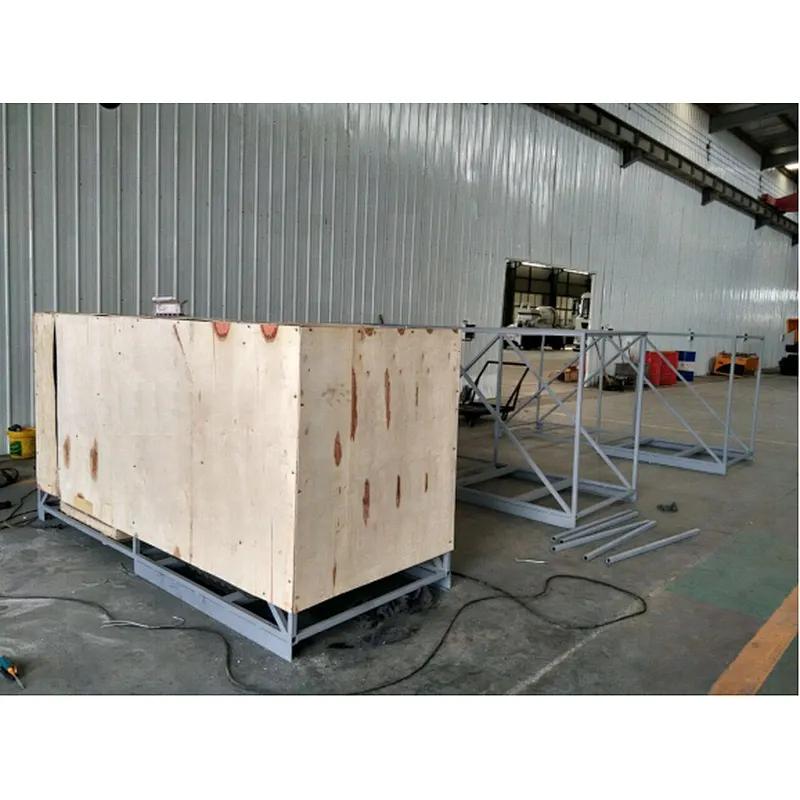

Packaging & Shipping





Relational Attachment





Our Services

 our service



Company Information

 Replying on SHANTUI Construction Machinery, based on domestic and abroad e-commerce platform, Jining Infront Construction Machinery Co.,Ltd is a professional international trading company, which is entitled to import and export rights and specializing in cross-border online sales of large-scale construction machine and related spare parts. Our main products are Bulldozer, Excavator, Compactor, Motor grader, Wheel loader, Road paver and related spare parts, which meet domestic trade of more than thirty provinces, cities and municipalities, and also exported to Europe, Africa, America, Russia, etc. By virtue of our superior quality and well-deserved reputation, we won praises at home and abroad and made great contribution to get Chinese machinery out into the world. We promised to provide you with the first-class items and service, to build the first-class team, to create first-class values and to establish first-class enterprise image. We believe that we are able to be the main force of construction machinery field by the effort of all of our staff. We aim to make our service famous around the world, to have more opportunity to make friends from worldwide, let’s seize the chance for a better future!










FAQ

 1,How long will take to delivery the goods after placing an order?

It will take about 1-7workdays after getting the deposit if we have goods in stock. Some customized goods will need about 30workdays to delivery.



2,If our machines have any problems, When will your side can reply to us?

We will solve your problems immediately once get your message. Usually it will take 1~2hours to give you the solution or explanation.



3,What kind of good policy your can supply if we want to be your distributor?

Special discount and protection of sales area can be provided to your distributor.



4,Which incoterms 2010 terms can we work?

We are a professional and sophisticated international player, can handle all Incoterms 2010 terms, and we normally work on EXW,FOB,CFR,CIF, Etc.



Jining Infront Construction Machinery Co., Ltd.

Miss. Leah Zhang



Skype:jkmachinery801    QQ:2748523788

Mobile/Whats up: +0086 183 6981 5899

WeChat: 86 183 6981 5899

Email:sales08@ chinaift.com

Contact me if you are interested, hope we could be your long-term and quality supplier,thank you !



  • Certification:CE ISO
  • Max Digging Radius:2850mm
  • Machine Weight:800 Kg
  • Maximum Digging Depth:1375mm
  • Maximum Digging Height:2610mm
  • Bucket capacity:0.025m3
  • Operating Weight:800kg
  • Moving Type:Crawler Excavator
  • Condition:New
  • Brand Name:Infront
  • Place of Origin:Shandong,China (Mainland)
