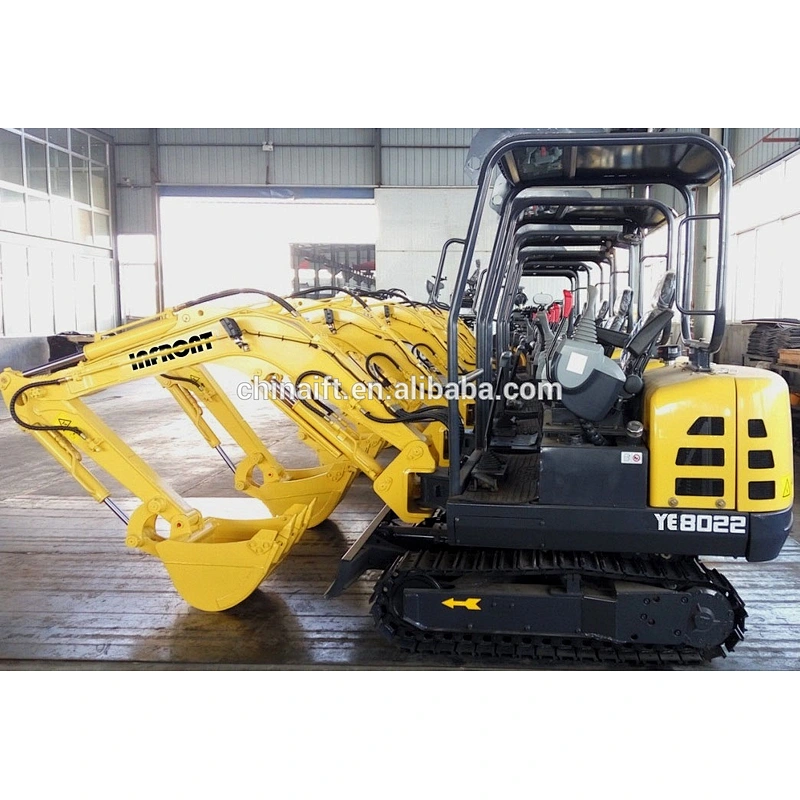

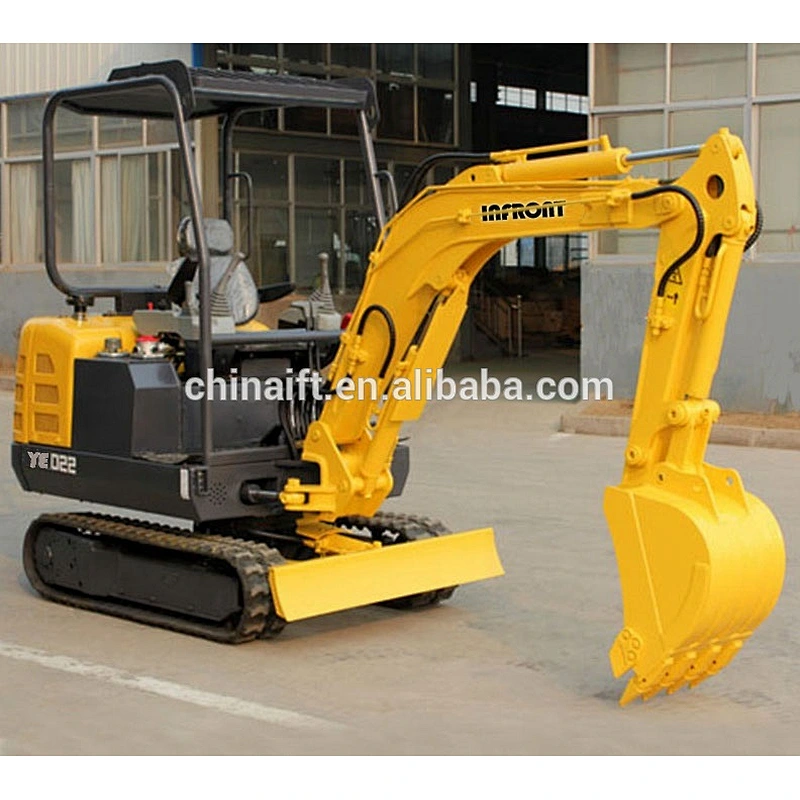

CE ISO Approved 2.2T 20kw RC mini digger YE8022 with Changchai390 for sale Excavator

CE ISO Approved 2.2T 20kw RC mini digger YE8022 with Changchai390 for sale Excavator

Price:: USD 10500.00-13000.00 / piece
Delivery: FOB
Minimum order quantity: 1 piece
Supply Ability: 100 piece / Month
Country of Origin: Qingdao/Shanghai/Guangzhou
Stock Time: Shipped in 15 days after payment Day

Quantity:

Product Description
Basic Information

Main Specifications and characters:
1.Changchai ZN390Q engine with optimized silencer and air intake system offers great power,lower noise,lower fuel consumption,low emission,etc and maintenance becomes more easy.
2.Pilot controls imported from Korea makes operation more convenient and moderate.
3.High precision integrated instrument panel provides rea-time monitoring on machine performance.
4.Adopt load sensitive multi-way valve of Rexroth to reinforce synchronism of every action.

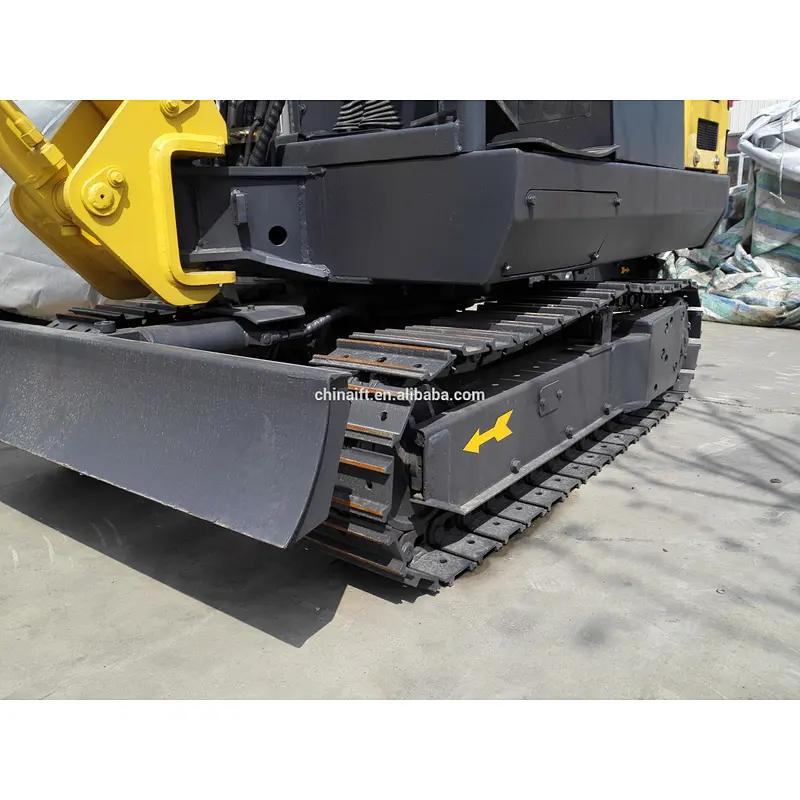

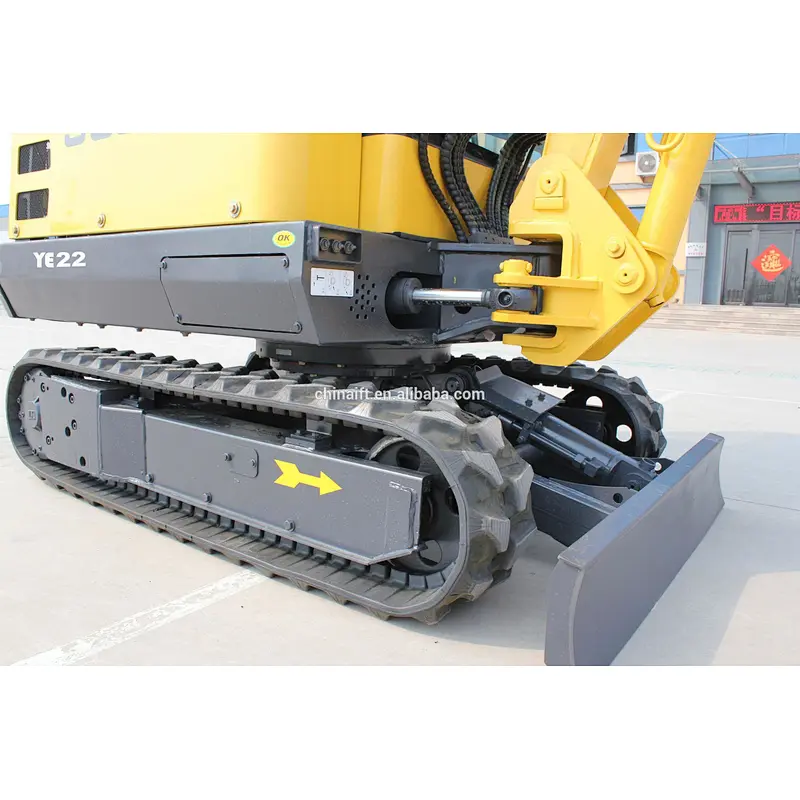

5.Reinforced rubber track greatly improves the wear-resisting ability as well as the protection to the road while walking.
6.With pilot operated foot valve,double action triple valve and pipeline,breaking hammer,hydraulic clamp and other devices are available.

Product Description

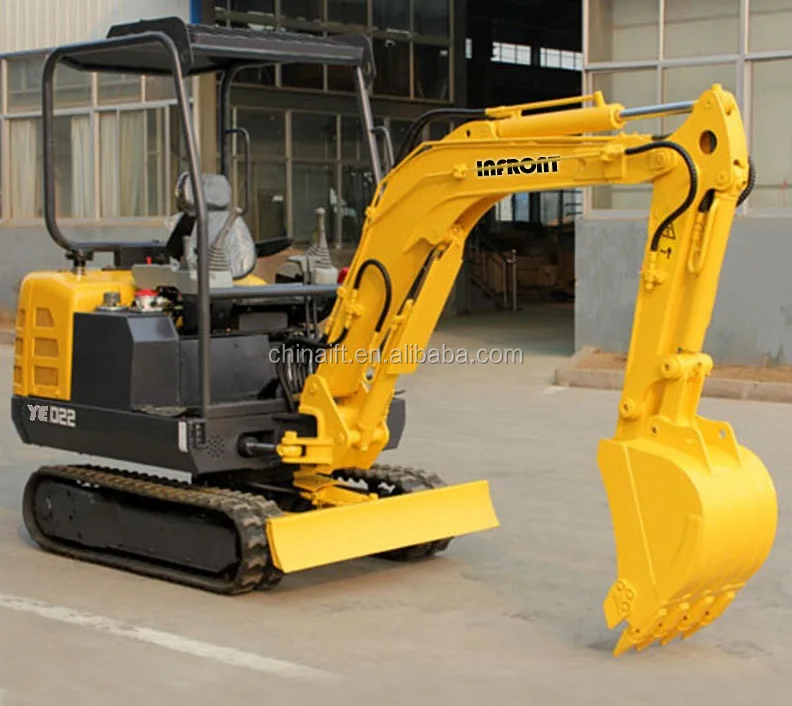

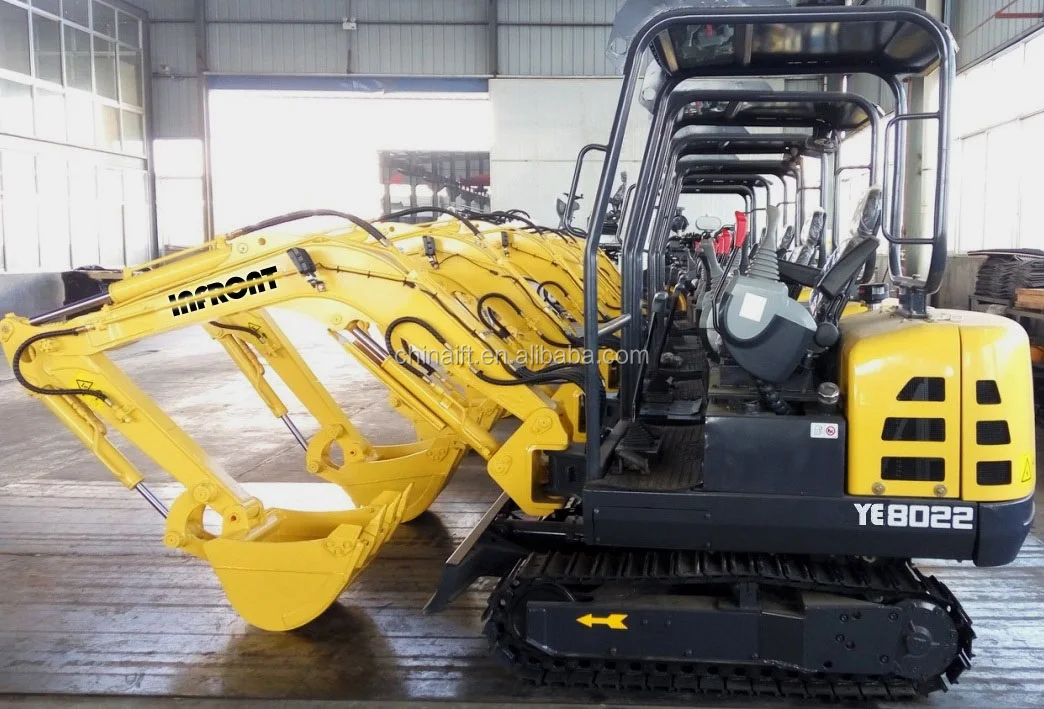

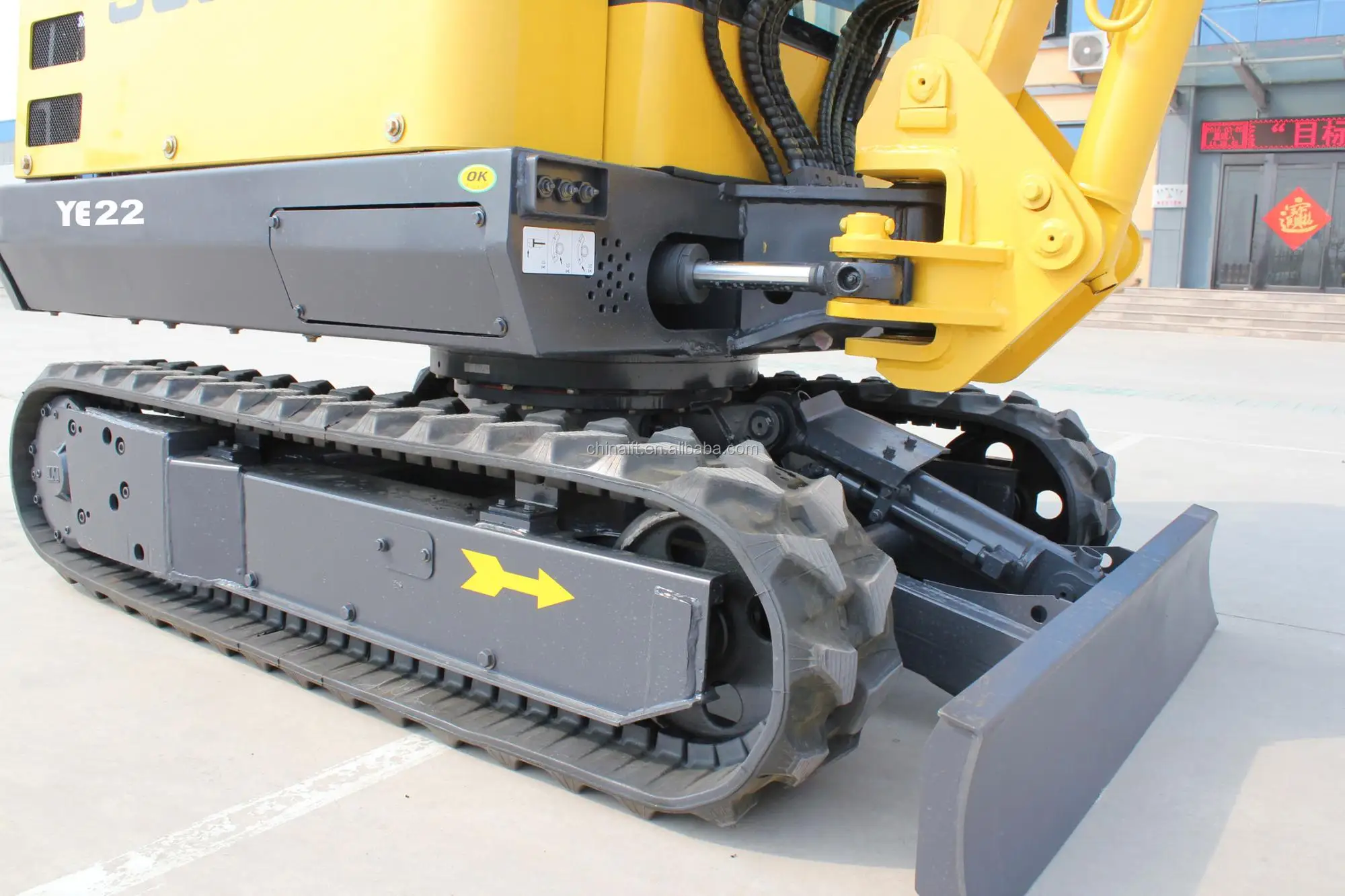

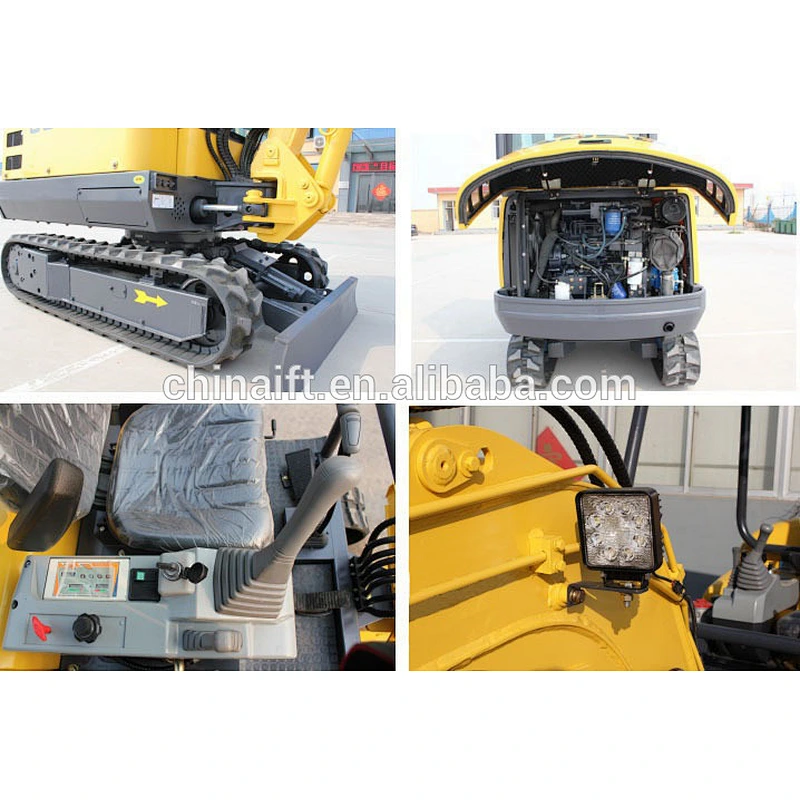

SG8022 (3) SG8022 (6) SG8022 (10) IMG_20170411_103322 SG8022 (14)

Performance Paramete

Partition	Project		YE8022
POWERDEVICE	3-cylinder Engine		ZN390Q
OVERALL DIMENSIONS	Total Length(mm)		4082
	Total Width(mm)		1200
	Total Height(mm)		2128
	Ground Clearance(mm)		458
	Track	Track Gauge(mm)	950
		Track Width(mm)	230
		Track Length (on ground)(mm)	1250
	Total Weight(Kg)		2200
	Ground Pressure(Kpa)		38
PERFORMANCE	Max. Digging Height(mm)		3714
	Max.Digging Radius(mm)		4023
	Max.Digging Depth(mm)		2150
	Max.Dumping Height (mm)		2488
	Slewing Angle		360°
	Grade ability		25°
	Travel Speed(Km/h)		2.2
	Bucket Capacity(m³)		0.08
	Bucket Width(mm)		490
HYDRAULIC SYSTEM	Main Pump		Triple Pump
	Main Pressure(Mpa)		16
	Max.RPM of the pump(r/min)		3000
	Pump Displacement(ml/r)		12
			12
			6
